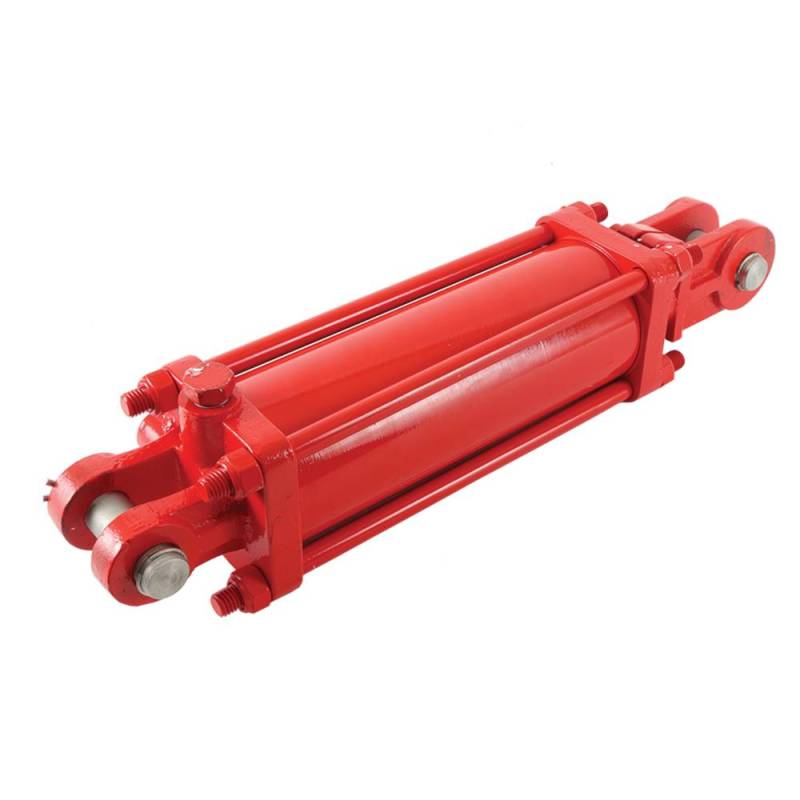

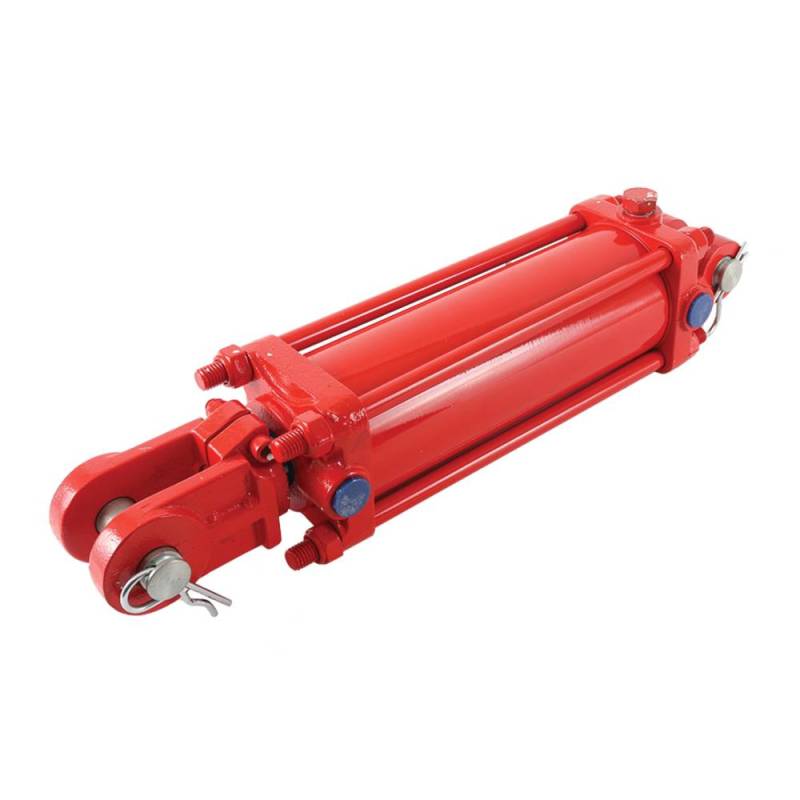

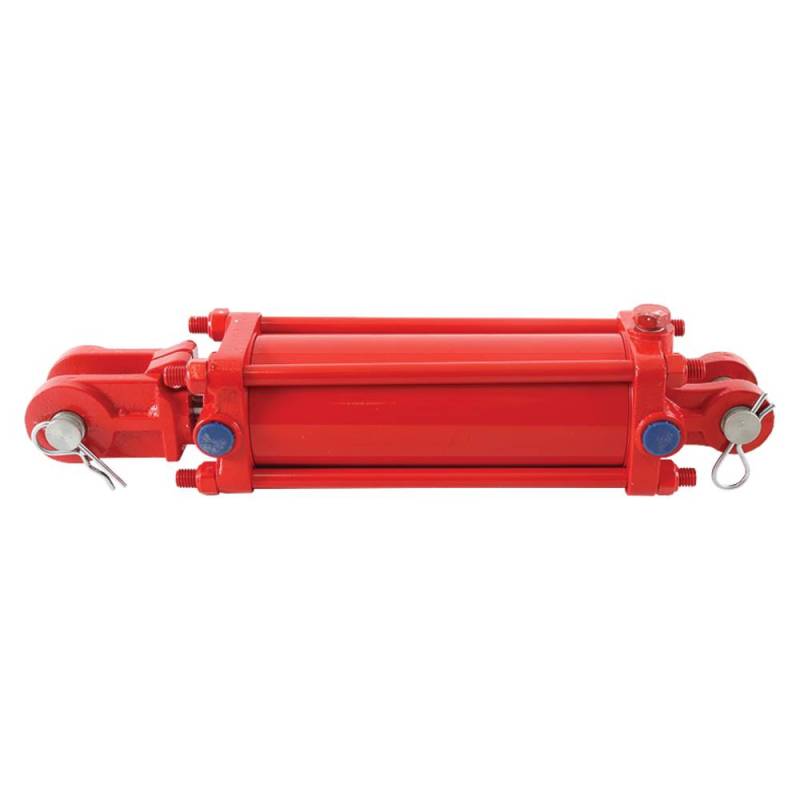

Hydraulic Cylinder 3 In Bore 8 In Stroke Compatible With Tractor Loader Blade Double Acting Tie Rod

PART NUMBERS:
• Cross Reference: 308DB
• Compatible with Cross Manufacturing DB Series Tie Rod Cylinders

SPECIFICATIONS:
• Type: Double Acting Tie Rod Hydraulic Cylinder
• Bore Diameter: 3 Inches
• Stroke: 8 Inches
• Rod OD: 1 1/4 Inches — Chrome Plated
• Pin Diameter: 1 Inch — Zinc Plated Steel
• Port Diameter: 1/2 Inch NPT
• Closed Length: 18.45 Inches
• Working Pressure: 2500 PSI
• Tube: Cold Drawn Steel
• Piston: ASTM A536 Ductile Iron
• Clevises: Ductile Iron — Female Screw-On
• Condition: New — Direct Replacement

APPLICATIONS:
• Tractor Front End Loader / Bucket Tilt / Snow Plow / Blade
• Log Splitter / 3 Point Hitch / Forestry / Material Handling

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
