PART NUMBERS:
• Cross Reference: 208DB
• Compatible with Cross Manufacturing DB Series Tie Rod Cylinders
SPECIFICATIONS:

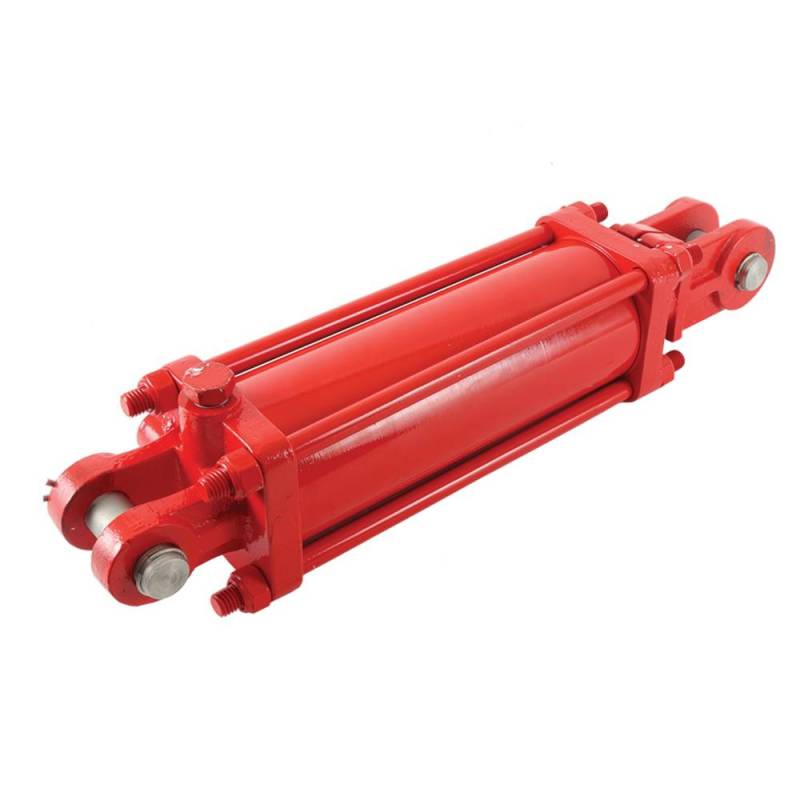

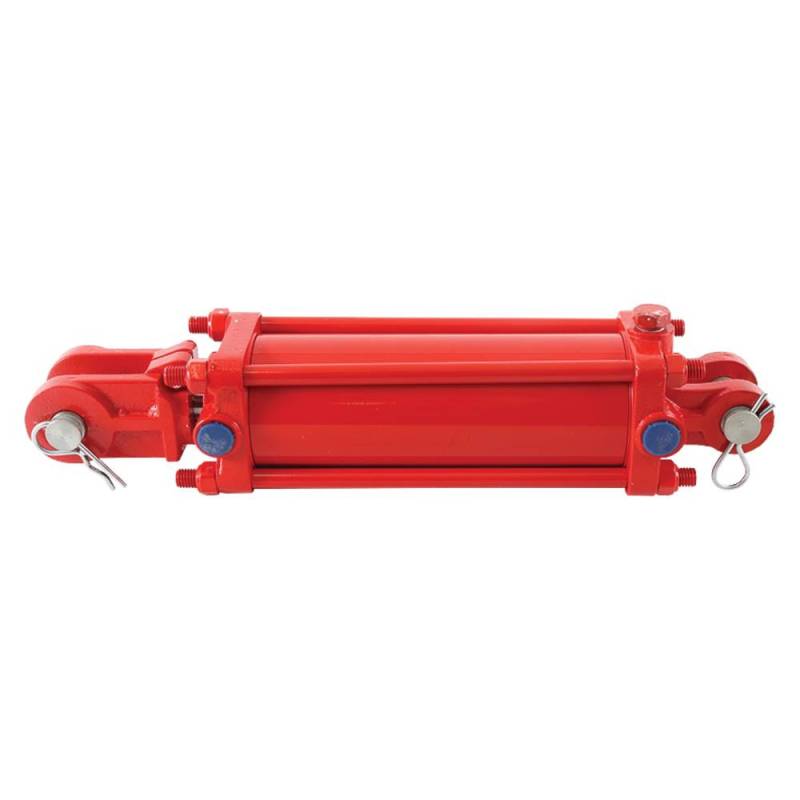

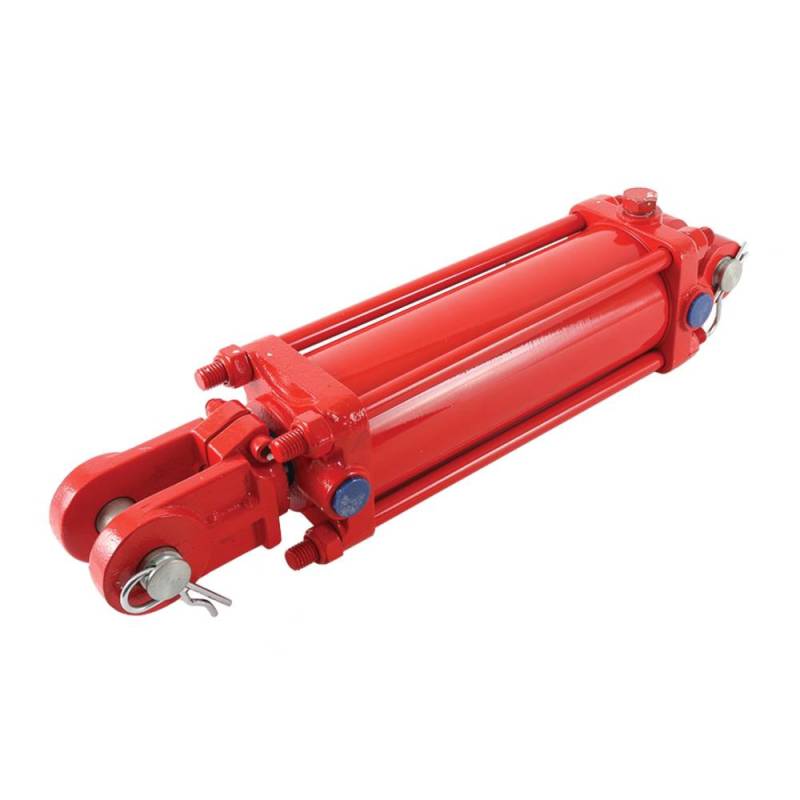

• Type: Double Acting Tie Rod Hydraulic Cylinder
• Bore Diameter: 2 Inches
• Stroke: 8 Inches
• Rod OD: 1 1/8 Inches — Chrome Plated
• Pin Diameter: 1 Inch — Zinc Plated Steel
• Port Diameter: 3/8 Inch NPT
• Closed Length: 18.35 Inches
• Extended Length: 26.35 Inches
• Working Pressure: 2500 PSI
• Tube: Cold Drawn Steel
• Piston: ASTM A536 Ductile Iron
• Clevises: Ductile Iron — Female Screw-On
• Seals: 70 Durometer Buna N O-Rings
• Condition: New — Direct Replacement
APPLICATIONS:
• Tractor Front End Loader / Bucket Tilt / Snow Plow / Blade
• Log Splitter / 3 Point Hitch / Forestry / Material Handling
