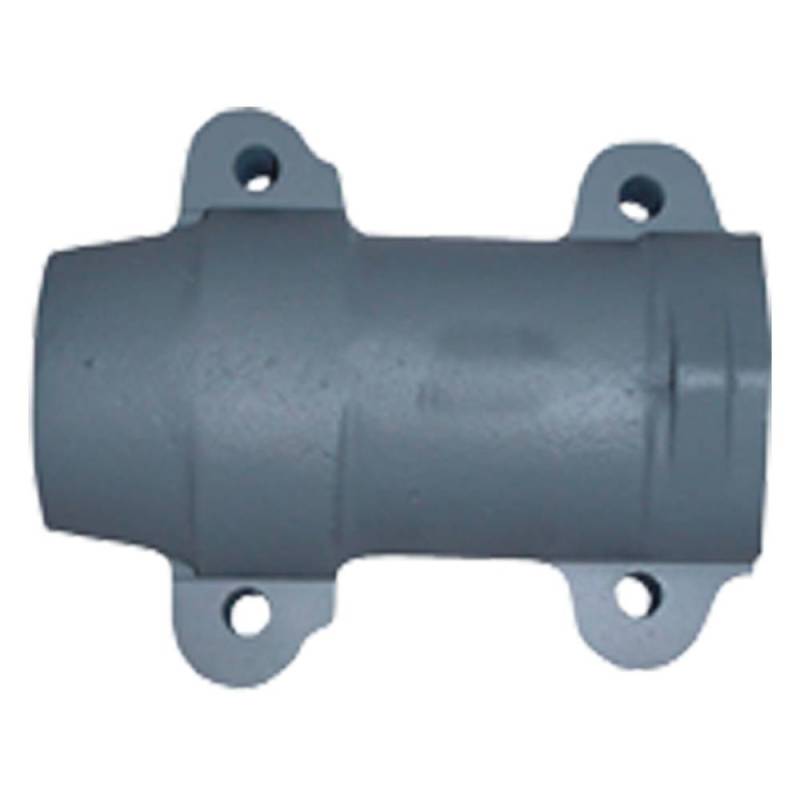

Hydraulic Lift Cylinder Compatible With Ford 9N 2N 8N 1939-1952 Massey Ferguson To20 To30 Te20 Tea20

1101-1050A1

OEM PART NUMBERS:
• Ford: 9N510D / 9N510D-A / 9N510B / 201183
• Massey Ferguson: 829382M1 / 829382V1 / 180884M1 / 180884M1-A
• Other: 7248 / HYI40-0556 / 1201-1005

SPECIFICATIONS:
• Type: Hydraulic Lift Cylinder
• Inner Diameter (Bore): 2-1/2" (63.5mm)
• Overall Length: 7.28" (185mm)
• Height: 3.90" / Width: 5.56"
• Stud Size: 7/16" (11.11mm)
• Bolt Hole: 0.46"
• Weight: ~10.96 lbs
• Accepts Updated O-Ring Piston or Old 3-Ring Piston
• Condition: New

APPLICATIONS:
• Ford: 2N / 8N / 9N
• Massey Ferguson: TE20 / TEA20 / TO20 / TO30
• Massey Ferguson: 270 / 275 / 283 / 290

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $223.34
Sale: $127.62
Save: 43%
Save: $95.72
Qty:
Free Shipping!

Description


FORD N-SERIES TRACTORS:
• Ford 9N (1939-1943) — 119.7ci Flathead I4
• Ford 2N (1942-1947) — 119.7ci Flathead I4
• Ford 8N (1947-1952) — 119.7ci Flathead I4

MASSEY FERGUSON TE/TO SERIES TRACTORS:
• Massey Ferguson TE20
• Massey Ferguson TEA20
• Massey Ferguson TO20
• Massey Ferguson TO30

MASSEY FERGUSON OTHER (by part number cross-reference):
• Massey Ferguson 270 / 275 / 283 / 290

SPECIFICATIONS:
• Type: Hydraulic Lift Cylinder
• Inner Diameter (Bore): 2-1/2" (63.5mm)
• Overall Length: 7.28" (185mm)
• Height: 3.90"
• Width: 5.56"
• Stud: 7/16" (11.11mm)
• Bolt Hole Diameter: 0.46"
• Weight: Approximately 10.96 lbs
• Accepts both new updated O-ring piston (with leather backup washer) and old style 3-steel ring piston
• Condition: New (NOT Remanufactured)

NOTE: This 2-1/2" ID cylinder accepts either the new updated piston with leather backup washer (NAA530B) or the old style 3-steel ring piston. Verify OEM part number before ordering.

Details

Shipping Information

  • Item Requires Shipping
  • 11.1 lbs.
  • W6.6000” x H4.4000” x L8.4000”
  • Free Shipping!
