THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

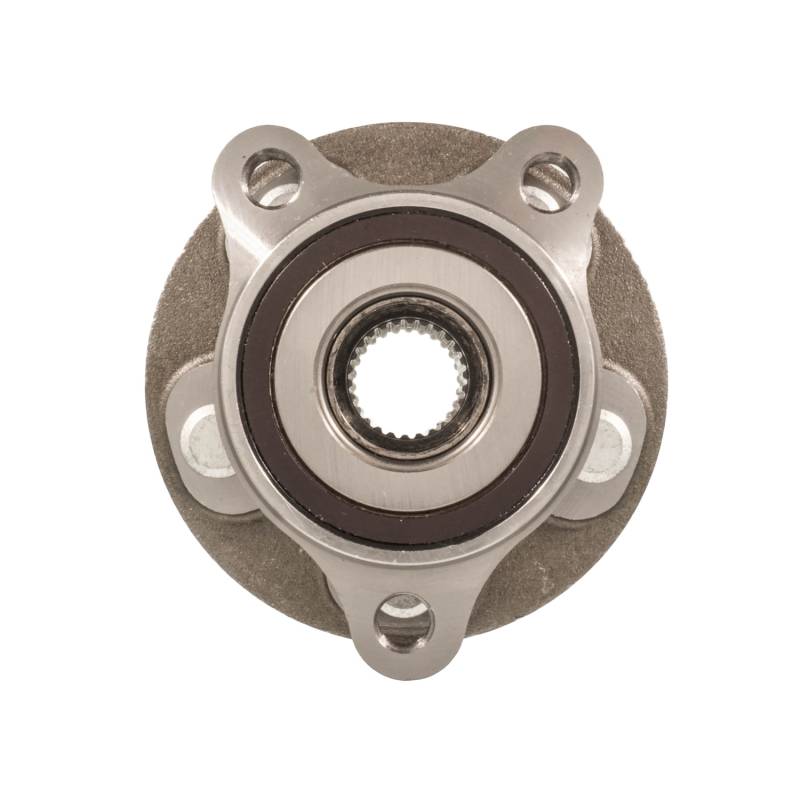

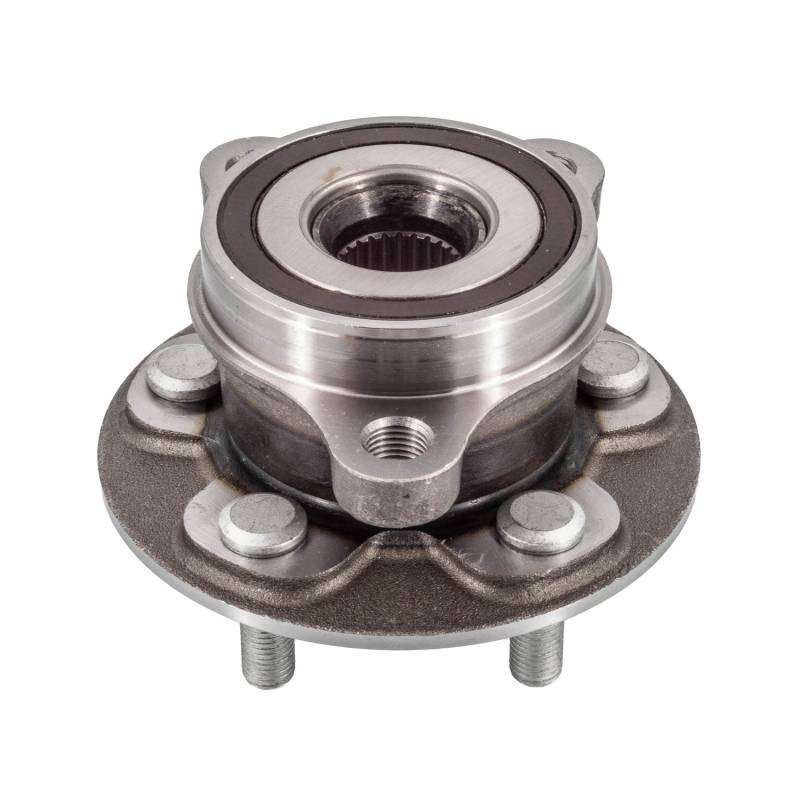

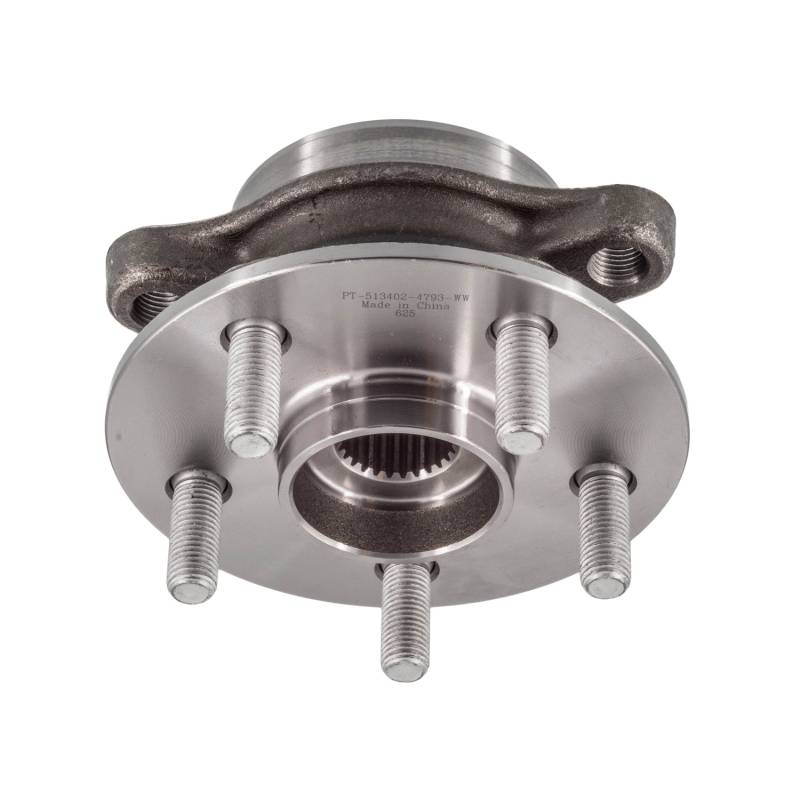

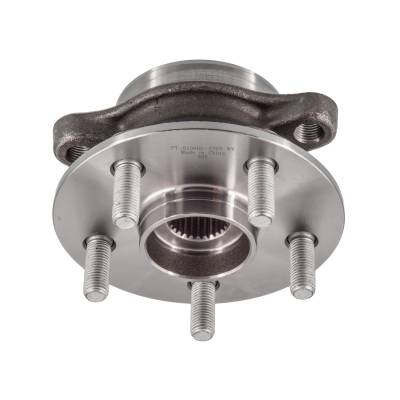

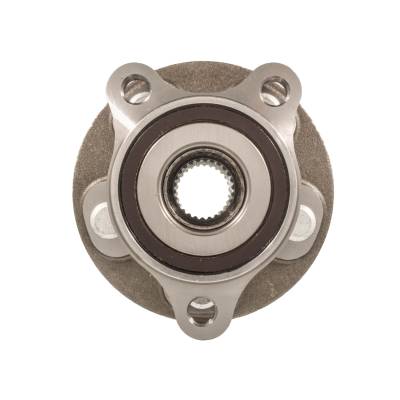

PRODUCT TYPE: HUB ASSEMBLY

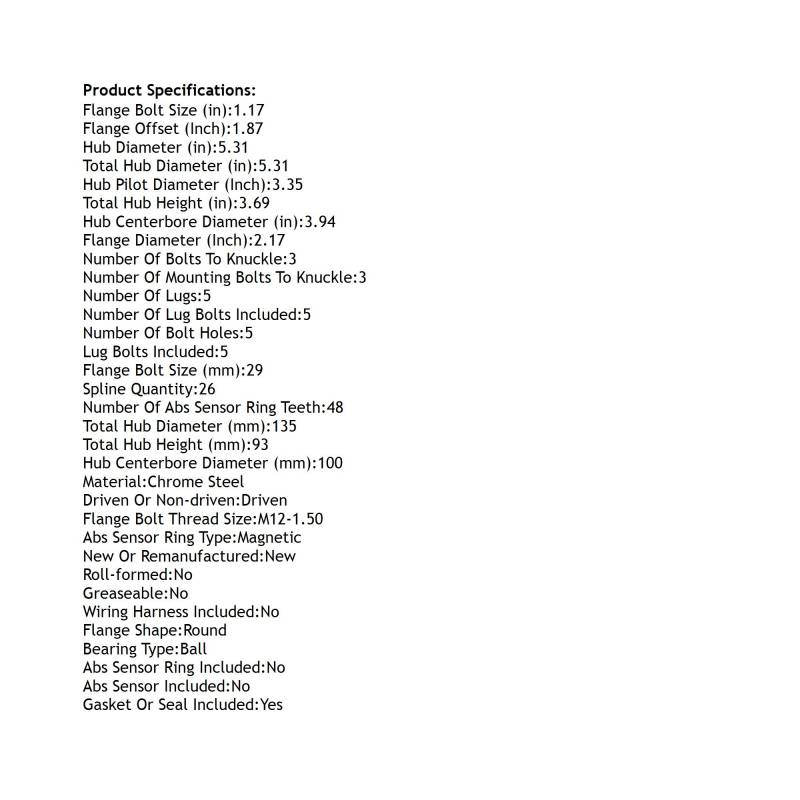

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.17
FLANGE BOLT SIZE (MM): 29
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.17
FLANGE OFFSET (INCH): 1.87
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 3.94
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.31
HUB PILOT DIAMETER (INCH): 3.35
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 5.31
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 3.69
TOTAL HUB HEIGHT (MM): 93
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-612768
BCA: WE61869
CENTRIC PARTS: 40144007
GSP: 694287
MOOG HUB ASSEMBLIES: 513402
NAPA: PBR931106
APPLICATIONS:
TOYOTA PRIUS C (2017-2021)
TOYOTA PRIUS PRIME (2017-2022)
TOYOTA PRIUS V (2017-2018)
TOYOTA PRIUS (2017-2022)
TOYOTA PRIUS AWD-E (2019-2022)
TOYOTA COROLLA (2020-2024)
TOYOTA COROLLA CROSS (2022-2024)
