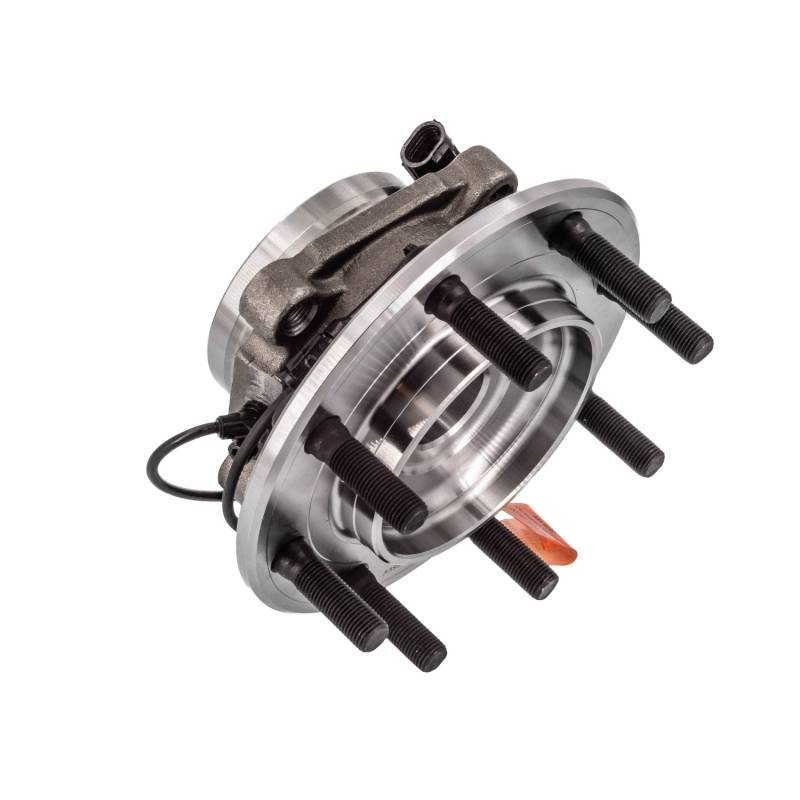

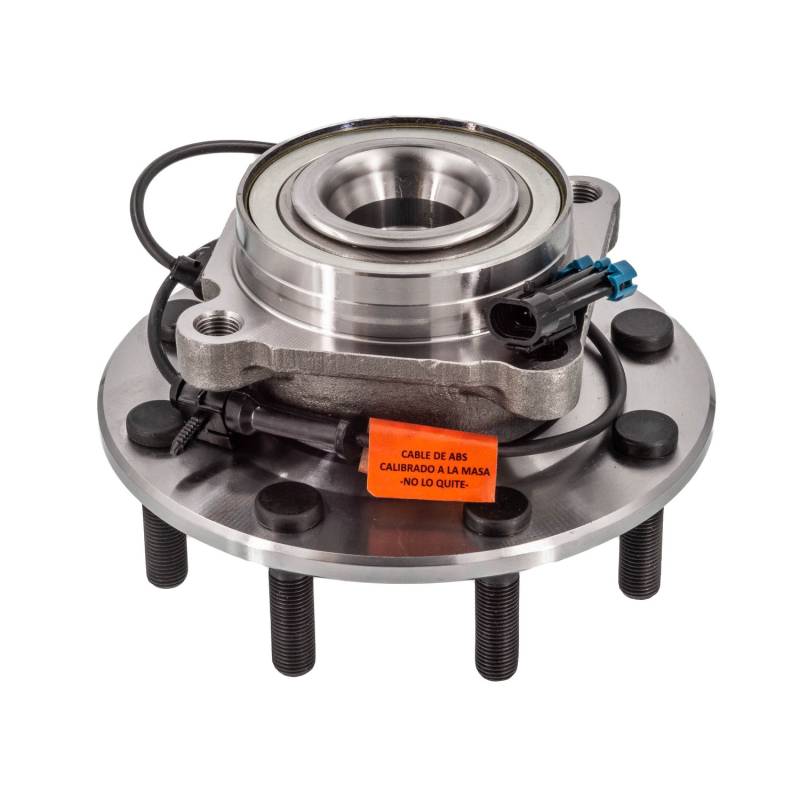

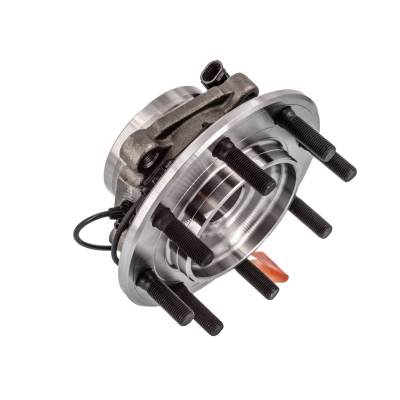

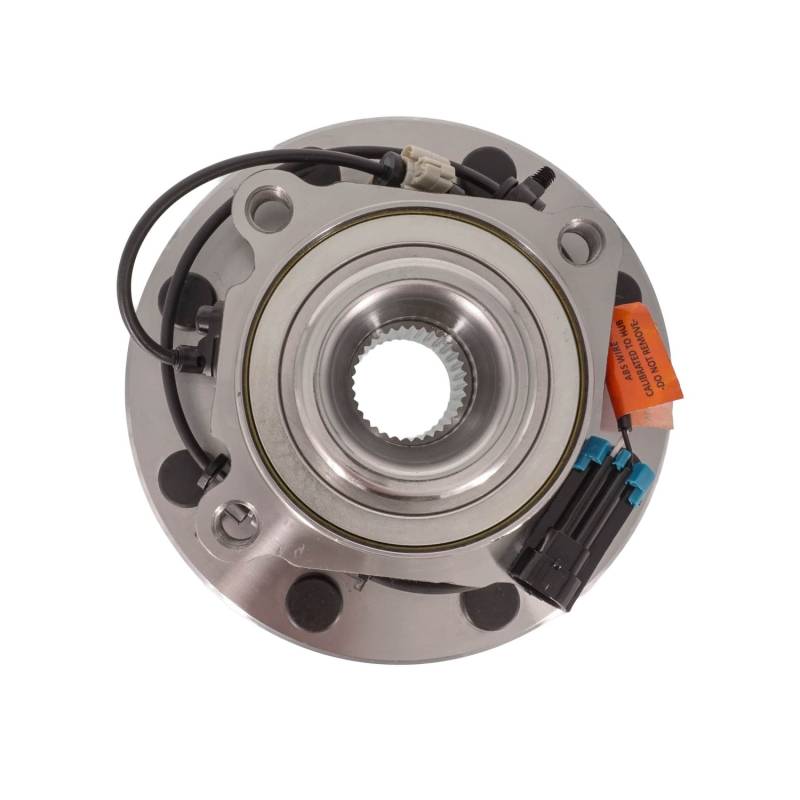

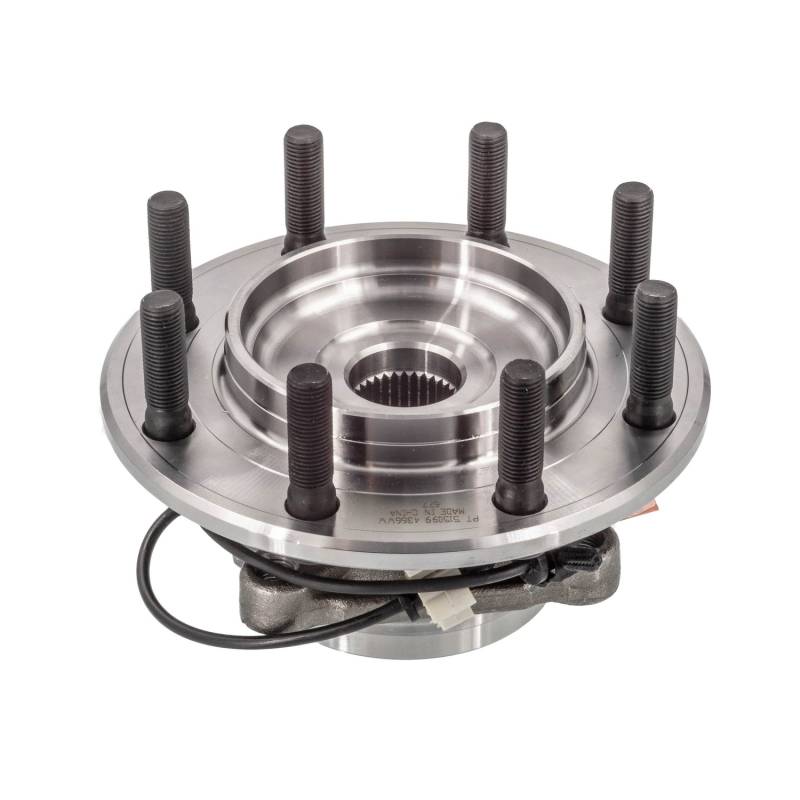

PRODUCT TYPE: HUB ASSEMBLY

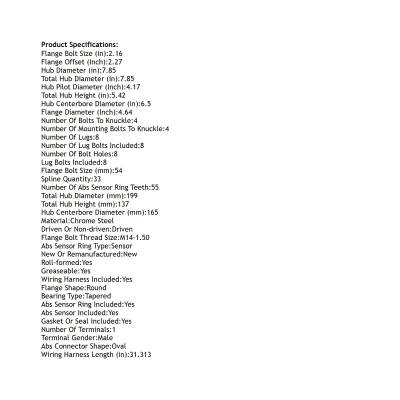

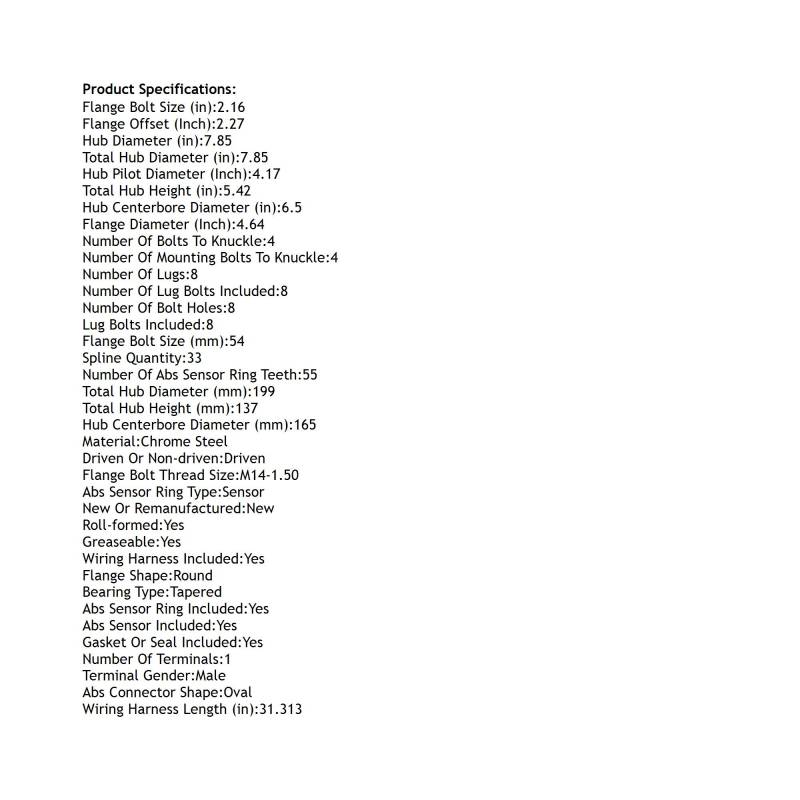

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 2.16
FLANGE BOLT SIZE (MM): 54
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 4.64
FLANGE OFFSET (INCH): 2.27
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165
HUB DIAMETER (IN): 7.85
HUB PILOT DIAMETER (INCH): 4.17
LUG BOLTS INCLUDED: 8
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 8
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.85
TOTAL HUB DIAMETER (MM): 199
TOTAL HUB HEIGHT (IN): 5.42
TOTAL HUB HEIGHT (MM): 137
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 31.313
REPLACES:
ACDELCO: FW391
AUTOPART INTERNATIONAL: 1411-334843
BCA: WE61577
CENTRIC PARTS: 40266017
GENERAL MOTORS: 22740470
GSP: 106099
MEVOTECH: H515099
MOOG HUB ASSEMBLIES: 515099
NAPA: PBR930783
THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.
CHEVROLET SILVERADO 3500 HD 2007–2010 4WD
CHEVROLET SILVERADO 3500 HD 2008–2010 RWD
GMC SIERRA 3500 HD 2007–2010 4WD
GMC SIERRA 3500 HD 2008–2010 RWD
