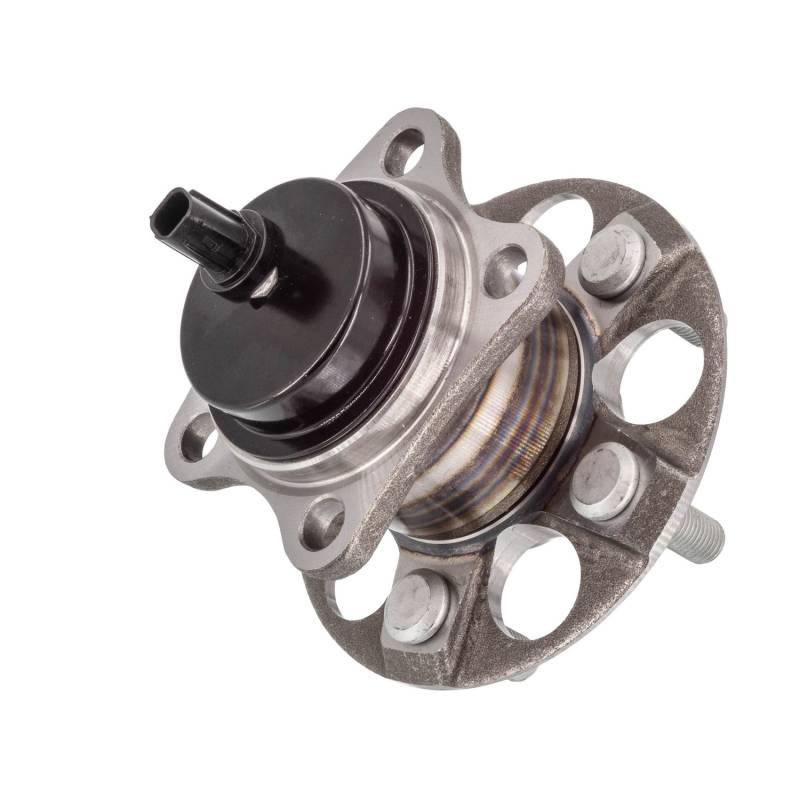

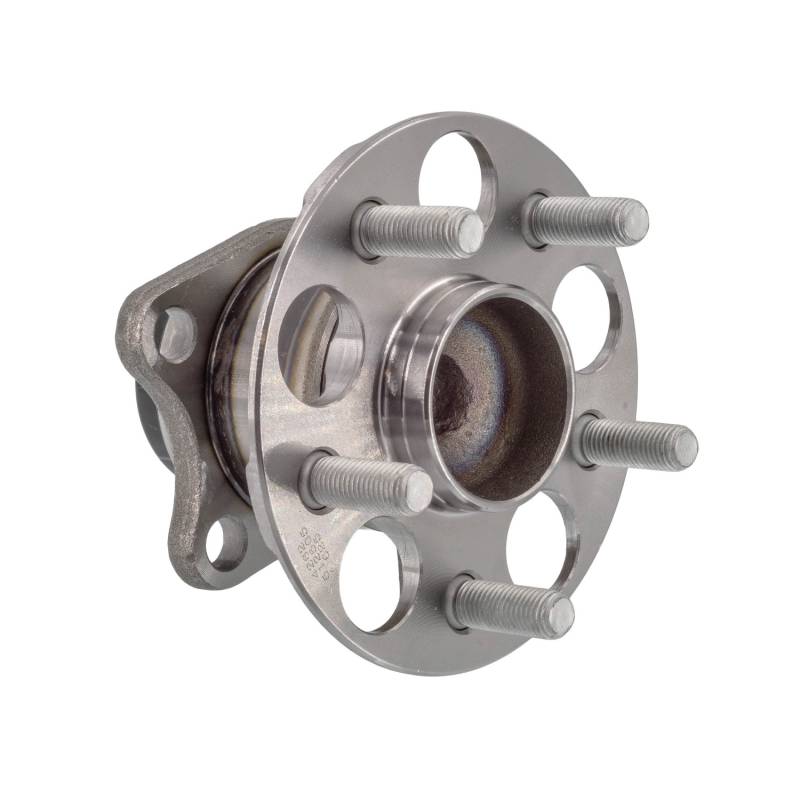

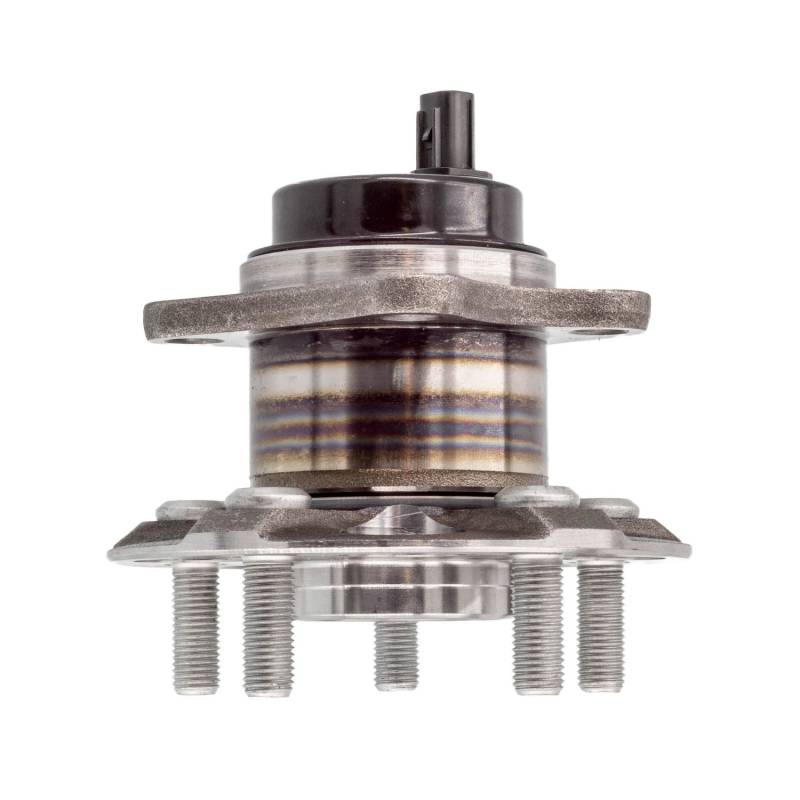

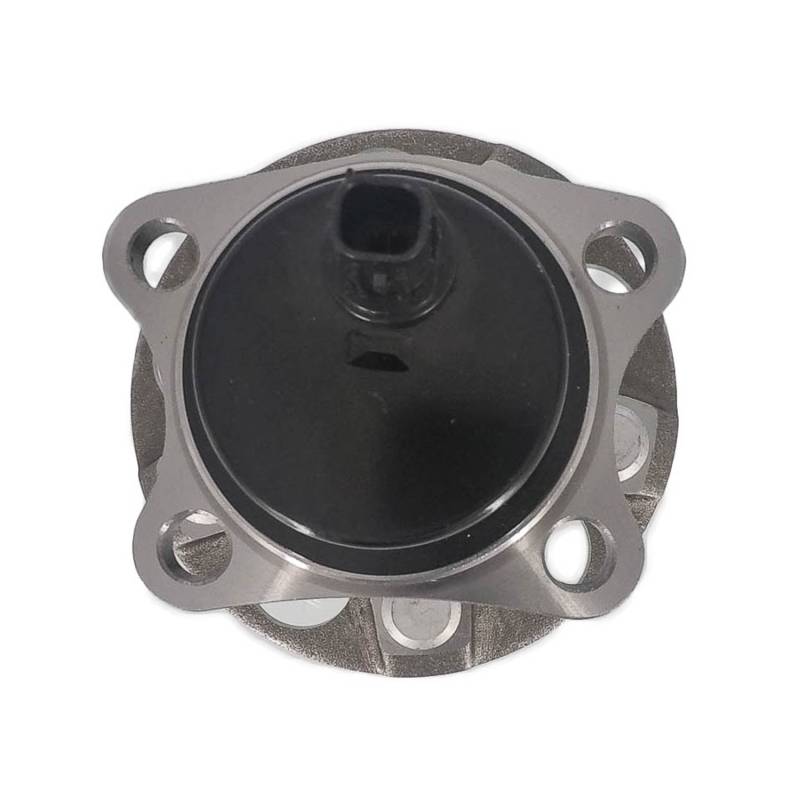

New Hub Assembly Compatible With Toyota Prius Prius C Prius Plug-In Prius V 1.5L 1.8L 2010 2011 2012

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

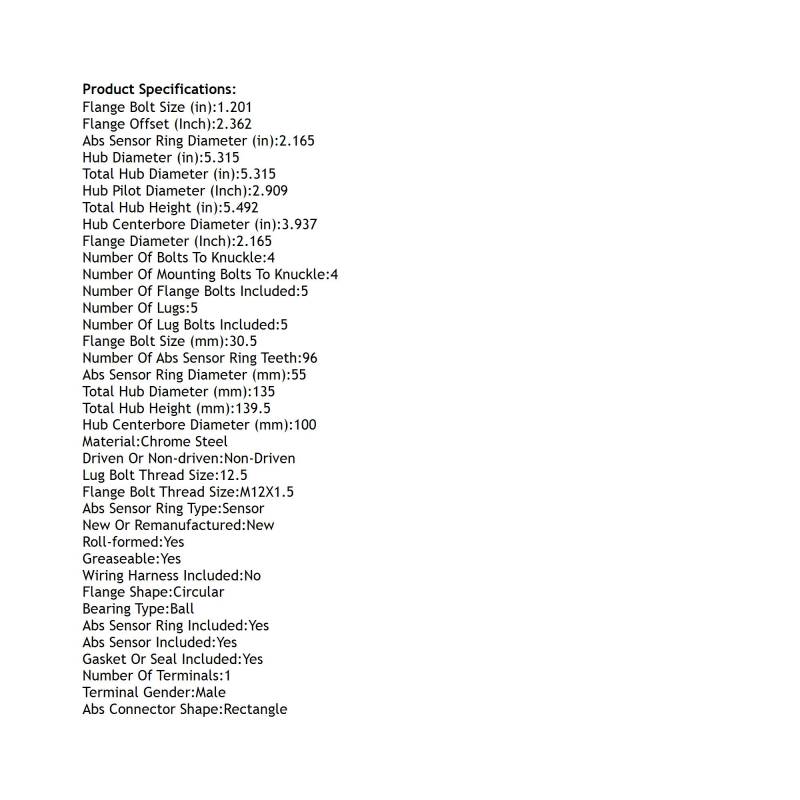

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.165
ABS SENSOR RING DIAMETER (MM): 55
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.201
FLANGE BOLT SIZE (MM): 30.5
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.165
FLANGE OFFSET (INCH): 2.362
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.937
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.315
HUB PILOT DIAMETER (INCH): 2.909
LUG BOLT THREAD SIZE: 12.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.315
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 5.492
TOTAL HUB HEIGHT (MM): 139.5
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-424988
BCA: WE61836
BECK/ARNLEY: 051-6436
FAG US: 103284
GSP: 693505
MEVOTECH: MB86305
MOOG HUB ASSEMBLIES: 512505
NAPA: PBR930931

APPLICATIONS:
TOYOTA PRIUS (2010-2015)
TOYOTA PRIUS C (2012-2015)
TOYOTA PRIUS PLUG-IN (2012-2015)
TOYOTA PRIUS V (2012-2015)
