THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.
PRODUCT TYPE: HUB ASSEMBLY

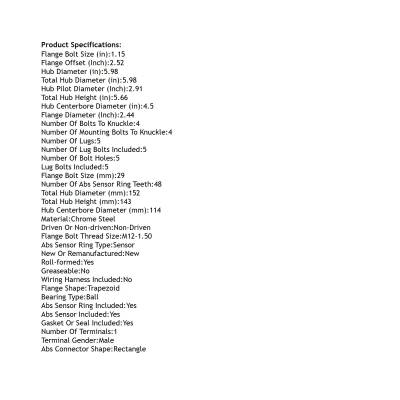

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.15
FLANGE BOLT SIZE (MM): 29
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.44
FLANGE OFFSET (INCH): 2.52
FLANGE SHAPE: TRAPEZOID
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.98
HUB PILOT DIAMETER (INCH): 2.91
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.98
TOTAL HUB DIAMETER (MM): 152
TOTAL HUB HEIGHT (IN): 5.66
TOTAL HUB HEIGHT (MM): 143
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-556372
BCA: WE61837
BECK/ARNLEY: 051-6477
CENTRIC PARTS: 40744034
GSP: 693509
MEVOTECH: MB86311
MOOG HUB ASSEMBLIES: 512509
NAPA: PBR930961
APPLICATIONS:
TOYOTA PRIUS V (2012-2018)
TOYOTA MIRAI (2016-2020)
