THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

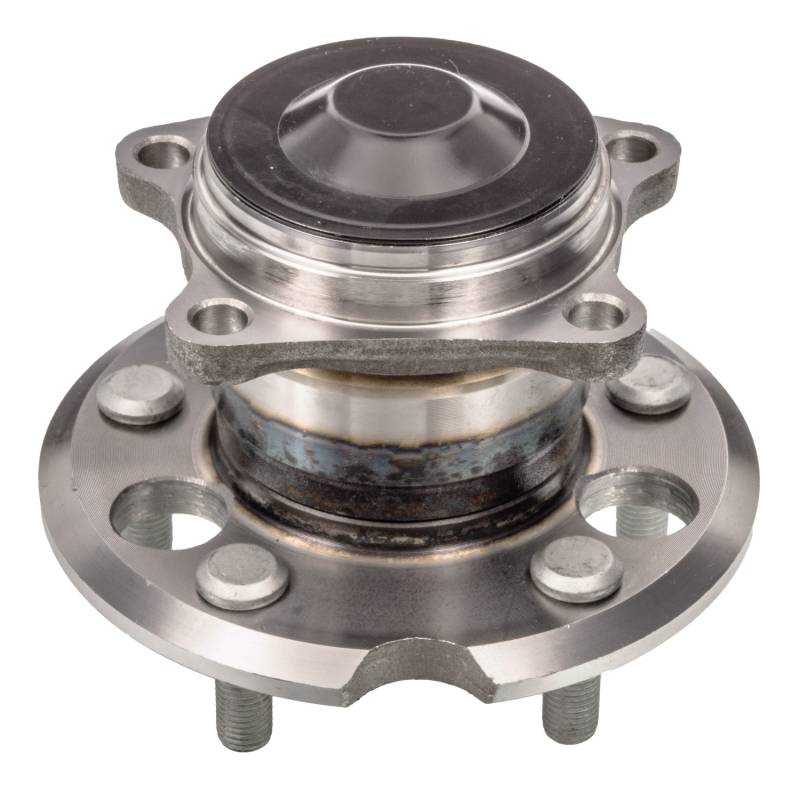

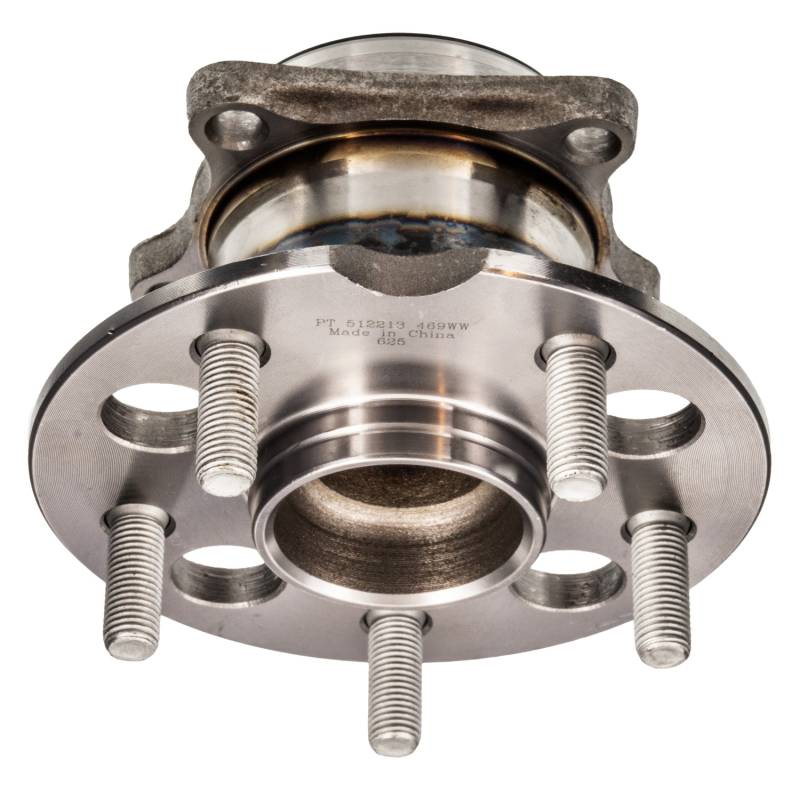

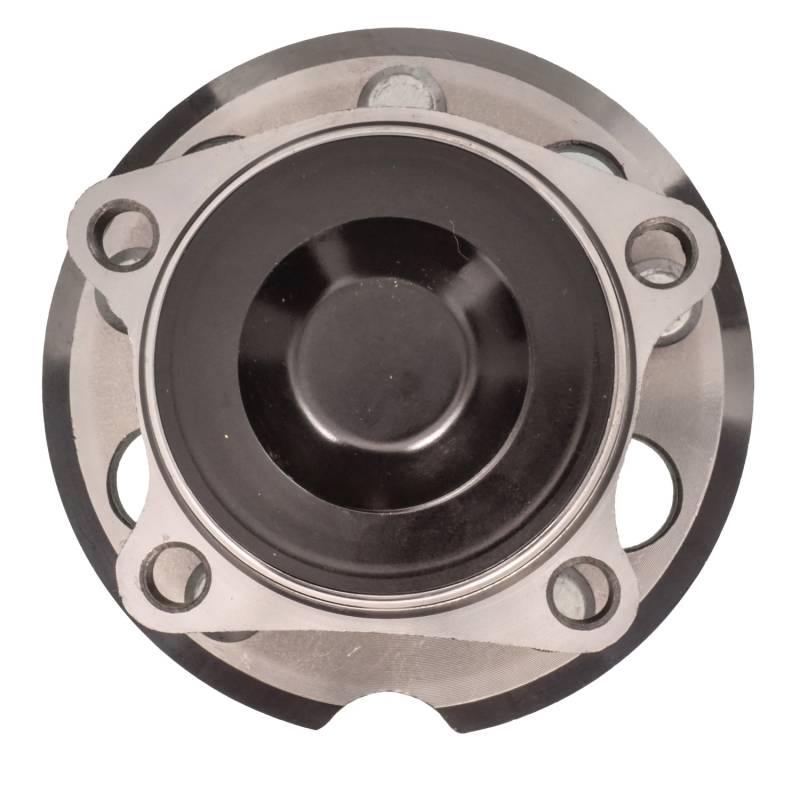

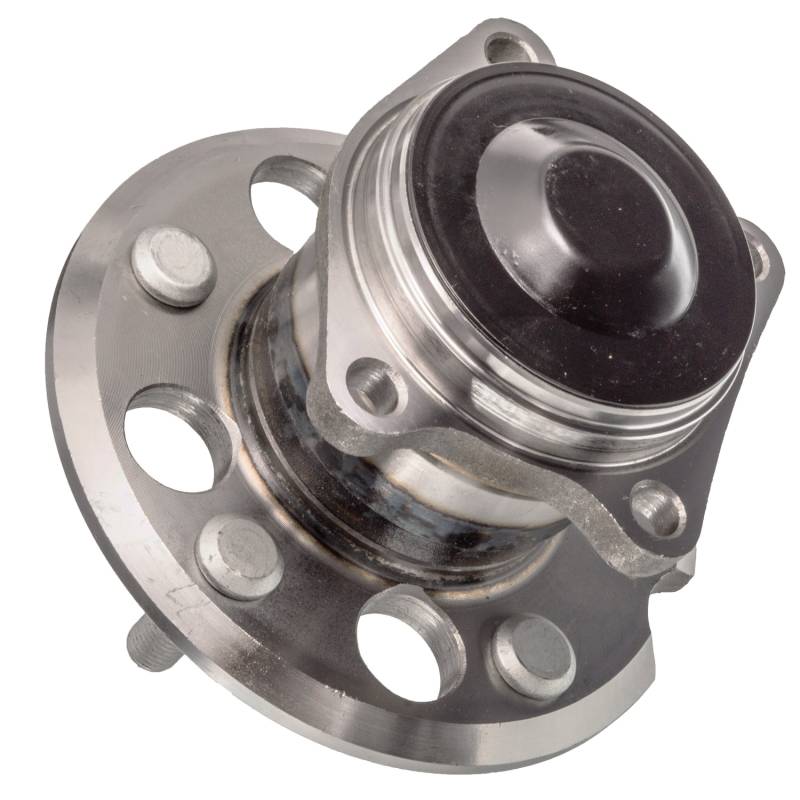

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

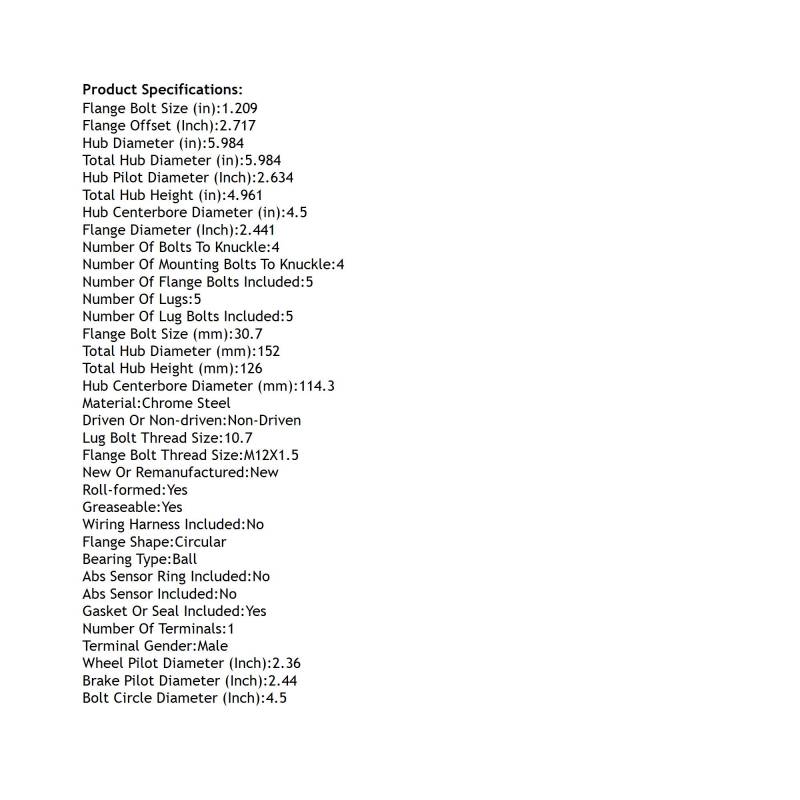

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.5
BRAKE PILOT DIAMETER (INCH): 2.44
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.209
FLANGE BOLT SIZE (MM): 30.7
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.441
FLANGE OFFSET (INCH): 2.717
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.984
HUB PILOT DIAMETER (INCH): 2.634
LUG BOLT THREAD SIZE: 10.7
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.984
TOTAL HUB DIAMETER (MM): 152
TOTAL HUB HEIGHT (IN): 4.961
TOTAL HUB HEIGHT (MM): 126
WHEEL PILOT DIAMETER (INCH): 2.36
WIRING HARNESS INCLUDED: NO
REPLACES:
OTHER PART NUMBER: PT512213
SKF: BR930295
TIMKEN: HA594241
AUTOPART INTERNATIONAL: 1411-04422
BCA: WE61153
BECK/ARNLEY: 051-6097
CENTRIC PARTS: 40544010E
FAG US: 102502
GSP: 693213
MEVOTECH: H512213
MOOG HUB ASSEMBLIES: 512213
NAPA: PBR930295
APPLICATIONS:
TOYOTA RAV4 (1996-2003)
