THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

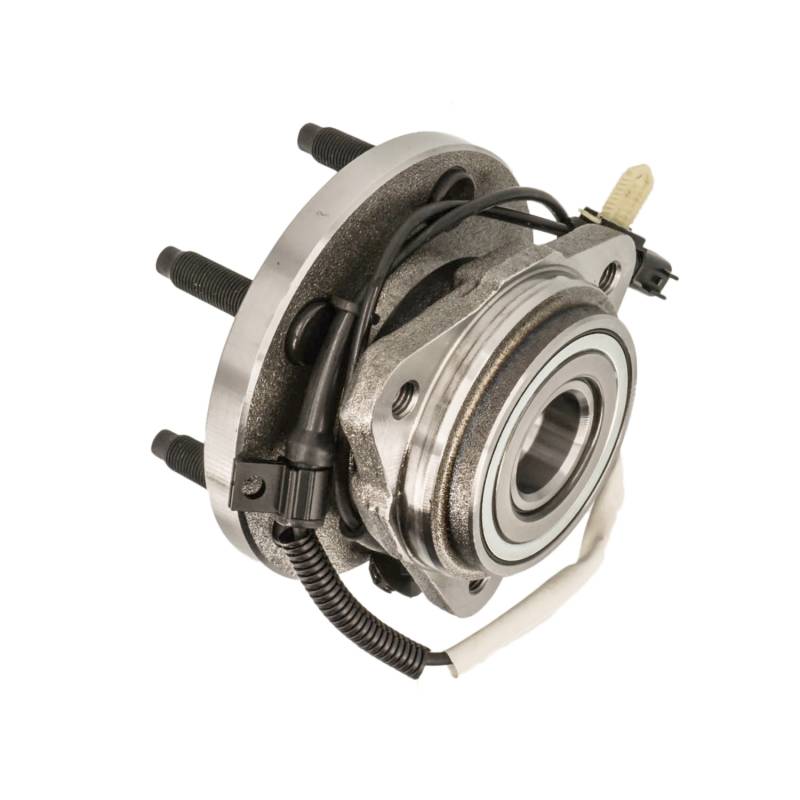

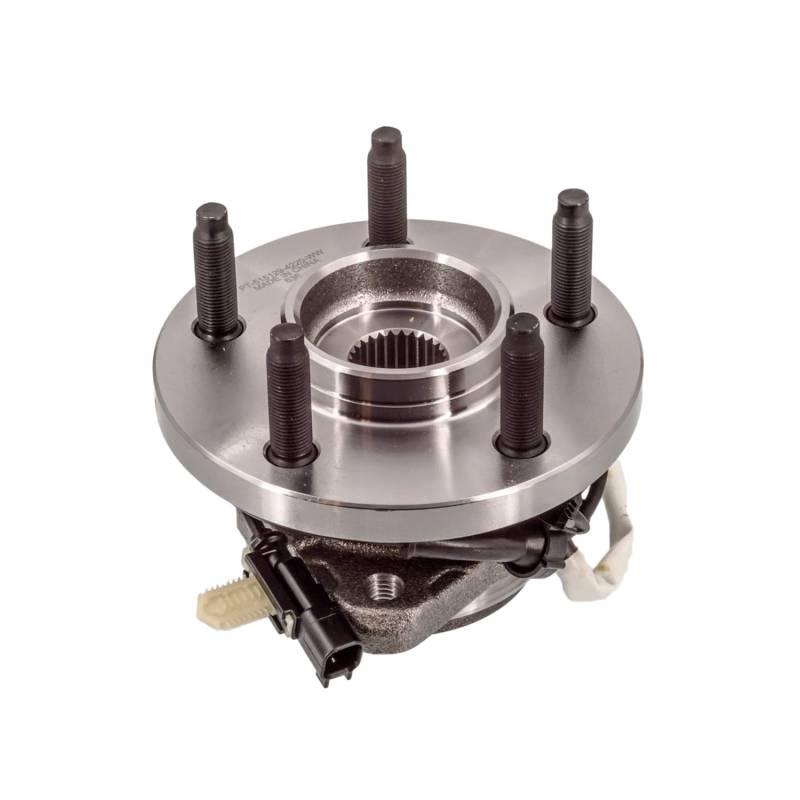

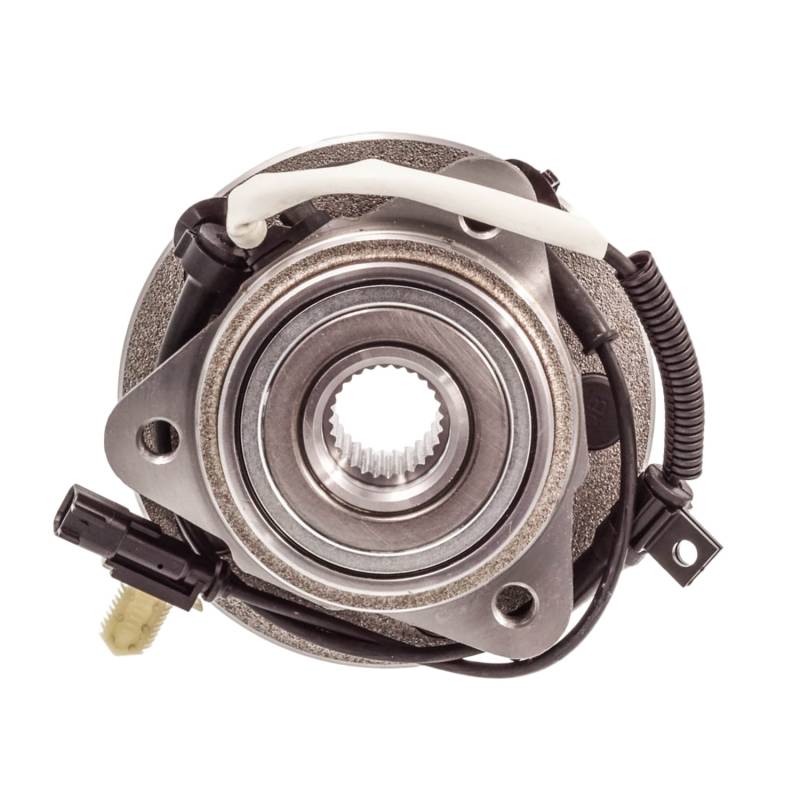

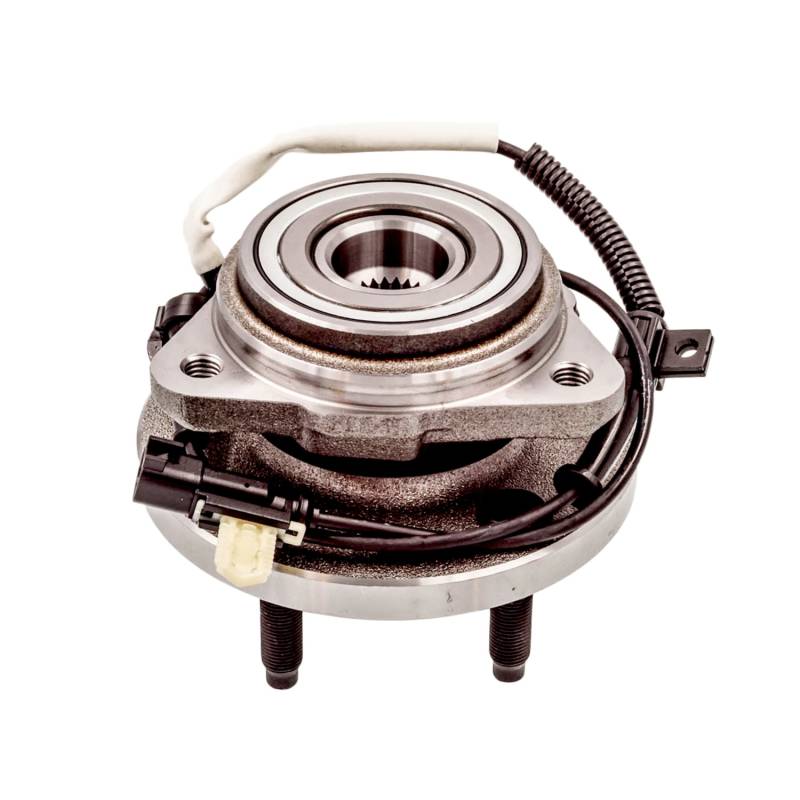

PRODUCT TYPE: HUB ASSEMBLY

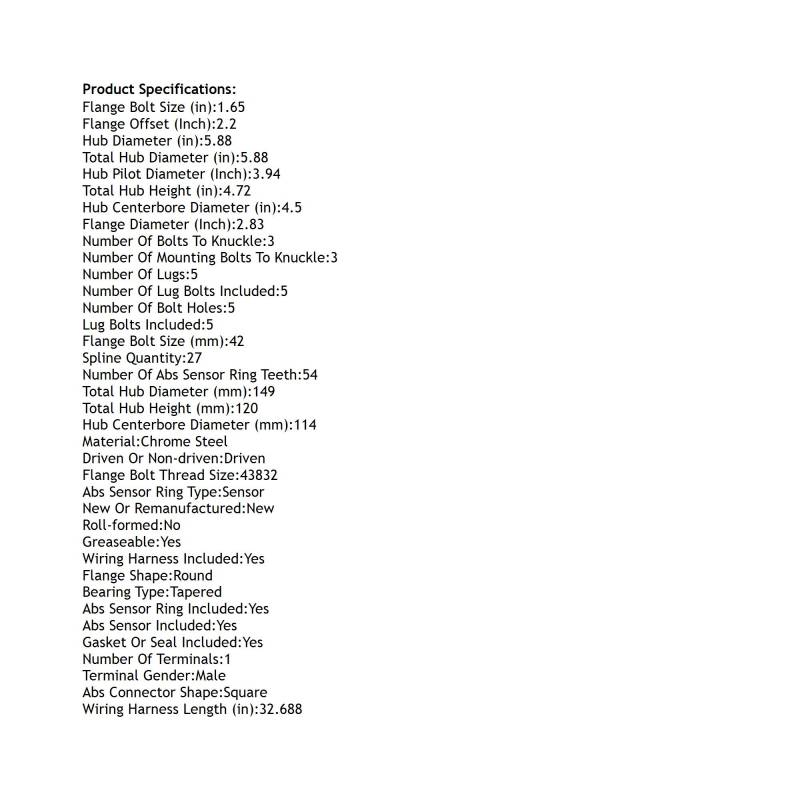

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.65
FLANGE BOLT SIZE (MM): 42
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 2.83
FLANGE OFFSET (INCH): 2.2
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.88
HUB PILOT DIAMETER (INCH): 3.94
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 27
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.88
TOTAL HUB DIAMETER (MM): 149
TOTAL HUB HEIGHT (IN): 4.72
TOTAL HUB HEIGHT (MM): 120
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 32.688
REPLACES:
AUTOPART INTERNATIONAL: 1411-480896 1411-535731
CENTRIC PARTS: 40265033
FAG US: 102764
GSP: 116129
MEVOTECH: H515129
MOOG HUB ASSEMBLIES: 515129
NAPA: PBR930792
APPLICATIONS:
MAZDA B3000 (2003-2008)
MAZDA B4000 (2003-2010)
FORD RANGER (2009-2011)
