THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

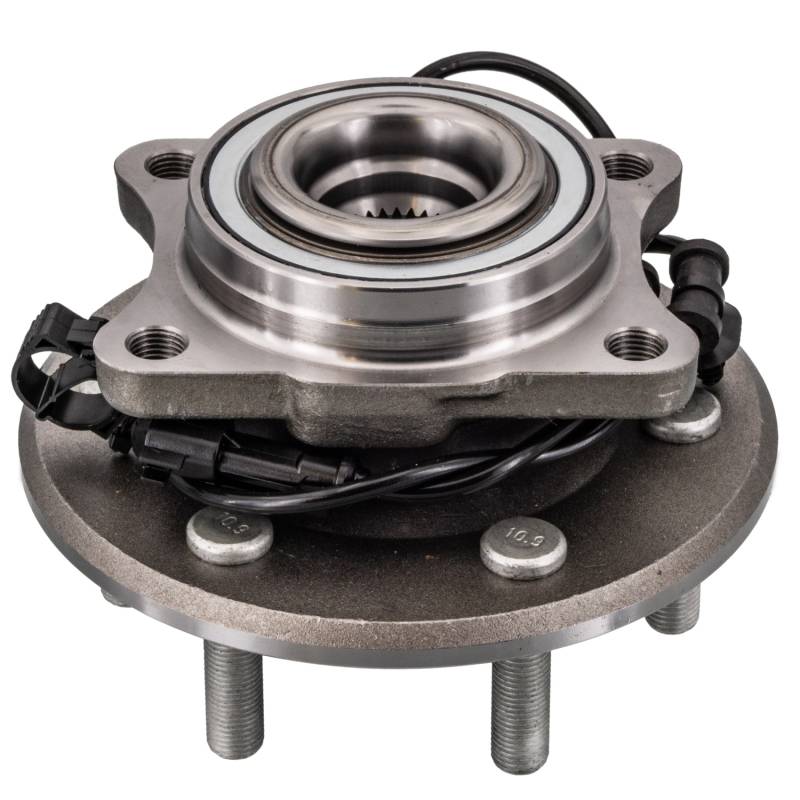

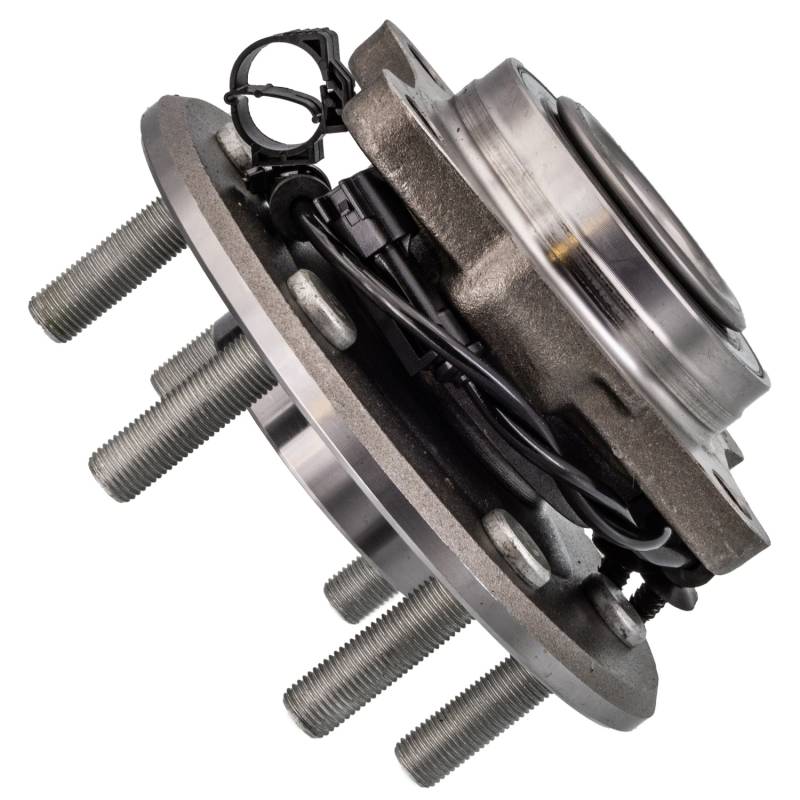

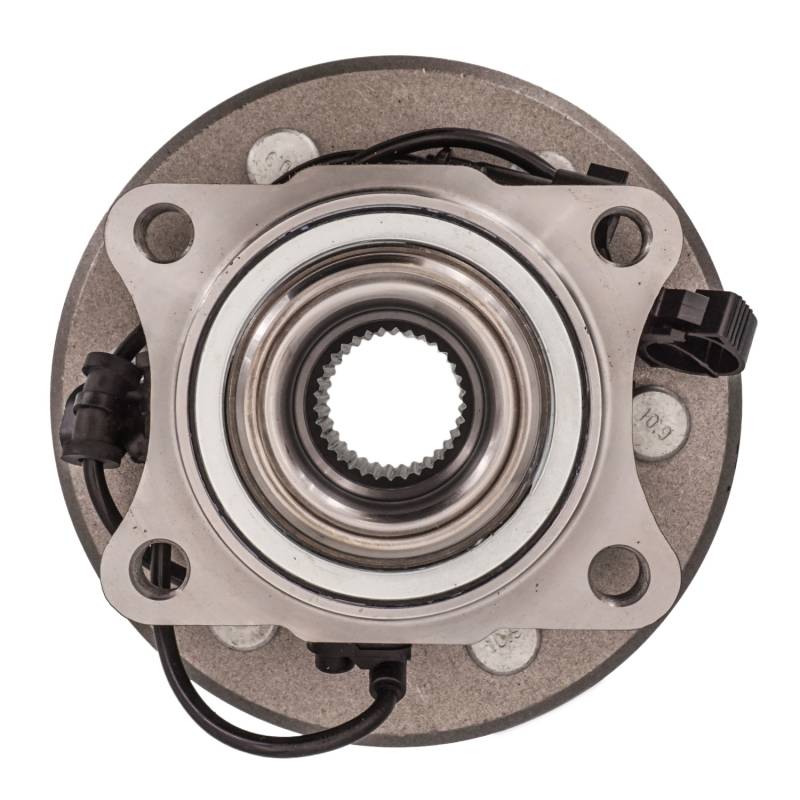

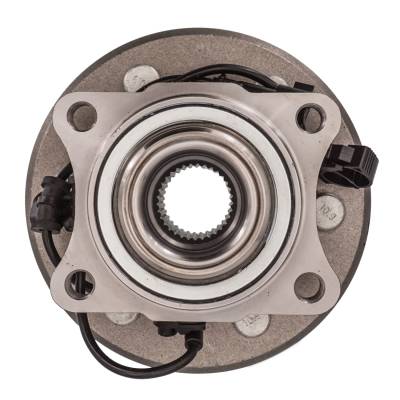

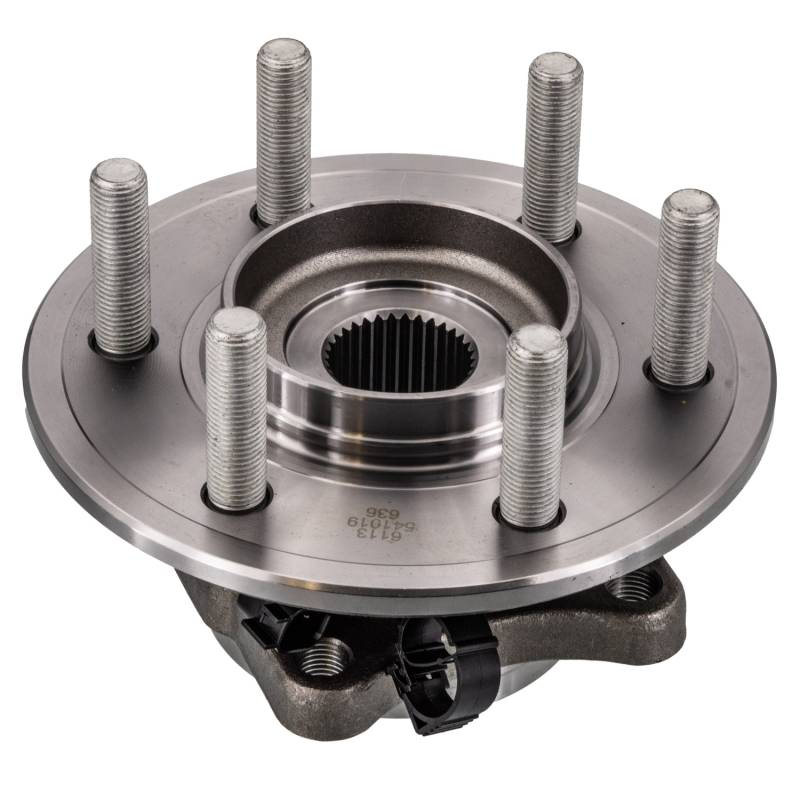

PRODUCT TYPE: HUB ASSEMBLY

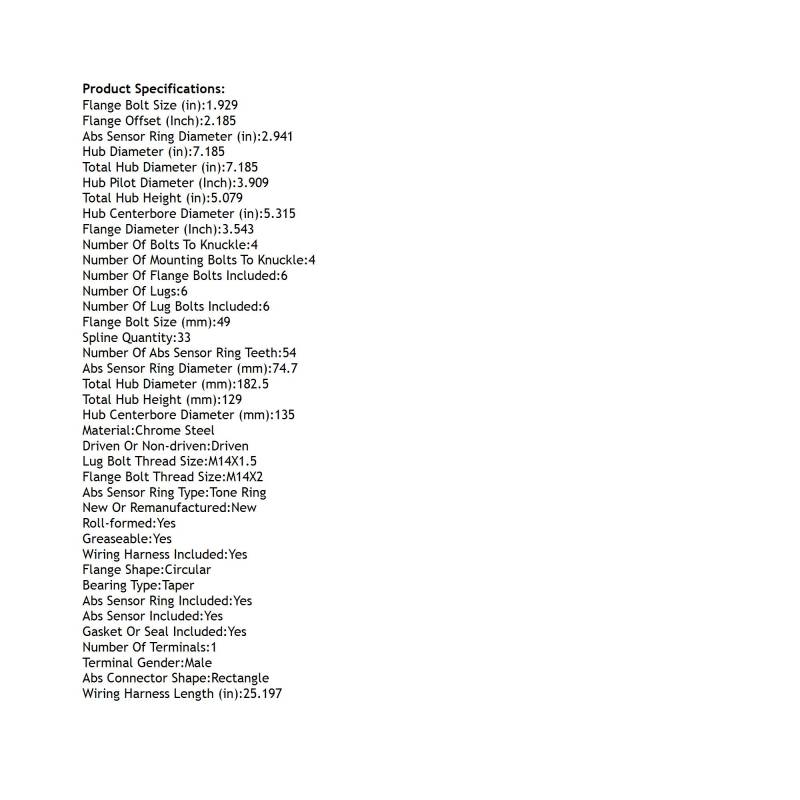

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.941
ABS SENSOR RING DIAMETER (MM): 74.7
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.929
FLANGE BOLT SIZE (MM): 49
FLANGE BOLT THREAD SIZE: M14X2
FLANGE DIAMETER (INCH): 3.543
FLANGE OFFSET (INCH): 2.185
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.315
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.185
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.185
TOTAL HUB DIAMETER (MM): 182.5
TOTAL HUB HEIGHT (IN): 5.079
TOTAL HUB HEIGHT (MM): 129
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 25.197
REPLACES:
AUTOPART INTERNATIONAL: 1411-686604
FORD: JL1Z 1109 A
GSP: 112019
MOOG HUB ASSEMBLIES: 541019
MOTORCRAFT: HUB382
APPLICATIONS:
FORD EXPEDITION MAX (2018-2023)
FORD EXPEDITION PLATINUM (2018-2023)
FORD EXPEDITION (2018-2023)
LINCOLN NAVIGATOR (2018-2023)
