THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

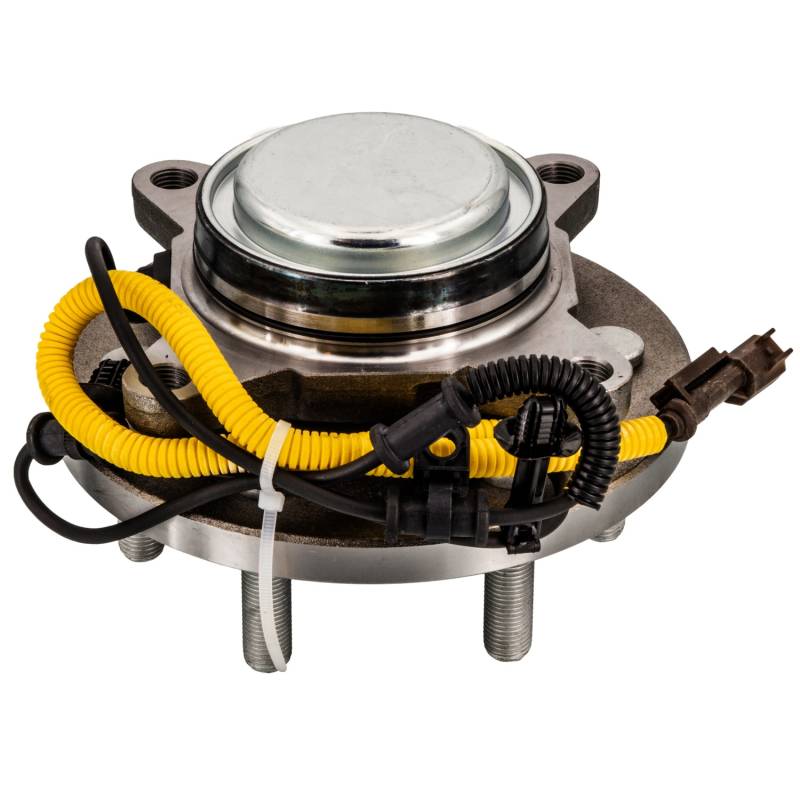

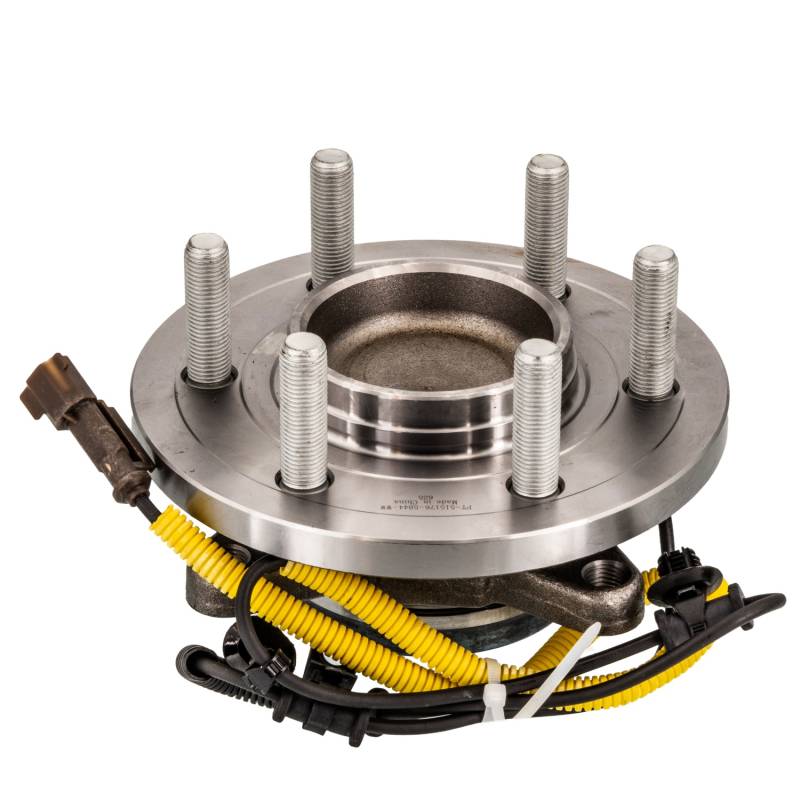

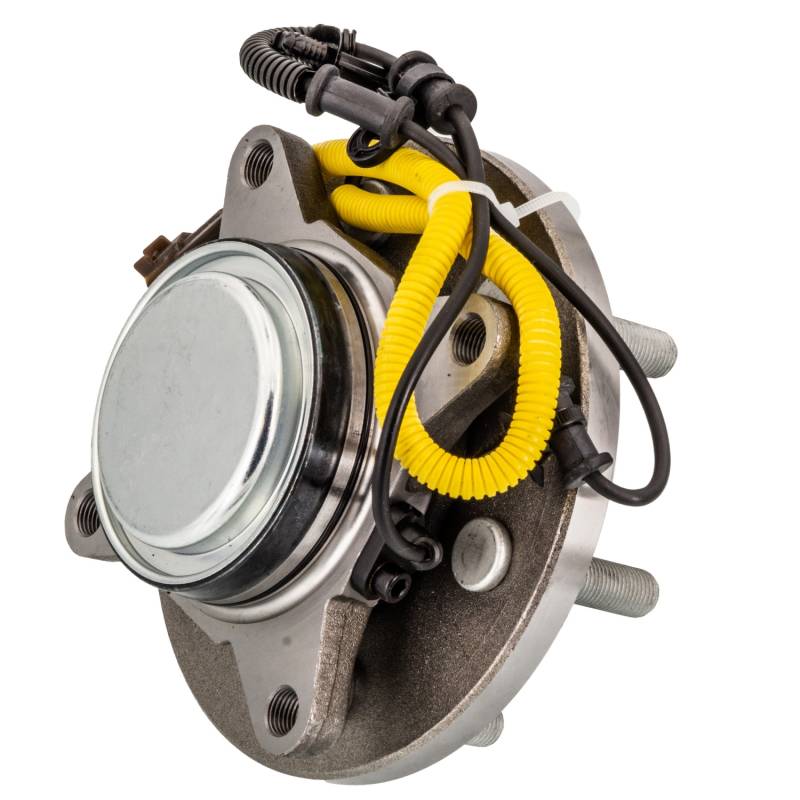

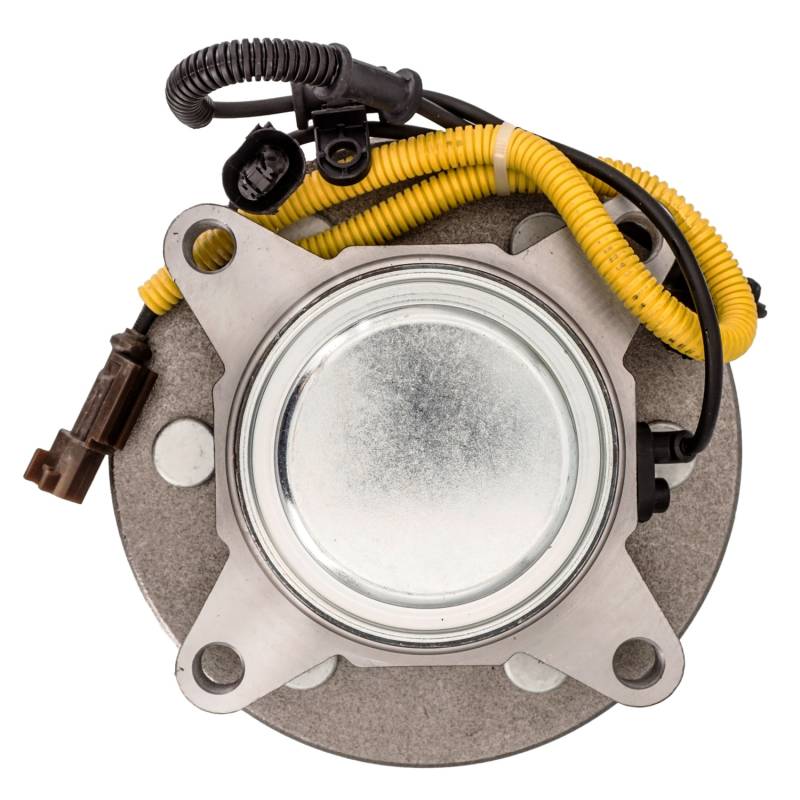

PRODUCT TYPE: HUB ASSEMBLY

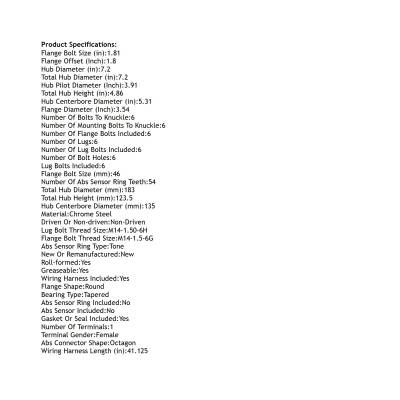

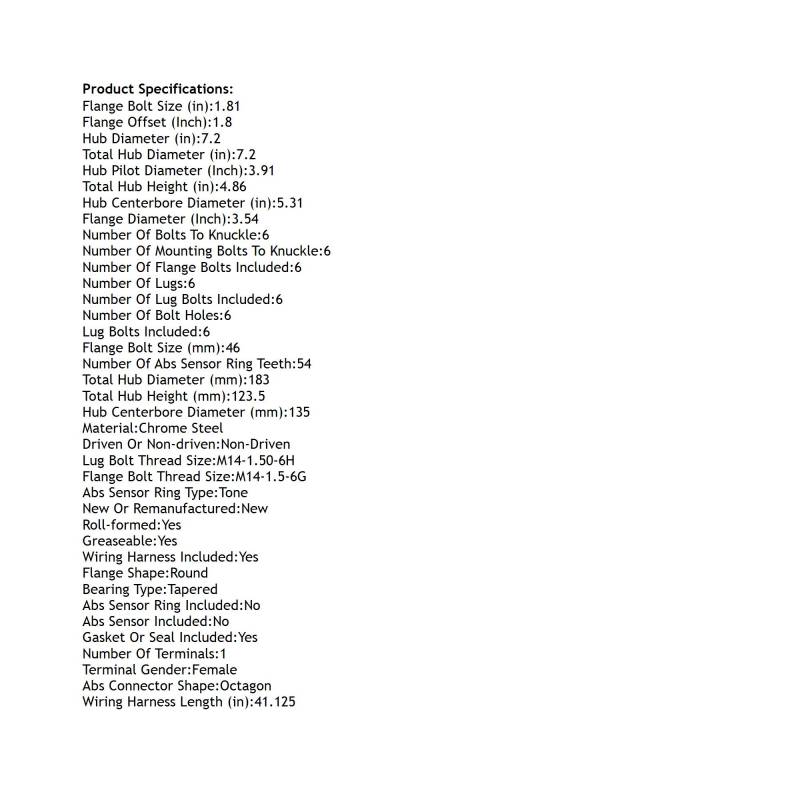

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OCTAGON
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.81
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: M14-1.5-6G
FLANGE DIAMETER (INCH): 3.54
FLANGE OFFSET (INCH): 1.8
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.31
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.2
HUB PILOT DIAMETER (INCH): 3.91
LUG BOLT THREAD SIZE: M14-1.50-6H
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 6
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 6
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.2
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 4.86
TOTAL HUB HEIGHT (MM): 123.5
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 41.125
REPLACES:
AUTOPART INTERNATIONAL: 1411-686608
FORD: HUB385 HUB438 HUB484 HUB494 HUB495 JL1Z 1104 D JL1Z-1104-B JL1Z-1104-D JL1Z-1104-H JL1Z-1104-J JL3Z1104S
MOOG HUB ASSEMBLIES: 515176
MOTORCRAFT: HUB436 HUB438 HUB484 HUB496 JL1Z1104K JL3Z1104J JL3Z1104S PT515176
NAPA: PBR931014
APPLICATIONS:
FORD EXPEDITION MAX (2018-2022)
FORD EXPEDITION PLATINUM (2018-2022)
FORD EXPEDITION (2018-2022)
FORD F-150 (2018-2020)
LINCOLN NAVIGATOR (2018-2022)
