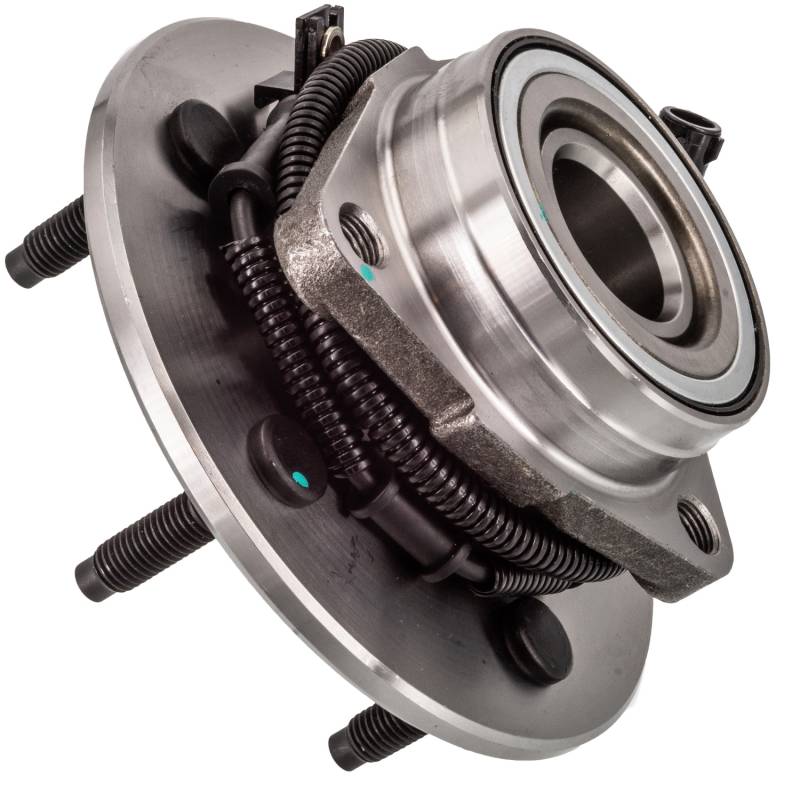

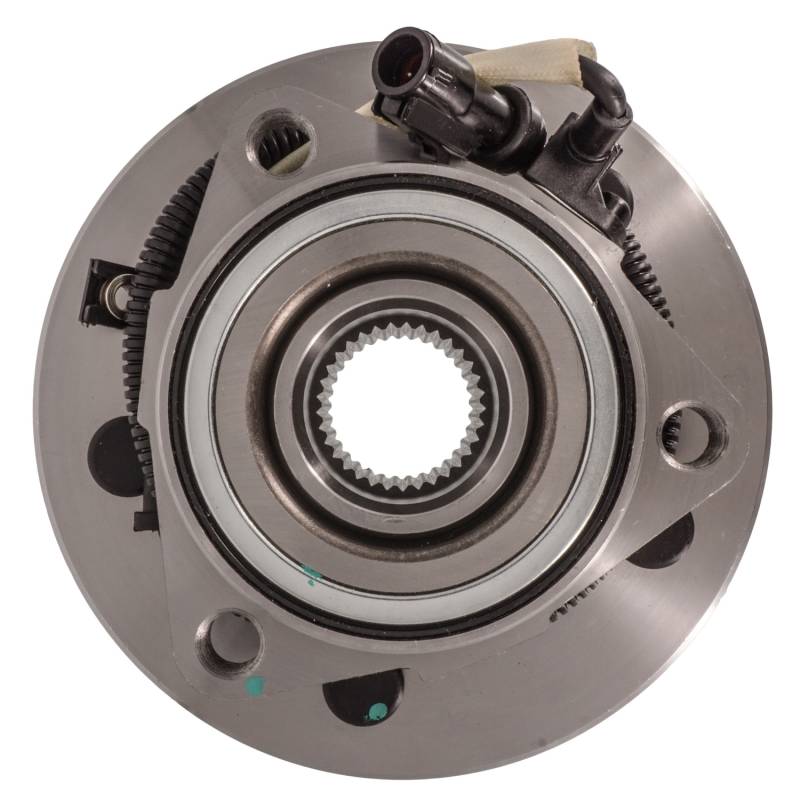

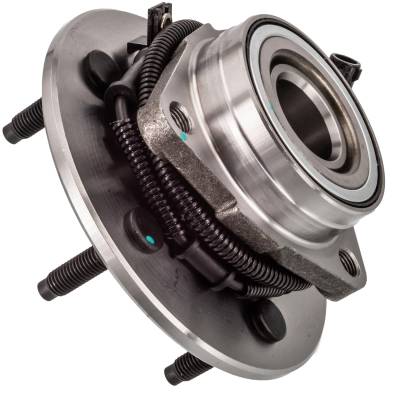

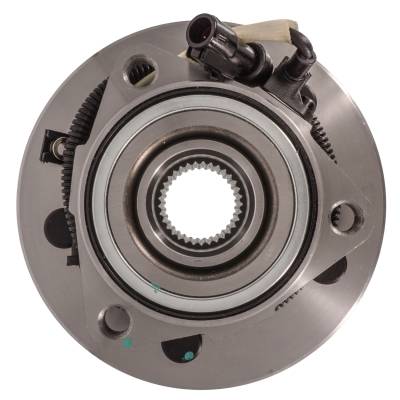

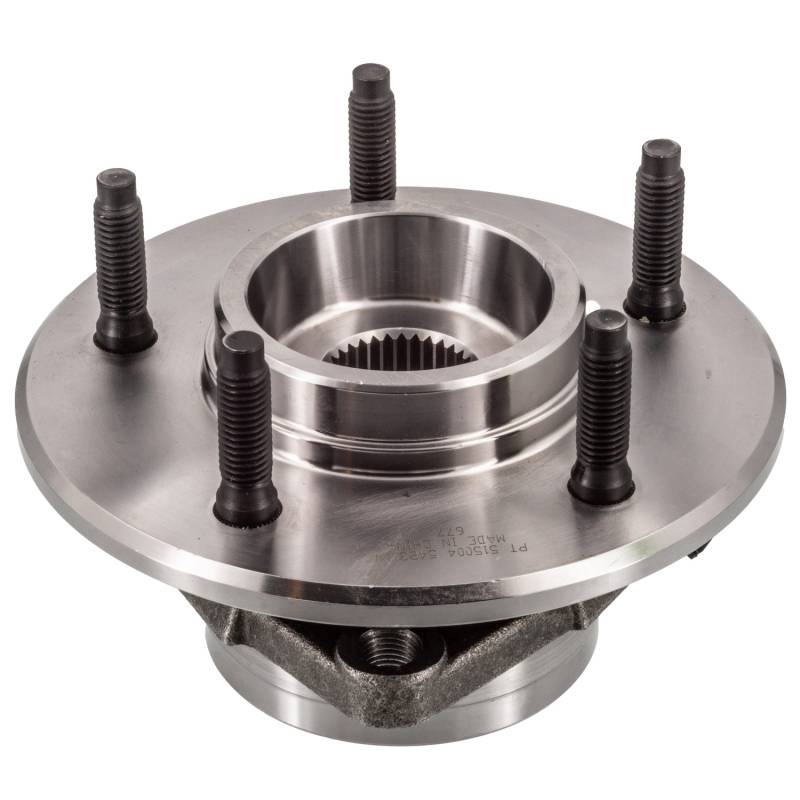

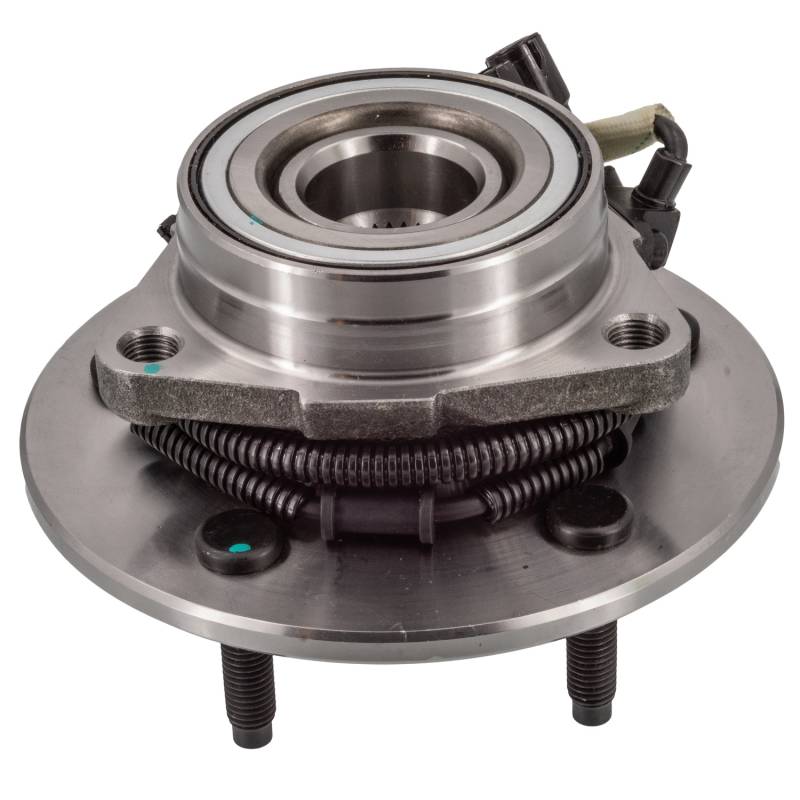

New Hub Assembly Compatible With Ford Lincoln Expedition Navigator 4.6L 5.4L 1997 1998 1999 2000 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.734
FLANGE BOLT SIZE (MM): 44.05
FLANGE BOLT THREAD SIZE: M12X1.75
FLANGE DIAMETER (INCH): 3.631
FLANGE OFFSET (INCH): 1.929
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.315
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.165
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.165
TOTAL HUB DIAMETER (MM): 182
TOTAL HUB HEIGHT (IN): 4.705
TOTAL HUB HEIGHT (MM): 119.5
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 34.646

REPLACES:
AUTOPART INTERNATIONAL: 1411-44887
BCA: WE60869
CENTRIC PARTS: 40265003
FAG US: 101973
FORD: XL1Z 1104 AE
GSP: 116004
MEVOTECH: H515004
MOOG HUB ASSEMBLIES: 515004
MOTORCRAFT: HUB40
NAPA: PBR930208

APPLICATIONS:
FORD EXPEDITION (1997-2000)
LINCOLN NAVIGATOR (1998-2000)
