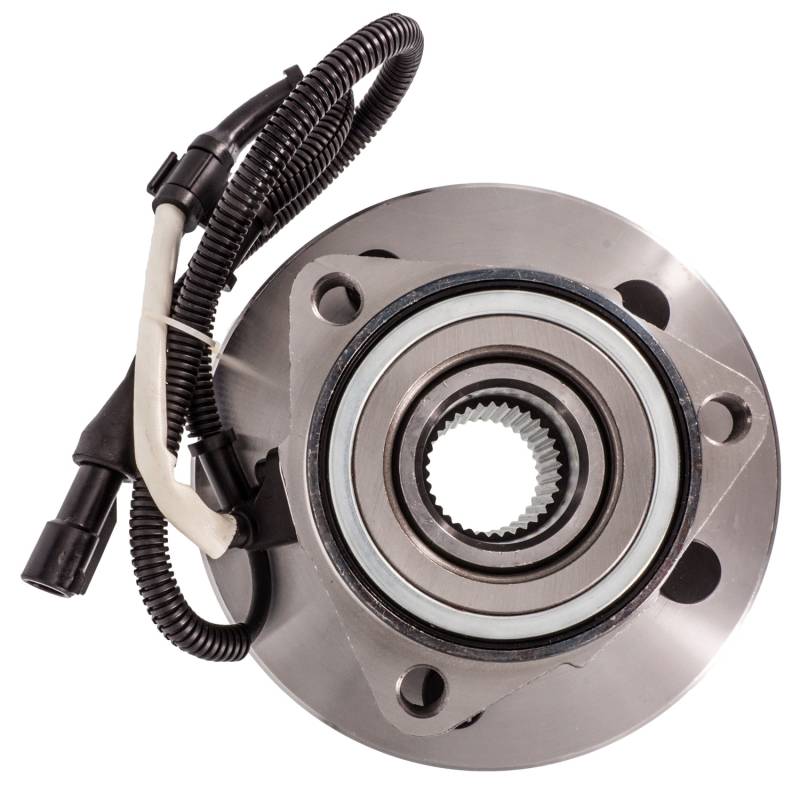

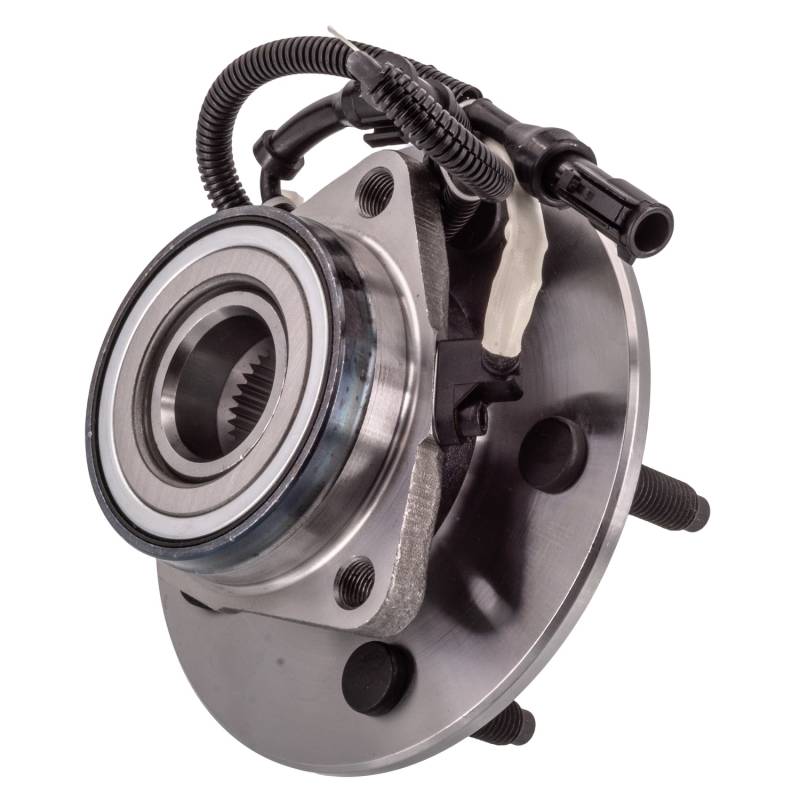

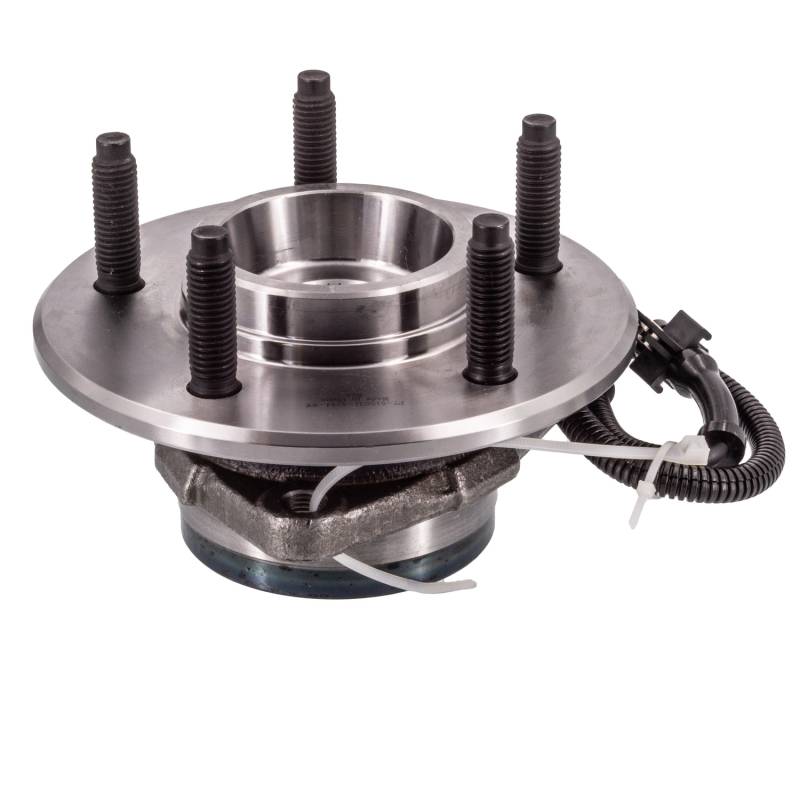

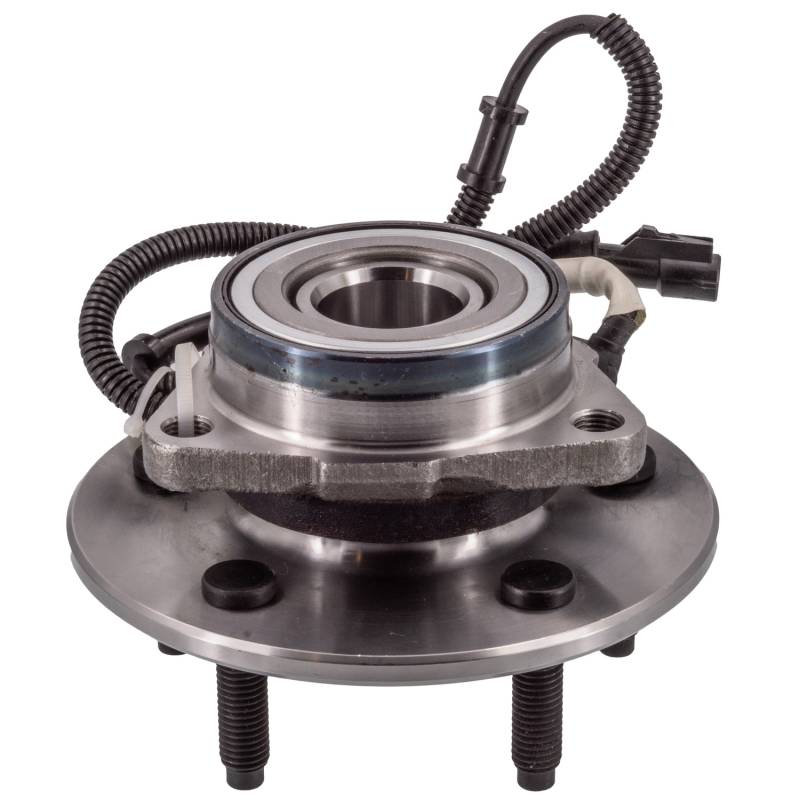

New Hub Assembly Compatible With Ford Lincoln Expedition Navigator 4.6L 5.4L 2000 2001 2002 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.892
FLANGE BOLT SIZE (MM): 48.05
FLANGE BOLT THREAD SIZE: M14X2
FLANGE DIAMETER (INCH): 3.631
FLANGE OFFSET (INCH): 1.929
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.315
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.165
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.165
TOTAL HUB DIAMETER (MM): 182
TOTAL HUB HEIGHT (IN): 4.862
TOTAL HUB HEIGHT (MM): 123.5
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 34.646

REPLACES:
AUTOPART INTERNATIONAL: 1411-44824
BCA: WE61047
CENTRIC PARTS: 40265004E
FAG US: 101992
FORD: YL1Z 1104 AA
GSP: 116031
MEVOTECH: H515031
MOOG HUB ASSEMBLIES: 515031
MOTORCRAFT: HUB103
NAPA: PBR930236

APPLICATIONS:
FORD EXPEDITION (2000-2002)
LINCOLN NAVIGATOR (2000-2002)
