THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

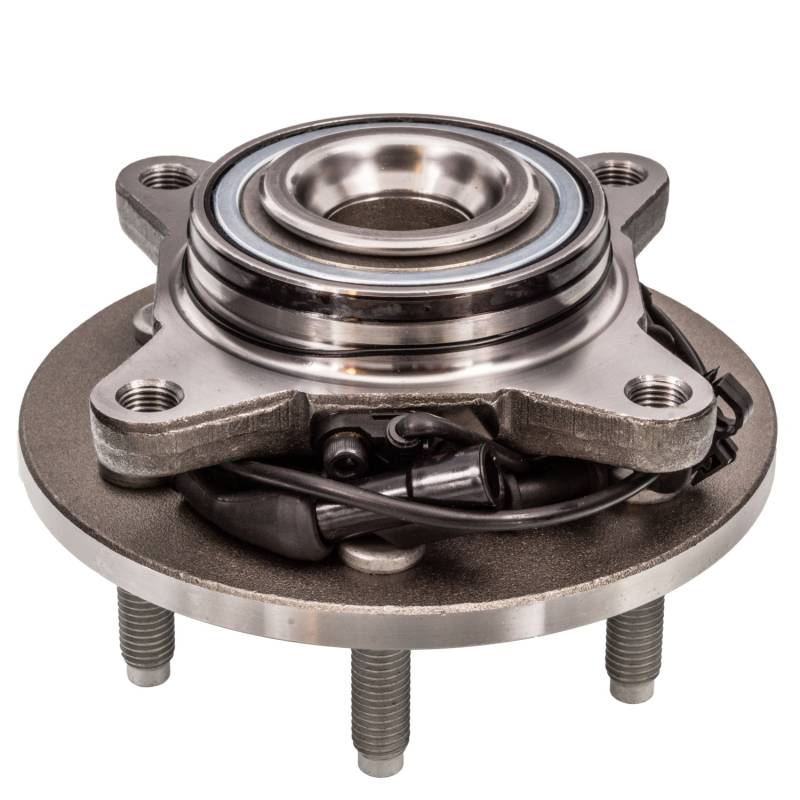

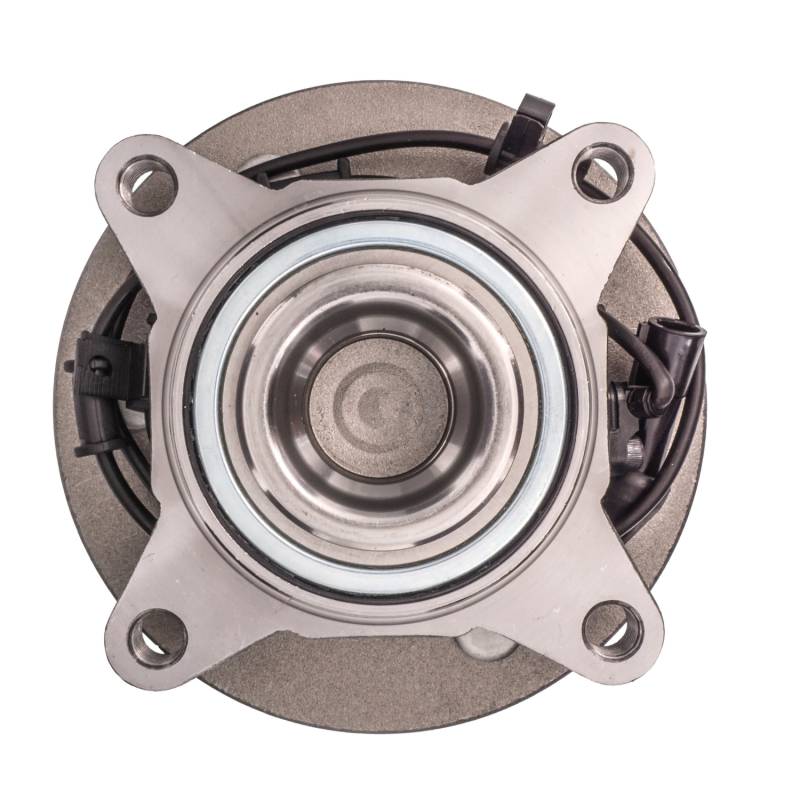

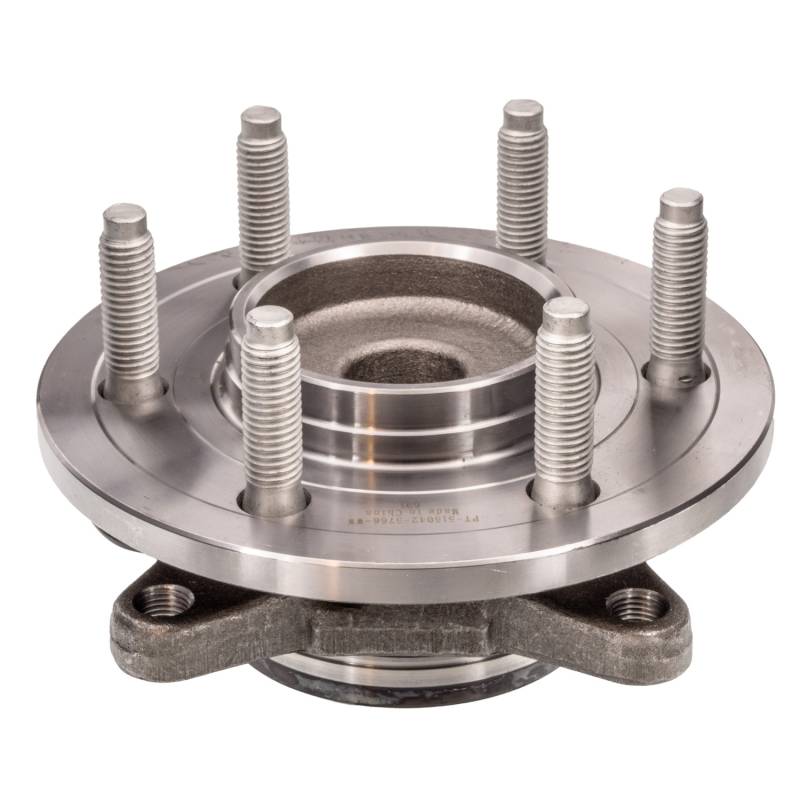

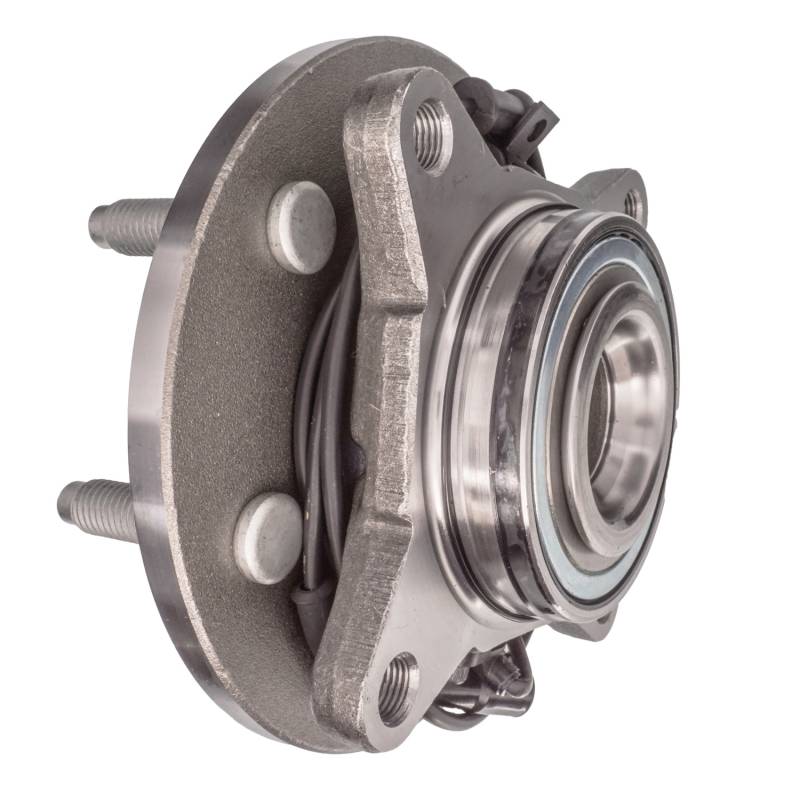

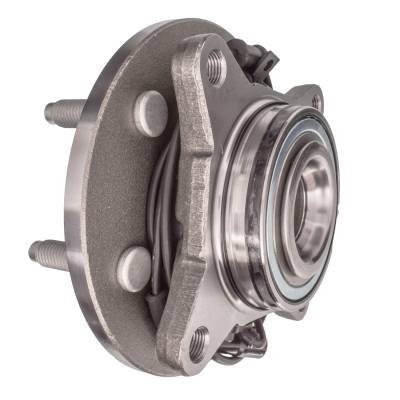

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.85
FLANGE BOLT SIZE (MM): 47
FLANGE BOLT THREAD SIZE: M14X2
FLANGE DIAMETER (INCH): 3.543
FLANGE OFFSET (INCH): 1.795
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.315
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.205
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.205
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 4.646
TOTAL HUB HEIGHT (MM): 118
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 50
REPLACES:
AUTOPART INTERNATIONAL: 1411-255697
BCA: WE61286
CENTRIC PARTS: 40765000E
FAG US: 101998
FORD: 6L1Z 1104 D
GSP: 116042
MEVOTECH: H515042
MOOG HUB ASSEMBLIES: 515042
MOTORCRAFT: HUB274 PT515042
NAPA: PBR930457
APPLICATIONS:
FORD EXPEDITION (2003-2006)
LINCOLN NAVIGATOR (2003-2006)
FORD EXPEDITION NBX (2004-2004)
