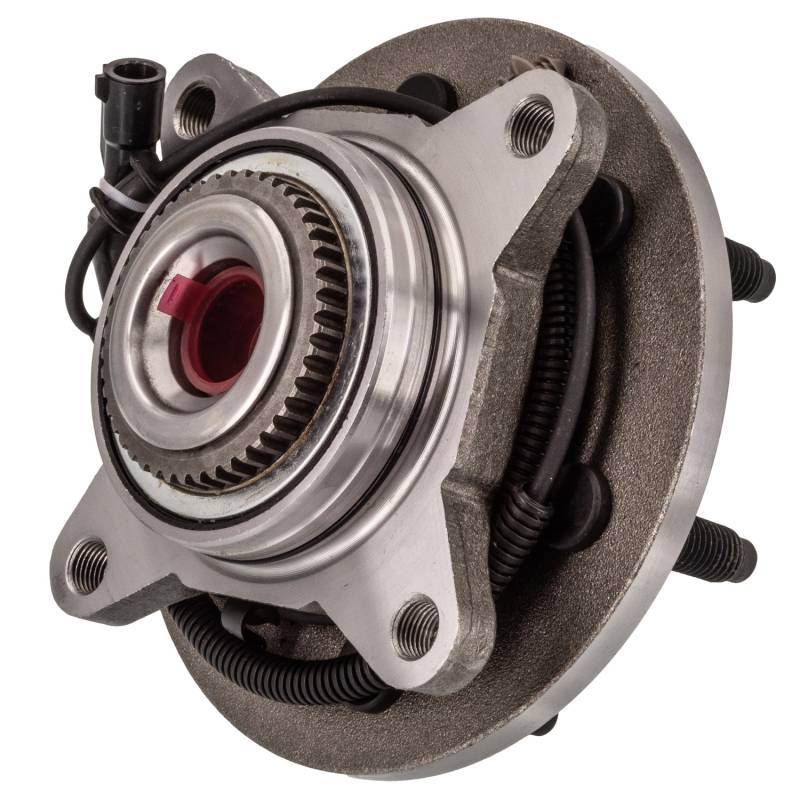

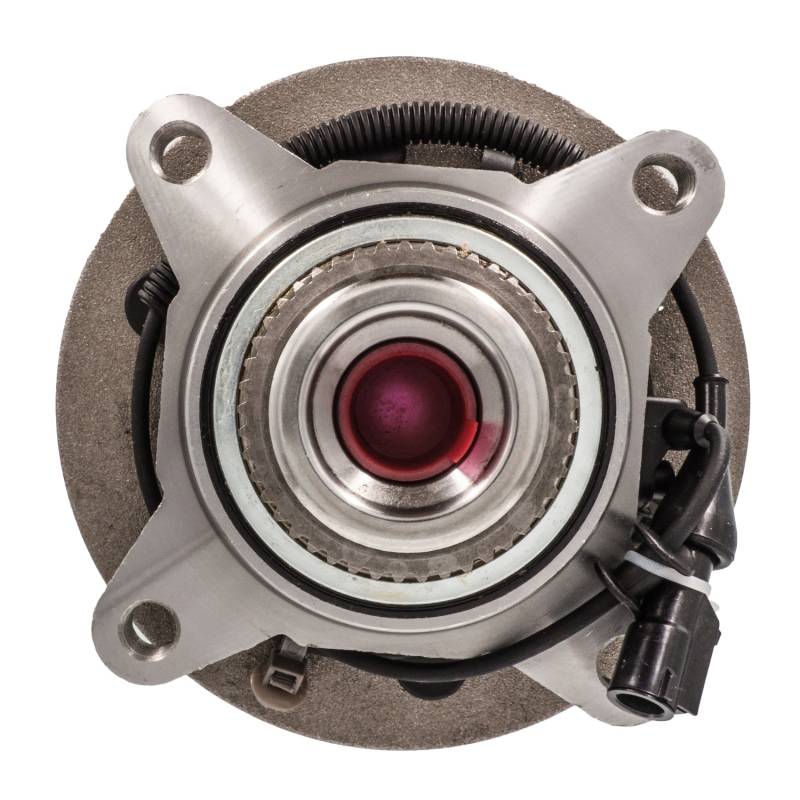

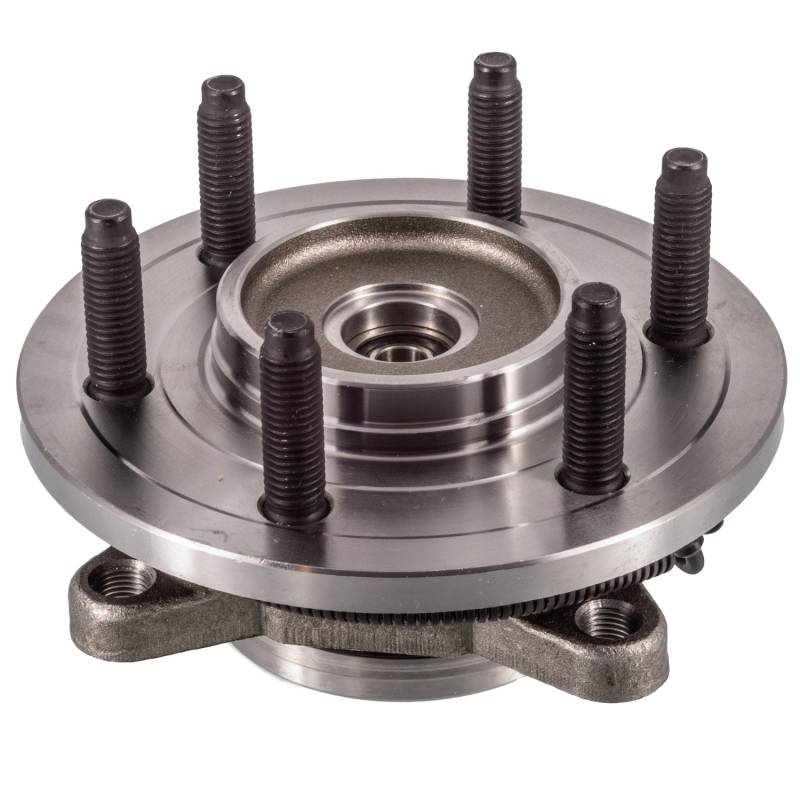

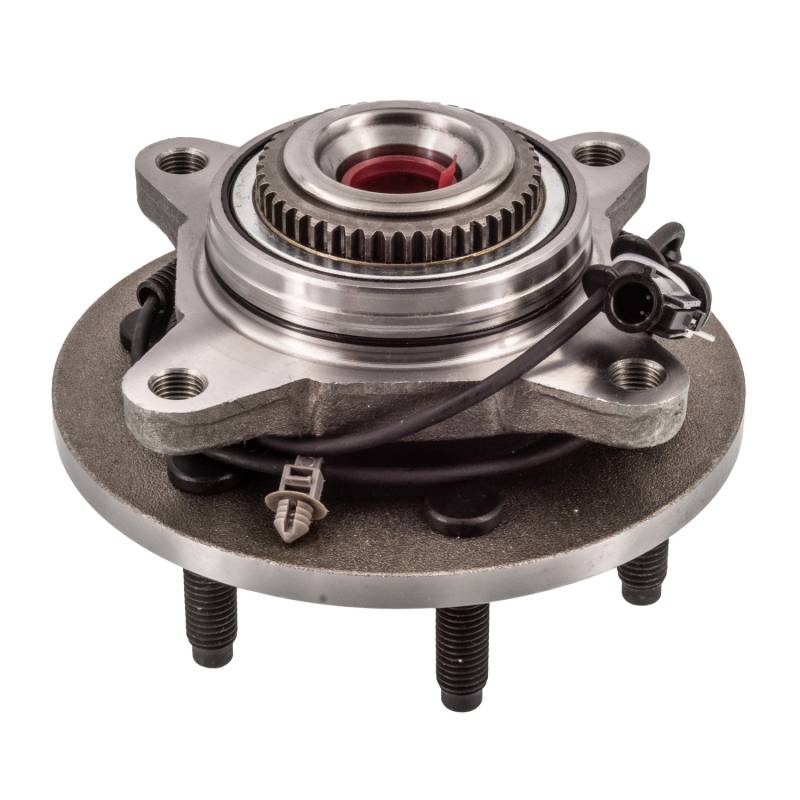

New Hub Assembly Compatible With Ford Lincoln F-150 Mark Lt 4.2L 4.6L 5.4L 2005 2006 2007 2008 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.85
FLANGE BOLT SIZE (MM): 47
FLANGE BOLT THREAD SIZE: M14X2
FLANGE DIAMETER (INCH): 3.543
FLANGE OFFSET (INCH): 1.795
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.315
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.205
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.205
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 5.012
TOTAL HUB HEIGHT (MM): 127.3
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 37.008

REPLACES:
AUTOPART INTERNATIONAL: 1411-255696
BCA: WE60907
CENTRIC PARTS: 40265016
FAG US: 102015
FORD: G2MZ 1104 R
GSP: 106079
MEVOTECH: H515079
MOOG HUB ASSEMBLIES: 515079
MOTORCRAFT: NHUB17 PT515079
NAPA: PBR930460

APPLICATIONS:
FORD F-150 (2005-2008)
LINCOLN MARK LT (2006-2008)
