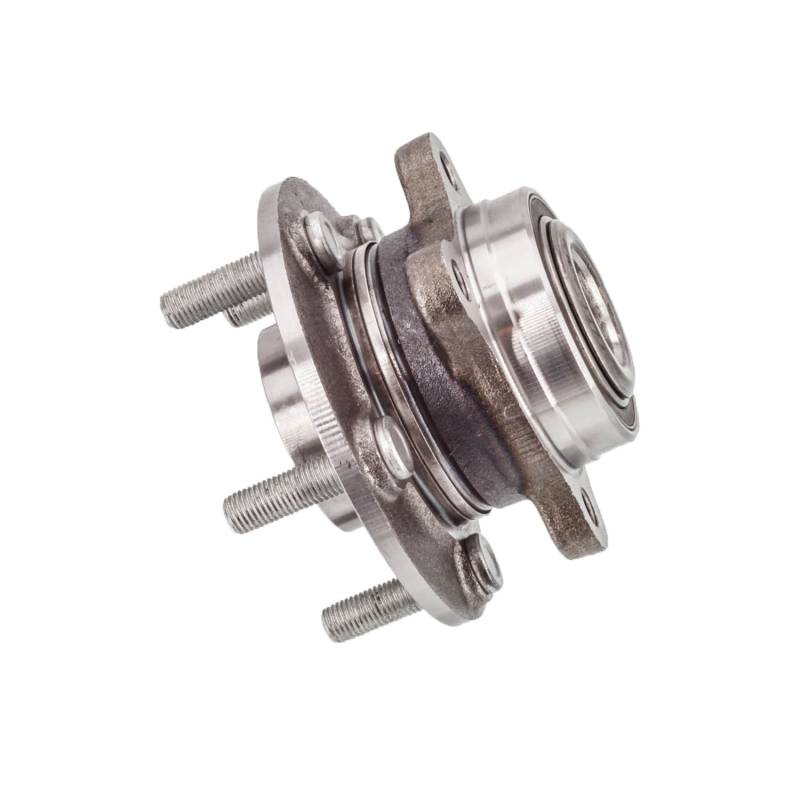

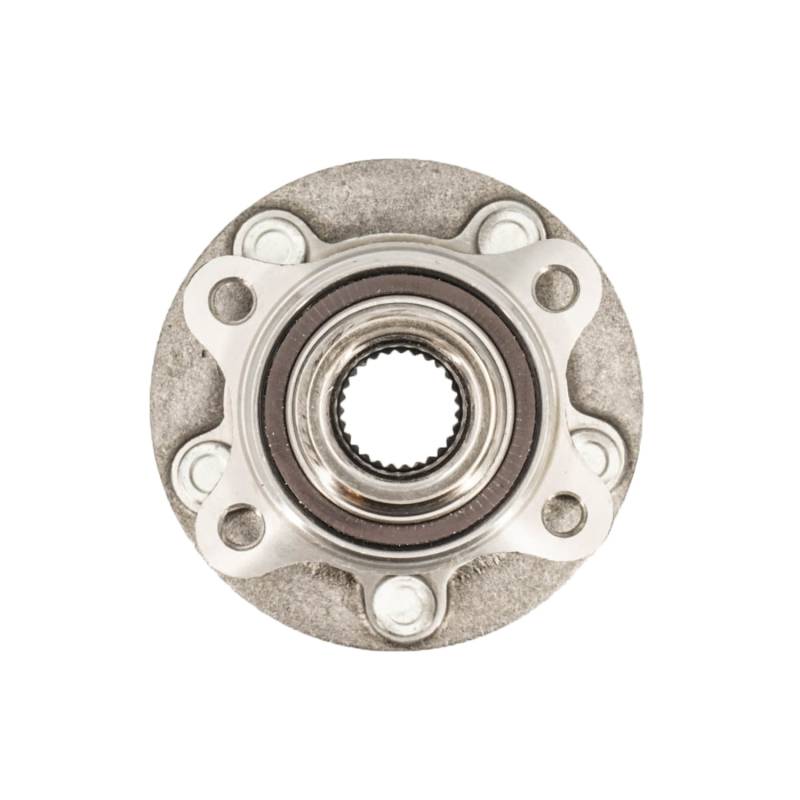

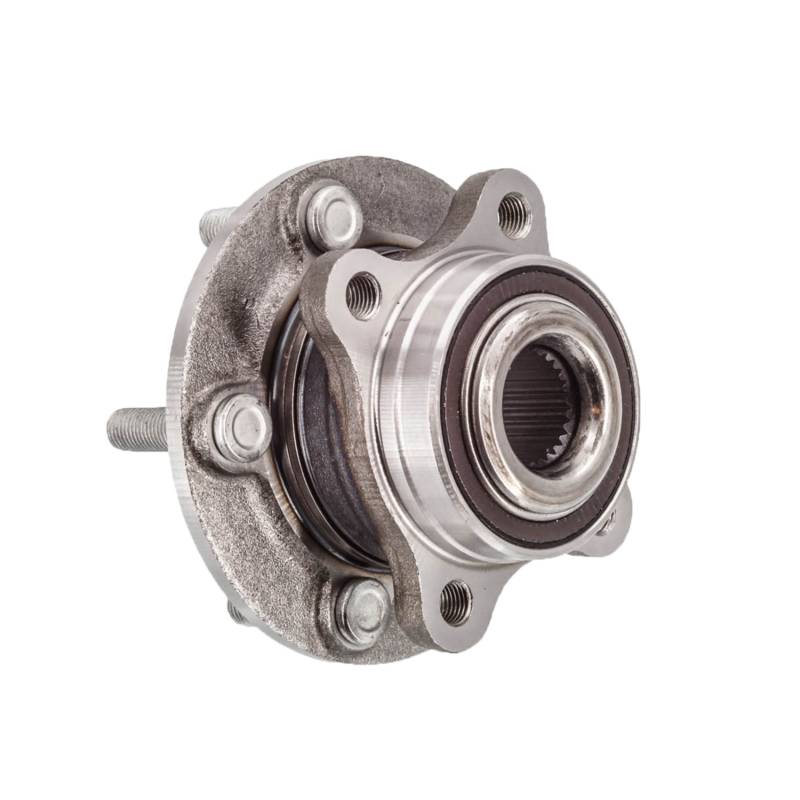

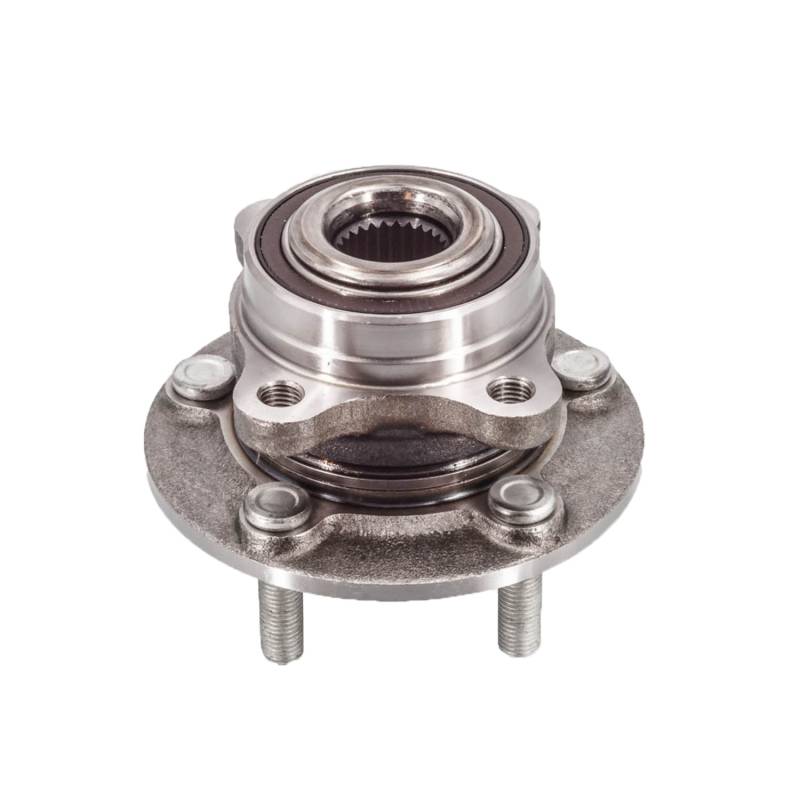

New Hub Assembly Compatible With Ford Lincoln Fusion Mkz Police Responder Hybrid Ssv Plug-In Hybrid

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

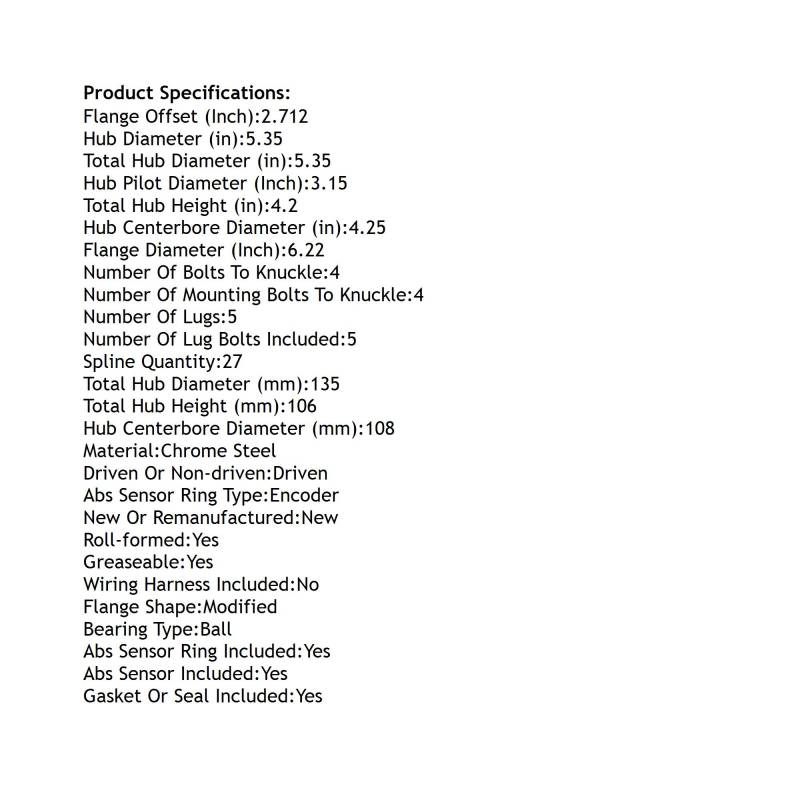

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE DIAMETER (INCH): 6.22
FLANGE OFFSET (INCH): 2.712
FLANGE SHAPE: MODIFIED
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.25
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 3.15
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 4.2
TOTAL HUB HEIGHT (MM): 106
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-556411
BCA: WE61444
CENTRIC PARTS: 40161003
FAG US: 575141.14
FORD: DG9Z 1104 E DG9Z 1104 S DG9Z 1104 U
GSP: 113498
MEVOTECH: H512498
MOOG HUB ASSEMBLIES: 512498
MOTORCRAFT: HUB309 HUB410 HUB419 HUB608 PT512498 DG9Z1104T DG9Z1104U
NAPA: PBR930913

APPLICATIONS:
FORD FUSION (2013-2020)
LINCOLN MKZ (2013-2016)
FORD POLICE RESPONDER HYBRID (2019-2020)
FORD SSV PLUG-IN HYBRID (2019-2020)
