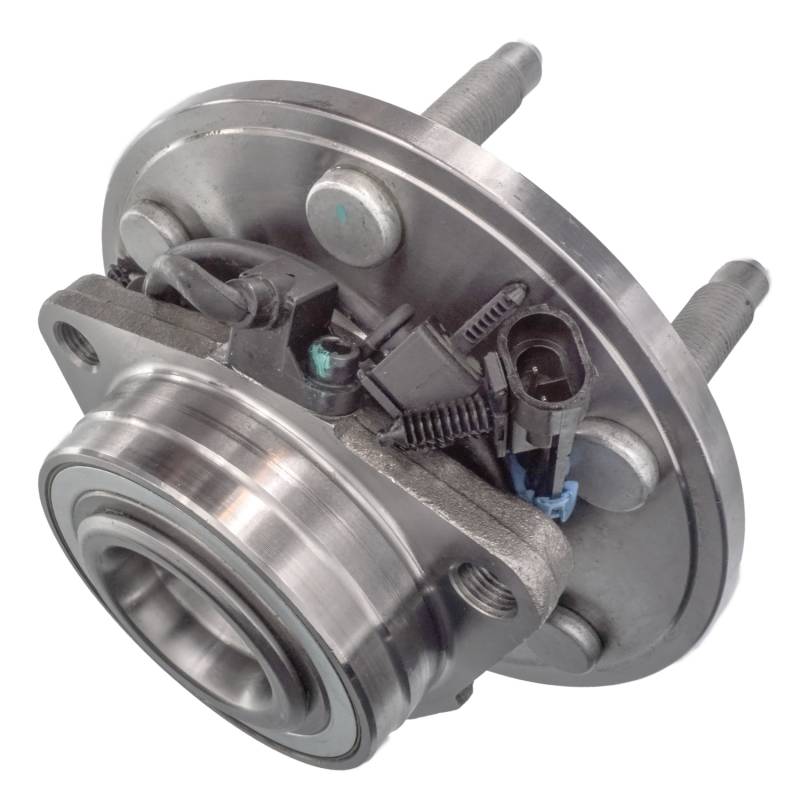

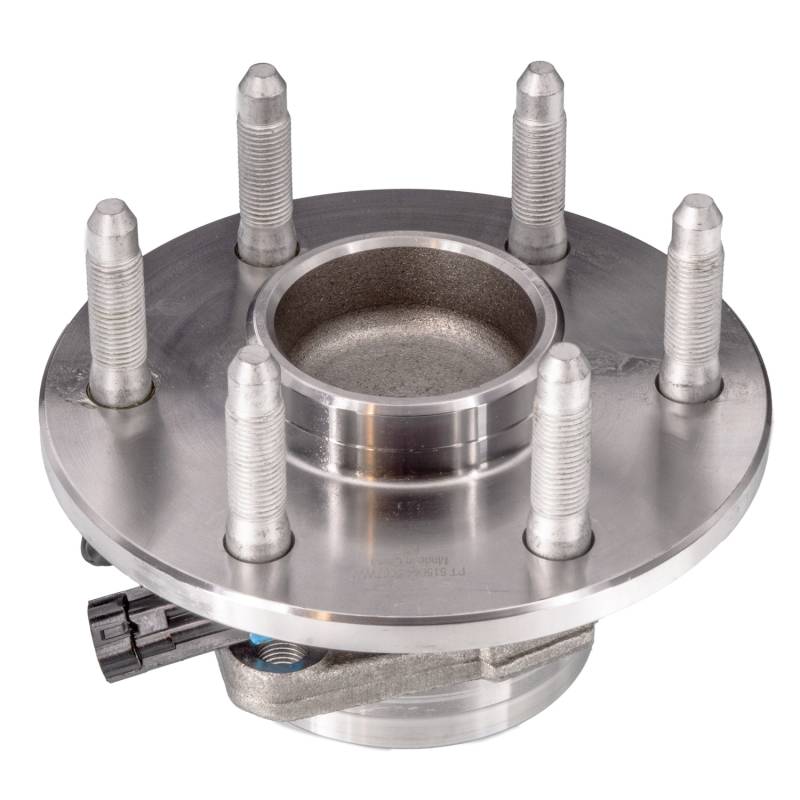

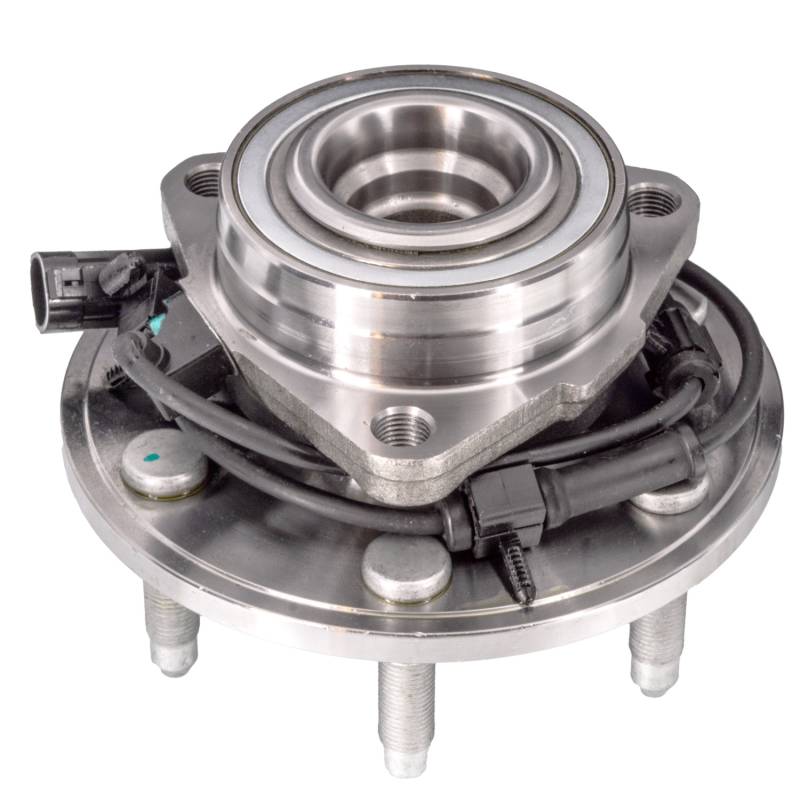

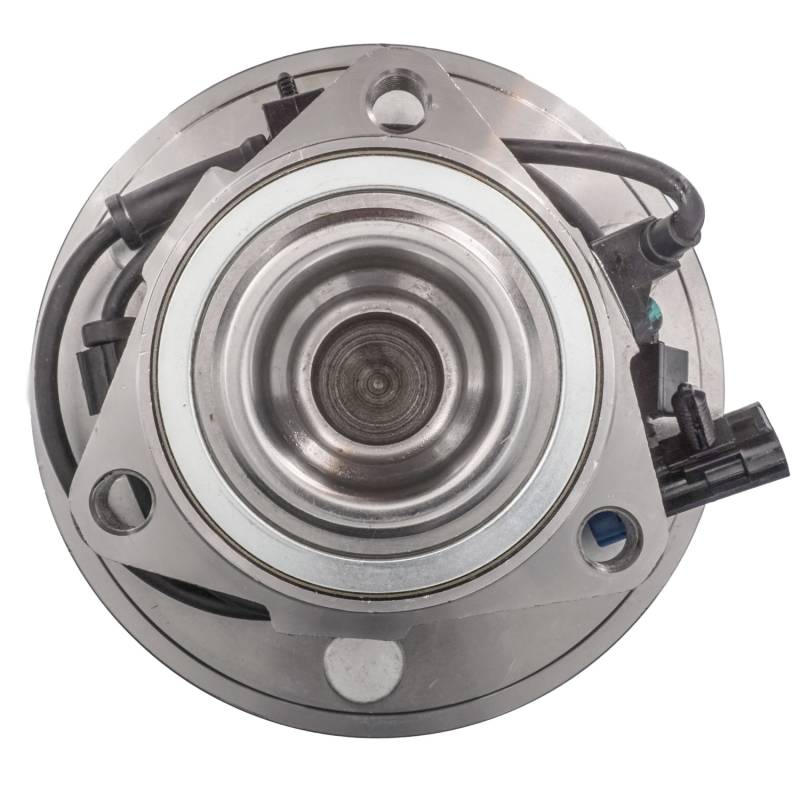

New Hub Assembly Compatible With Chevrolet Gmc Astro Safari 4.3L 2003 2004 2005 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 2.126
FLANGE BOLT SIZE (MM): 54
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 3.087
FLANGE OFFSET (INCH): 1.961
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 7.087
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.087
TOTAL HUB DIAMETER (MM): 180
TOTAL HUB HEIGHT (IN): 5.74
TOTAL HUB HEIGHT (MM): 145.8
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 31.496

REPLACES:
ACDELCO: 15058393 19390698 19419364 515044A FW228
AUTOPART INTERNATIONAL: 1411-49061
BCA: WE61195
CENTRIC PARTS: 40766001E
FAG US: 102184
GENERAL MOTORS: 15058393
GSP: 106044
MEVOTECH: H515044
MOOG HUB ASSEMBLIES: 515044
NAPA: PBR930307

APPLICATIONS:
CHEVROLET ASTRO (2003-2005)
GMC SAFARI (2003-2005)
