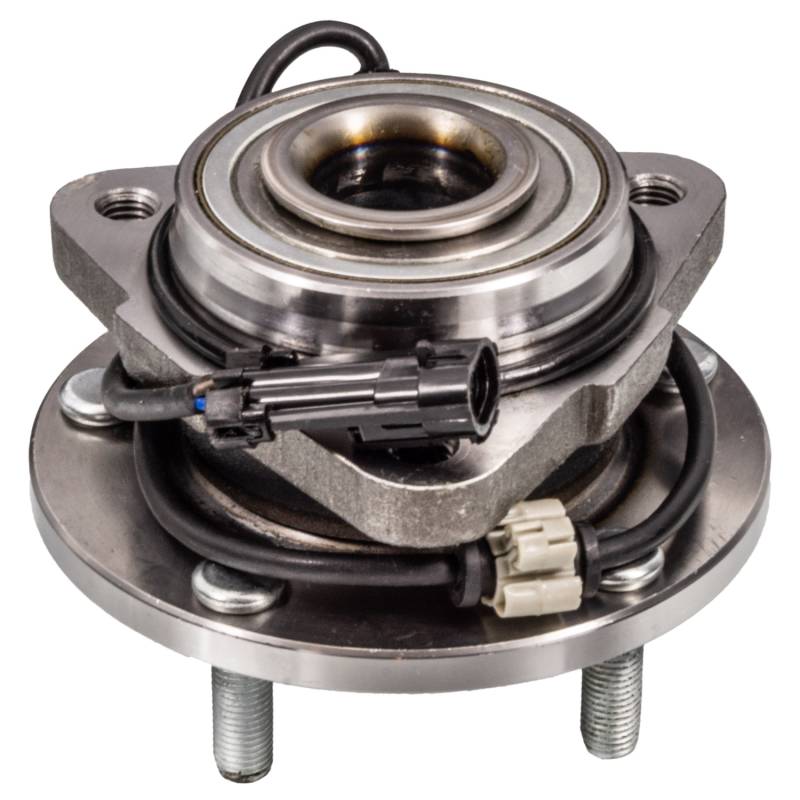

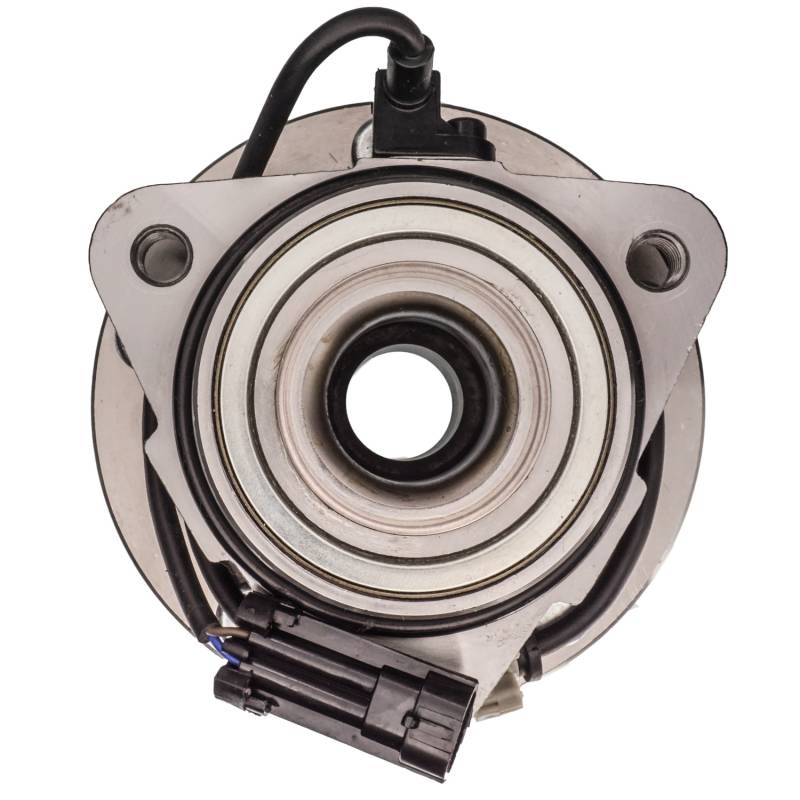

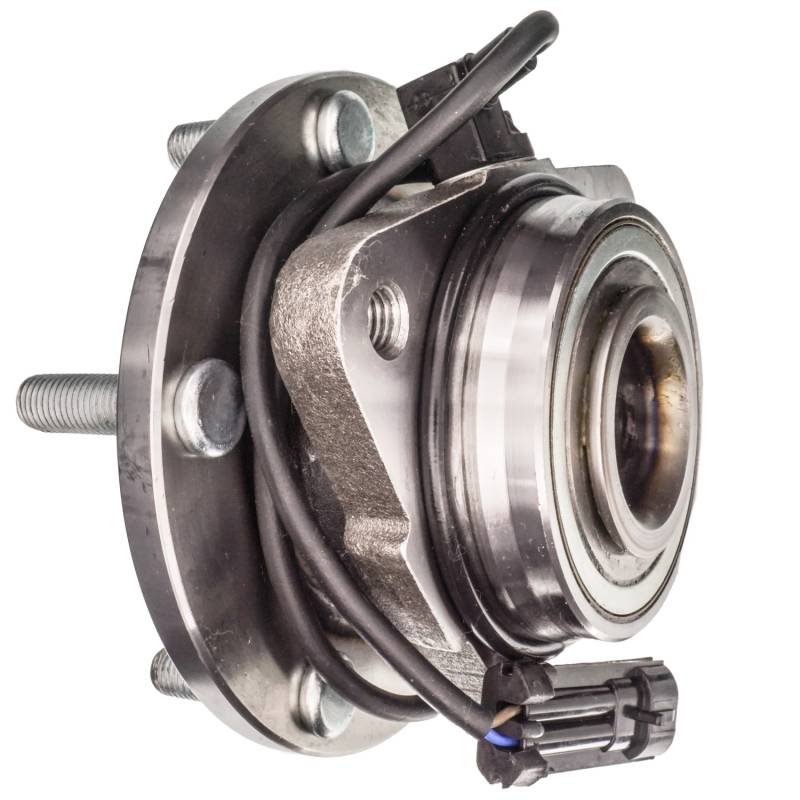

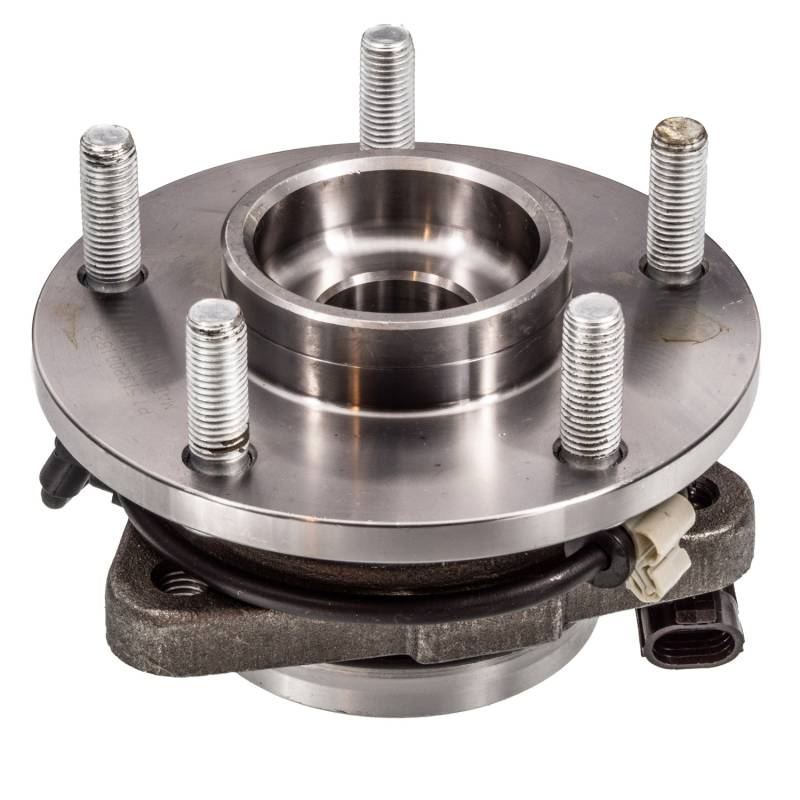

New Hub Assembly Compatible With Chevrolet Gmc Blazer Jimmy 4.2L 4.3L 1998 1999 2000 2001 2002 2003

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

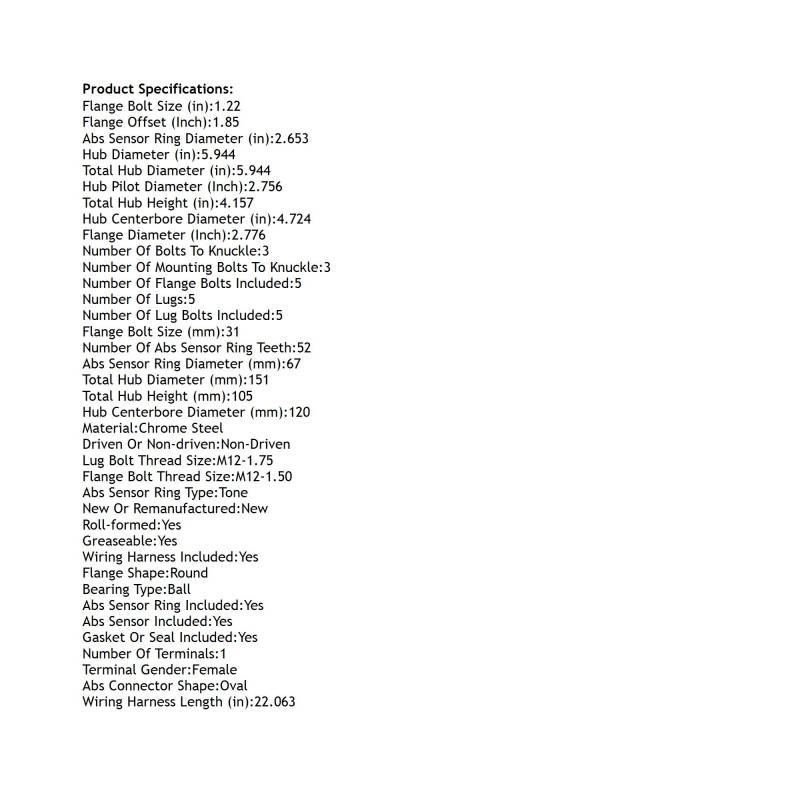

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.653
ABS SENSOR RING DIAMETER (MM): 67
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.22
FLANGE BOLT SIZE (MM): 31
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.776
FLANGE OFFSET (INCH): 1.85
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 5.944
HUB PILOT DIAMETER (INCH): 2.756
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 52
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.944
TOTAL HUB DIAMETER (MM): 151
TOTAL HUB HEIGHT (IN): 4.157
TOTAL HUB HEIGHT (MM): 105
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 22.063

REPLACES:
ACDELCO: FW149
AUTOPART INTERNATIONAL: 1411-49118
BCA: WE60878
CENTRIC PARTS: 40766002
FAG US: 102037
GSP: 104200
MEVOTECH: H513200
MOOG HUB ASSEMBLIES: 513200
NAPA: PBR930497

APPLICATIONS:
CHEVROLET BLAZER (1998-2005)
GMC JIMMY (1998-2004)
