New Hub Assembly Compatible With Chevrolet Gmc 2001 2002 2003 2004 2005 2006 2007 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

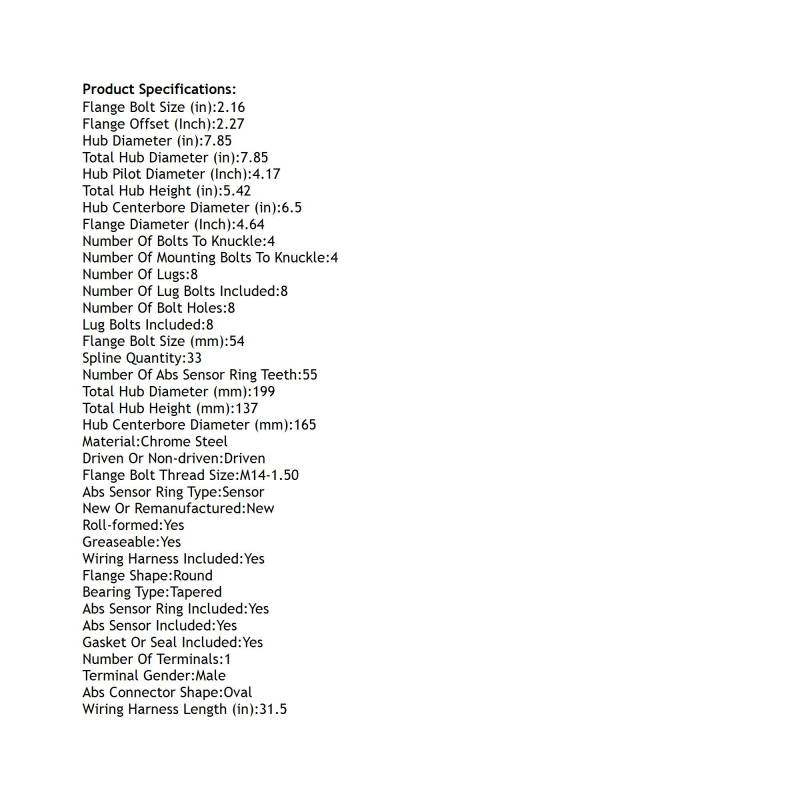

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 2.16
FLANGE BOLT SIZE (MM): 54
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 4.64
FLANGE OFFSET (INCH): 2.27
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165
HUB DIAMETER (IN): 7.85
HUB PILOT DIAMETER (INCH): 4.17
LUG BOLTS INCLUDED: 8
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 8
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.85
TOTAL HUB DIAMETER (MM): 199
TOTAL HUB HEIGHT (IN): 5.42
TOTAL HUB HEIGHT (MM): 137
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 31.5

REPLACES:
ACDELCO: FW339
AUTOPART INTERNATIONAL: 1411-02591
BCA: WE61313
CENTRIC PARTS: 40266012E
GENERAL MOTORS: 15946733
GSP: 106086
MEVOTECH: H515087
MOOG HUB ASSEMBLIES: 515087
NAPA: PBR930667

APPLICATIONS:
CHEVROLET SILVERADO 3500 HD (2001-2006)
CHEVROLET SILVERADO 3500 (2001-2006)
GMC SIERRA 3500 (2001-2006)
CHEVROLET SILVERADO 3500 CLASSIC (2007-2007)
GMC SIERRA 3500 CLASSIC (2007-2007)
