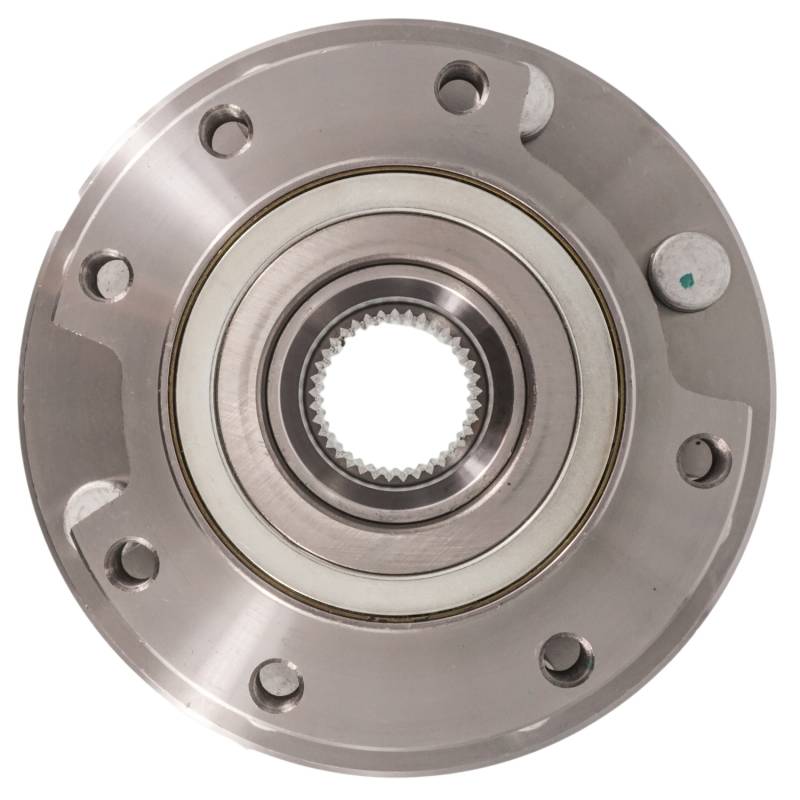

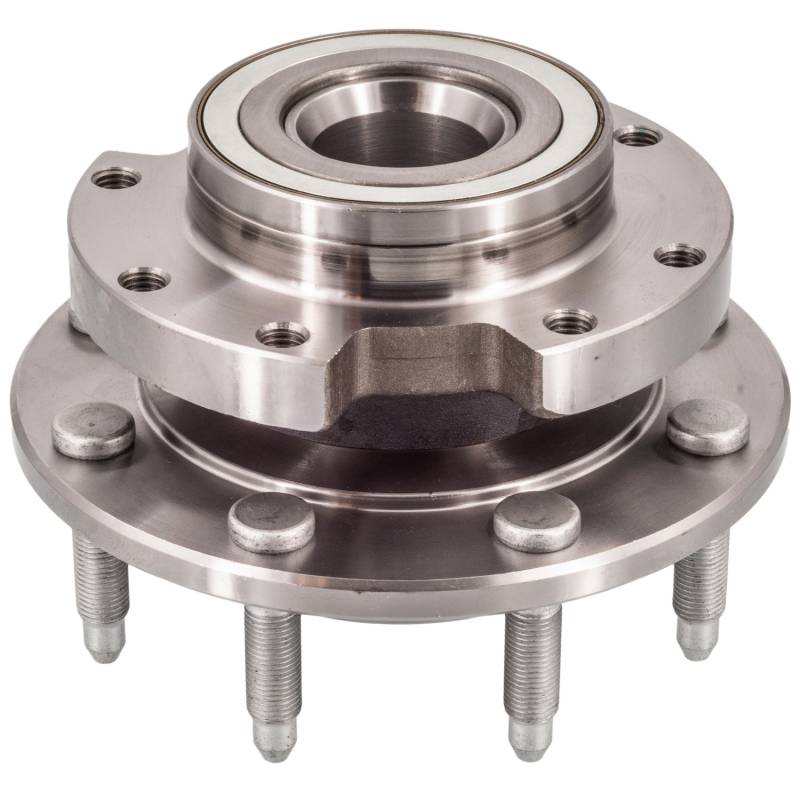

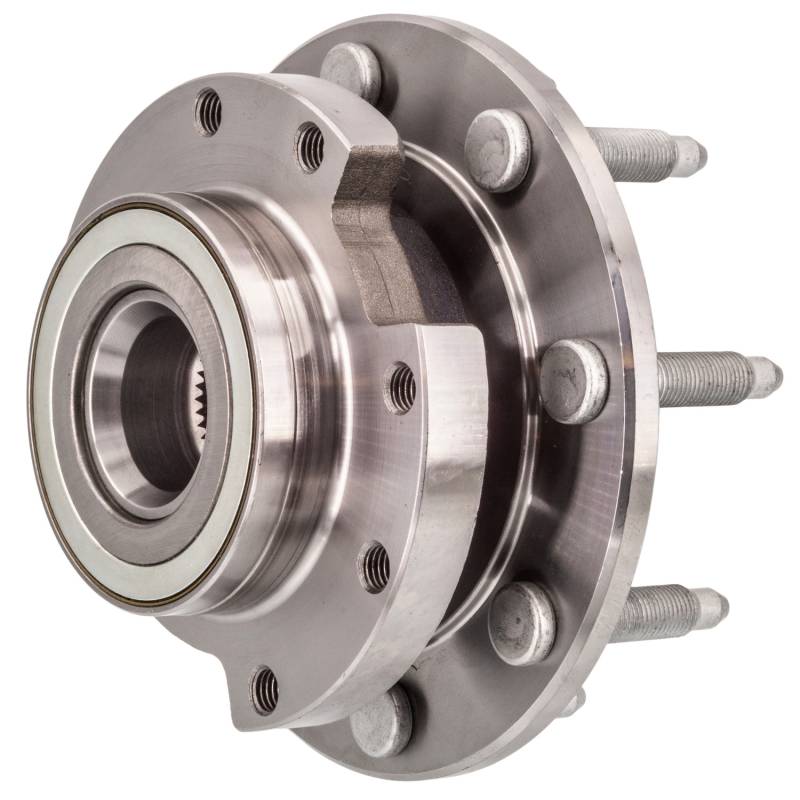

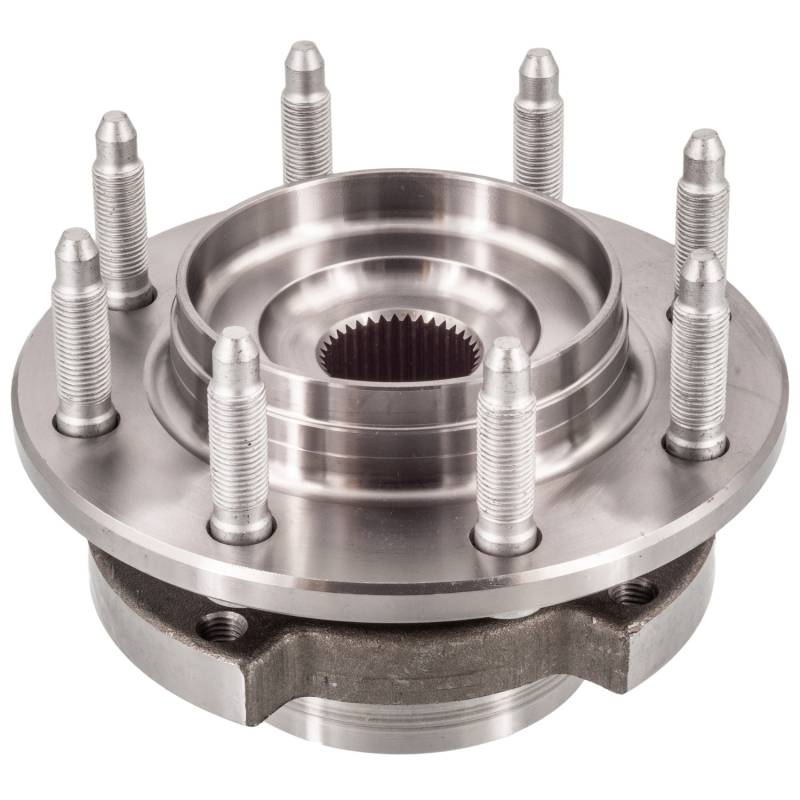

New Hub Assembly Compatible With Chevrolet Gmc 2002 2003 2004 2005 By Part Numbers Ha590004 Pt541006

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 2.126
FLANGE BOLT SIZE (MM): 54
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 4.606
FLANGE OFFSET (INCH): 2.402
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165.1
HUB DIAMETER (IN): 7.846
HUB PILOT DIAMETER (INCH): 4.166
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 7
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 7
ROLL-FORMED: NO
SPLINE QUANTITY: 37
TOTAL HUB DIAMETER (IN): 7.846
TOTAL HUB DIAMETER (MM): 199.3
TOTAL HUB HEIGHT (IN): 5.512
TOTAL HUB HEIGHT (MM): 140
WIRING HARNESS INCLUDED: NO

REPLACES:
CENTRIC PARTS: 40266014E
FVP: WH541005
MOOG HUB ASSEMBLIES: 541006

APPLICATIONS:
CHEVROLET SILVERADO 1500 HD LS (2002-2005)
CHEVROLET SILVERADO 1500 HD LT (2002-2005)
CHEVROLET SILVERADO 1500 (2002-2005)
GMC SIERRA 1500 HD (2002-2005)
GMC SIERRA 1500 (2002-2005)
CHEVROLET SILVERADO 2500 HD (2003-2005)
CHEVROLET SILVERADO 2500 (2003-2004)
CHEVROLET SUBURBAN 2500 (2003-2005)
GMC SIERRA 2500 HD (2003-2005)
GMC SIERRA 2500 (2003-2004)
CHEVROLET SILVERADO 1500 HD (2005-2005)
