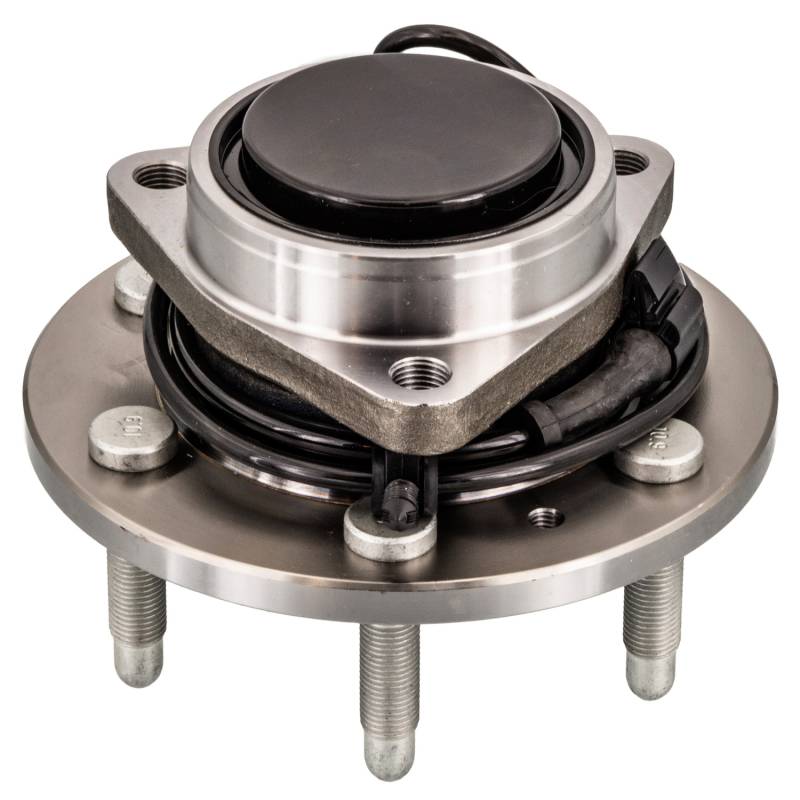

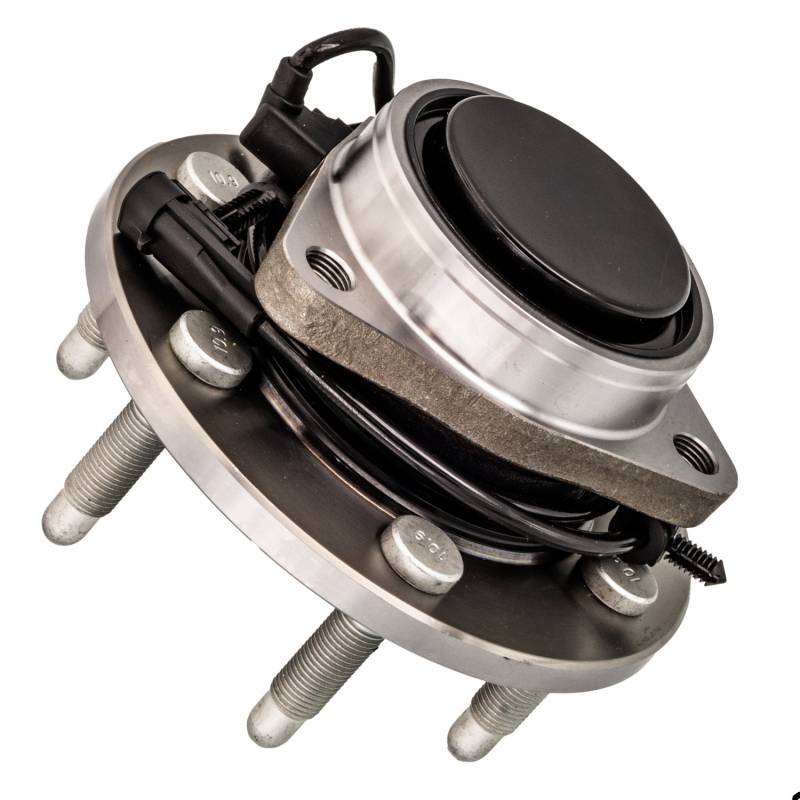

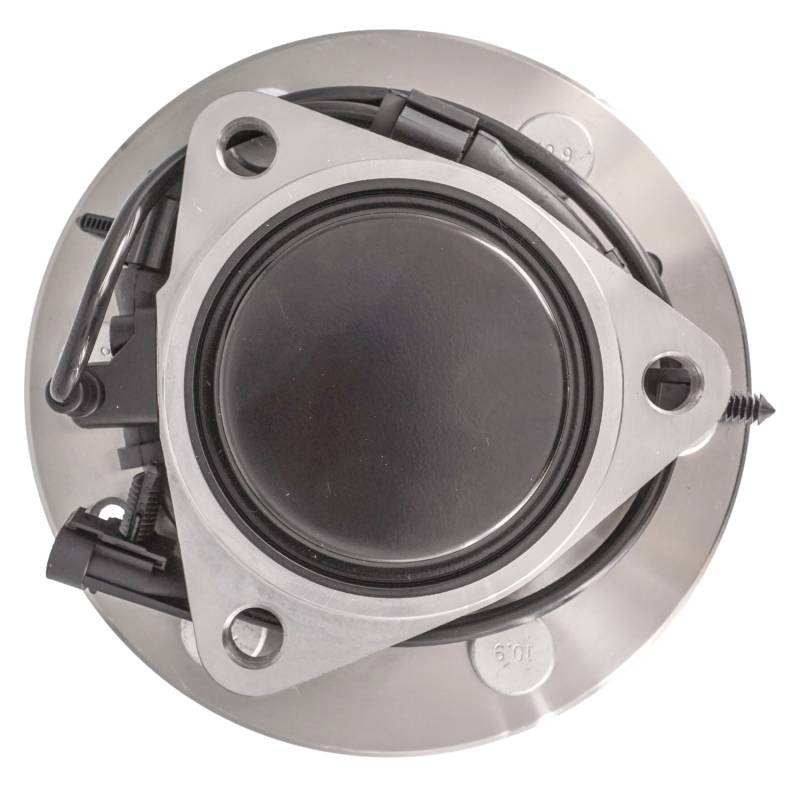

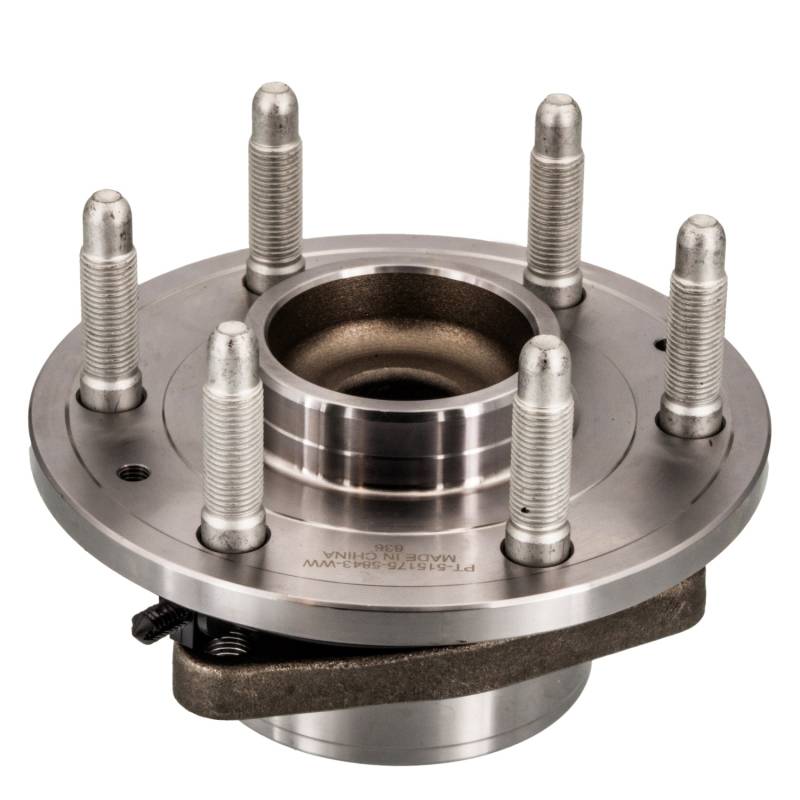

New Hub Assembly Compatible With Chevrolet Gmc 2005 2006 2007 By Part Numbers Pt515175

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 2.12
FLANGE BOLT SIZE (MM): 54
FLANGE BOLT THREAD SIZE: M14-1.5-6G
FLANGE DIAMETER (INCH): 3.08
FLANGE OFFSET (INCH): 1.96
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 7.04
HUB PILOT DIAMETER (INCH): 3.9
LUG BOLT THREAD SIZE: M14-1.50-6H
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 6
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 6
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.04
TOTAL HUB DIAMETER (MM): 179
TOTAL HUB HEIGHT (IN): 5.22
TOTAL HUB HEIGHT (MM): 132.7
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 31.688

REPLACES:
ACDELCO: 19419365 FW454
AUTOPART INTERNATIONAL: 1411-423158
GENERAL MOTORS: 84356641
MOOG HUB ASSEMBLIES: 515175

APPLICATIONS:
CHEVROLET SILVERADO 1500 HD LS (2005-2005)
CHEVROLET SILVERADO 1500 HD LT (2005-2006)
CHEVROLET SILVERADO 1500 HD (2005-2005)
CHEVROLET SILVERADO 1500 (2005-2006)
GMC SIERRA 1500 HD (2005-2006)
GMC SIERRA 1500 (2005-2006)
CHEVROLET SILVERADO 1500 CLASSIC (2007-2007)
GMC SIERRA 1500 CLASSIC (2007-2007)
