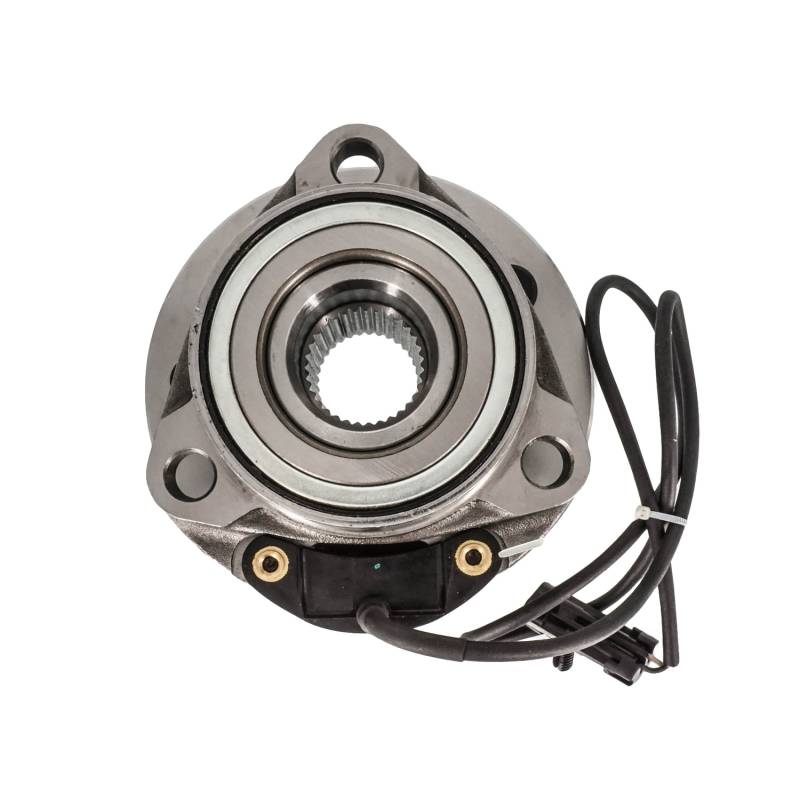

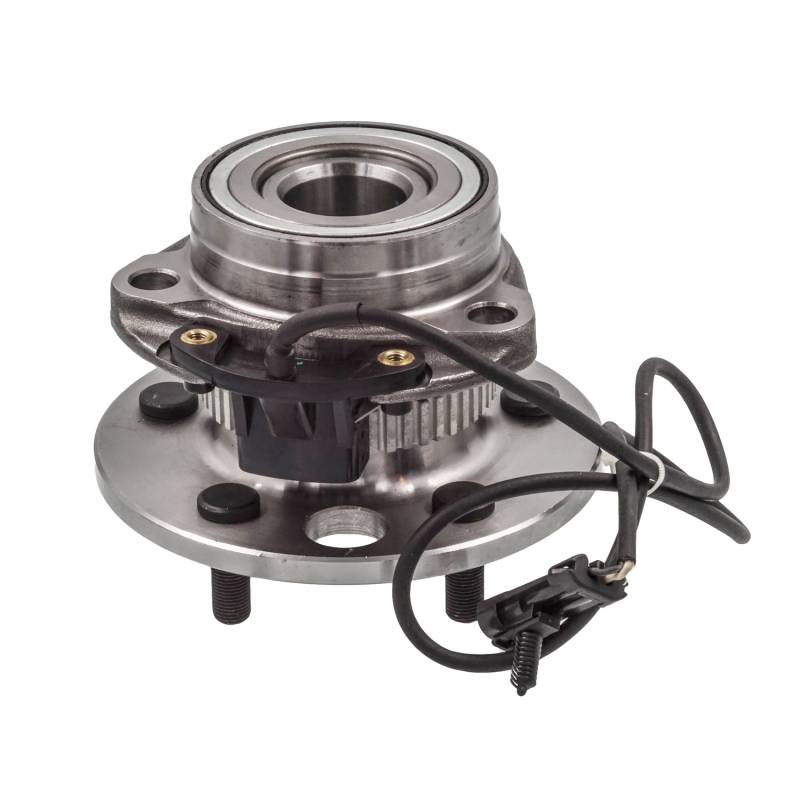

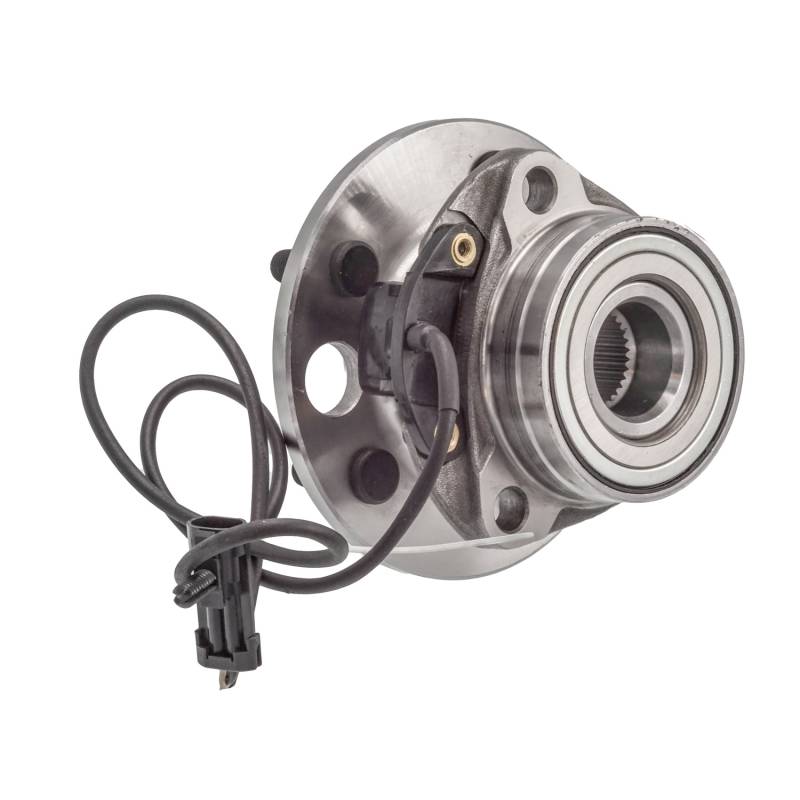

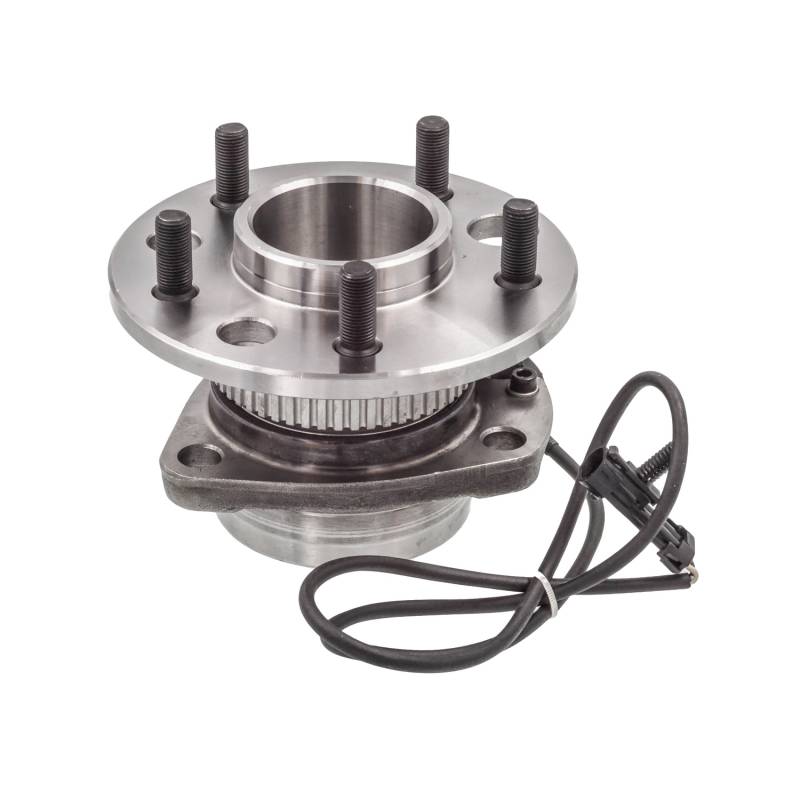

New Hub Assembly Compatible With Chevrolet Gmc Astro Safari 2.5L 4.3L 1990 1991 1992 1993 1994 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.185
FLANGE BOLT SIZE (MM): 30.1
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 3.085
FLANGE OFFSET (INCH): 2.937
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5
HUB CENTERBORE DIAMETER (MM): 127
HUB DIAMETER (IN): 6.618
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: 14.68
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 52
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 6.618
TOTAL HUB DIAMETER (MM): 168.1
TOTAL HUB HEIGHT (IN): 5.163
TOTAL HUB HEIGHT (MM): 131.15
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 37.559

REPLACES:
AUTOPART INTERNATIONAL: 1411-44740
CENTRIC PARTS: 40266001E
FAG US: 102150
GSP: 106005
MEVOTECH: H515005
MOOG HUB ASSEMBLIES: 515005
NAPA: PBR930265

APPLICATIONS:
CHEVROLET ASTRO (1990-1994)
GMC SAFARI (1990-1994)
