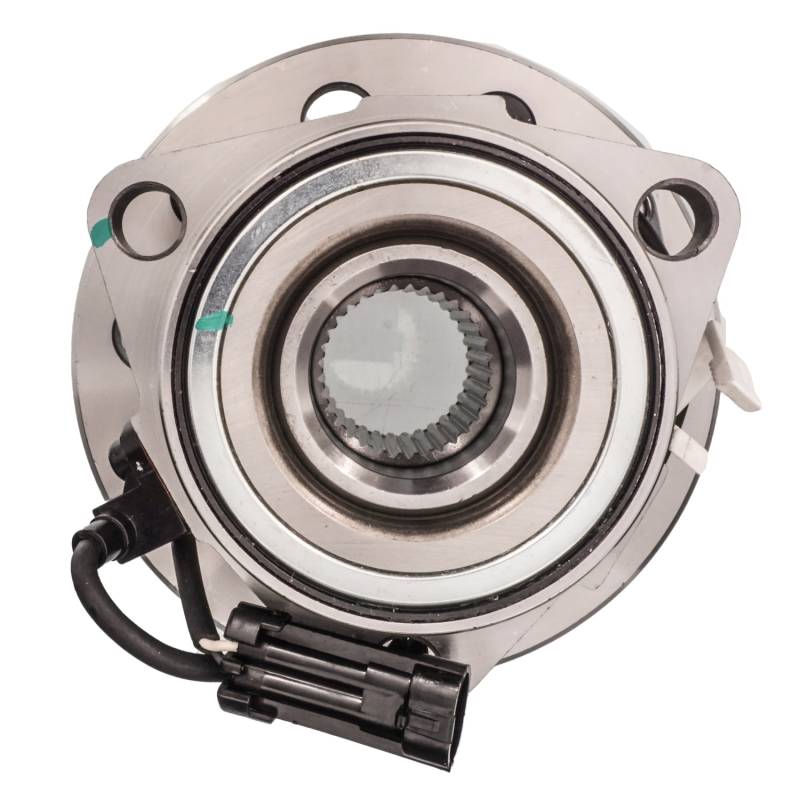

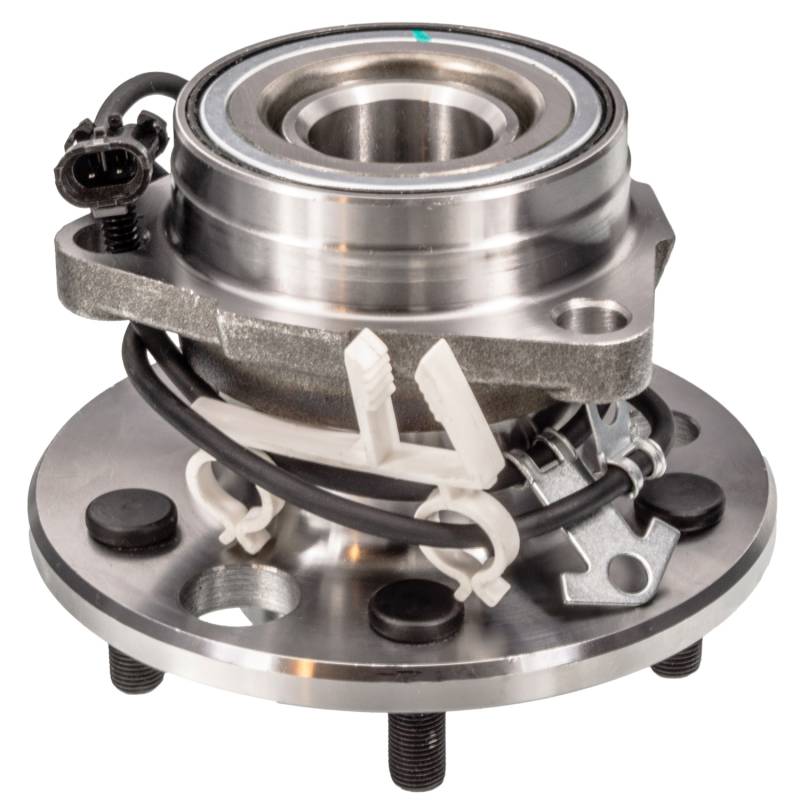

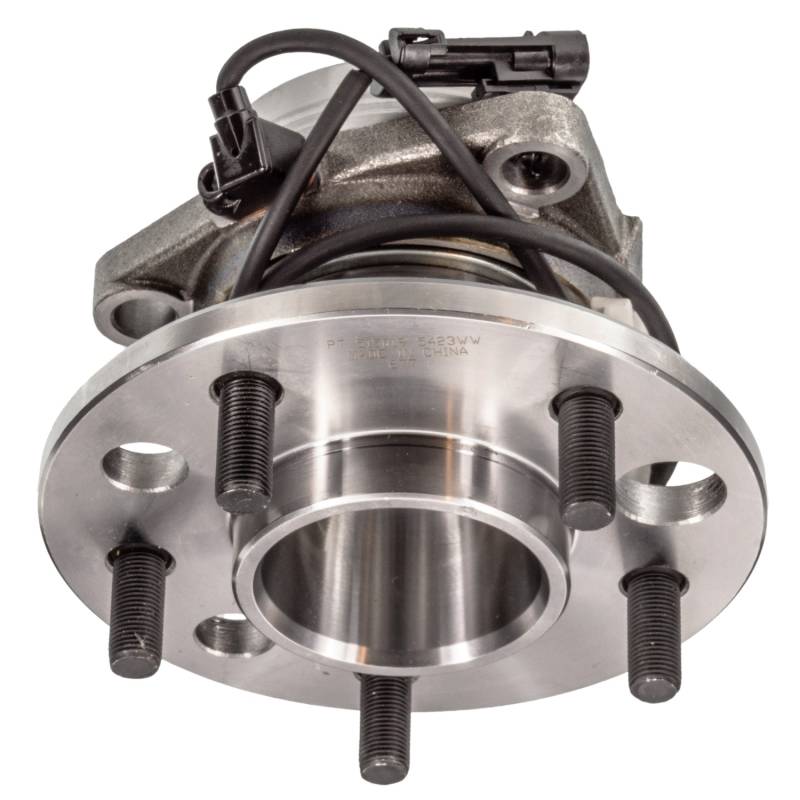

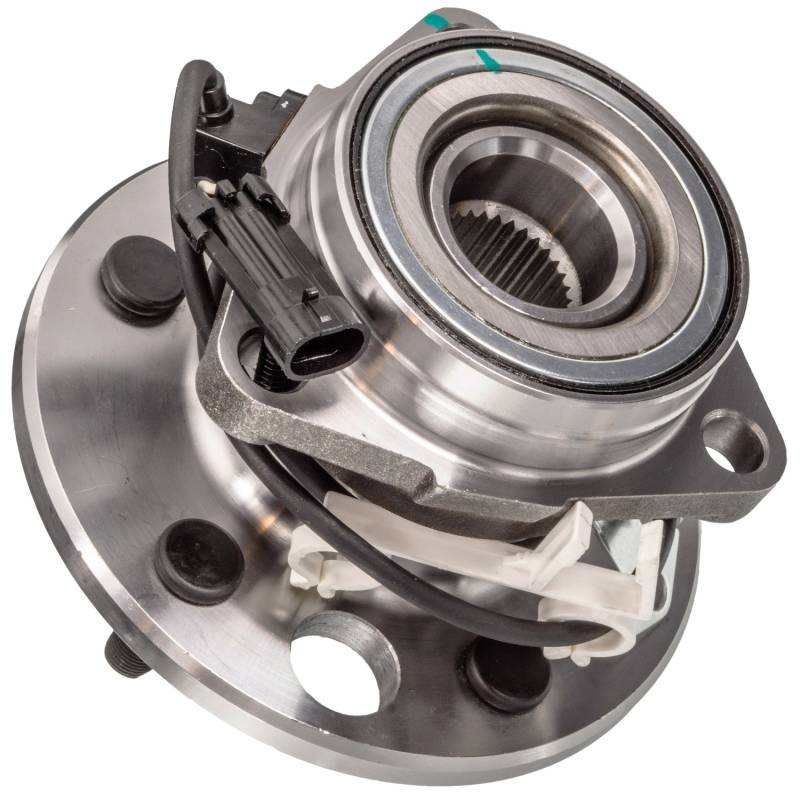

New Hub Assembly Compatible With Chevrolet Gmc Astro Safari 4.3L 1995 1996 1997 1998 1999 2000 2001

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.146
FLANGE BOLT SIZE (MM): 29.1
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 3.077
FLANGE OFFSET (INCH): 2.945
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5
HUB CENTERBORE DIAMETER (MM): 127
HUB DIAMETER (IN): 6.622
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: 14.68
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 6.622
TOTAL HUB DIAMETER (MM): 168.2
TOTAL HUB HEIGHT (IN): 5.134
TOTAL HUB HEIGHT (MM): 130.4
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 31.496

REPLACES:
ACDELCO: FW172 FW173
AUTOPART INTERNATIONAL: 1411-49156
BCA: WE61247
CENTRIC PARTS: 40266002
FAG US: 102177
GENERAL MOTORS: 15997073 15997074
GSP: 106019
MEVOTECH: H515019
MOOG HUB ASSEMBLIES: 515019
NAPA: PBR930209

APPLICATIONS:
CHEVROLET ASTRO (1995-2002)
GMC SAFARI (1995-2002)
