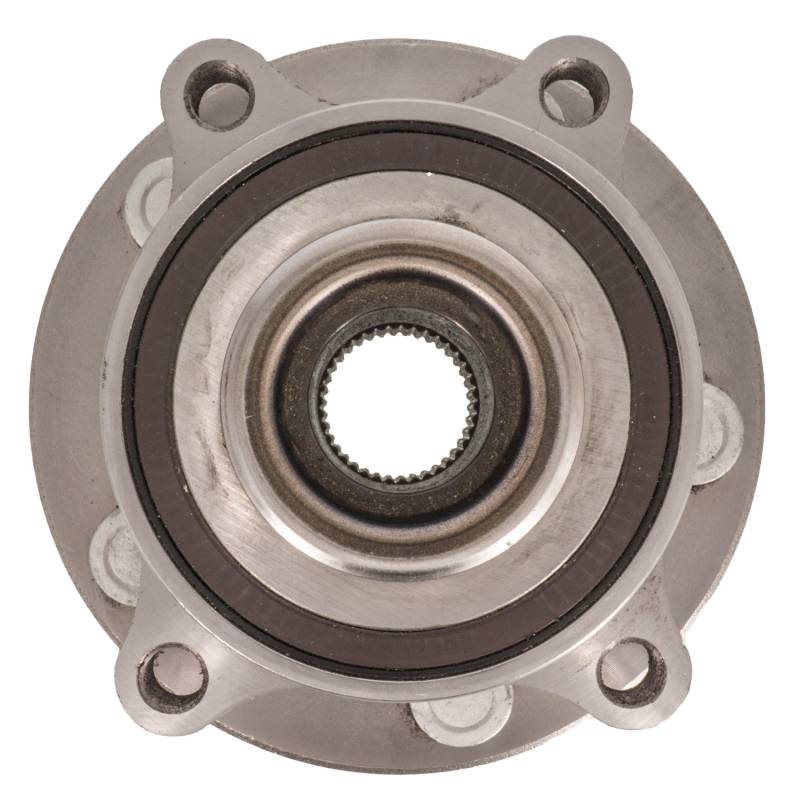

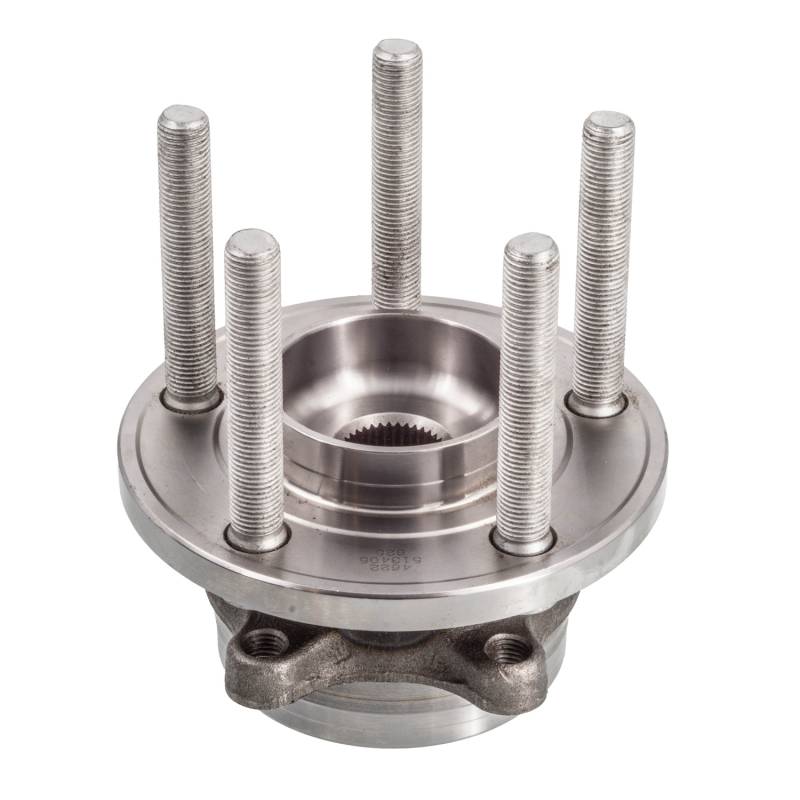

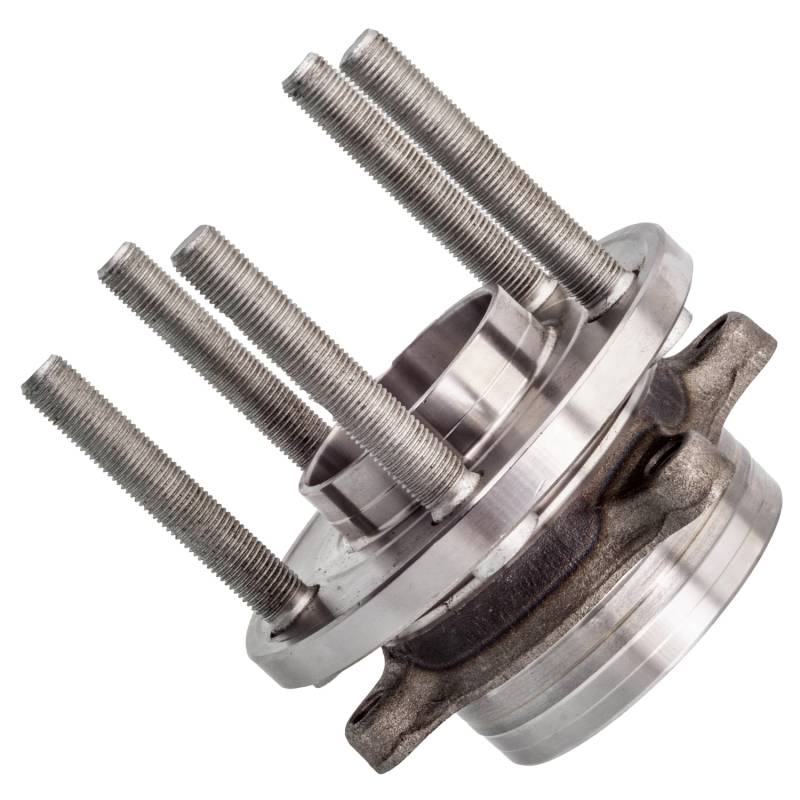

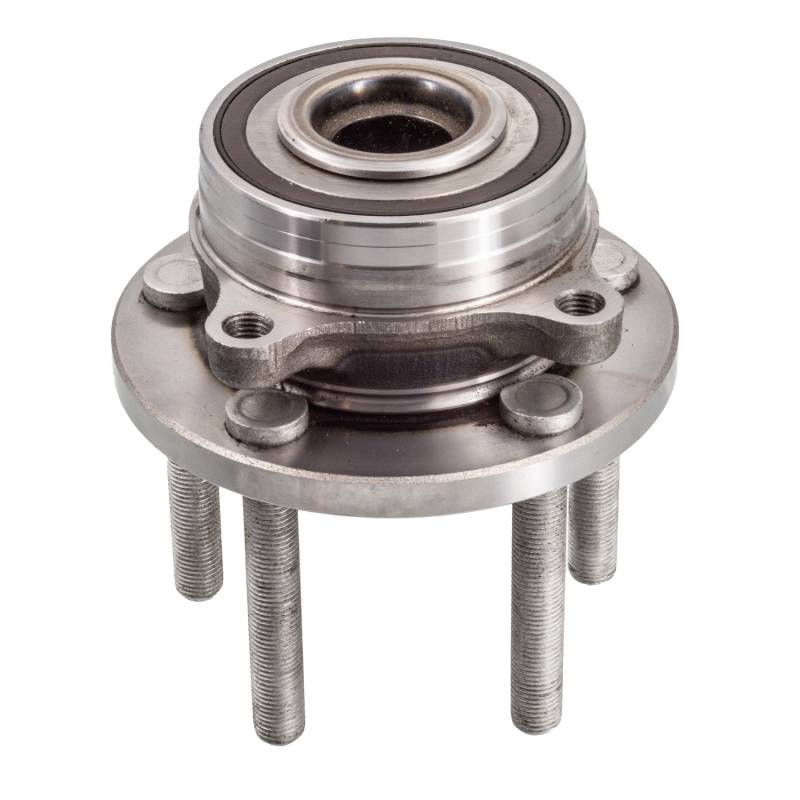

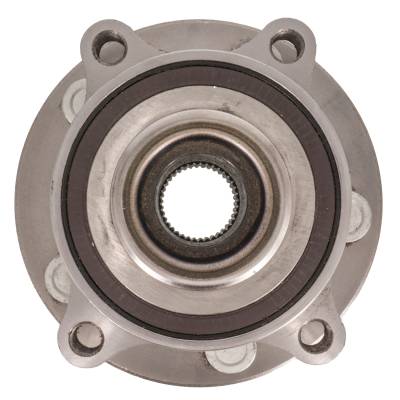

New Hub Assembly Compatible With Ford Mustang 5.2L 2016 2017 By Part Numbers Pt513405

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

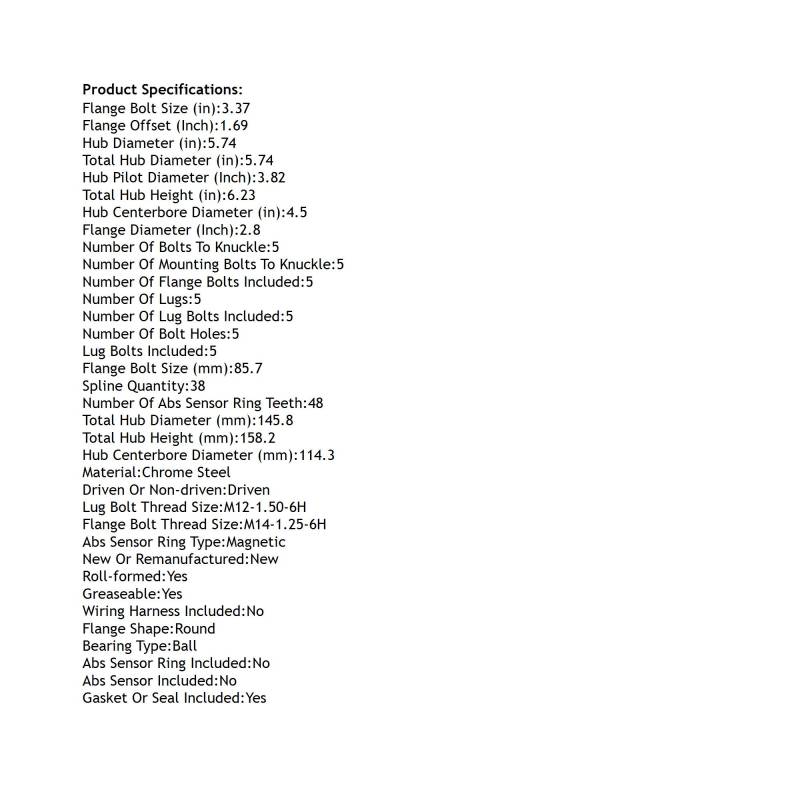

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 3.37
FLANGE BOLT SIZE (MM): 85.7
FLANGE BOLT THREAD SIZE: M14-1.25-6H
FLANGE DIAMETER (INCH): 2.8
FLANGE OFFSET (INCH): 1.69
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.74
HUB PILOT DIAMETER (INCH): 3.82
LUG BOLT THREAD SIZE: M12-1.50-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
ROLL-FORMED: YES
SPLINE QUANTITY: 38
TOTAL HUB DIAMETER (IN): 5.74
TOTAL HUB DIAMETER (MM): 145.8
TOTAL HUB HEIGHT (IN): 6.23
TOTAL HUB HEIGHT (MM): 158.2
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-339472
FORD: FR3Z 1109 A
MOOG HUB ASSEMBLIES: 513405
MOTORCRAFT: HUB395

APPLICATIONS:
FORD MUSTANG (2016-2017)
