THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

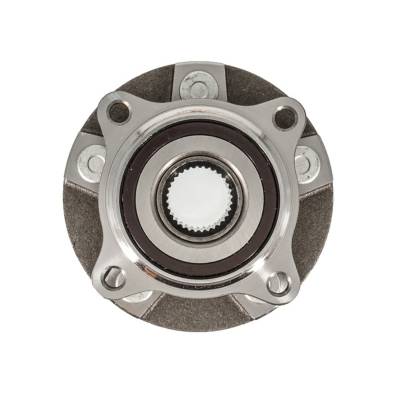

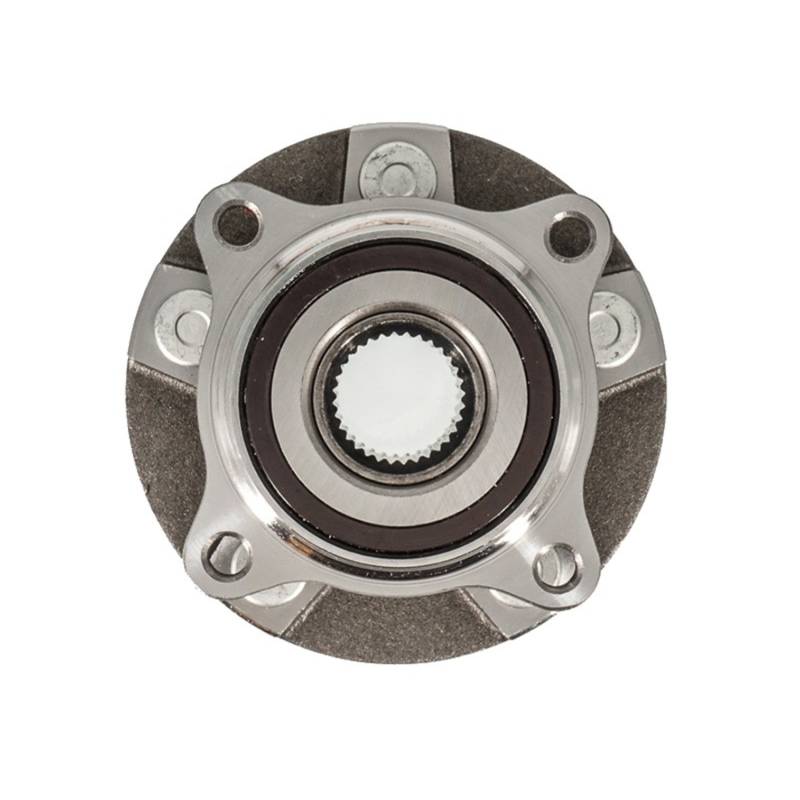

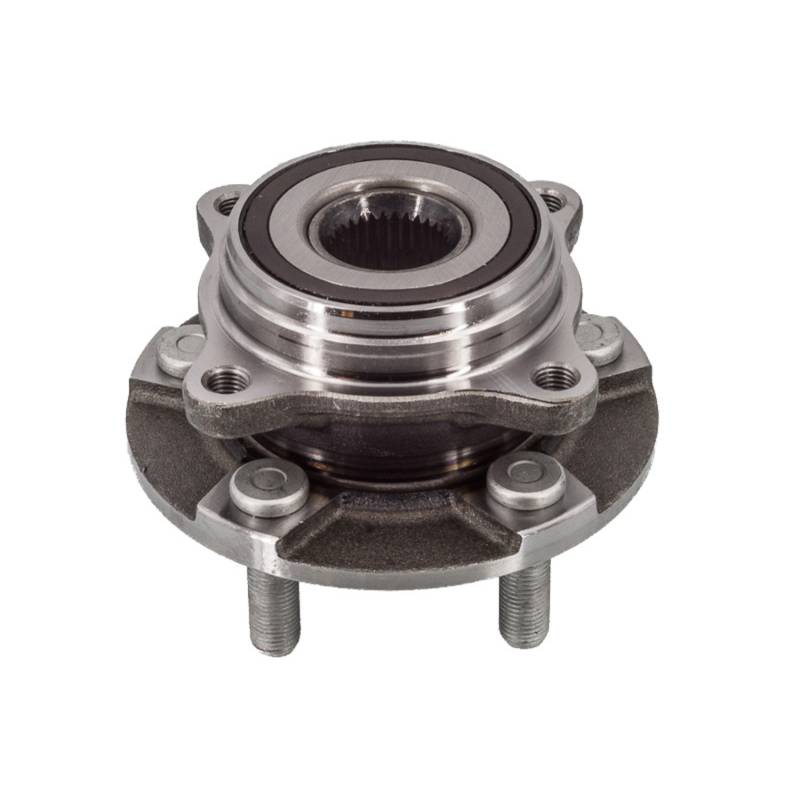

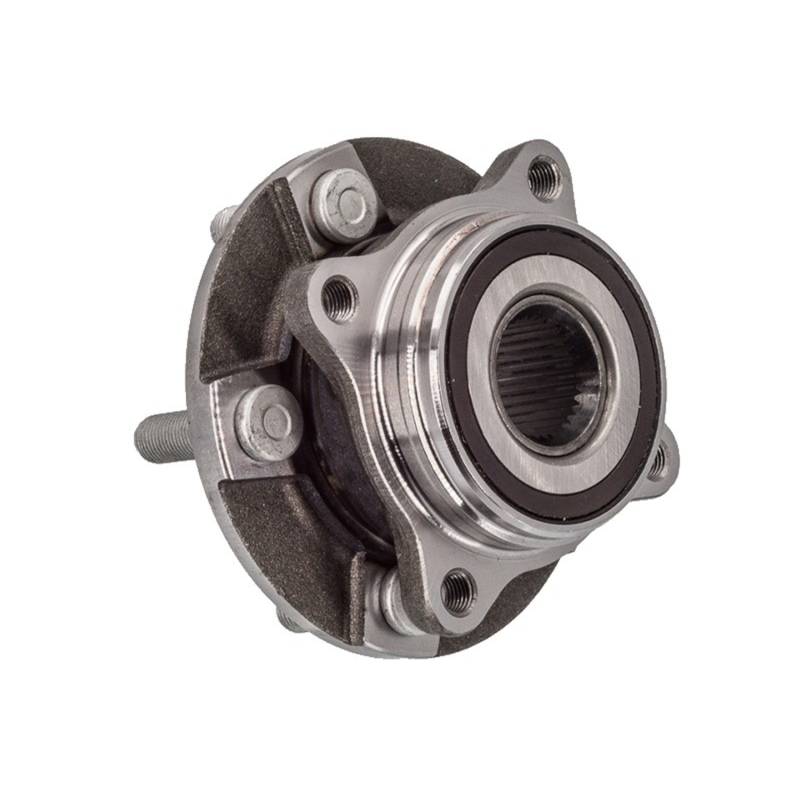

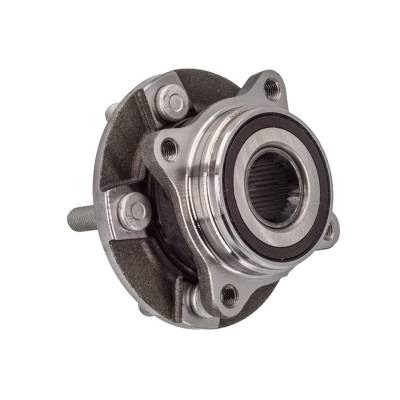

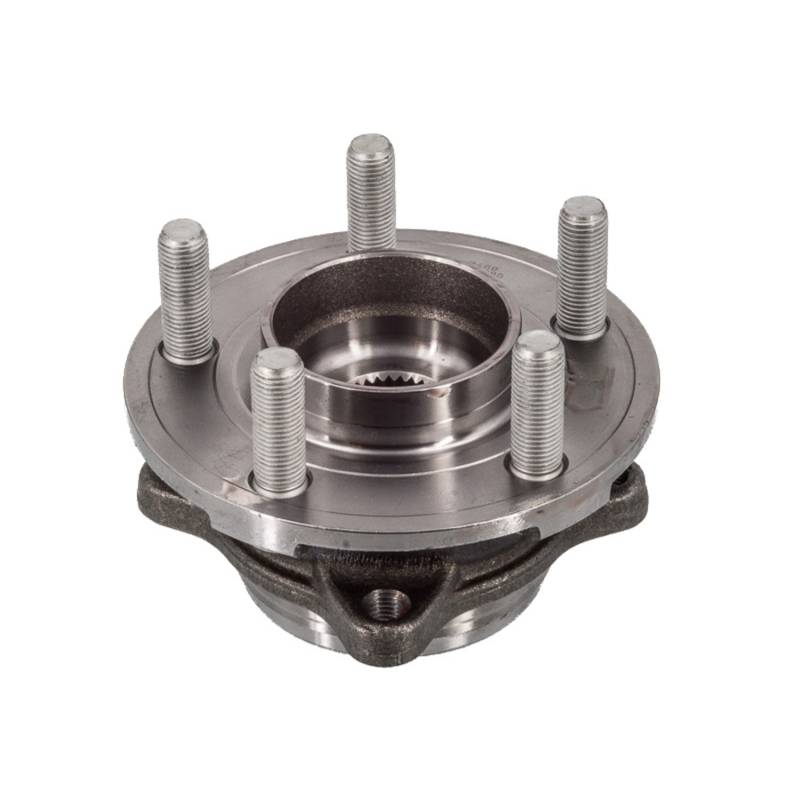

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.012
ABS SENSOR RING DIAMETER (MM): 76.5
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.496
FLANGE BOLT SIZE (MM): 38
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.795
FLANGE OFFSET (INCH): 1.811
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.736
HUB PILOT DIAMETER (INCH): 3.583
LUG BOLT THREAD SIZE: M12X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 32
TOTAL HUB DIAMETER (IN): 5.736
TOTAL HUB DIAMETER (MM): 145.7
TOTAL HUB HEIGHT (IN): 4.118
TOTAL HUB HEIGHT (MM): 104.6
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-547799
BCA: WE61864
CENTRIC PARTS: 40161004
FORD: FR3Z 1104 G
MEVOTECH: MB40317
MOOG HUB ASSEMBLIES: 512517
MOTORCRAFT: HUB352 FR3Z1104G
NAPA: PBR930955
APPLICATIONS:
FORD MUSTANG (2015-2023)
FORD GT (2017-2022)
FORD MUSTANG MACH-E (2021-2023)
