THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

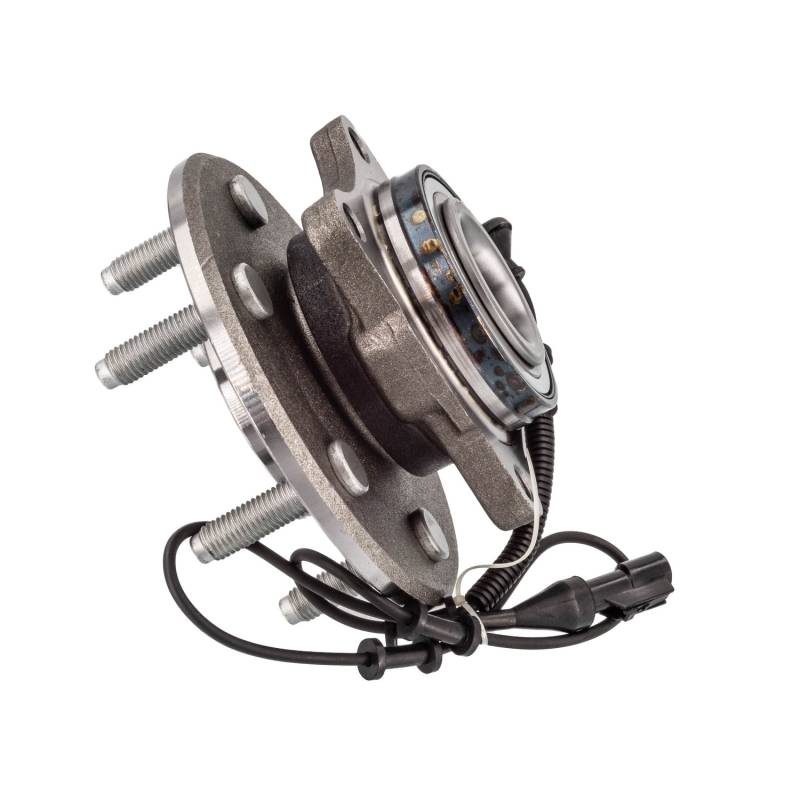

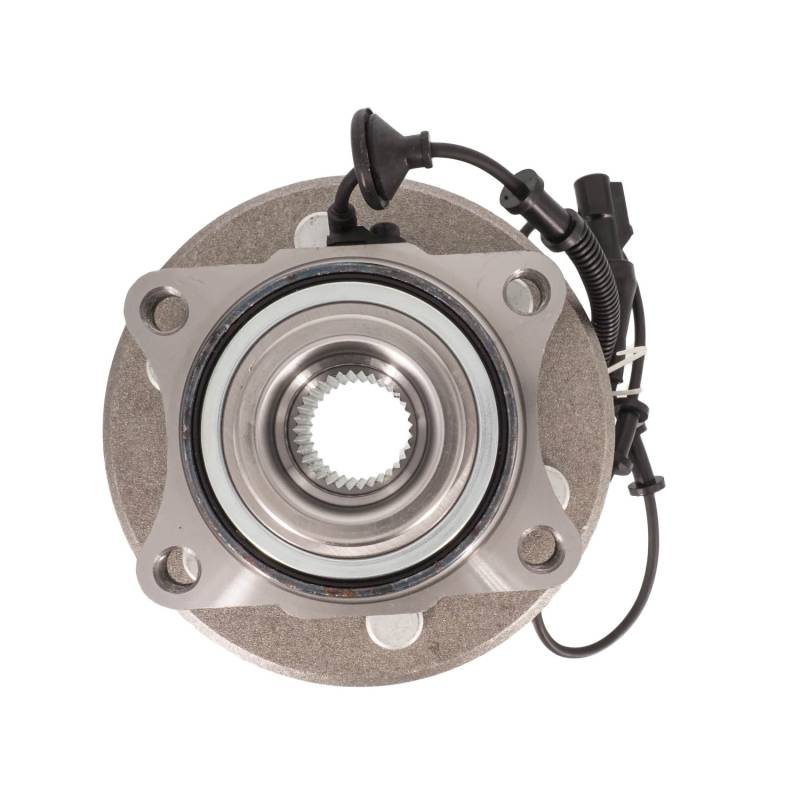

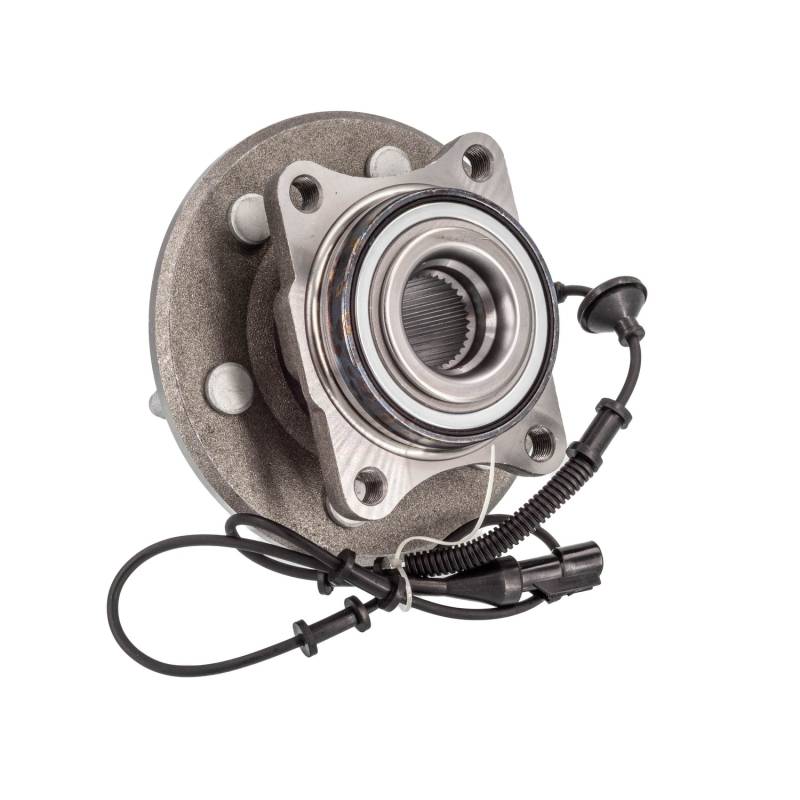

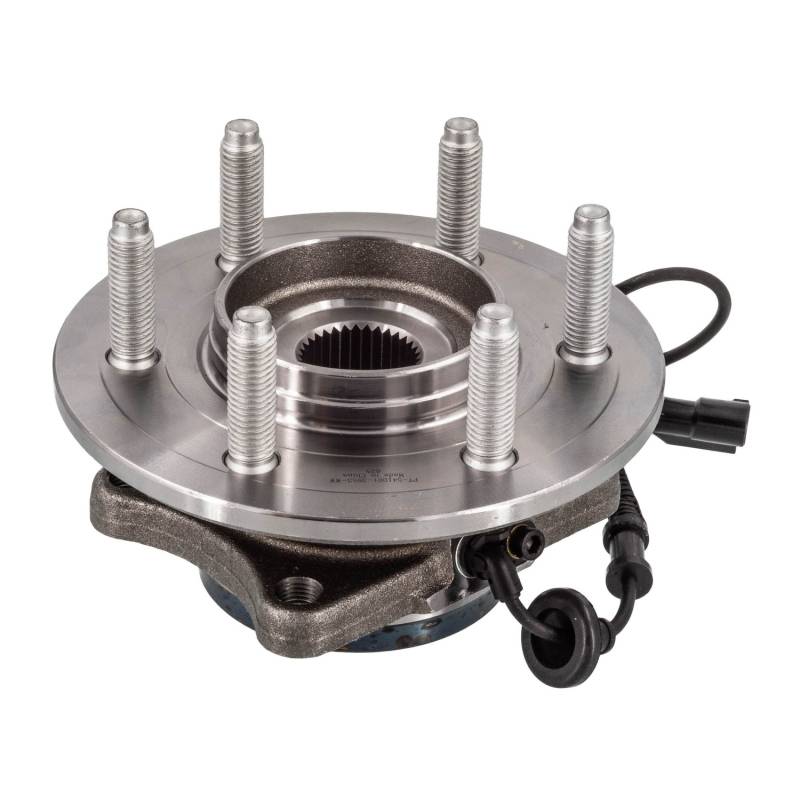

PRODUCT TYPE: HUB ASSEMBLY

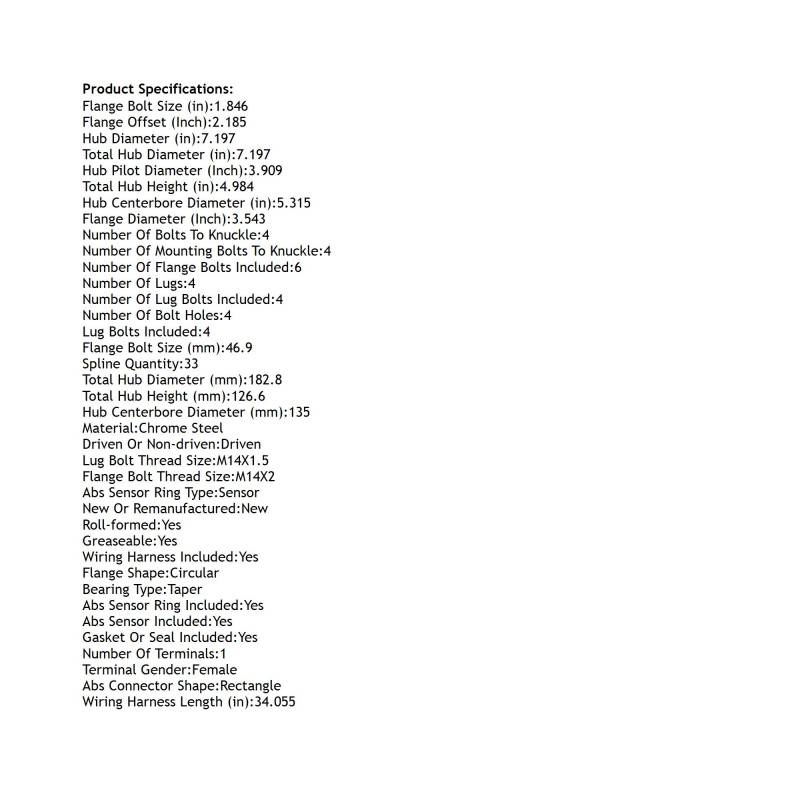

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.846
FLANGE BOLT SIZE (MM): 46.9
FLANGE BOLT THREAD SIZE: M14X2
FLANGE DIAMETER (INCH): 3.543
FLANGE OFFSET (INCH): 2.185
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.315
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.197
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.197
TOTAL HUB DIAMETER (MM): 182.8
TOTAL HUB HEIGHT (IN): 4.984
TOTAL HUB HEIGHT (MM): 126.6
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 34.055
REPLACES:
AUTOPART INTERNATIONAL: 1411-09844
BCA: WE60978
CENTRIC PARTS: 40265006
FAG US: 102245
FORD: 6L1Z 1109 F
GSP: 112001
MEVOTECH: H541001
MOOG HUB ASSEMBLIES: 541001
MOTORCRAFT: HUB276 PT541001
NAPA: PBR930635
APPLICATIONS:
FORD EXPEDITION (2003-2006)
LINCOLN NAVIGATOR (2003-2006)
FORD EXPEDITION NBX (2004-2004)
