THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

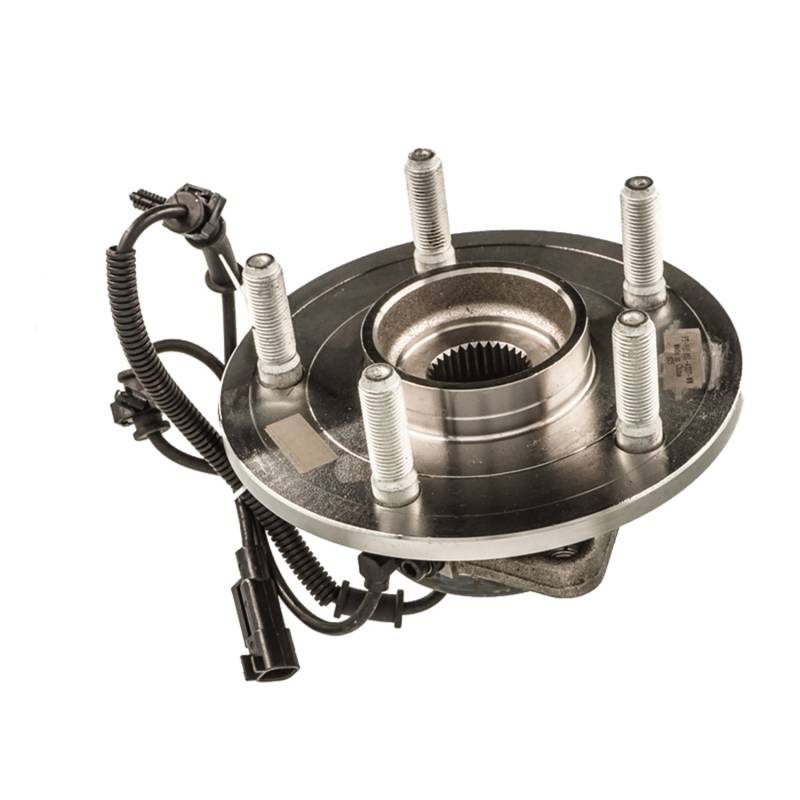

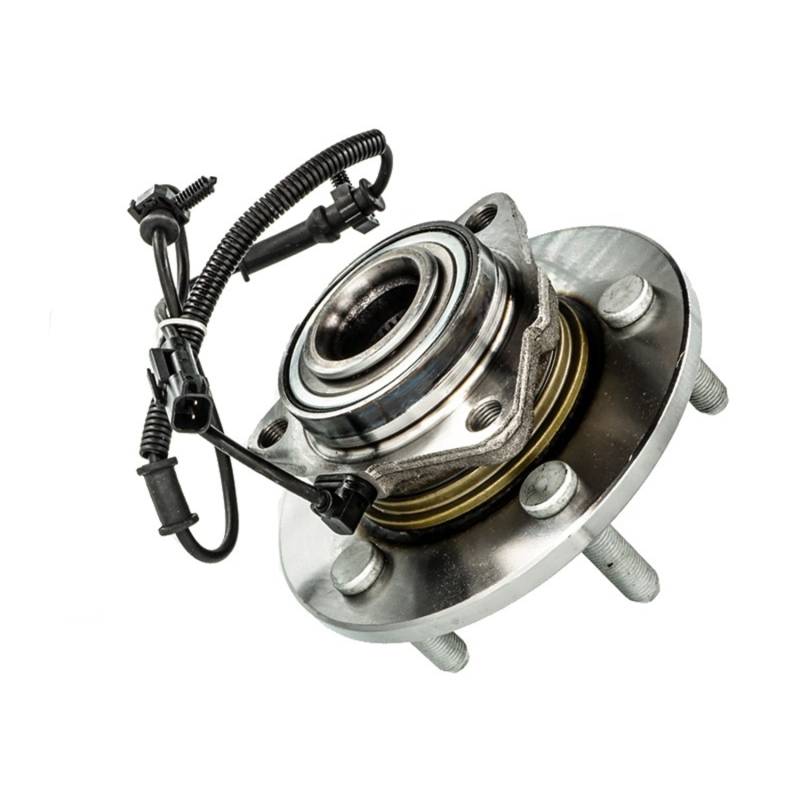

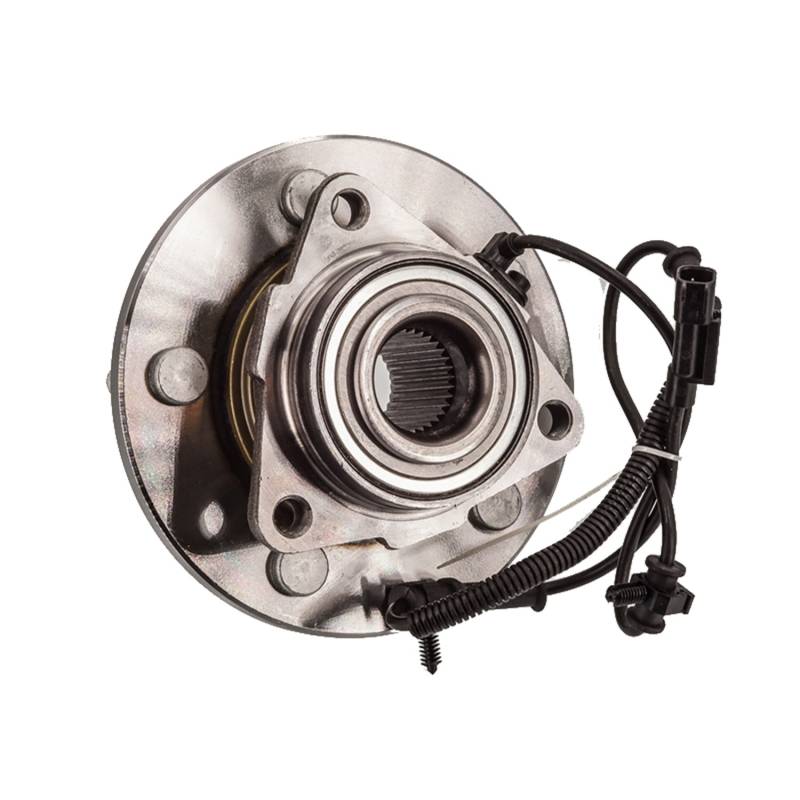

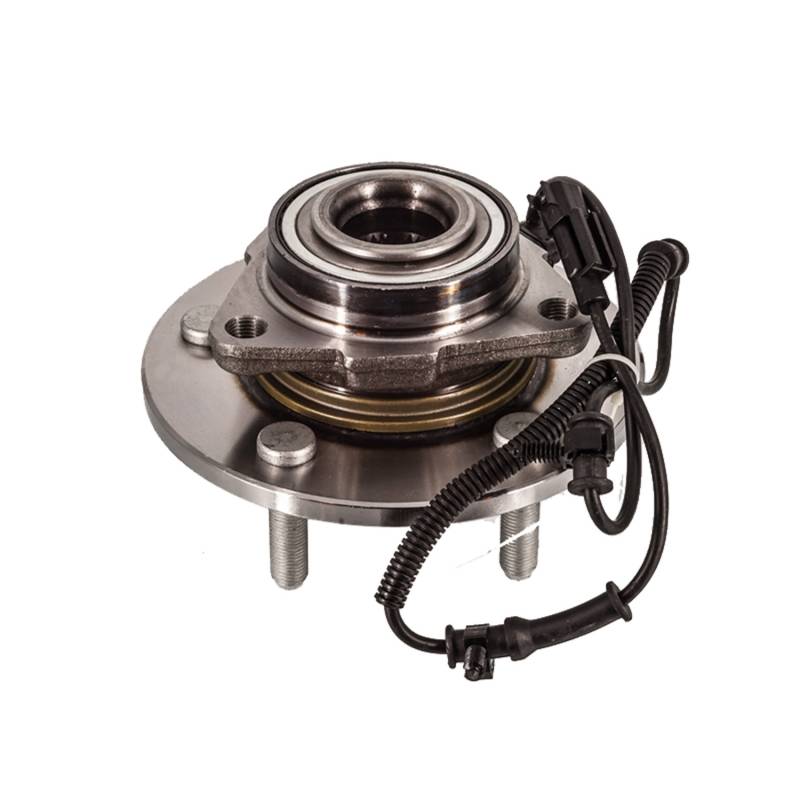

PRODUCT TYPE: HUB ASSEMBLY

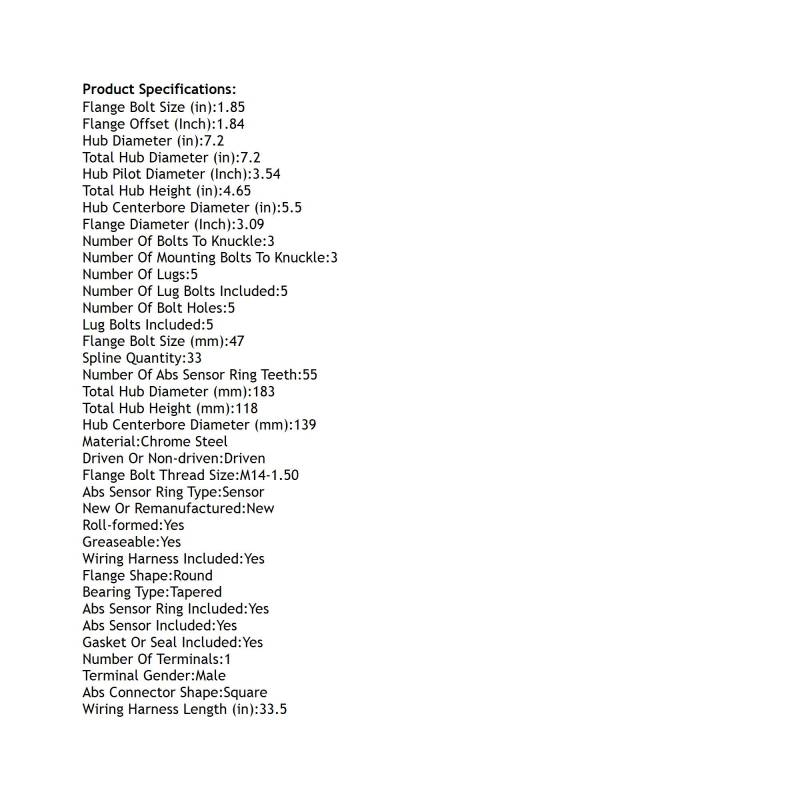

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.85
FLANGE BOLT SIZE (MM): 47
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 3.09
FLANGE OFFSET (INCH): 1.84
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139
HUB DIAMETER (IN): 7.2
HUB PILOT DIAMETER (INCH): 3.54
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.2
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 4.65
TOTAL HUB HEIGHT (MM): 118
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 33.5
REPLACES:
AUTOPART INTERNATIONAL: 1411-556388
BCA: WE61804
CENTRIC PARTS: 40267024
FAG US: 103289
GSP: 126151
MEVOTECH: MB25309
MOOG HUB ASSEMBLIES: 515151
MOPAR: 68267298AD
NAPA: PBR930858
APPLICATIONS:
RAM 1500 (2012-2018)
RAM 1500 CLASSIC (2019-2023)
