THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

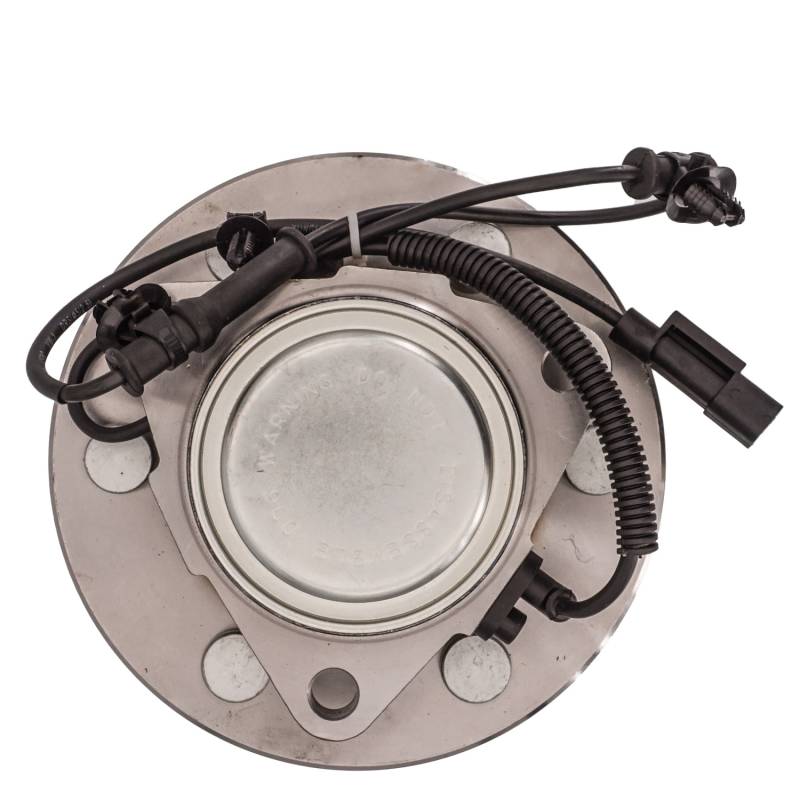

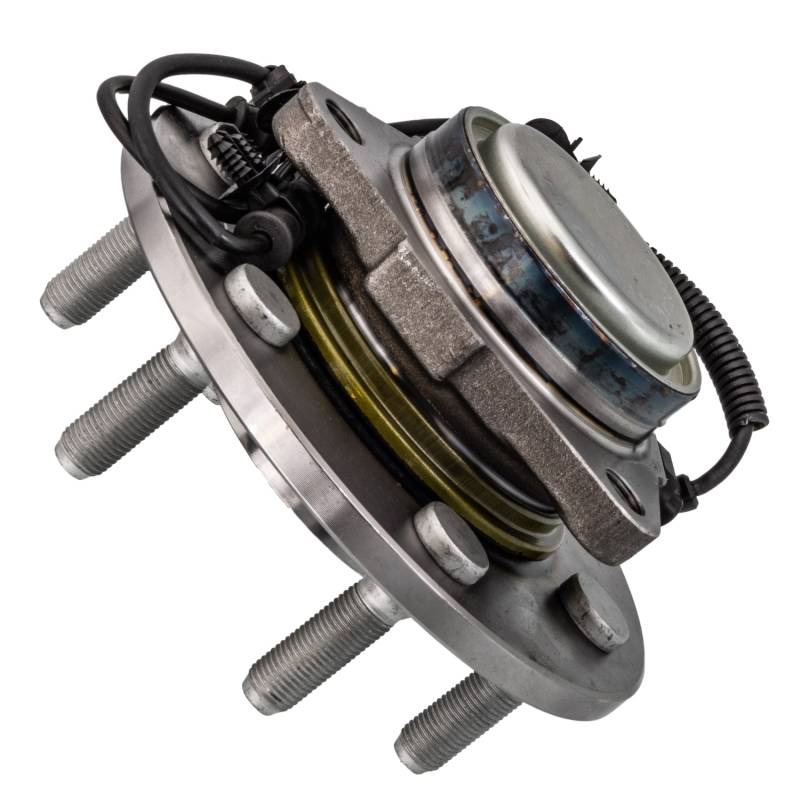

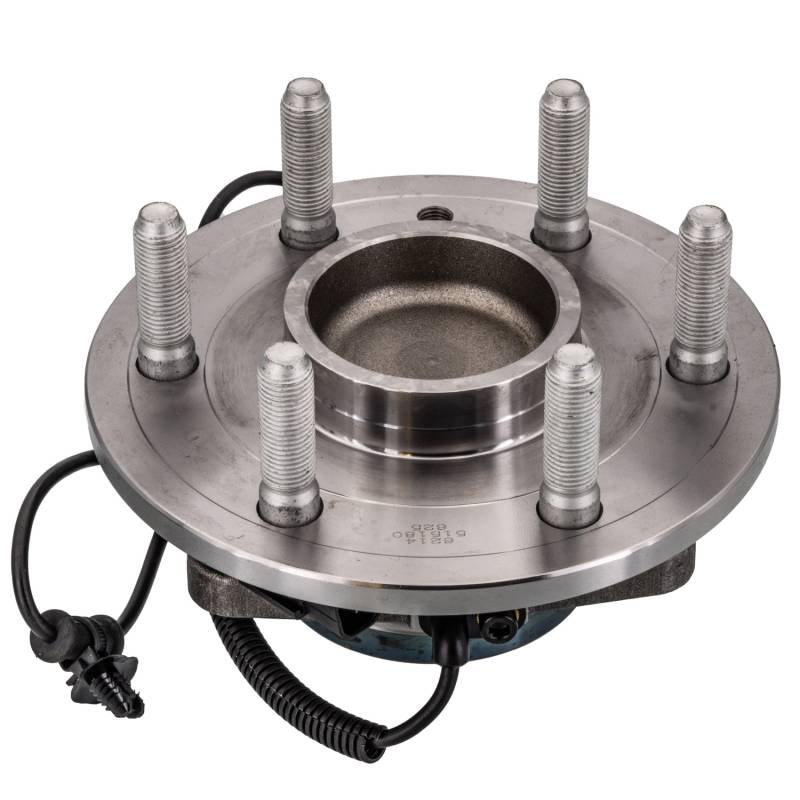

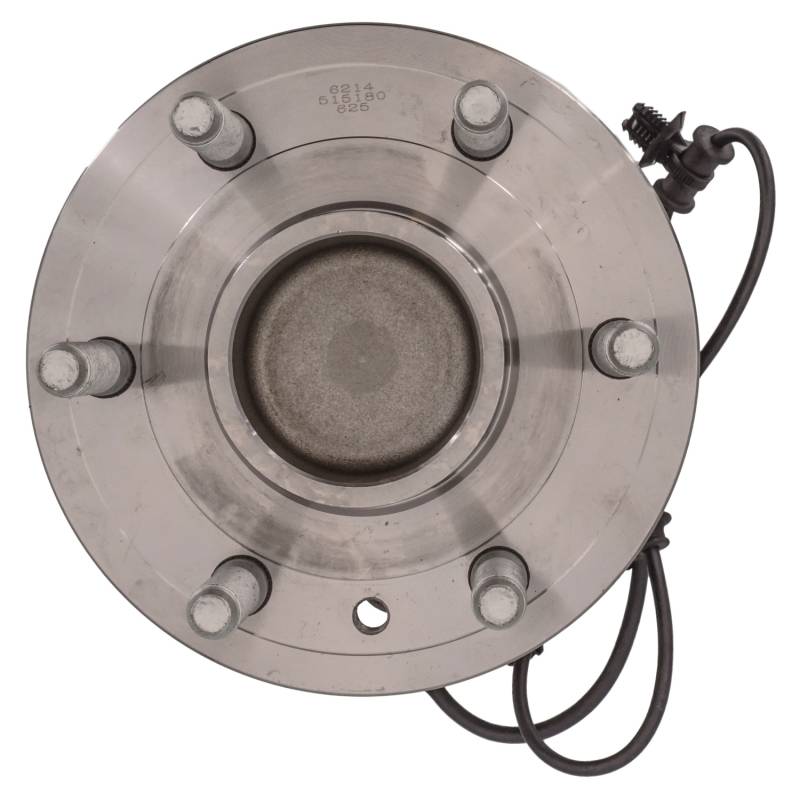

PRODUCT TYPE: HUB ASSEMBLY

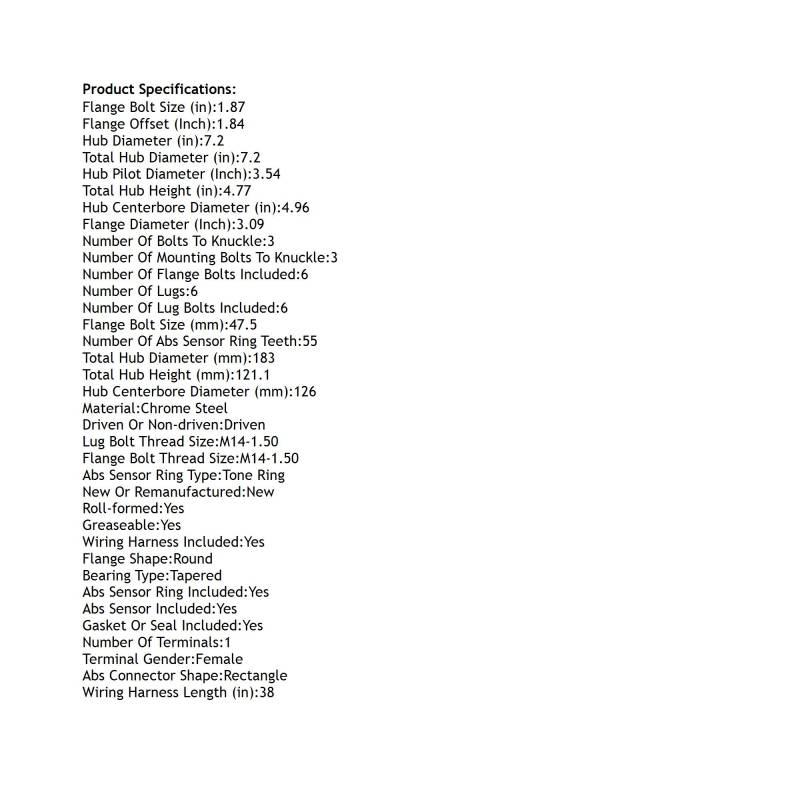

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.87
FLANGE BOLT SIZE (MM): 47.5
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 3.09
FLANGE OFFSET (INCH): 1.84
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.96
HUB CENTERBORE DIAMETER (MM): 126
HUB DIAMETER (IN): 7.2
HUB PILOT DIAMETER (INCH): 3.54
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.2
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 4.77
TOTAL HUB HEIGHT (MM): 121.1
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 38
REPLACES:
AUTOPART INTERNATIONAL: 1411-679914
MOOG HUB ASSEMBLIES: 515180
MOPAR: 68303538AA 68303538AB 68303538AC 68303538AD 68303538AE 68303538AF 68303538AG
APPLICATIONS:
RAM 1500 CLASSIC (2019-2024)
RAM 1500 (2019-2024)
