THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

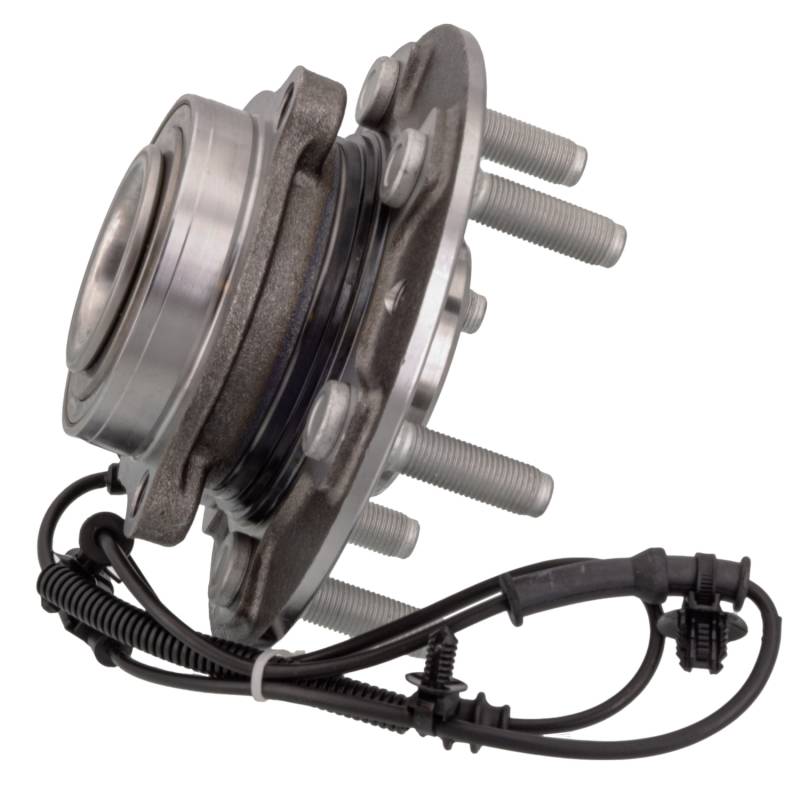

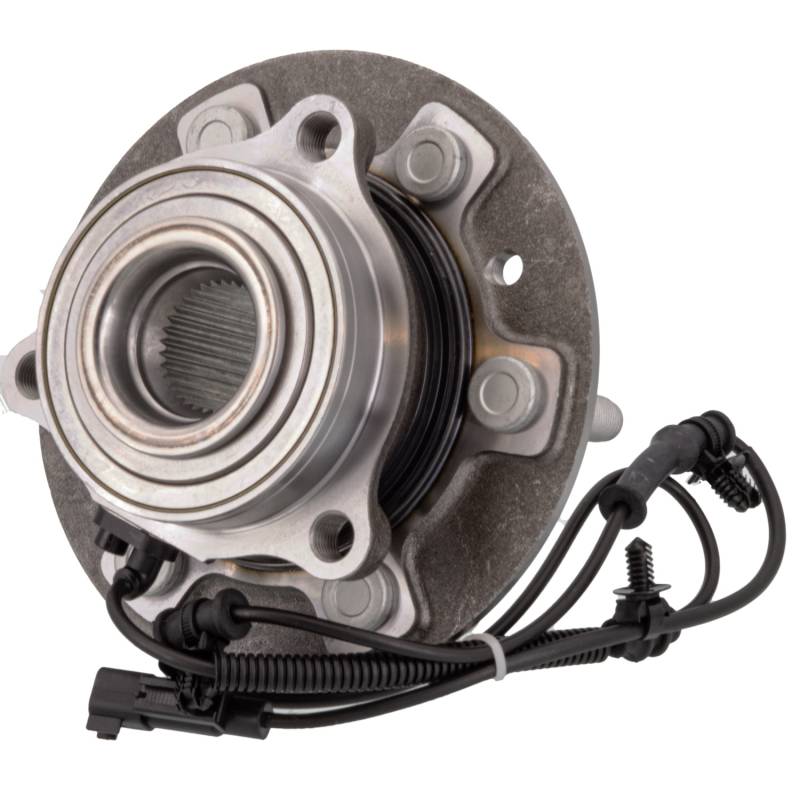

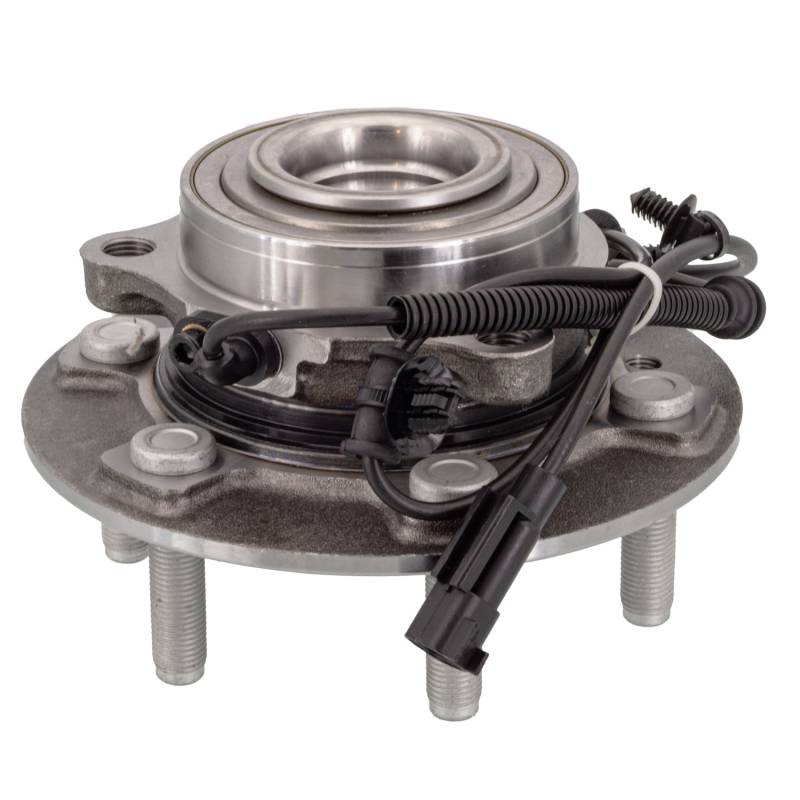

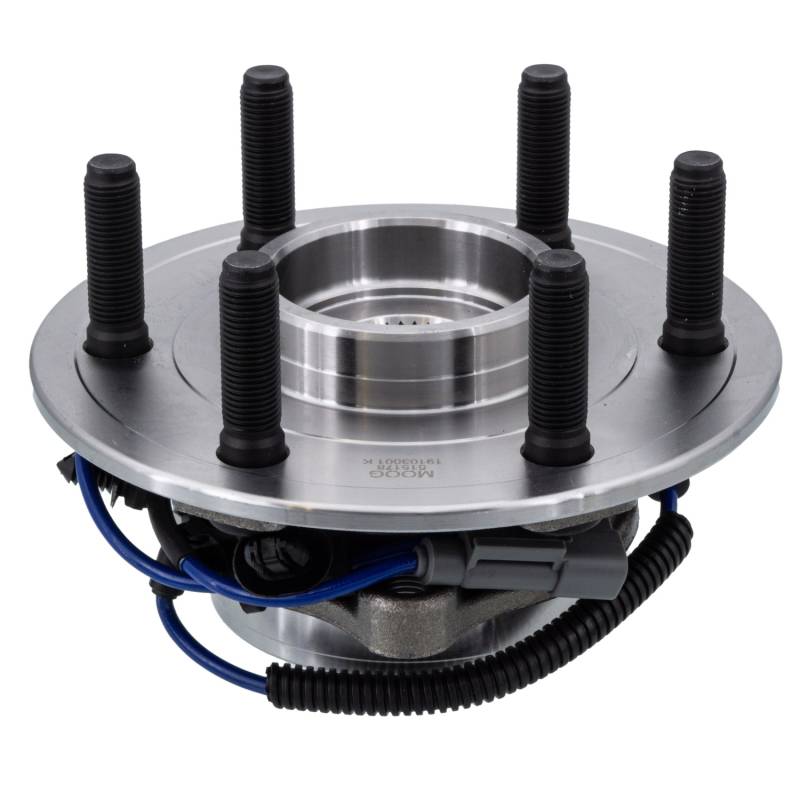

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.87
FLANGE BOLT SIZE (MM): 47.5
FLANGE BOLT THREAD SIZE: M14-1.5-6G
FLANGE DIAMETER (INCH): 3.08
FLANGE OFFSET (INCH): 1.84
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 7.18
HUB PILOT DIAMETER (INCH): 3.9
LUG BOLT THREAD SIZE: M14-1.50-6H
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 6
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 6
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.18
TOTAL HUB DIAMETER (MM): 182.6
TOTAL HUB HEIGHT (IN): 4.7
TOTAL HUB HEIGHT (MM): 119.5
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 27.375
REPLACES:
AUTOPART INTERNATIONAL: 1411-704843
MOPAR: 68339389AA 68339389AB 68339389AC 68339389AD 68339389AE 68339389AF 68339389AG
APPLICATIONS:
RAM 1500 CLASSIC (2019-2023)
RAM 1500 (2019-2023)
