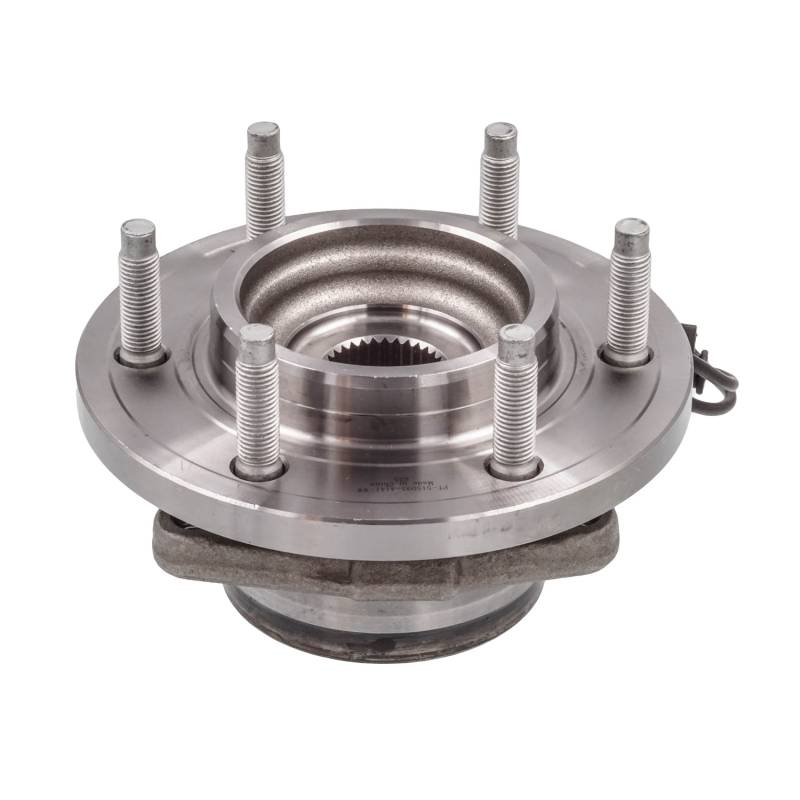

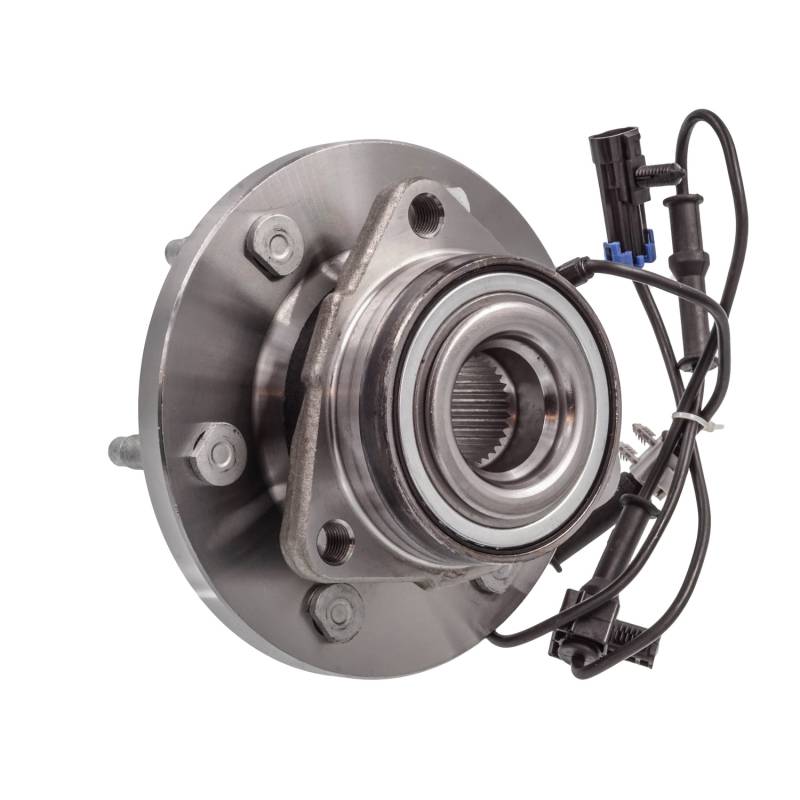

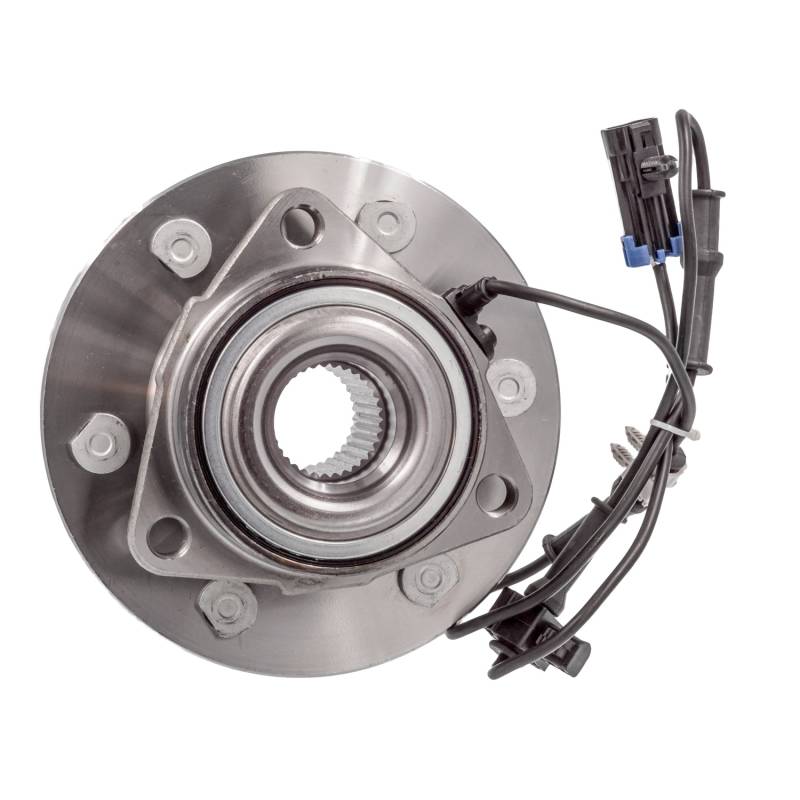

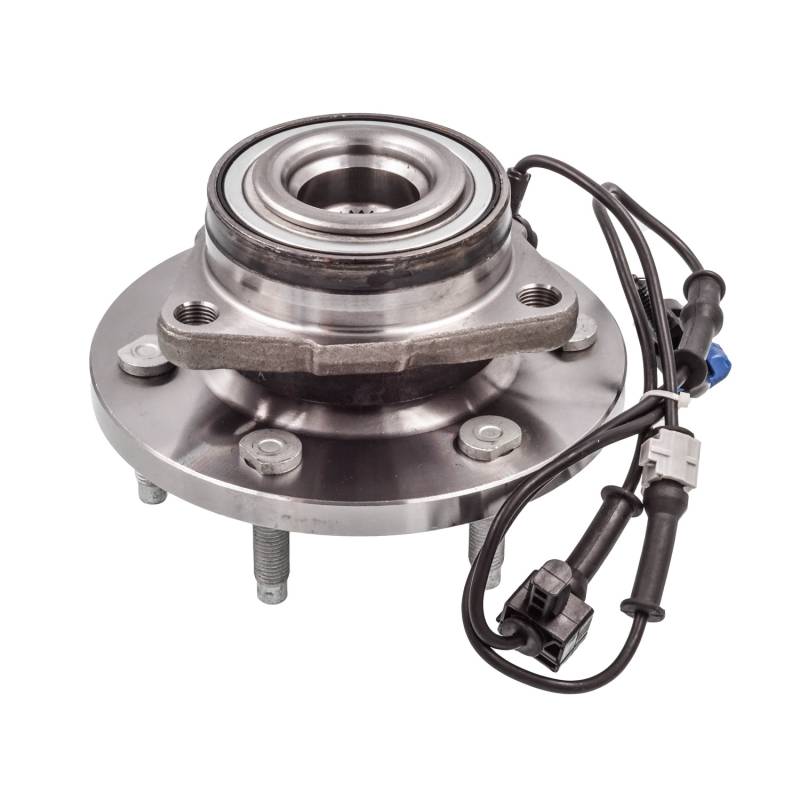

New Hub Assembly Compatible With Hummer H3 3.5L 3.7L 5.3L 2006 2007 2008 By Part Numbers Pt515093

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.65
FLANGE BOLT SIZE (MM): 42
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 3.96
FLANGE OFFSET (INCH): 1.96
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139
HUB DIAMETER (IN): 7.02
HUB PILOT DIAMETER (INCH): 3.91
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.02
TOTAL HUB DIAMETER (MM): 178
TOTAL HUB HEIGHT (IN): 4.83
TOTAL HUB HEIGHT (MM): 122
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 39.188

REPLACES:
ACDELCO: FW314
AUTOPART INTERNATIONAL: 1411-258521
BCA: WE61575
CENTRIC PARTS: 40266015
FAG US: 102198
GENERAL MOTORS: 15874836
GSP: 106093
MEVOTECH: H515093
MOOG HUB ASSEMBLIES: 515093
NAPA: PBR930744

APPLICATIONS:
HUMMER H3 (2006-2008)
