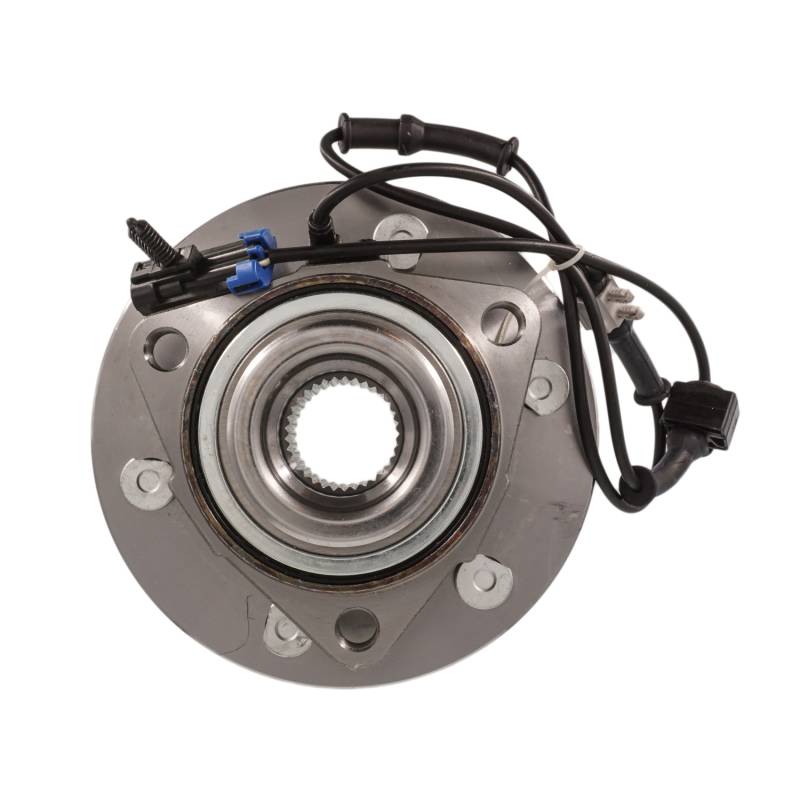

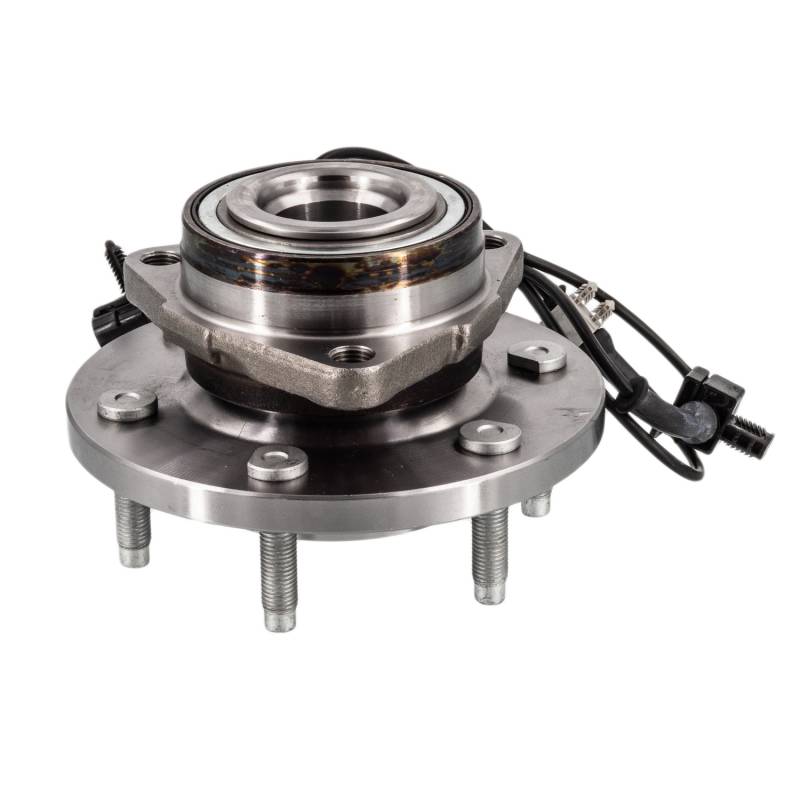

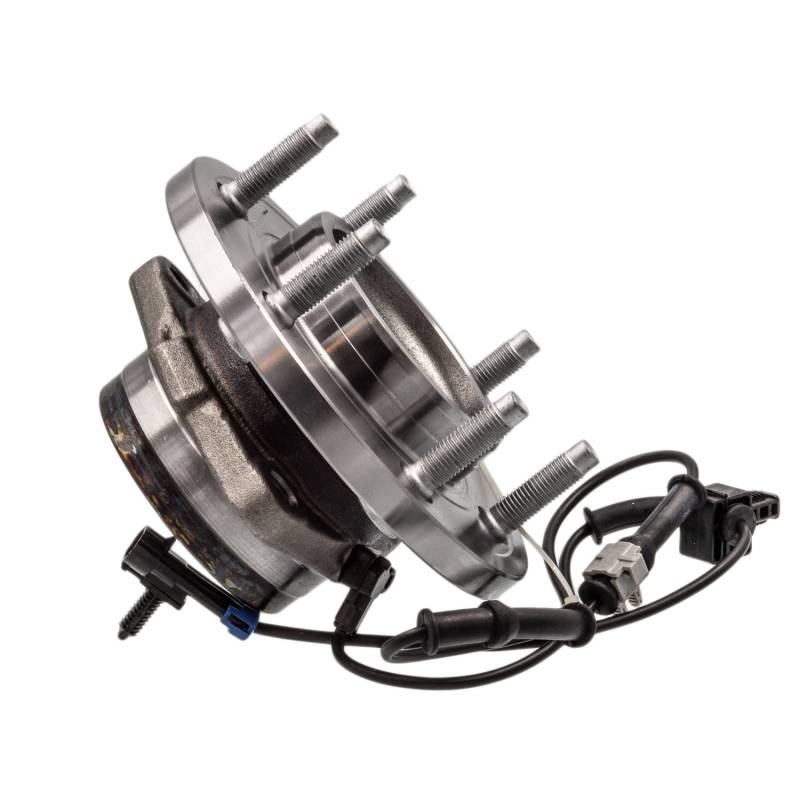

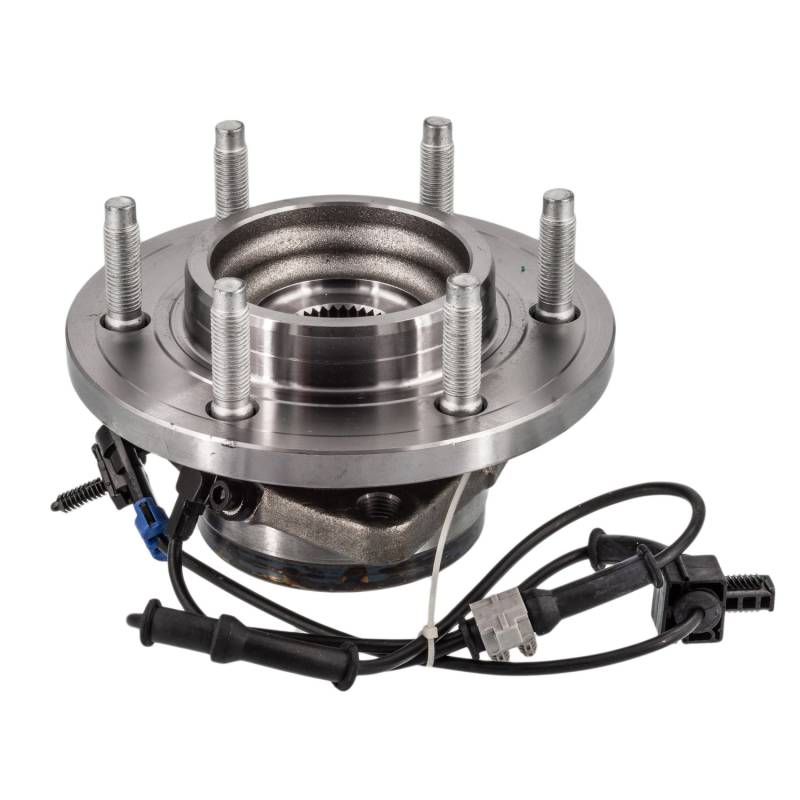

New Hub Assembly Compatible With Hummer H3t H3 3.7L 5.3L 2009 2010 By Part Numbers Pt515128 Br930825

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

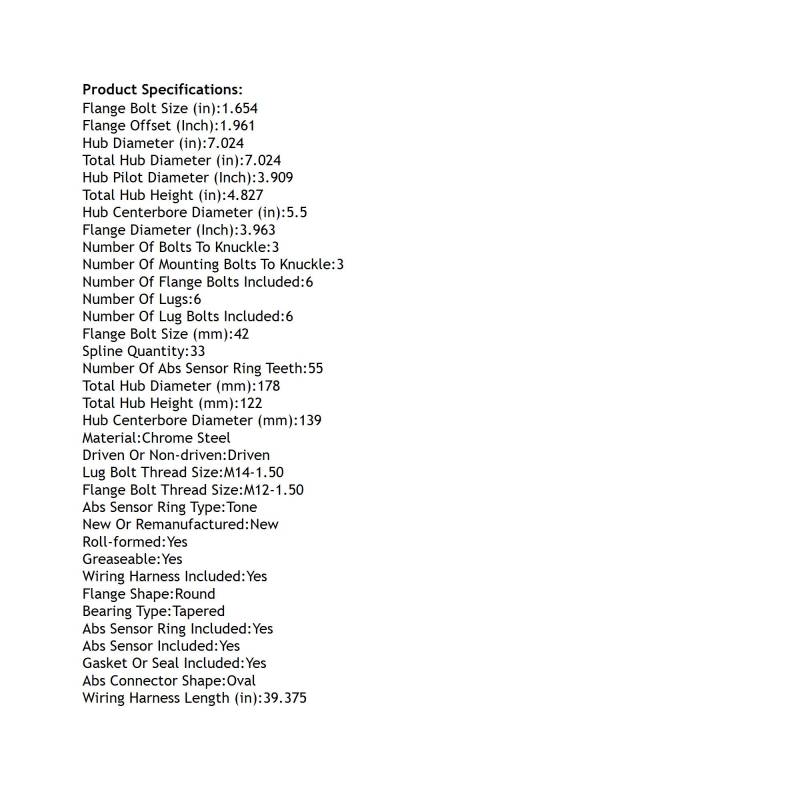

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.654
FLANGE BOLT SIZE (MM): 42
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 3.963
FLANGE OFFSET (INCH): 1.961
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139
HUB DIAMETER (IN): 7.024
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 7.024
TOTAL HUB DIAMETER (MM): 178
TOTAL HUB HEIGHT (IN): 4.827
TOTAL HUB HEIGHT (MM): 122
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 39.375

REPLACES:
ACDELCO: FW369
AUTOPART INTERNATIONAL: 1411-424762
CENTRIC PARTS: 40266015
FAG US: 102589
GENERAL MOTORS: 25964890
GSP: 106128
MEVOTECH: H515128
MOOG HUB ASSEMBLIES: 515128
NAPA: PBR930825

APPLICATIONS:
HUMMER H3T (2009-2010)
HUMMER H3 (2009-2010)
