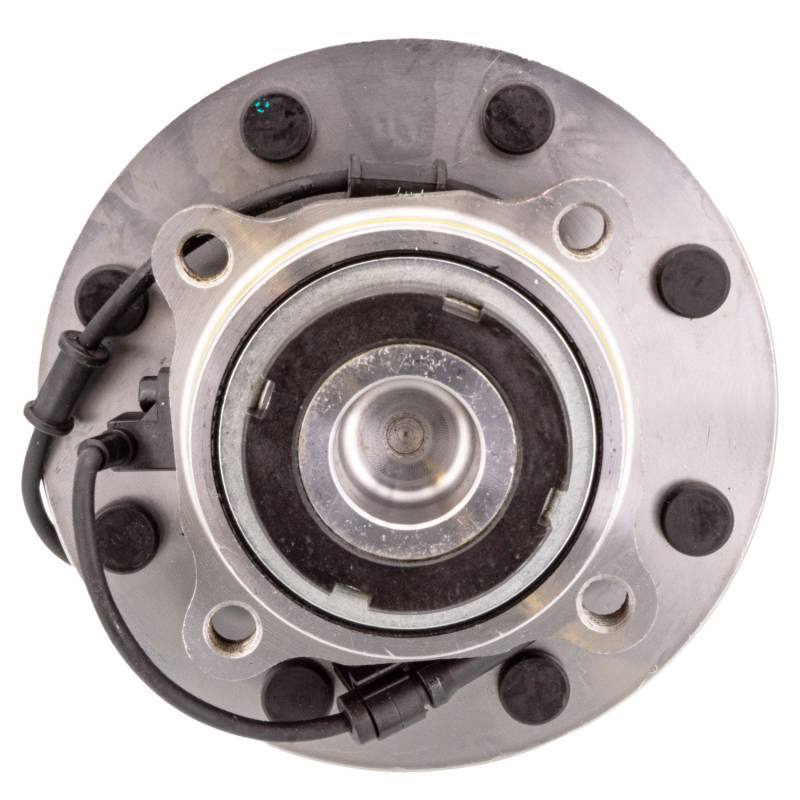

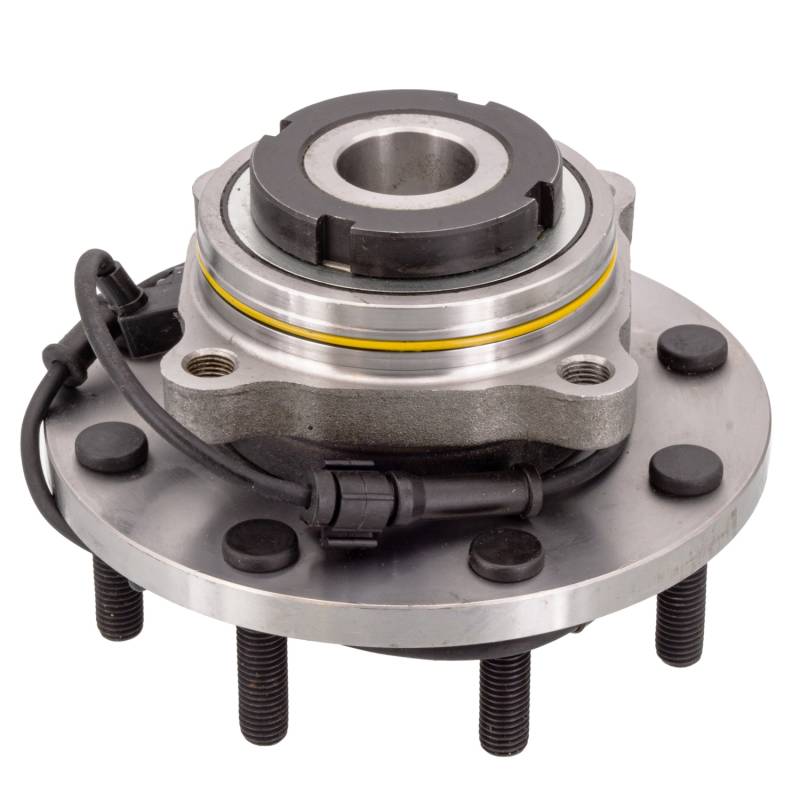

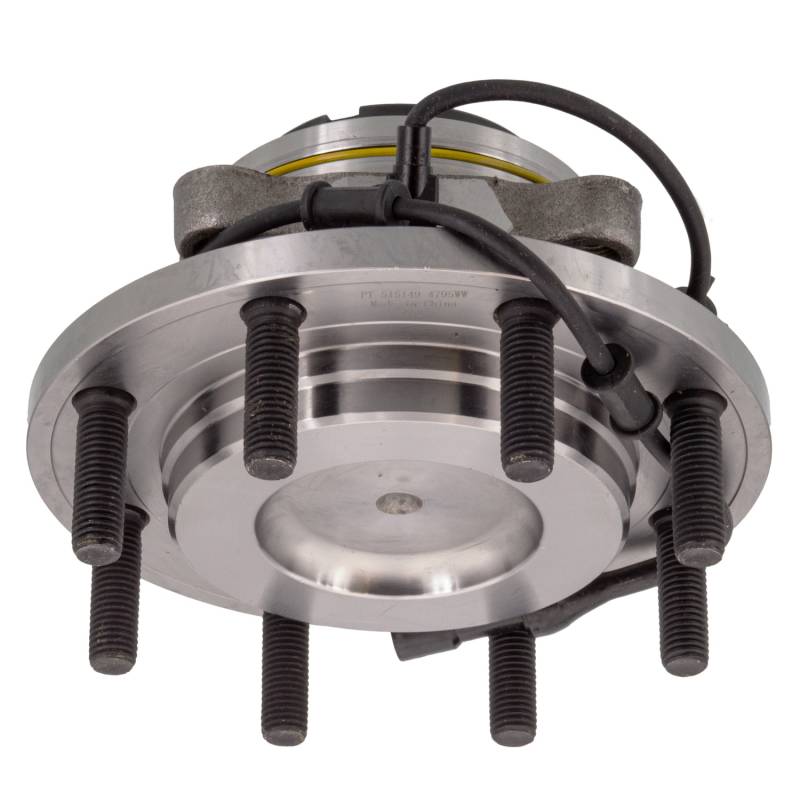

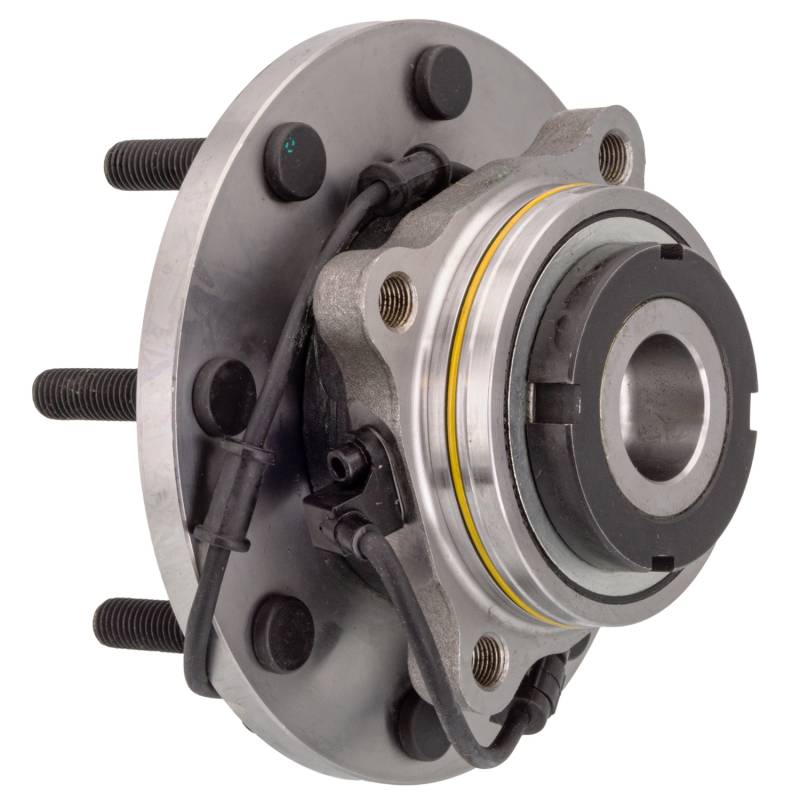

New Hub Assembly Compatible With Ford E-550 Econoline Super Duty E-550 Super Duty 6.8L 7.3L 2002

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

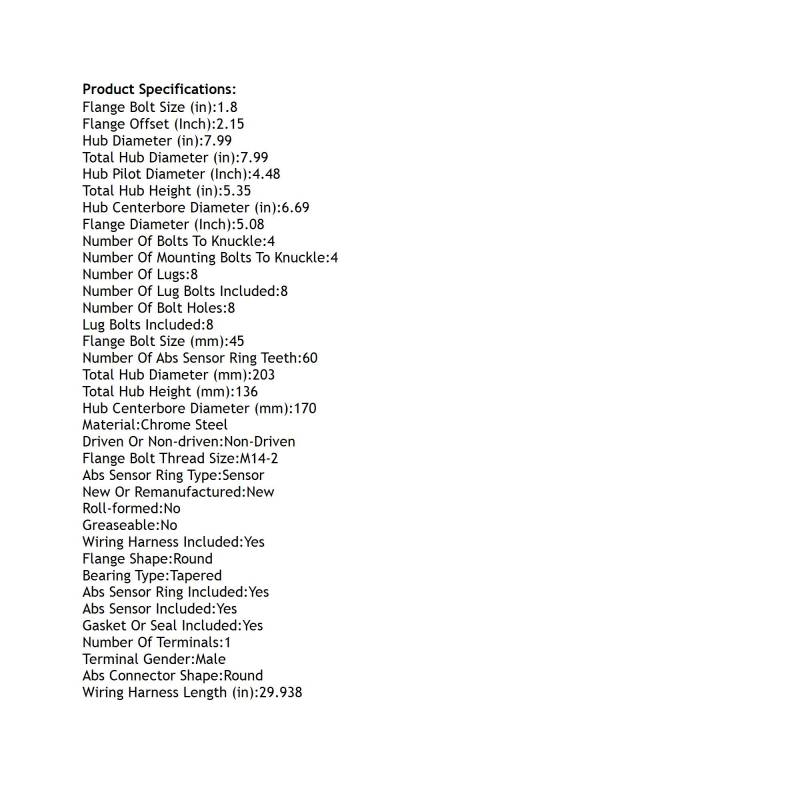

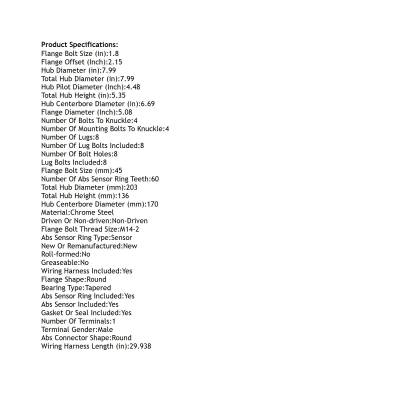

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.8
FLANGE BOLT SIZE (MM): 45
FLANGE BOLT THREAD SIZE: M14-2
FLANGE DIAMETER (INCH): 5.08
FLANGE OFFSET (INCH): 2.15
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 6.69
HUB CENTERBORE DIAMETER (MM): 170
HUB DIAMETER (IN): 7.99
HUB PILOT DIAMETER (INCH): 4.48
LUG BOLTS INCLUDED: 8
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 60
NUMBER OF BOLT HOLES: 8
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.99
TOTAL HUB DIAMETER (MM): 203
TOTAL HUB HEIGHT (IN): 5.35
TOTAL HUB HEIGHT (MM): 136
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 29.938

REPLACES:
AUTOPART INTERNATIONAL: 1411-423512
GSP: 116149
MOOG HUB ASSEMBLIES: 515149
NAPA: PBR930528

APPLICATIONS:
FORD E-550 ECONOLINE SUPER DUTY (2002-2002)
FORD E-550 SUPER DUTY (2003-2003)
