THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

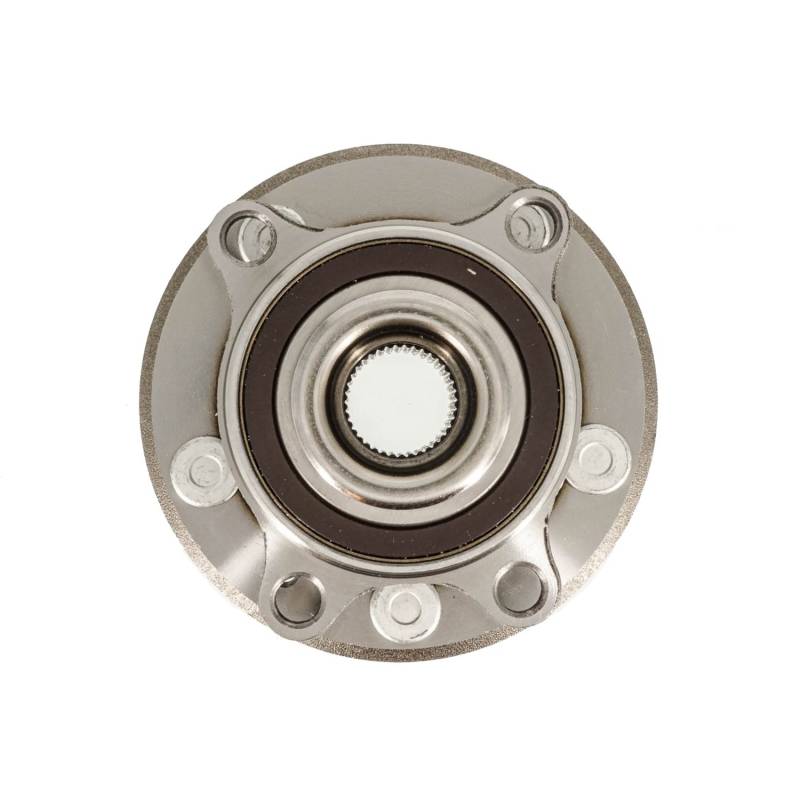

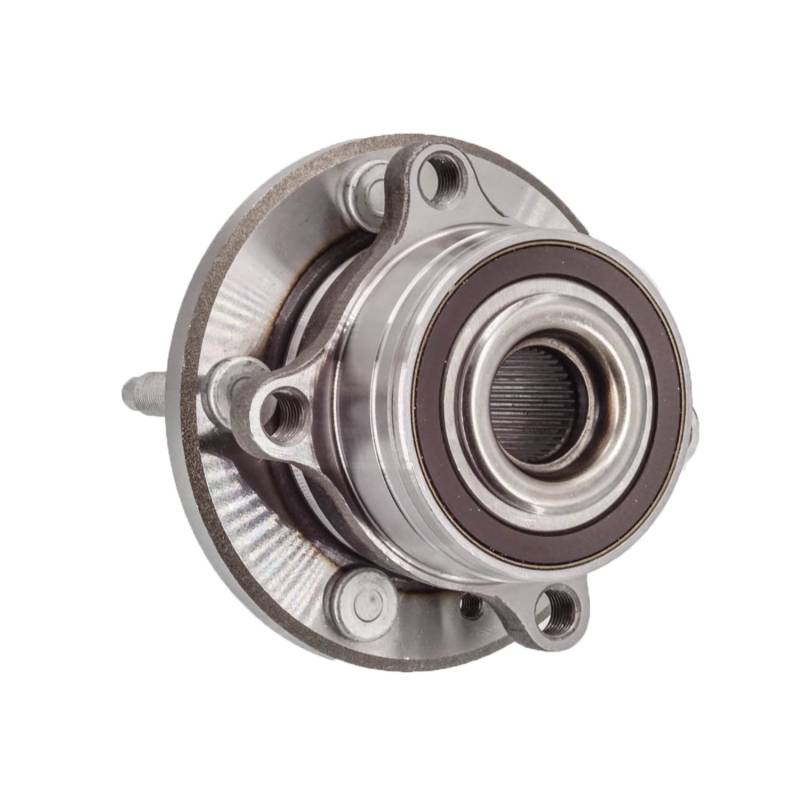

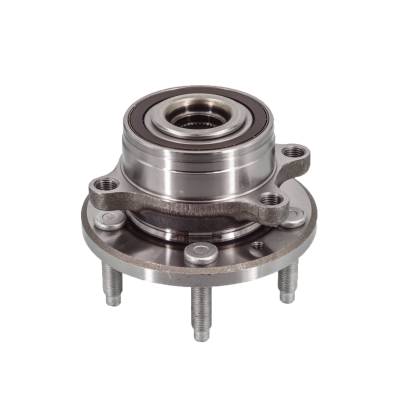

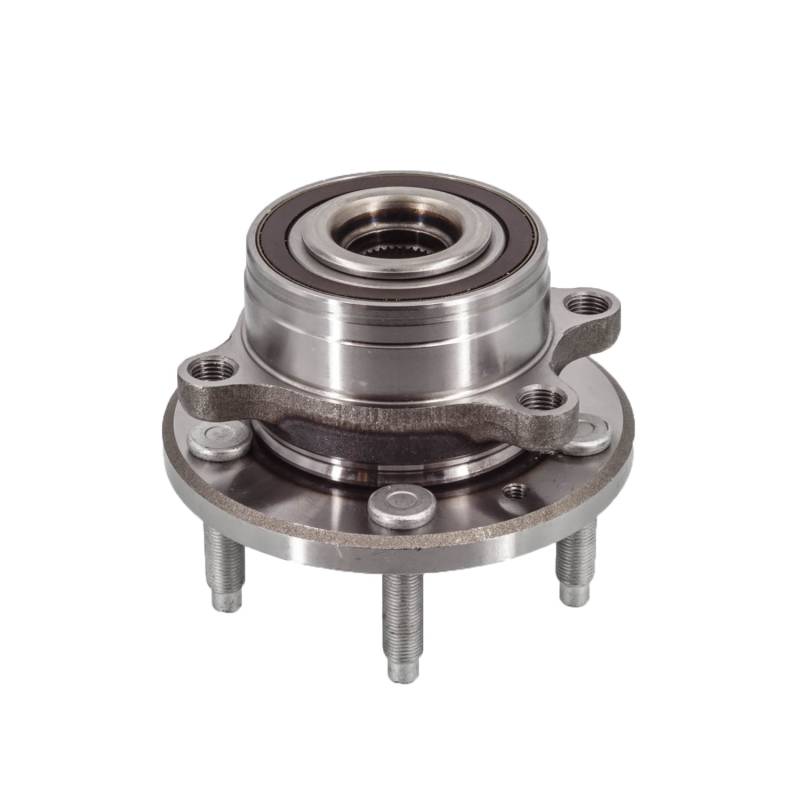

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

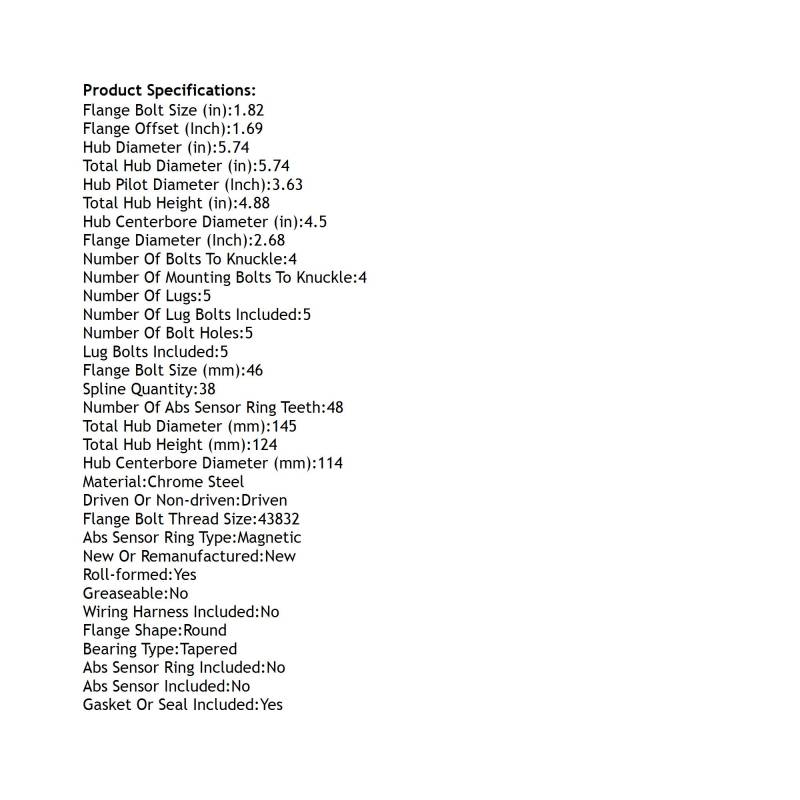

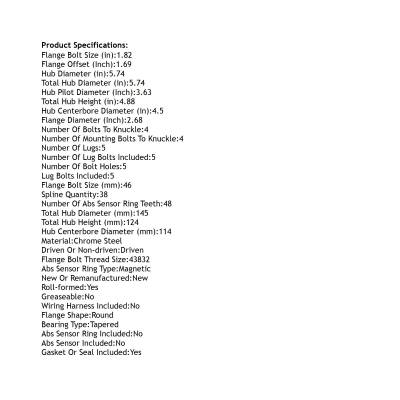

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.82
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: 43832
FLANGE DIAMETER (INCH): 2.68
FLANGE OFFSET (INCH): 1.69
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.74
HUB PILOT DIAMETER (INCH): 3.63
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 38
TOTAL HUB DIAMETER (IN): 5.74
TOTAL HUB DIAMETER (MM): 145
TOTAL HUB HEIGHT (IN): 4.88
TOTAL HUB HEIGHT (MM): 124
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-480977
BCA: WE60589
CENTRIC PARTS: 40161001
FORD: HB5Z 1104 C BB5Z1104A
GSP: 113460
MEVOTECH: H512460
MOOG HUB ASSEMBLIES: 512460
MOTORCRAFT: HB5Z1104C HUB376 HUB87 PT512460 BB5Z1104A
NAPA: PBR930809
APPLICATIONS:
FORD EXPLORER (2011-2019)
FORD EXPLORER SPORT (2013-2019)
FORD POLICE INTERCEPTOR UTILITY (2013-2019)
