THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

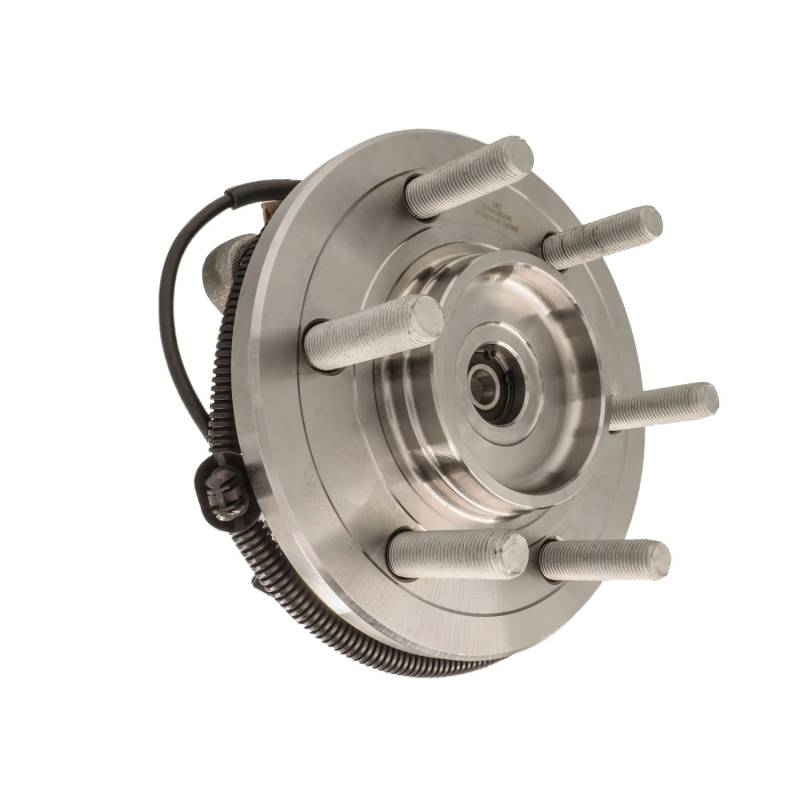

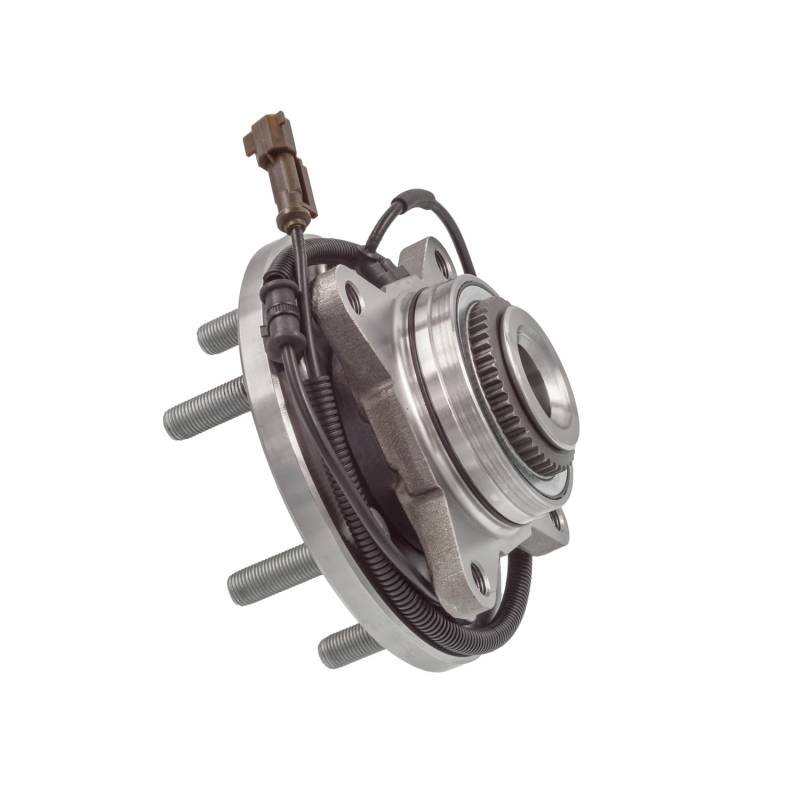

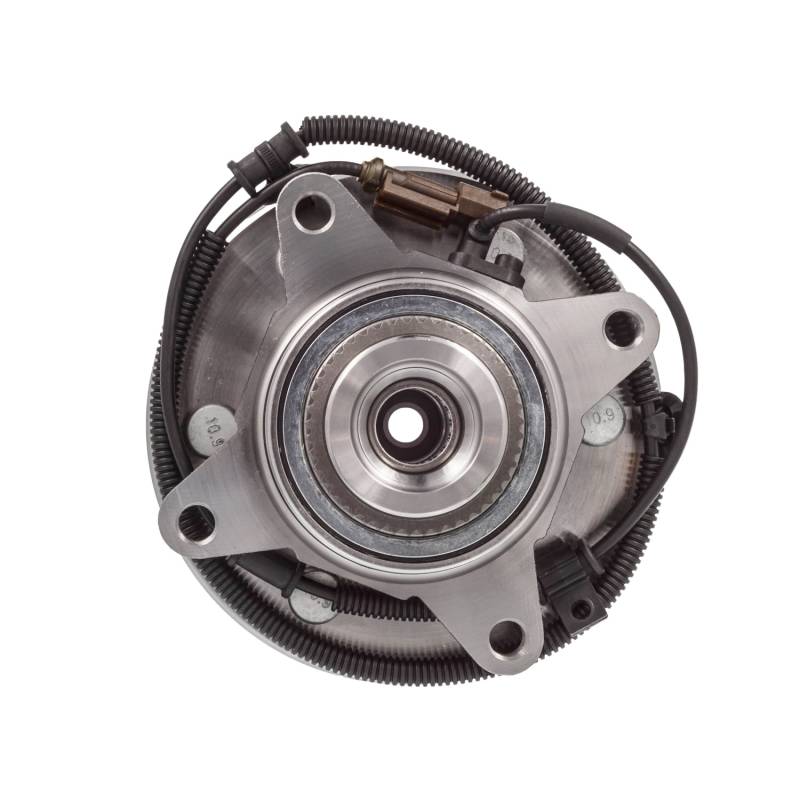

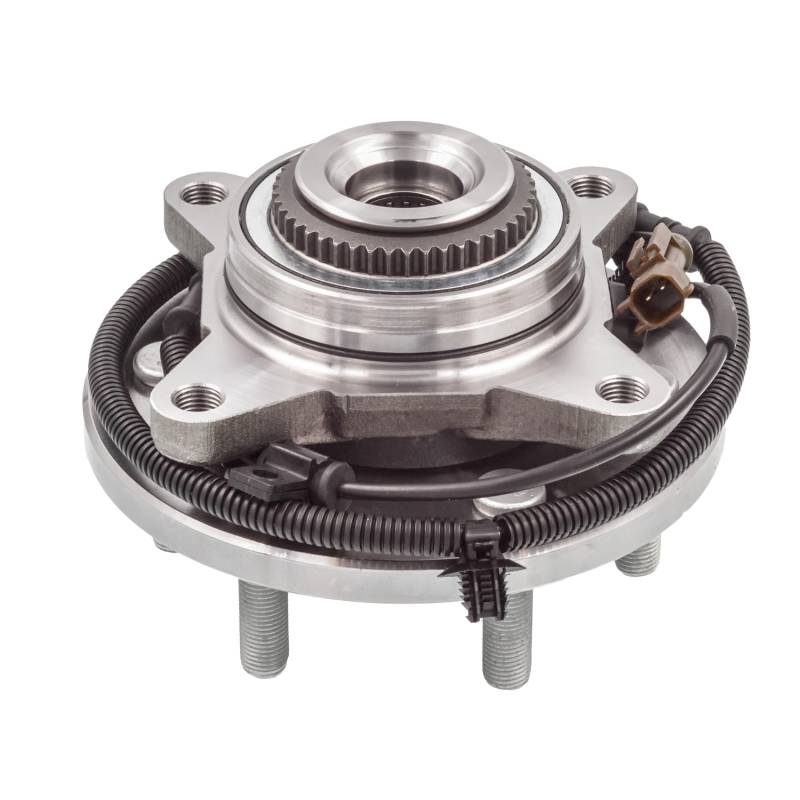

PRODUCT TYPE: HUB ASSEMBLY

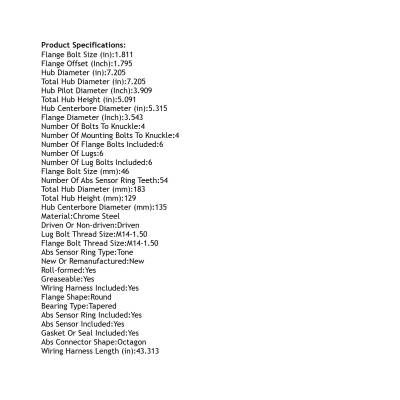

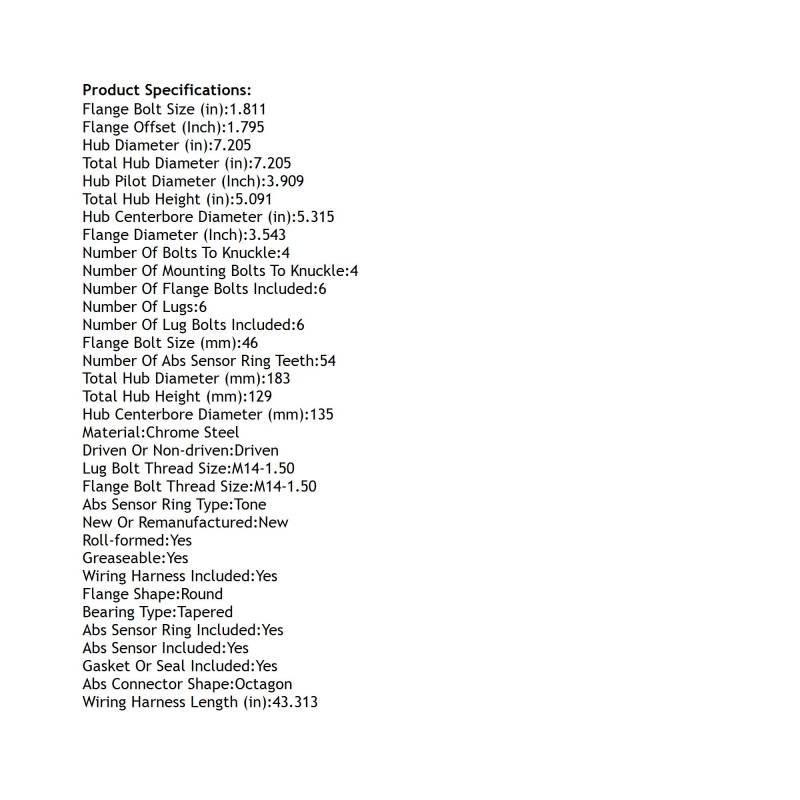

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OCTAGON
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.811
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 3.543
FLANGE OFFSET (INCH): 1.795
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.315
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.205
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 7.205
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 5.091
TOTAL HUB HEIGHT (MM): 129
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 43.313
REPLACES:
AUTOPART INTERNATIONAL: 1411-605375
BCA: WE61808
FORD: HUB393 FL3Z 1104 H
MEVOTECH: MB40325
MOOG HUB ASSEMBLIES: 515169 515195
MOTORCRAFT: HUB393 FL3Z1104H
APPLICATIONS:
FORD F-150 (2015-2017)
