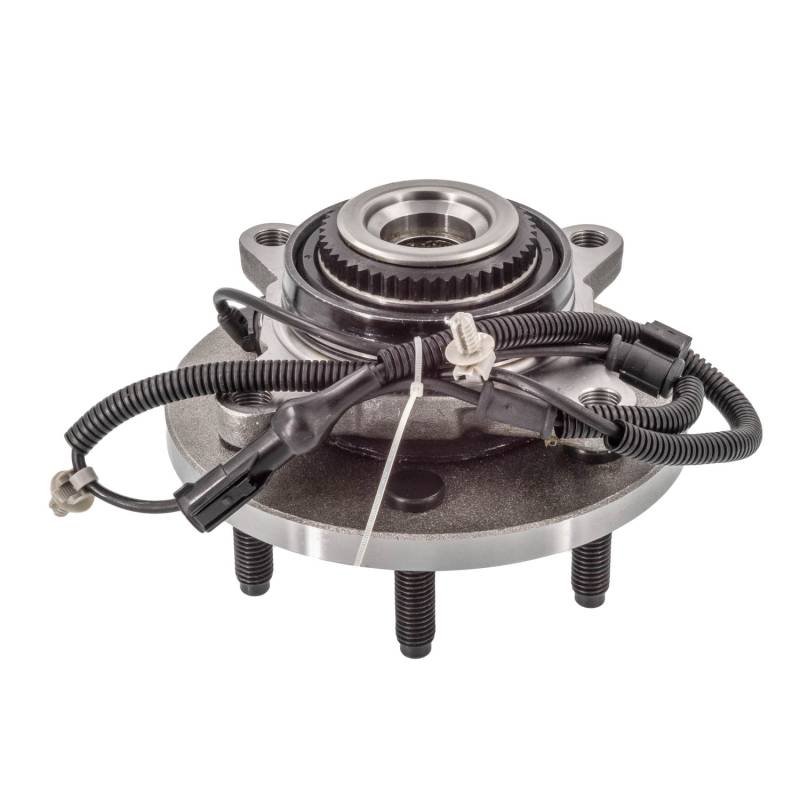

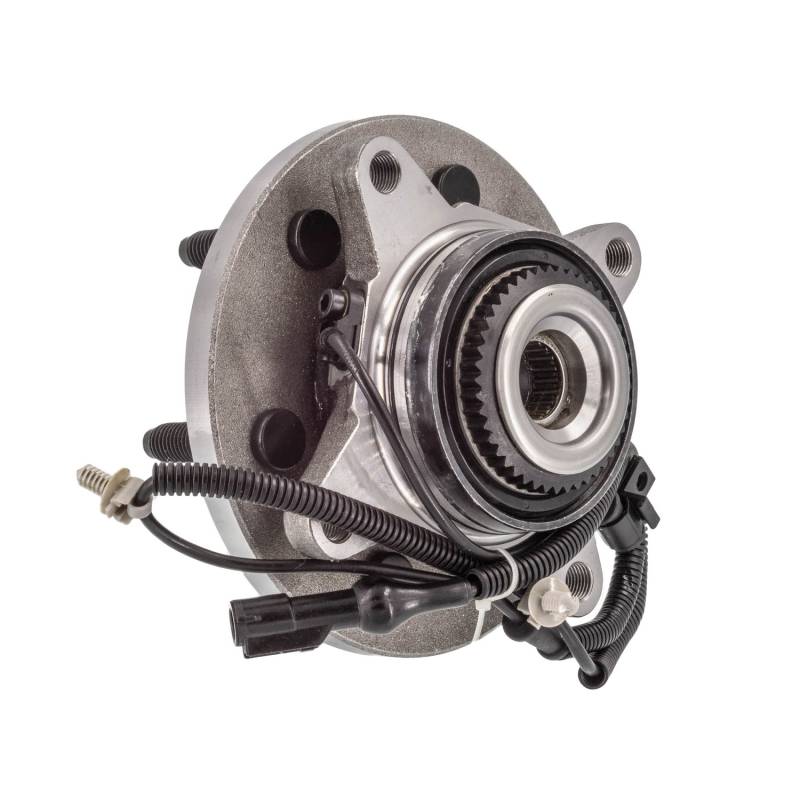

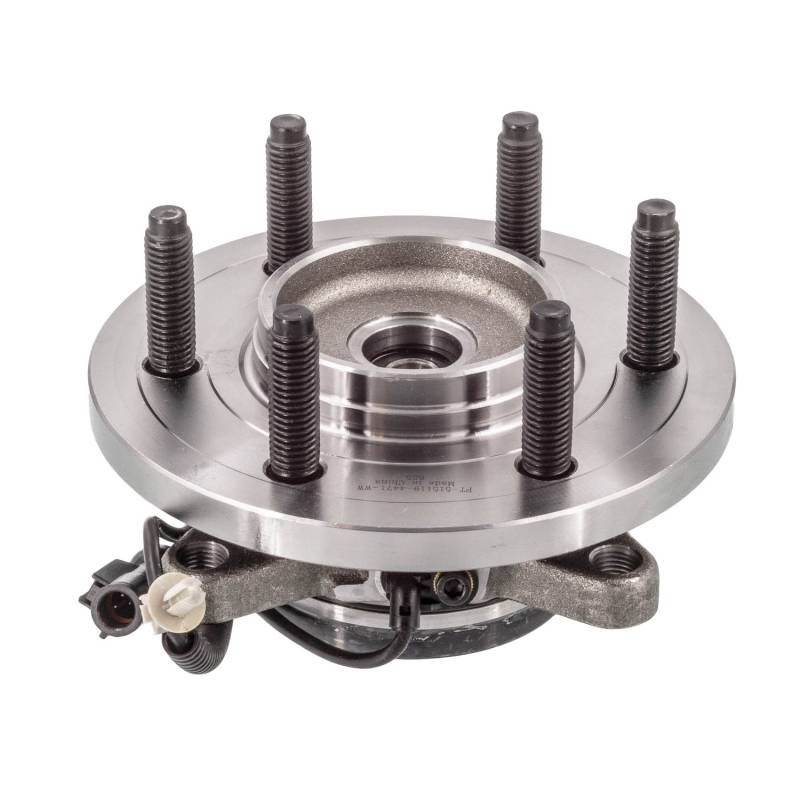

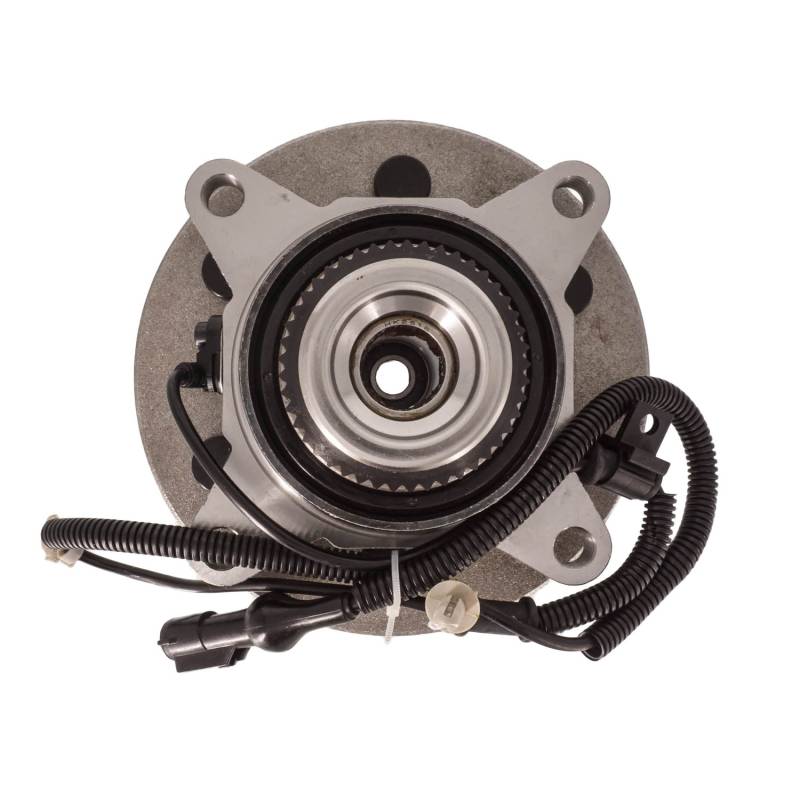

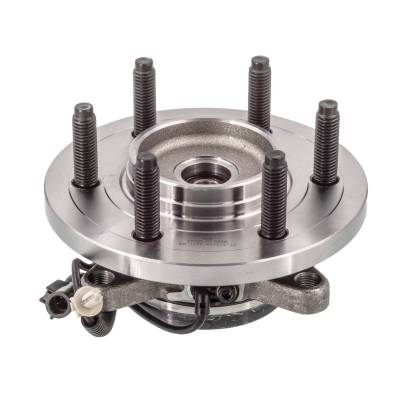

New Hub Assembly Compatible With Ford F-150 4.2L 4.6L 5.4L 2009 2010 By Part Numbers Pt515119

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

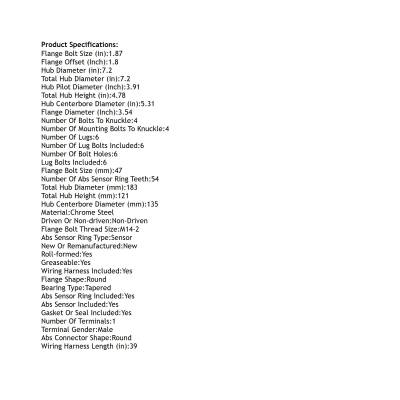

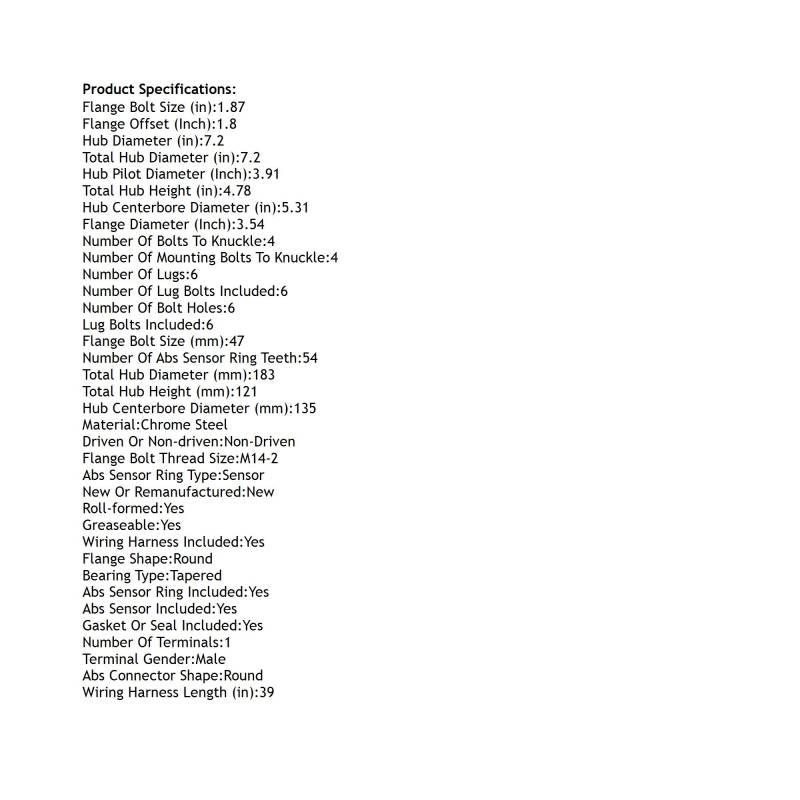

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.87
FLANGE BOLT SIZE (MM): 47
FLANGE BOLT THREAD SIZE: M14-2
FLANGE DIAMETER (INCH): 3.54
FLANGE OFFSET (INCH): 1.8
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.31
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.2
HUB PILOT DIAMETER (INCH): 3.91
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.2
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 4.78
TOTAL HUB HEIGHT (MM): 121
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 39

REPLACES:
AUTOPART INTERNATIONAL: 1411-290189
BCA: WE61038
CENTRIC PARTS: 40565029E 40265029
FAG US: 102167
FORD: 9L3Z 1104 D
GSP: 116119
MEVOTECH: H515119
MOOG HUB ASSEMBLIES: 515119
MOTORCRAFT: HUB357
NAPA: PBR930759

APPLICATIONS:
FORD F-150 (2009-2010)
