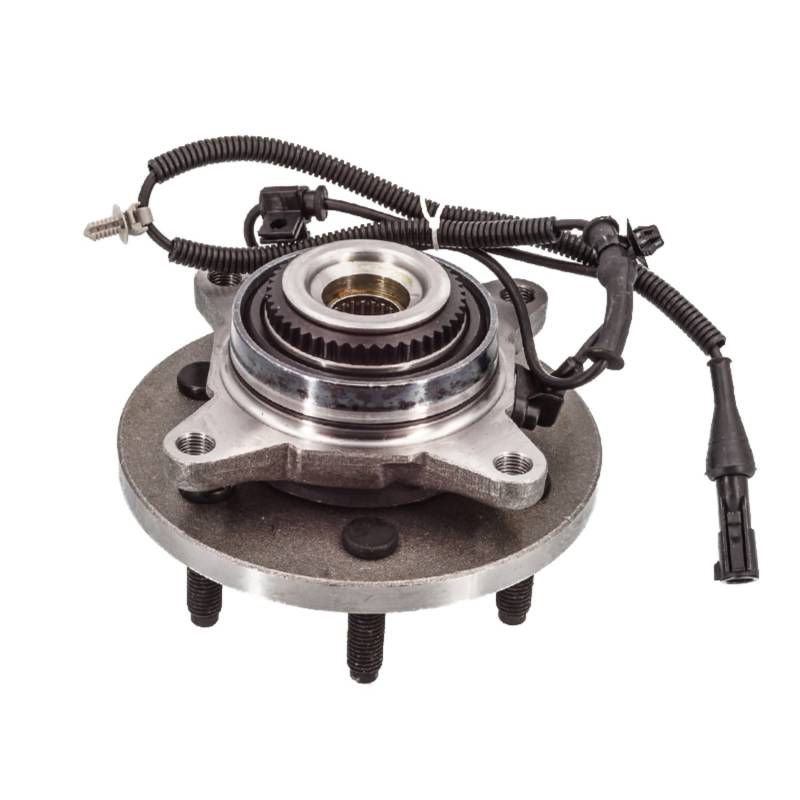

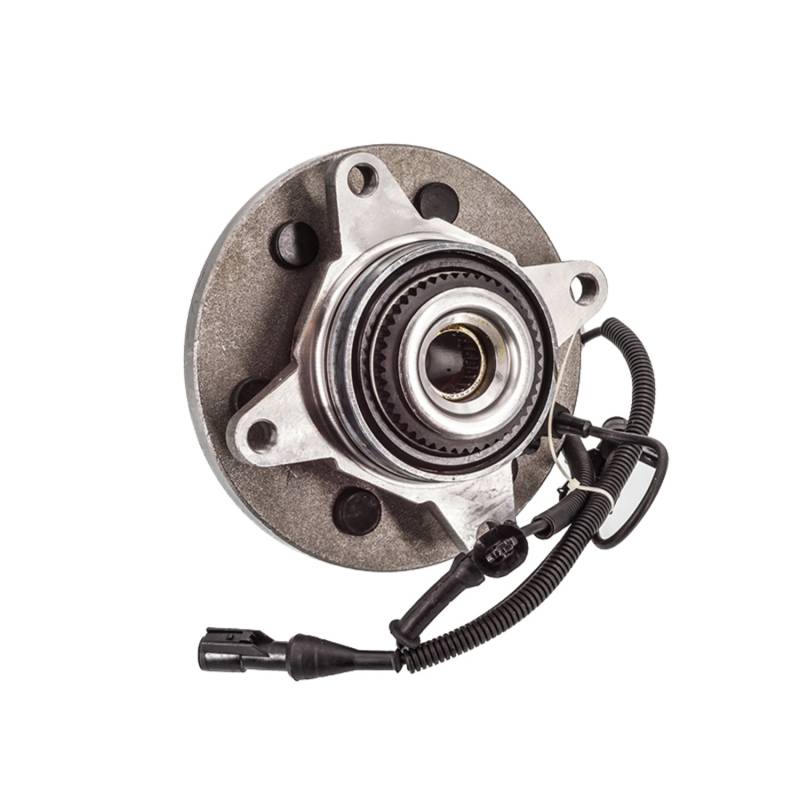

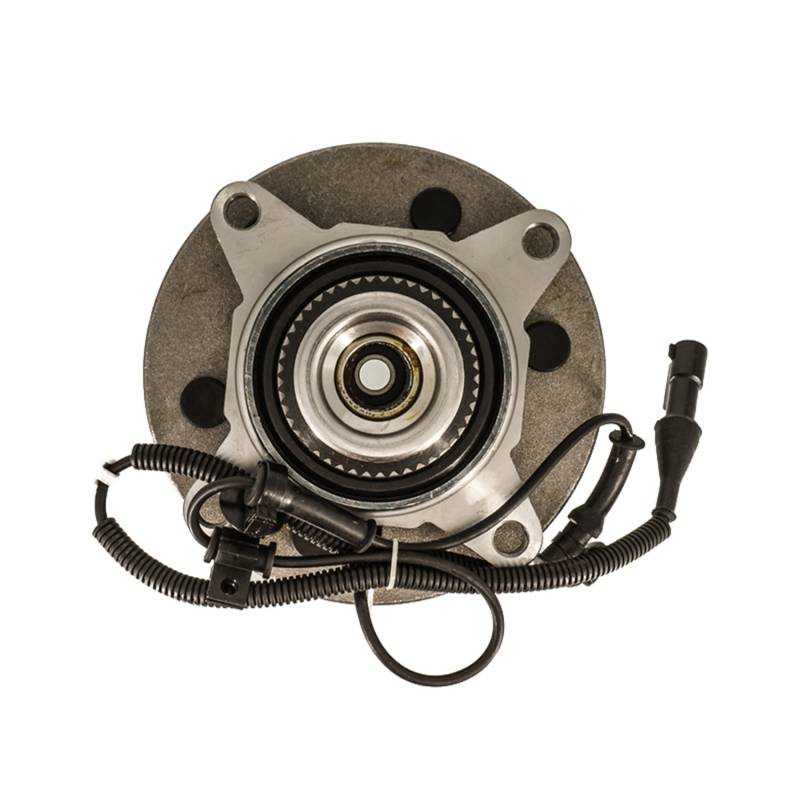

New Hub Assembly Compatible With Ford F-150 5.4L 6.2L 2010-2010 By Part Numbers Pt515112 Br930837

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 4.72
ABS SENSOR RING DIAMETER (MM): 120
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 2.13
FLANGE BOLT SIZE (MM): 54
FLANGE BOLT THREAD SIZE: 43359
FLANGE DIAMETER (INCH): 4.81
FLANGE OFFSET (INCH): 2.25
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165
HUB DIAMETER (IN): 8.08
HUB PILOT DIAMETER (INCH): 3.905
LUG BOLTS INCLUDED: 8
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 8
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 8.08
TOTAL HUB DIAMETER (MM): 205
TOTAL HUB HEIGHT (IN): 4.69
TOTAL HUB HEIGHT (MM): 119
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-535732
CENTRIC PARTS: 40667003E
FAG US: 102587 102588
FORD: AL3Z 1104 B
GSP: 116112
MEVOTECH: H515112
MOOG HUB ASSEMBLIES: 515112
MOTORCRAFT: HUB360 AL3Z 1104 B AL3Z1104B
NAPA: PBR930837

APPLICATIONS:
FORD F-150 (2010-2010)
