THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

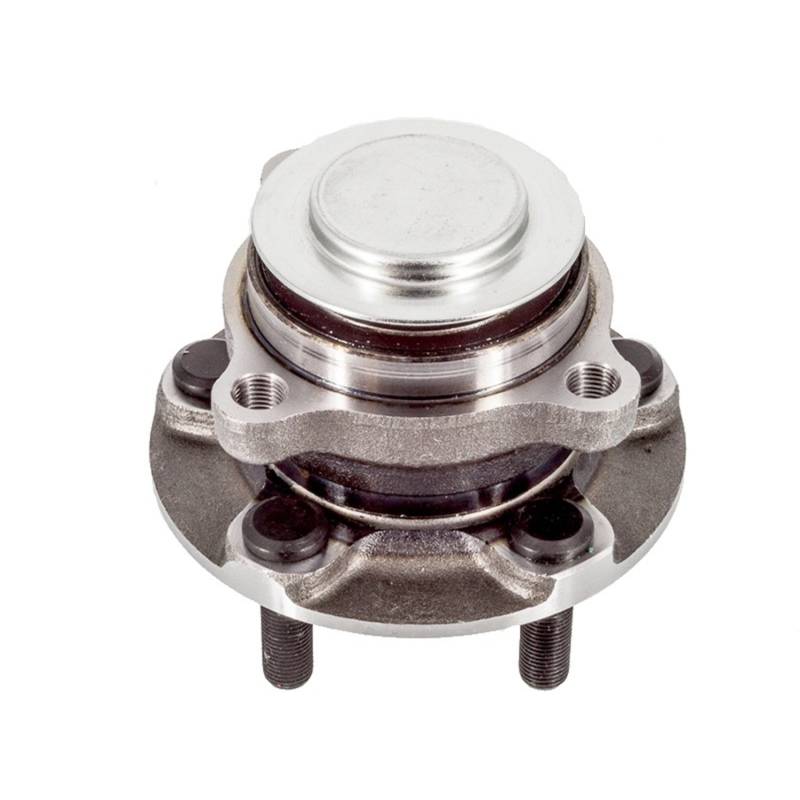

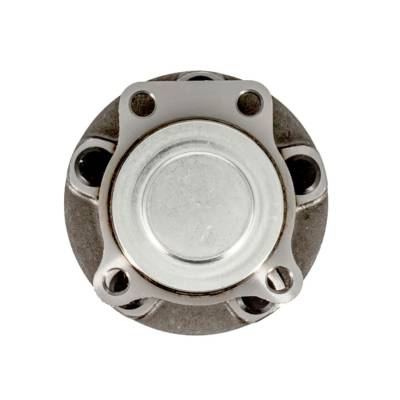

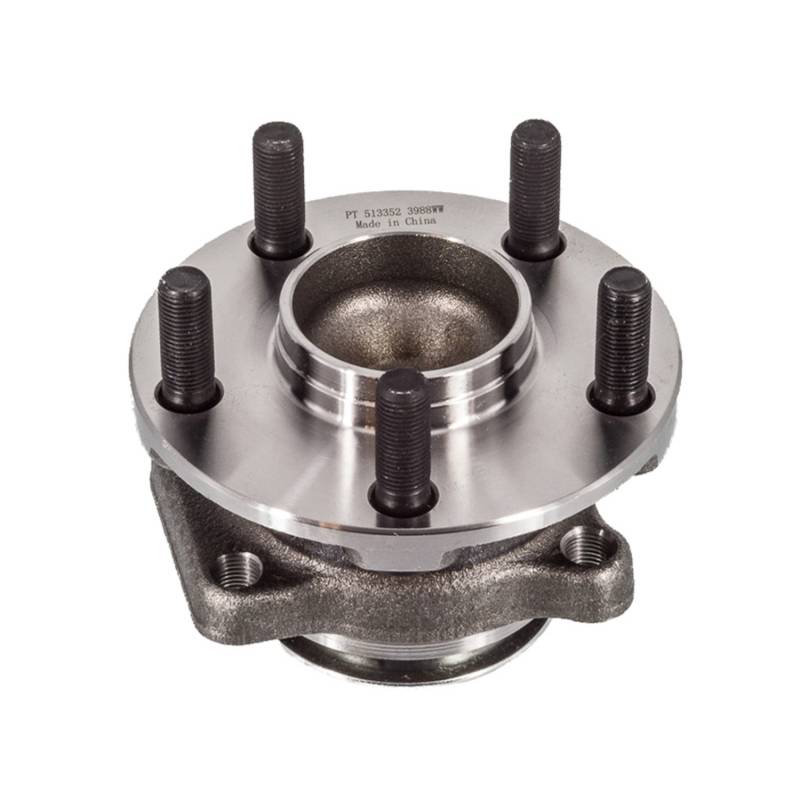

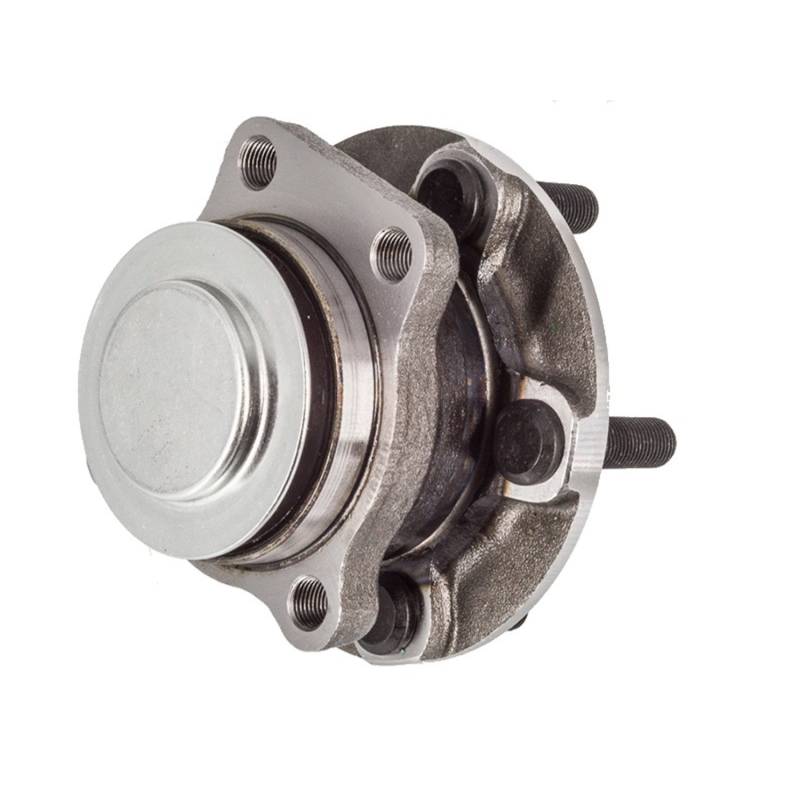

PRODUCT TYPE: HUB ASSEMBLY

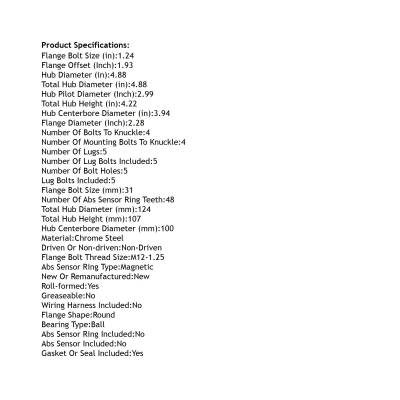

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.24
FLANGE BOLT SIZE (MM): 31
FLANGE BOLT THREAD SIZE: M12-1.25
FLANGE DIAMETER (INCH): 2.28
FLANGE OFFSET (INCH): 1.93
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 3.94
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 4.88
HUB PILOT DIAMETER (INCH): 2.99
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 4.88
TOTAL HUB DIAMETER (MM): 124
TOTAL HUB HEIGHT (IN): 4.22
TOTAL HUB HEIGHT (MM): 107
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-556416
BCA: WE60711
BECK/ARNLEY: 051-6445
CENTRIC PARTS: 40647001
GSP: 664352
MOOG HUB ASSEMBLIES: 513352
NAPA: PBR930880
SUBARU: 28373CA000
APPLICATIONS:
SCION FR-S (2013-2016)
SUBARU BRZ (2013-2022)
TOYOTA 86 (2017-2020)
