New Hub Assembly Compatible With Scion Xb 2.4L 2008 2009 2010 2011 2012 2013 2014 2015 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

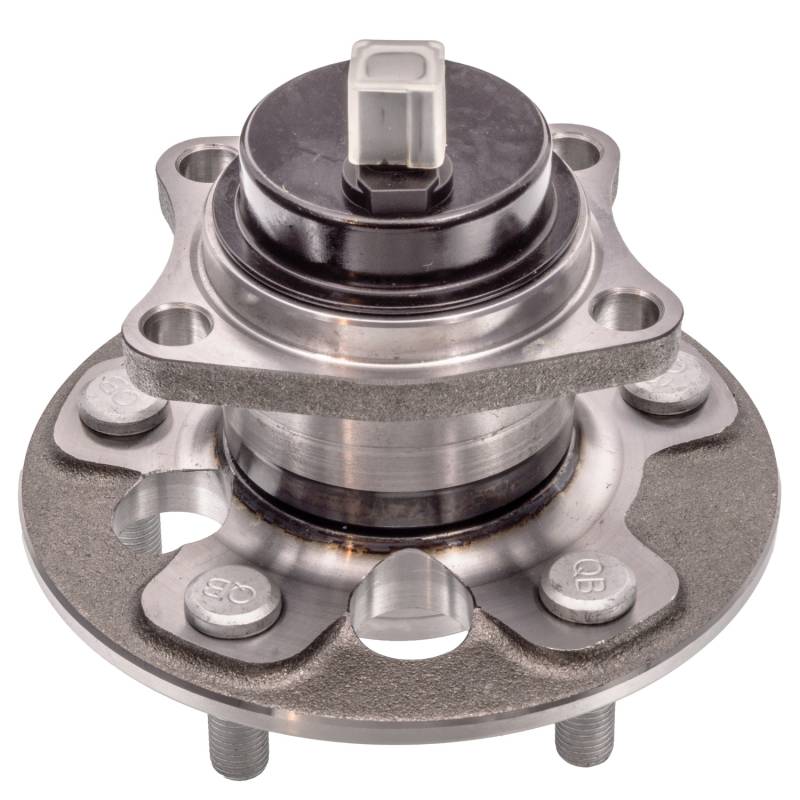

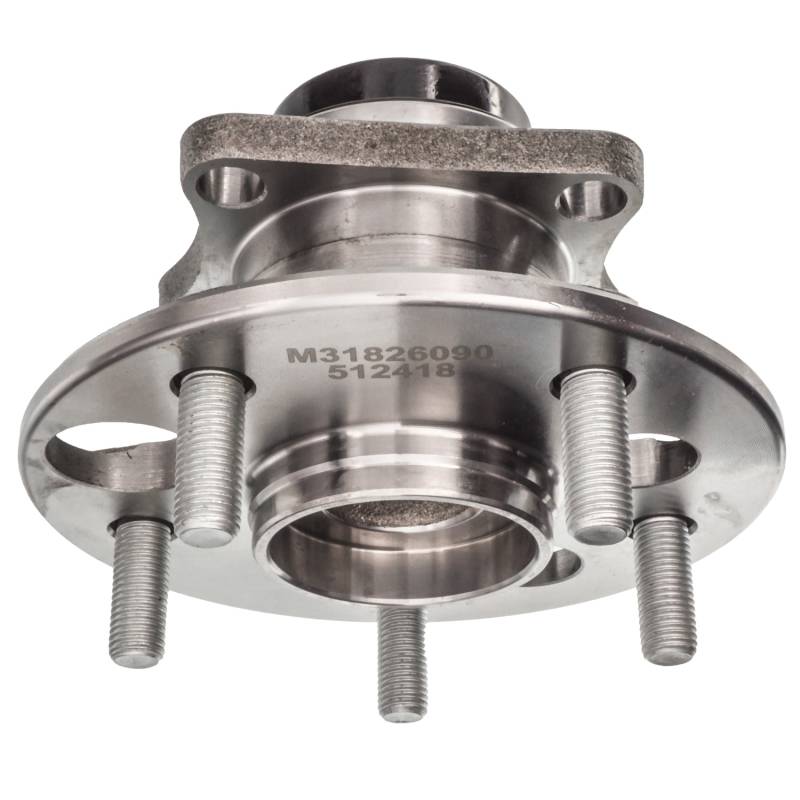

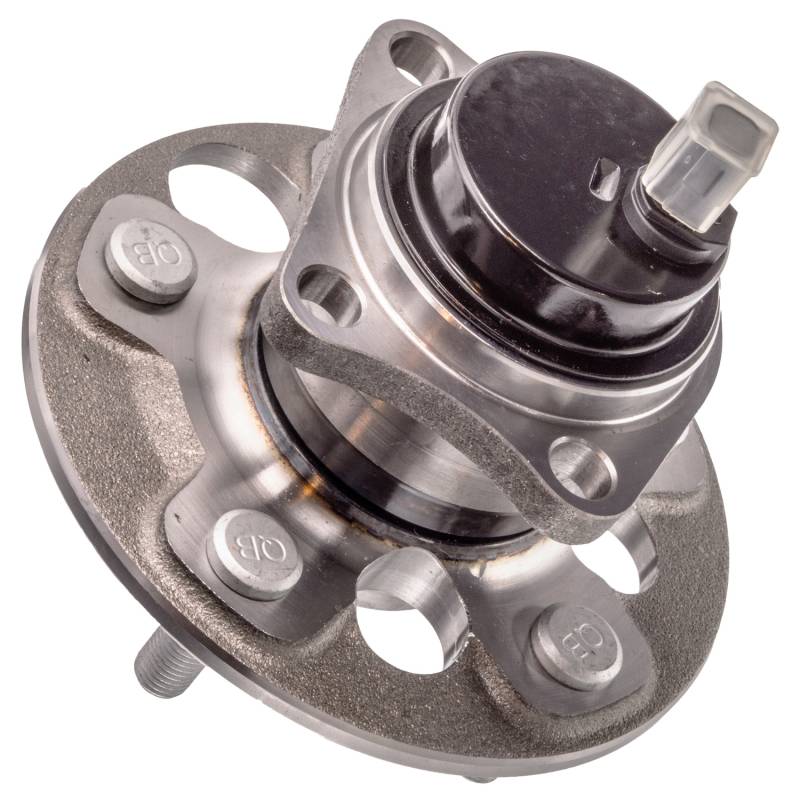

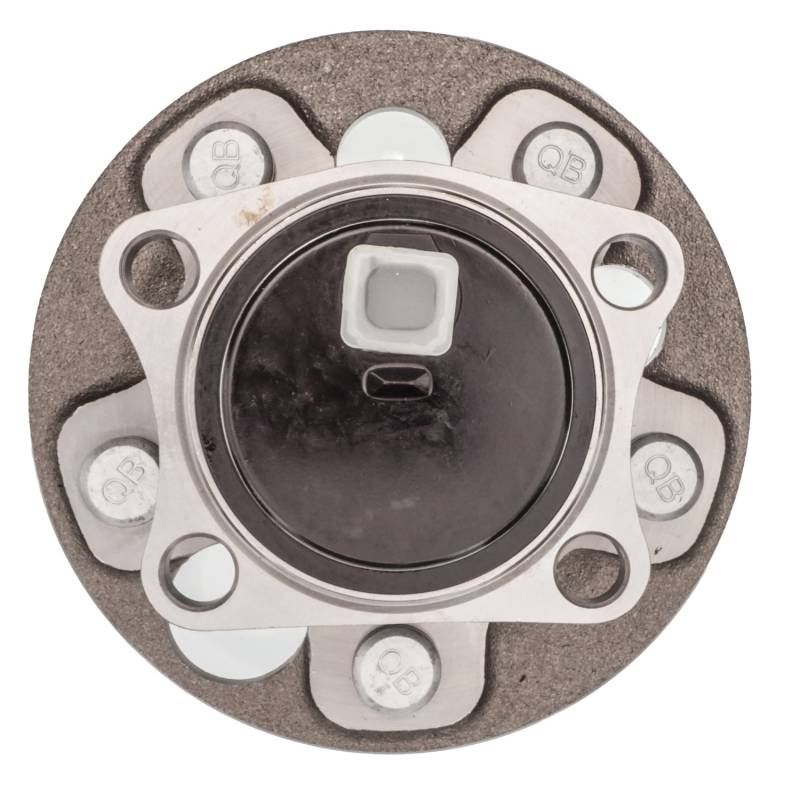

PRODUCT TYPE: HUB ASSEMBLY

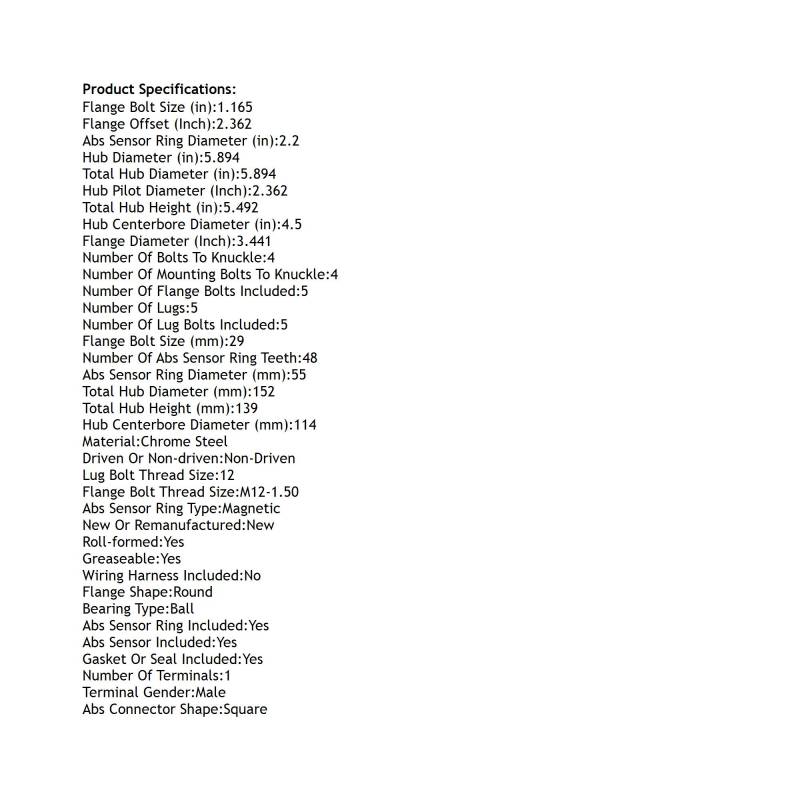

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.2
ABS SENSOR RING DIAMETER (MM): 55
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.165
FLANGE BOLT SIZE (MM): 29
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 3.441
FLANGE OFFSET (INCH): 2.362
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.894
HUB PILOT DIAMETER (INCH): 2.362
LUG BOLT THREAD SIZE: 12
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.894
TOTAL HUB DIAMETER (MM): 152
TOTAL HUB HEIGHT (IN): 5.492
TOTAL HUB HEIGHT (MM): 139
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-334842
BCA: WE61043
BECK/ARNLEY: 051-6318
CENTRIC PARTS: 40744023
FAG US: 101807
GSP: 693418
MEVOTECH: H512418
MOOG HUB ASSEMBLIES: 512418
NAPA: PBR930750

APPLICATIONS:
SCION XB (2008-2015)
