New Hub Assembly Compatible With Chevrolet Gmc Express 2500 Express 3500 Savana 2500 Savana 3500

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

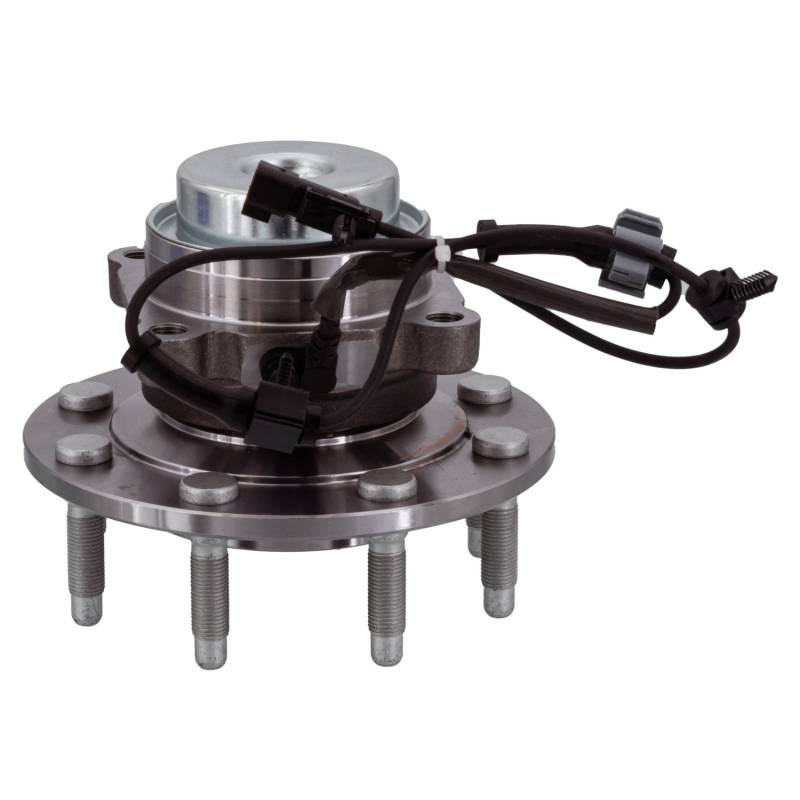

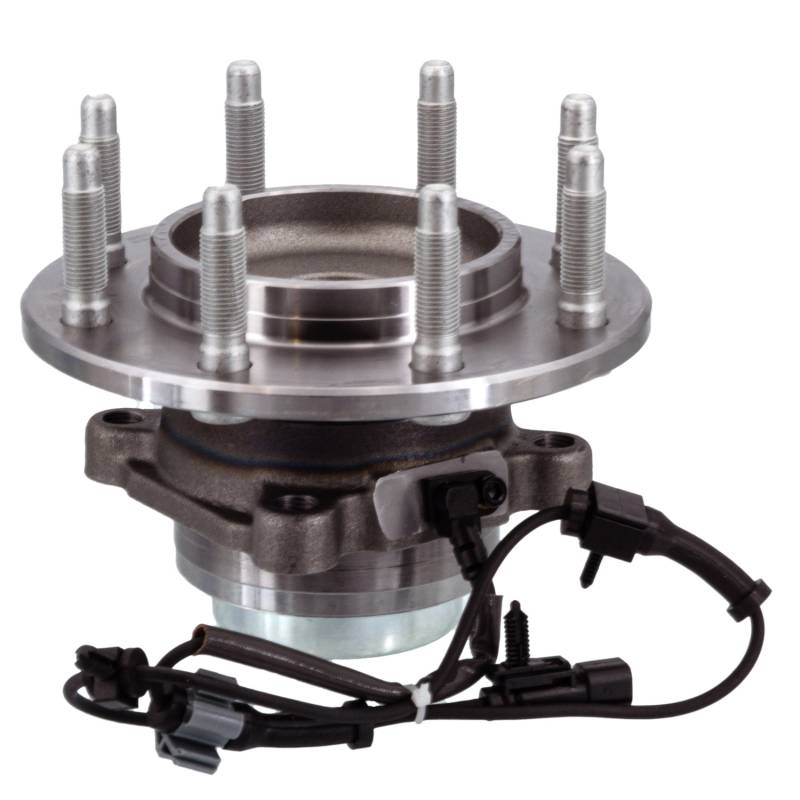

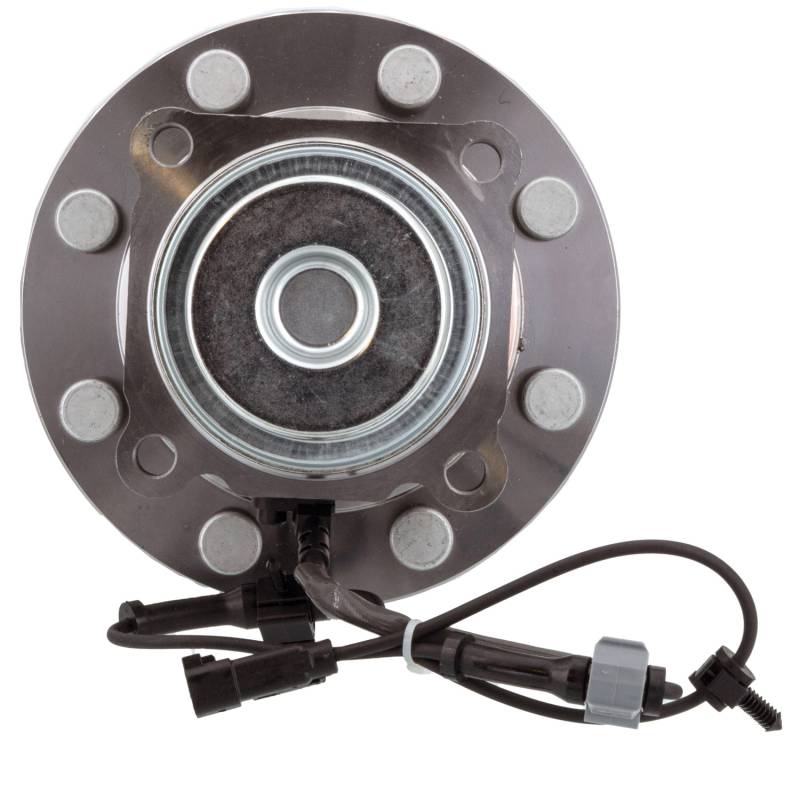

PRODUCT TYPE: HUB ASSEMBLY

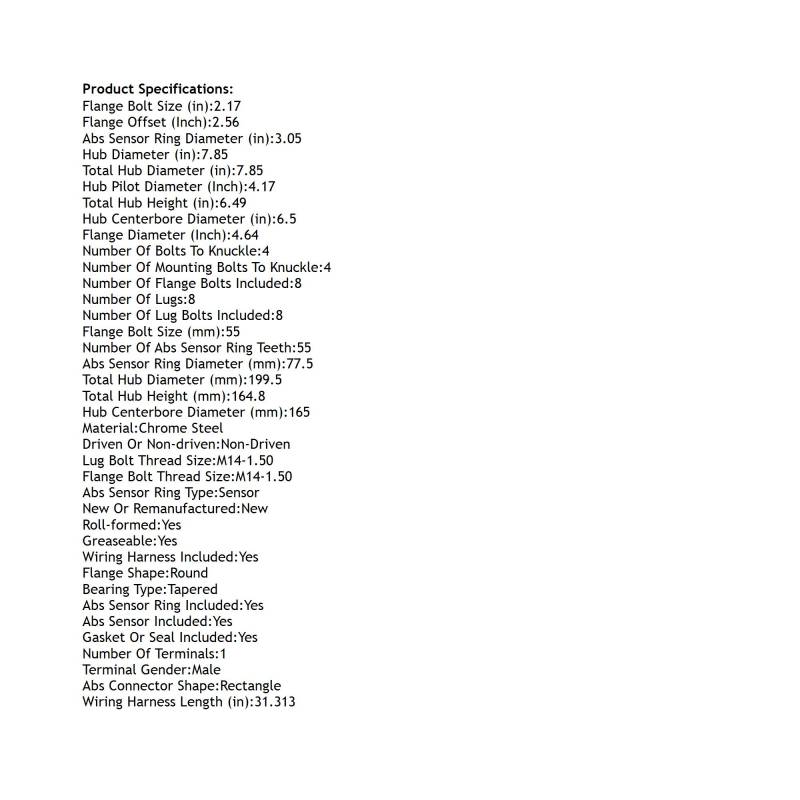

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.05
ABS SENSOR RING DIAMETER (MM): 77.5
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 2.17
FLANGE BOLT SIZE (MM): 55
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 4.64
FLANGE OFFSET (INCH): 2.56
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165
HUB DIAMETER (IN): 7.85
HUB PILOT DIAMETER (INCH): 4.17
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 7.85
TOTAL HUB DIAMETER (MM): 199.5
TOTAL HUB HEIGHT (IN): 6.49
TOTAL HUB HEIGHT (MM): 164.8
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 31.313

REPLACES:
ACDELCO: 85137058
AUTOPART INTERNATIONAL: 1411-713135
CENTRIC PARTS: 40766019
COAST TO COAST: 900513
MOOG HUB ASSEMBLIES: 515190

APPLICATIONS:
CHEVROLET EXPRESS 2500 (2018-2022)
CHEVROLET EXPRESS 3500 (2018-2022)
GMC SAVANA 2500 (2018-2022)
GMC SAVANA 3500 (2018-2020)
GMC SAVANA 4500 (2021-2022)
