THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

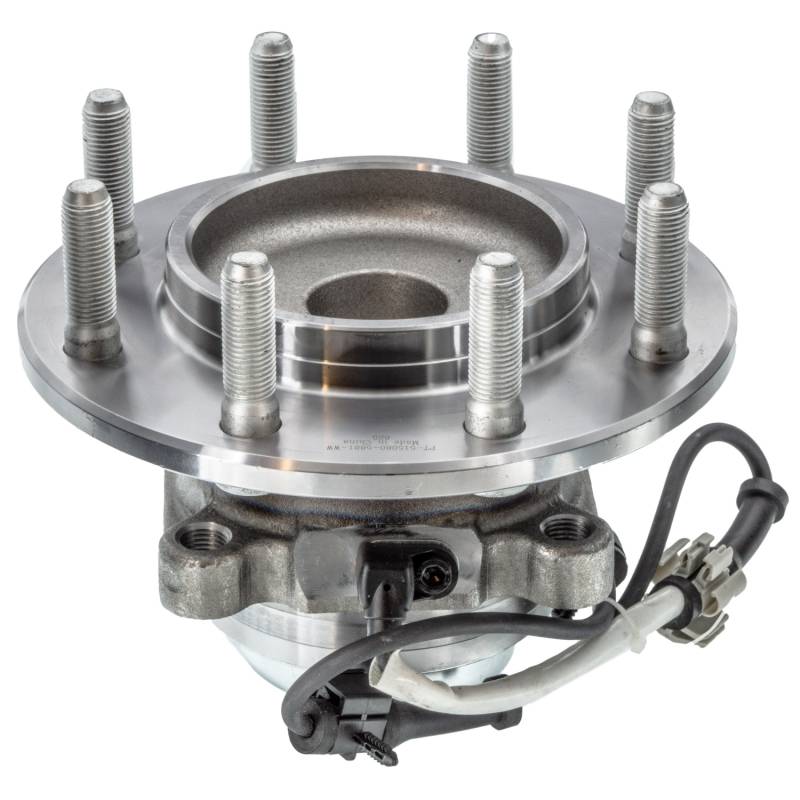

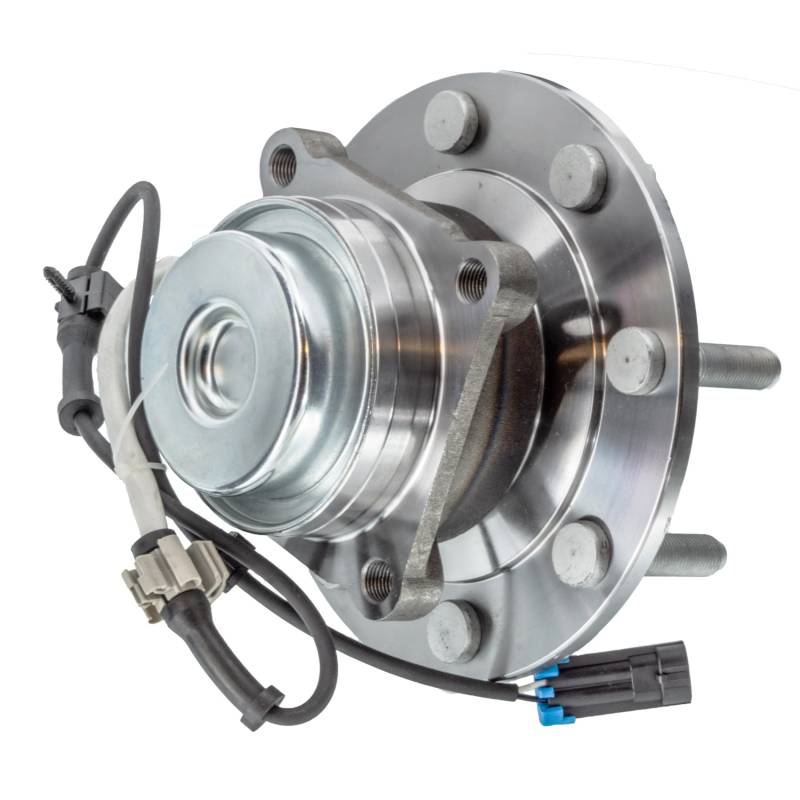

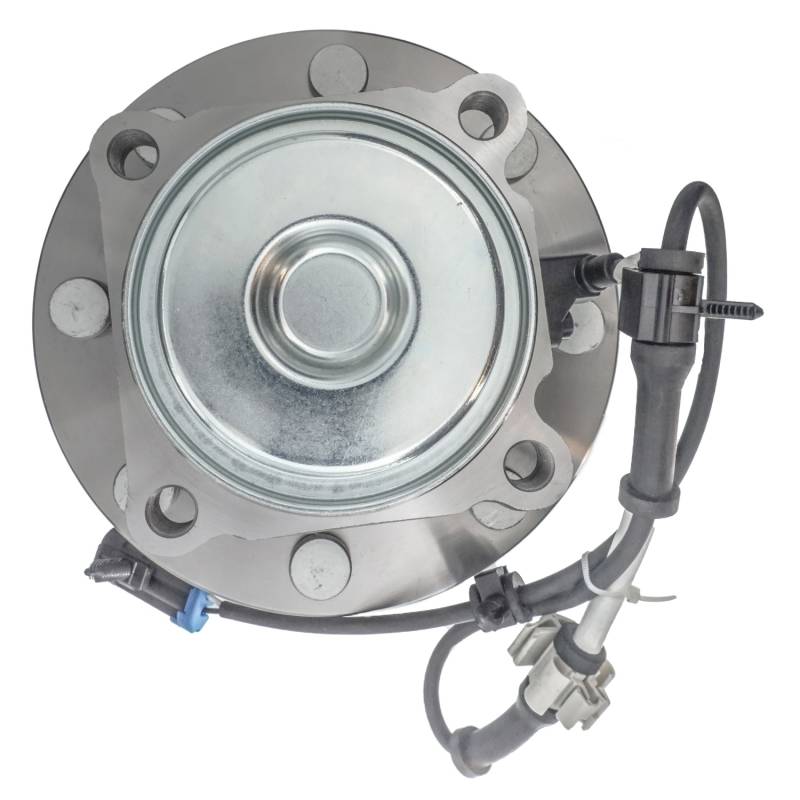

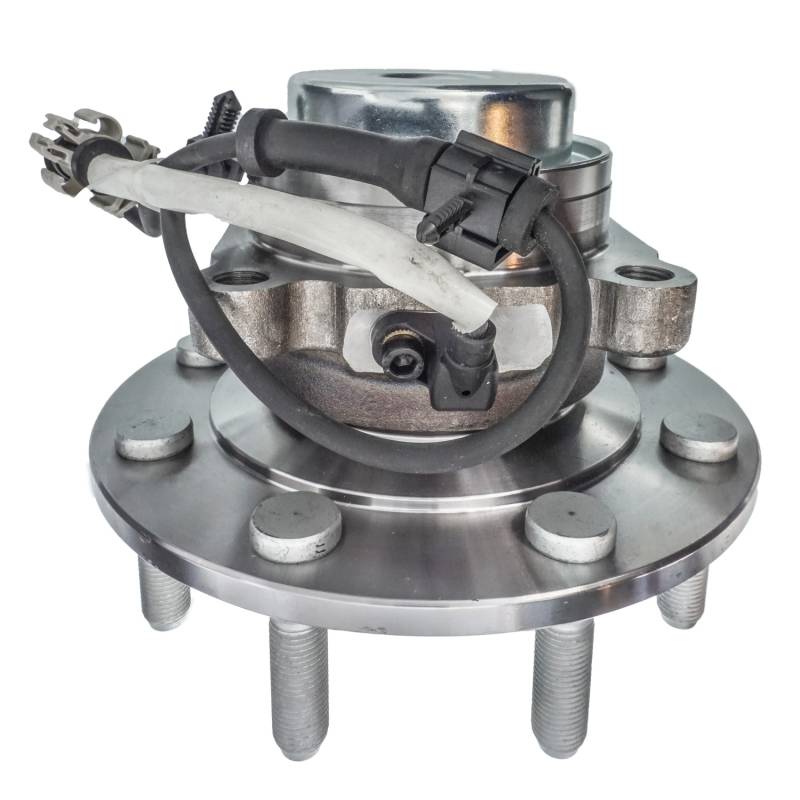

PRODUCT TYPE: HUB ASSEMBLY

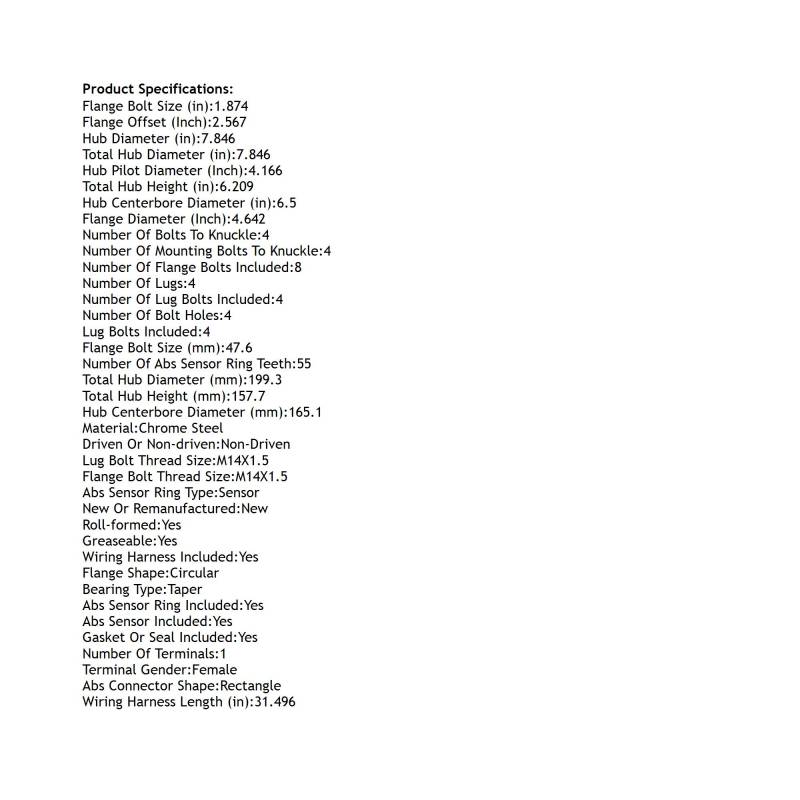

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.874
FLANGE BOLT SIZE (MM): 47.6
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 4.642
FLANGE OFFSET (INCH): 2.567
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165.1
HUB DIAMETER (IN): 7.846
HUB PILOT DIAMETER (INCH): 4.166
LUG BOLT THREAD SIZE: M14X1.5
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.846
TOTAL HUB DIAMETER (MM): 199.3
TOTAL HUB HEIGHT (IN): 6.209
TOTAL HUB HEIGHT (MM): 157.7
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 31.496
REPLACES:
ACDELCO: FW420
AUTOPART INTERNATIONAL: 1411-49085
BCA: WE61310
CENTRIC PARTS: 40766004
FAG US: 102189
GENERAL MOTORS: 84231008
GSP: 106060
MEVOTECH: H515060
MOOG HUB ASSEMBLIES: 515060
NAPA: PBR930353
APPLICATIONS:
CHEVROLET EXPRESS 3500 (2003-2017)
GMC SAVANA 3500 (2003-2017)
CHEVROLET EXPRESS 4500 (2009-2018)
GMC SAVANA 4500 (2009-2017)
CHEVROLET EXPRESS 2500 (2017-2017)
