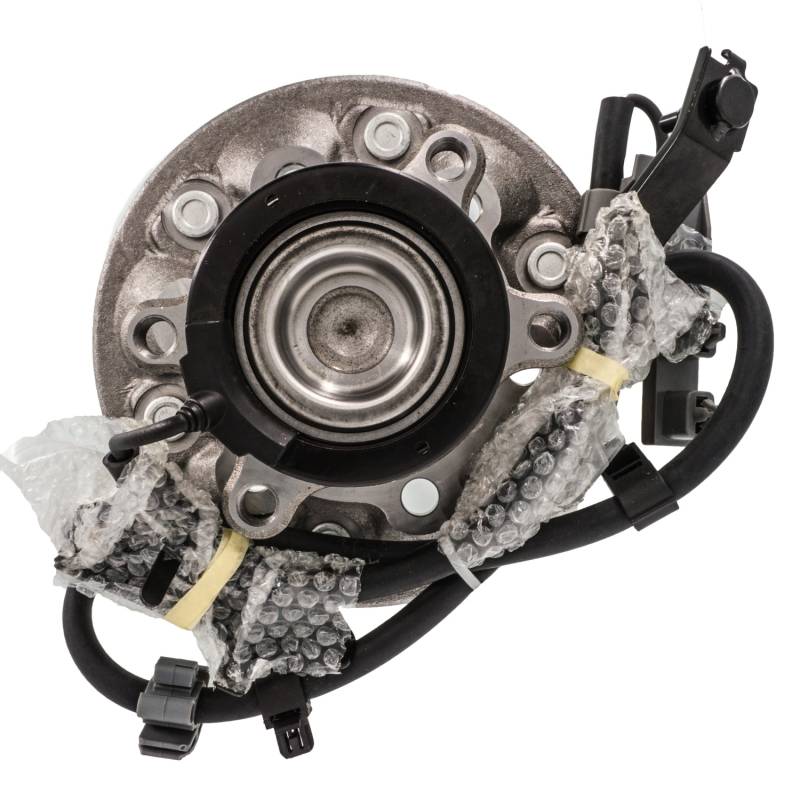

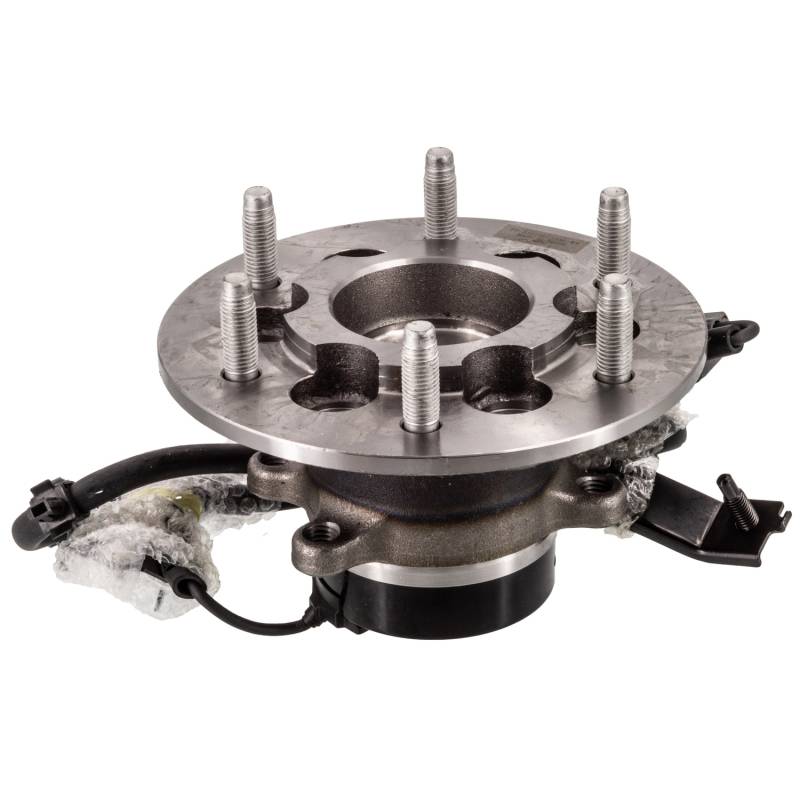

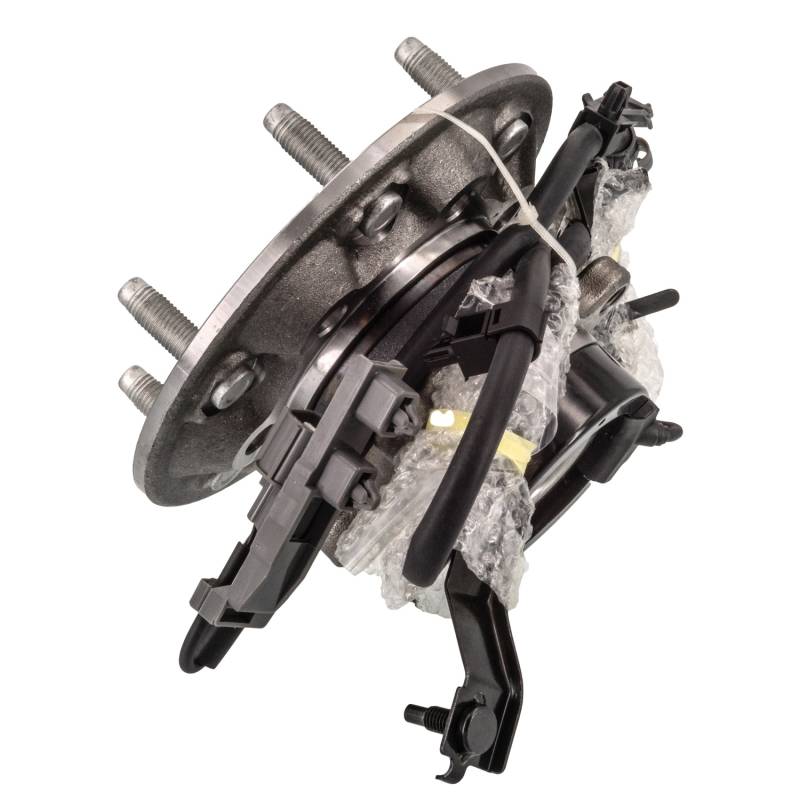

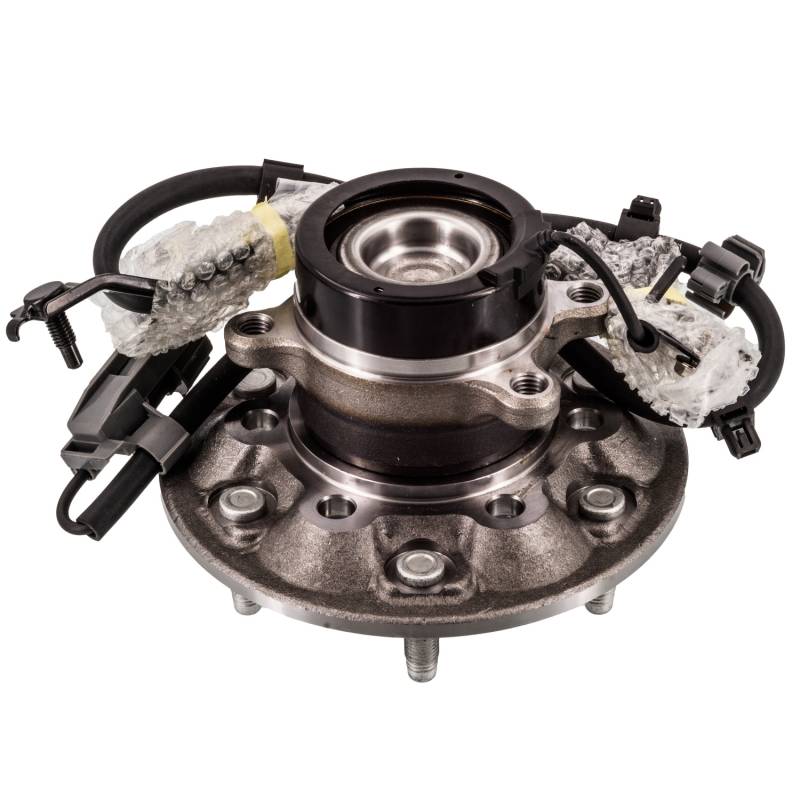

New Hub Assembly Compatible With Chevrolet Gmc Isuzu Colorado Z85 Ls 2004-2005 Colorado 2006-2008

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.339
FLANGE BOLT SIZE (MM): 34
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 3.933
FLANGE OFFSET (INCH): 2.65
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 7.244
HUB PILOT DIAMETER (INCH): 3.346
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.244
TOTAL HUB DIAMETER (MM): 184
TOTAL HUB HEIGHT (IN): 5.118
TOTAL HUB HEIGHT (MM): 130
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 30.63

REPLACES:
AUTOPART INTERNATIONAL: 1411-49297
BCA: WE61763
CENTRIC PARTS: 40766011
FAG US: 102155
GSP: 106105
MEVOTECH: H515105
MOOG HUB ASSEMBLIES: 515105
NAPA: PBR930702

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

CHEVROLET COLORADO Z85 2004–2005 RWD
CHEVROLET COLORADO Z85 LS 2004–2005 RWD
CHEVROLET COLORADO 2006–2008 RWD
GMC CANYON Z85 SL 2004–2005 RWD
GMC CANYON Z85 SLE 2004–2005 RWD
GMC CANYON 2006–2008 RWD
ISUZU I-370 2007–2008 RWD
ISUZU I-280 2006
ISUZU I-290 2007–2008
