THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

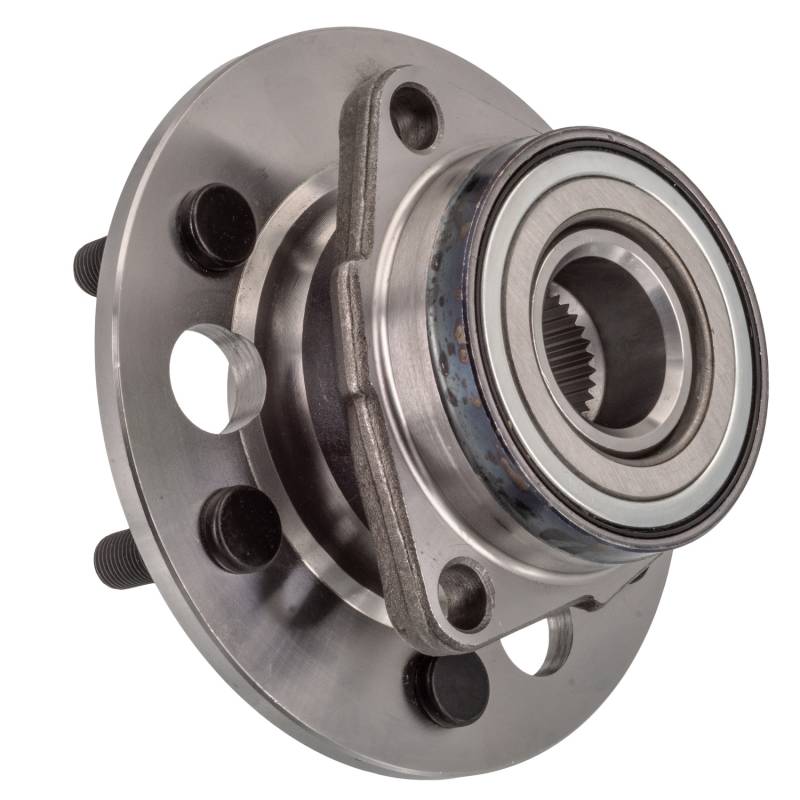

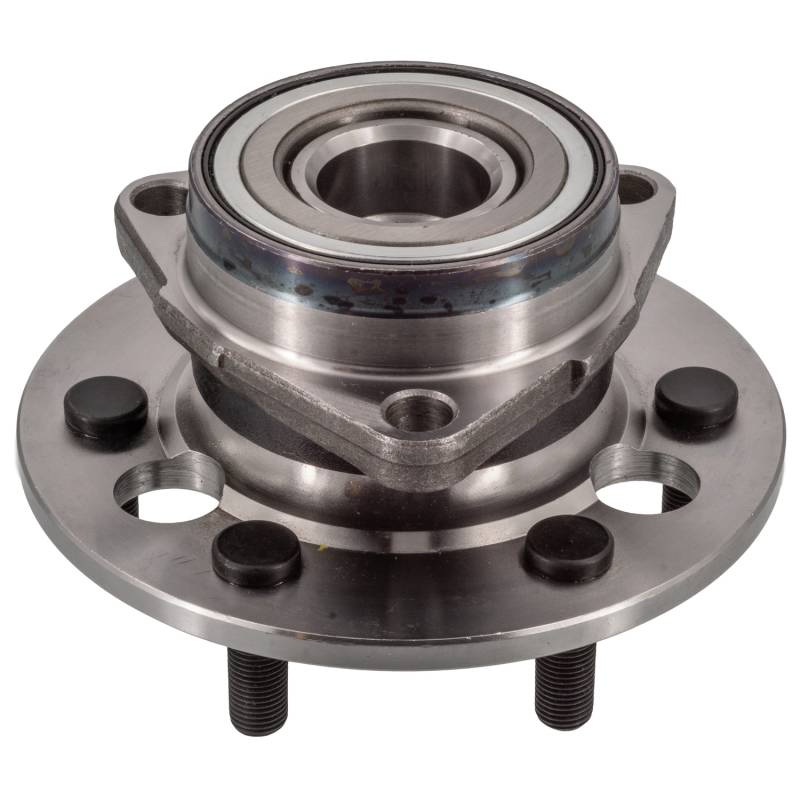

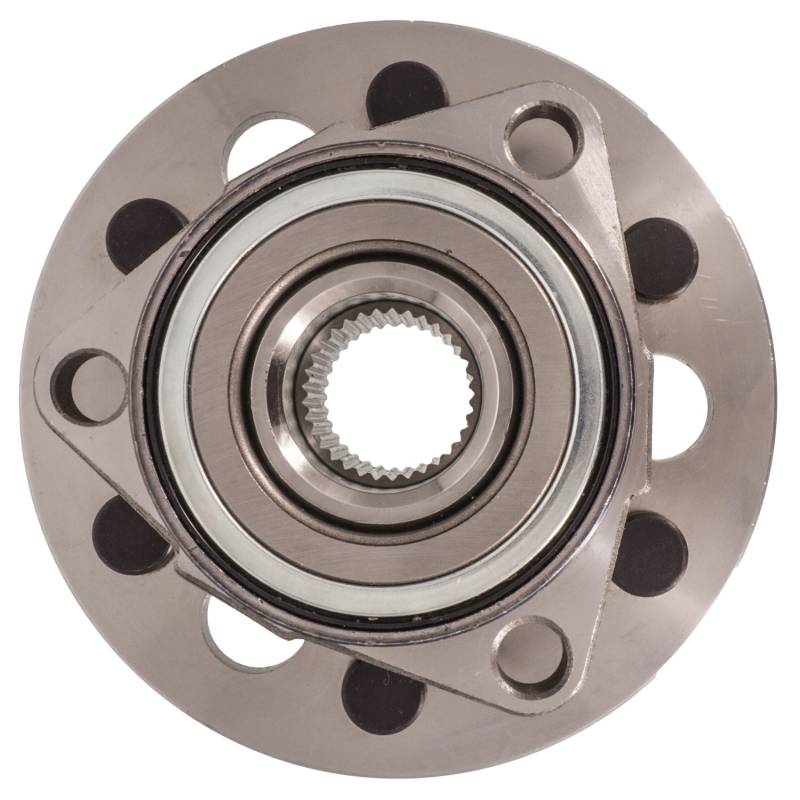

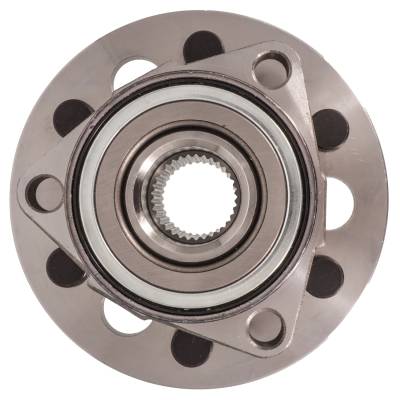

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: TAPER
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.437
FLANGE BOLT SIZE (MM): 36.5
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 3.083
FLANGE OFFSET (INCH): 50.8
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 7.165
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: 14.68
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 7.165
TOTAL HUB DIAMETER (MM): 182
TOTAL HUB HEIGHT (IN): 4.478
TOTAL HUB HEIGHT (MM): 113.75
REPLACES:
ACDELCO: FW467
AUTOPART INTERNATIONAL: 1411-02475
BCA: WE61550
CENTRIC PARTS: 40066002E
FAG US: 101972
GSP: 106002
MEVOTECH: H515002
MOOG HUB ASSEMBLIES: 515002
NAPA: PBR930095
APPLICATIONS:
CHEVROLET K1500 (1988-1991)
GMC K1500 (1988-1991)
