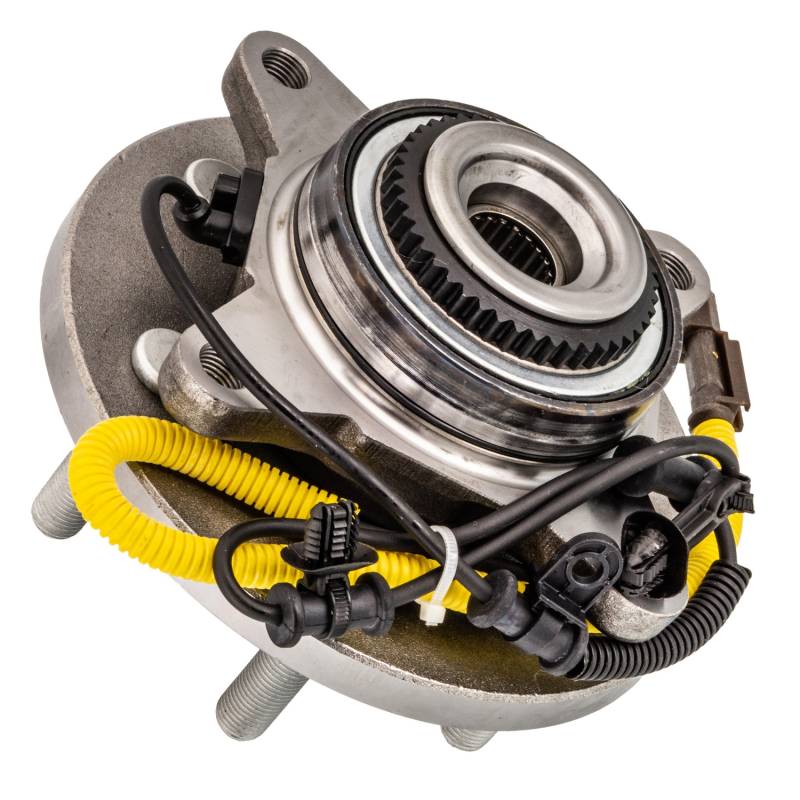

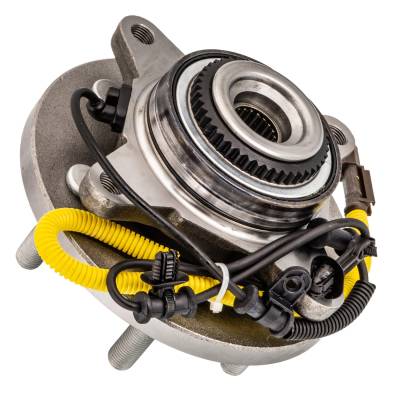

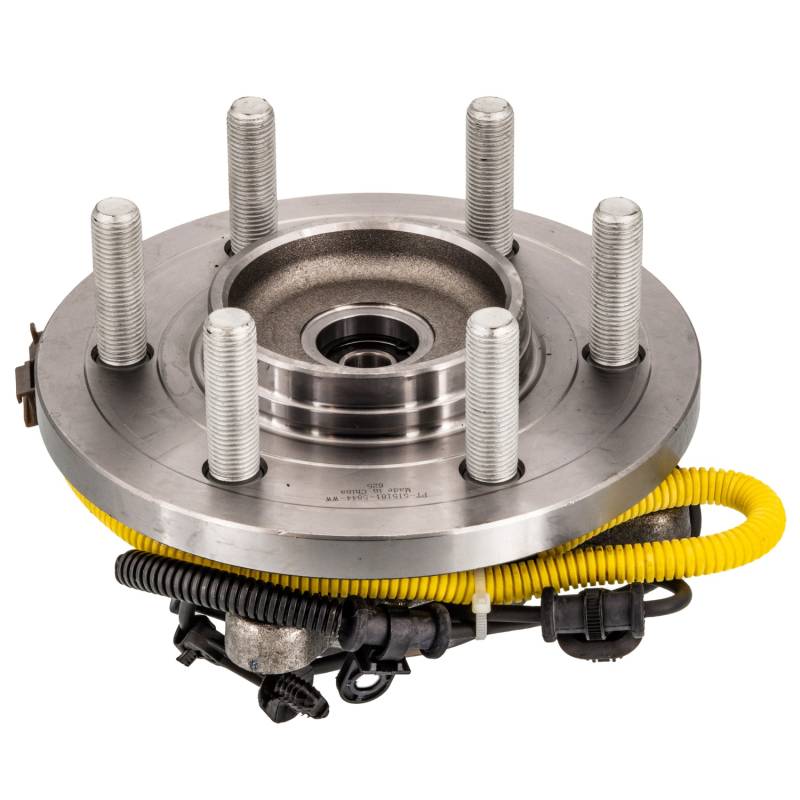

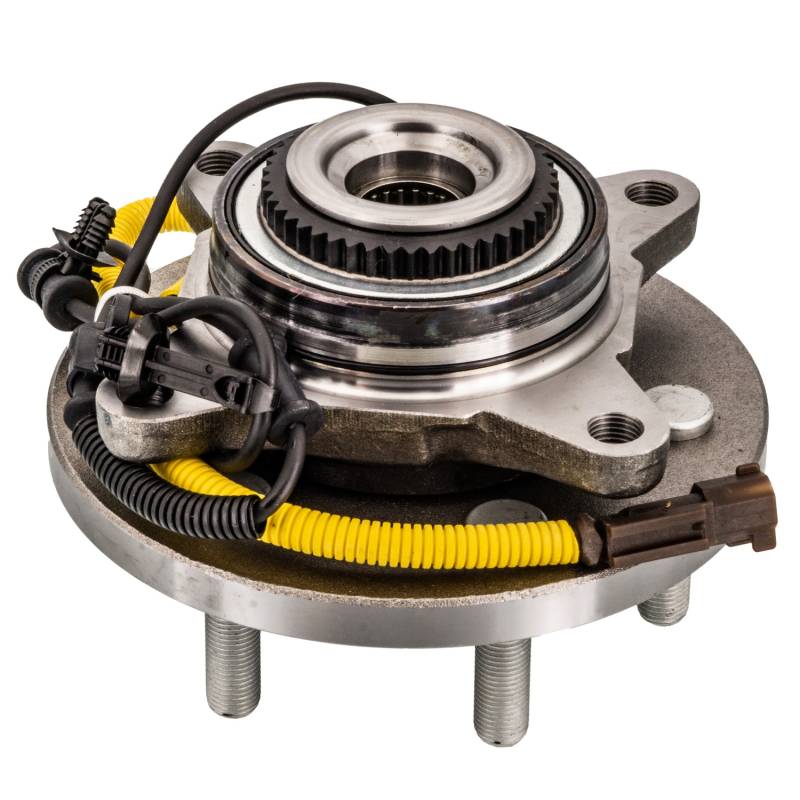

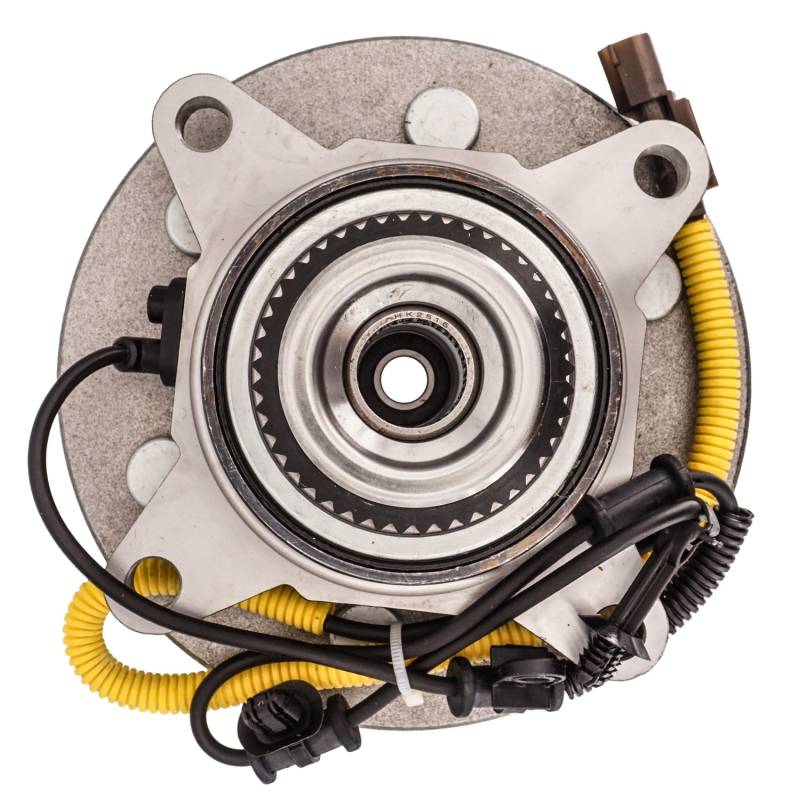

New Hub Assembly Compatible With Ford Lincoln Expedition Max Expedition Platinum Expedition

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OCTAGON
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.81
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: M14-1.5-6G
FLANGE DIAMETER (INCH): 3.54
FLANGE OFFSET (INCH): 1.8
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.31
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.2
HUB PILOT DIAMETER (INCH): 3.91
LUG BOLT THREAD SIZE: M14-1.50-6H
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 6
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 6
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 45
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.2
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 5.09
TOTAL HUB HEIGHT (MM): 129.3
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 41.125

REPLACES:
AUTOPART INTERNATIONAL: 1411-686606
FORD: JL1Z 1104 C
MOOG HUB ASSEMBLIES: 515181
MOTORCRAFT: HUB-493 HUB434 HUB491 HUB493 JL1Z1104C JL1Z1104E JL1Z1104G

APPLICATIONS:
FORD EXPEDITION MAX (2018-2022)
FORD EXPEDITION PLATINUM (2018-2022)
FORD EXPEDITION (2018-2022)
LINCOLN NAVIGATOR (2018-2022)
