New Hub Assembly Compatible With Chevrolet Gmc Astro Safari 4.3L 2003 2004 2005 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

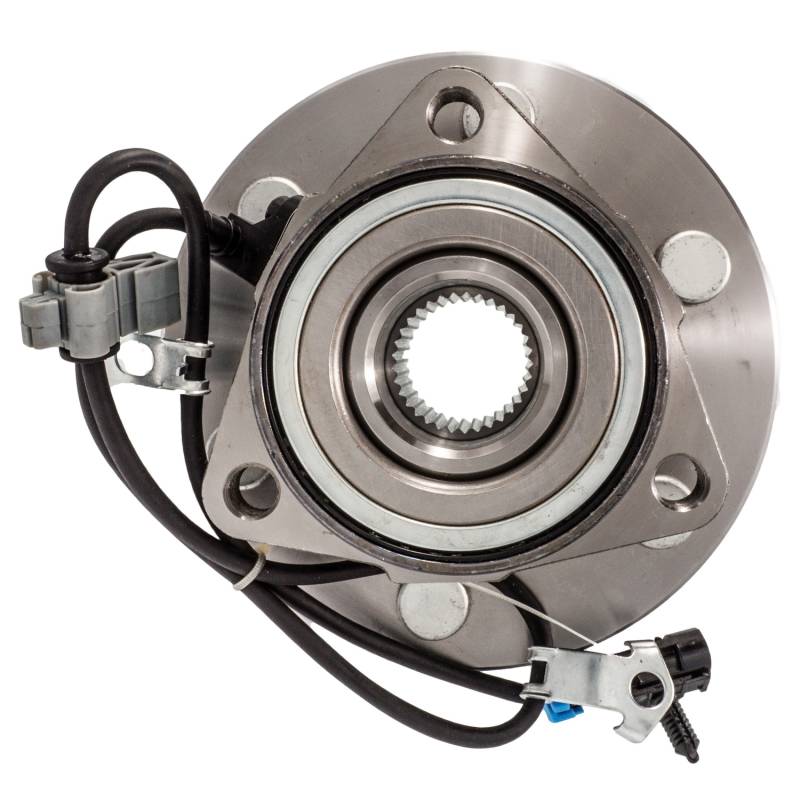

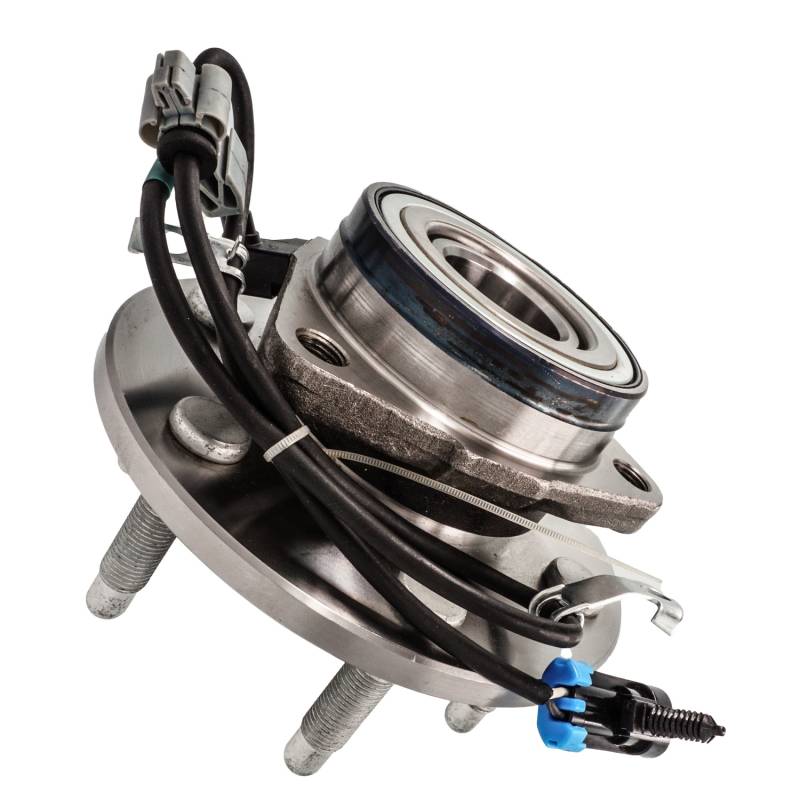

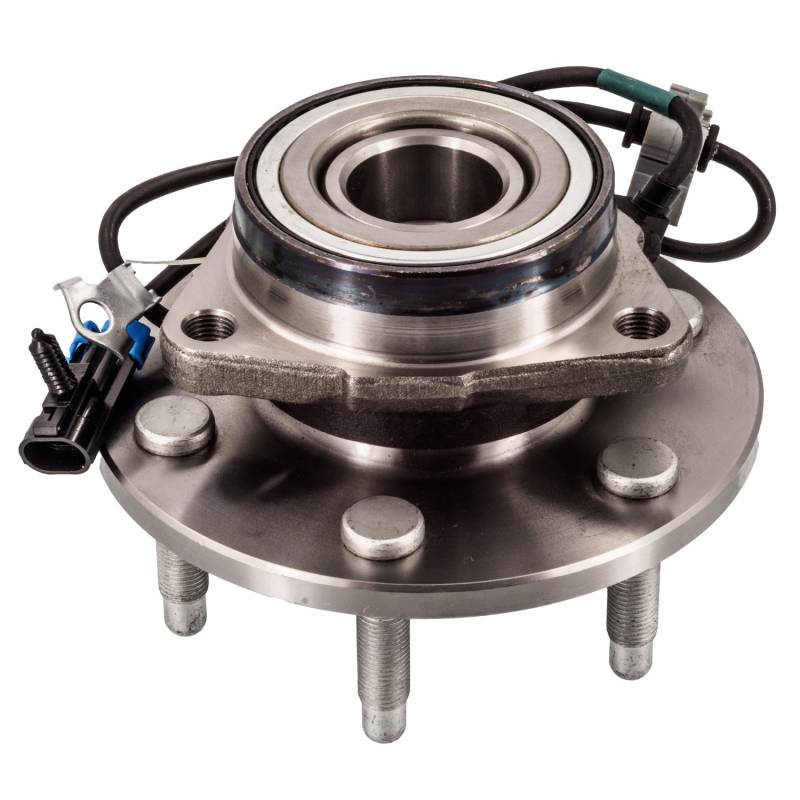

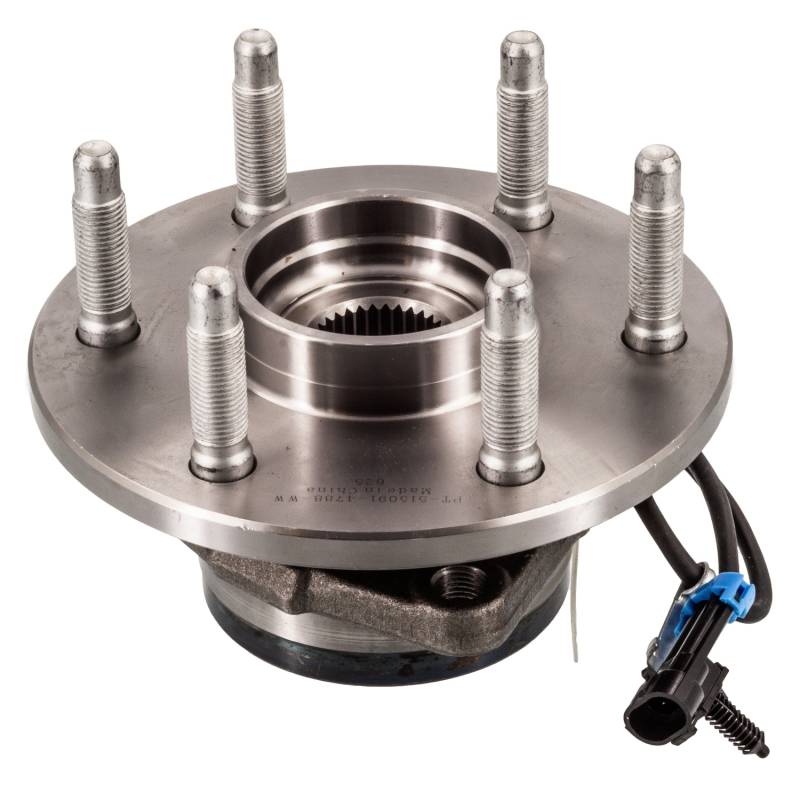

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ELLIPTIC
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 2.126
FLANGE BOLT SIZE (MM): 54
FLANGE BOLT THREAD SIZE: M14X1.50
FLANGE DIAMETER (INCH): 3.087
FLANGE OFFSET (INCH): 1.969
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 7.05
HUB PILOT DIAMETER (INCH): 3.909
LUG BOLT THREAD SIZE: M14X1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.047
TOTAL HUB DIAMETER (MM): 179
TOTAL HUB HEIGHT (IN): 5.126
TOTAL HUB HEIGHT (MM): 130.2
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 28.74

REPLACES:
ACDELCO: FW170
AUTOPART INTERNATIONAL: 1411-49298
BCA: WE61573
CENTRIC PARTS: 40266018E
FAG US: 102196
GENERAL MOTORS: 15112451
GSP: 106091
MEVOTECH: H515091
MOOG HUB ASSEMBLIES: 515091
NAPA: PBR930670

APPLICATIONS:
CHEVROLET ASTRO (2003-2005)
GMC SAFARI (2003-2005)
