THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

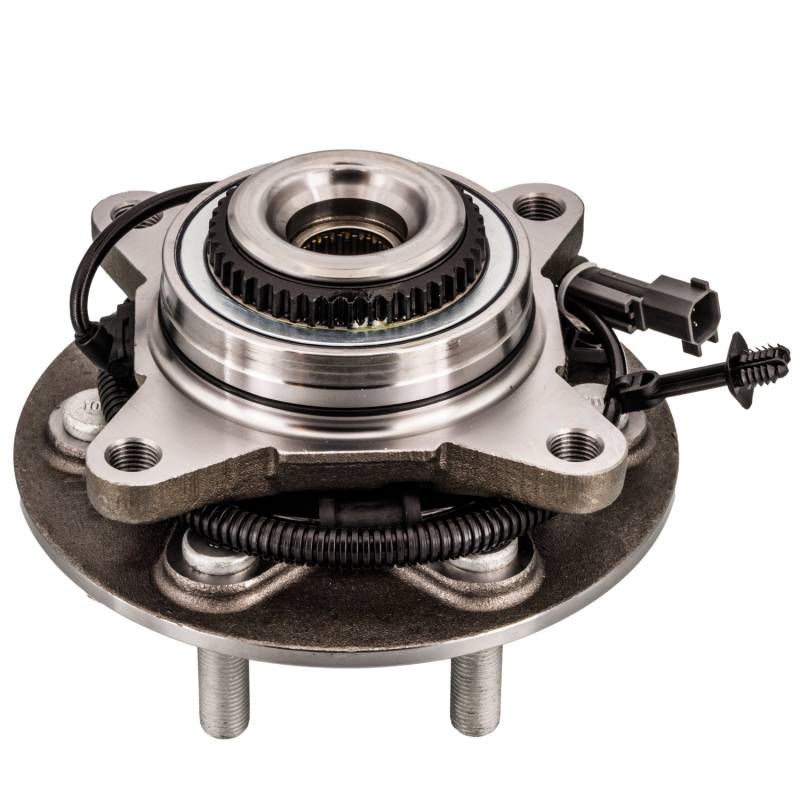

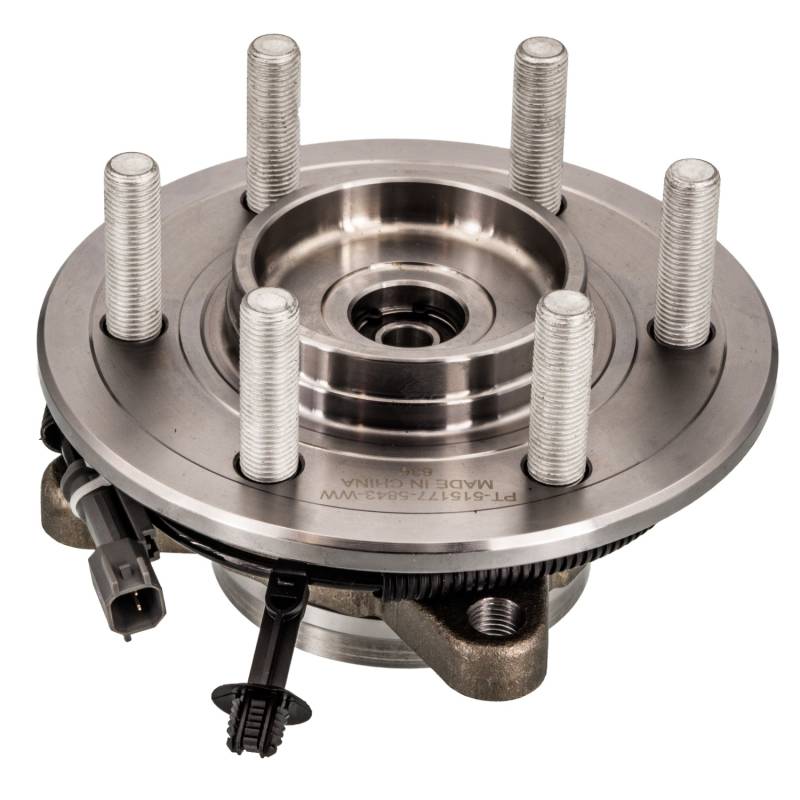

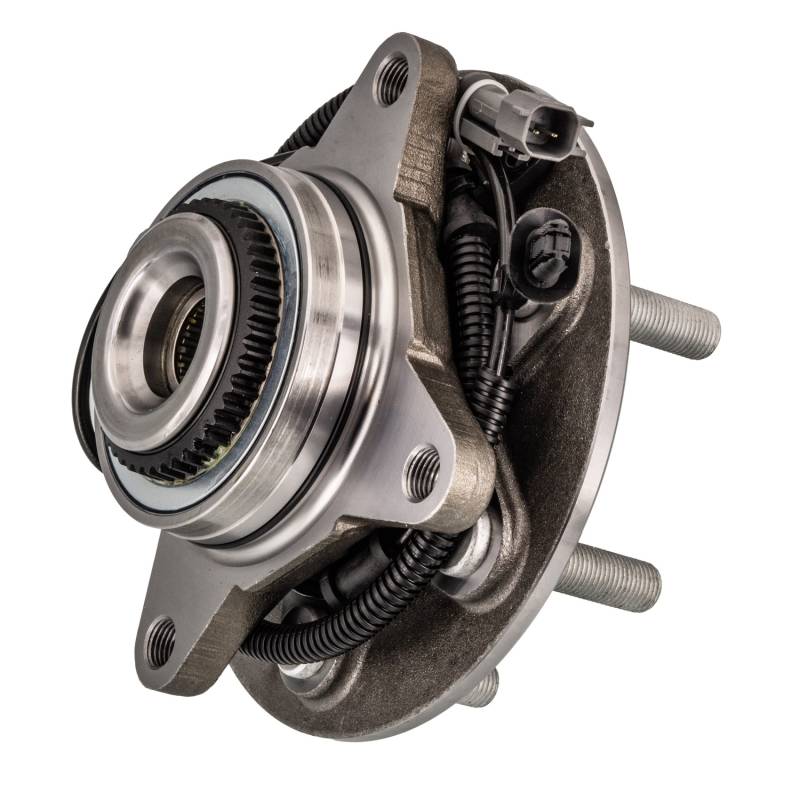

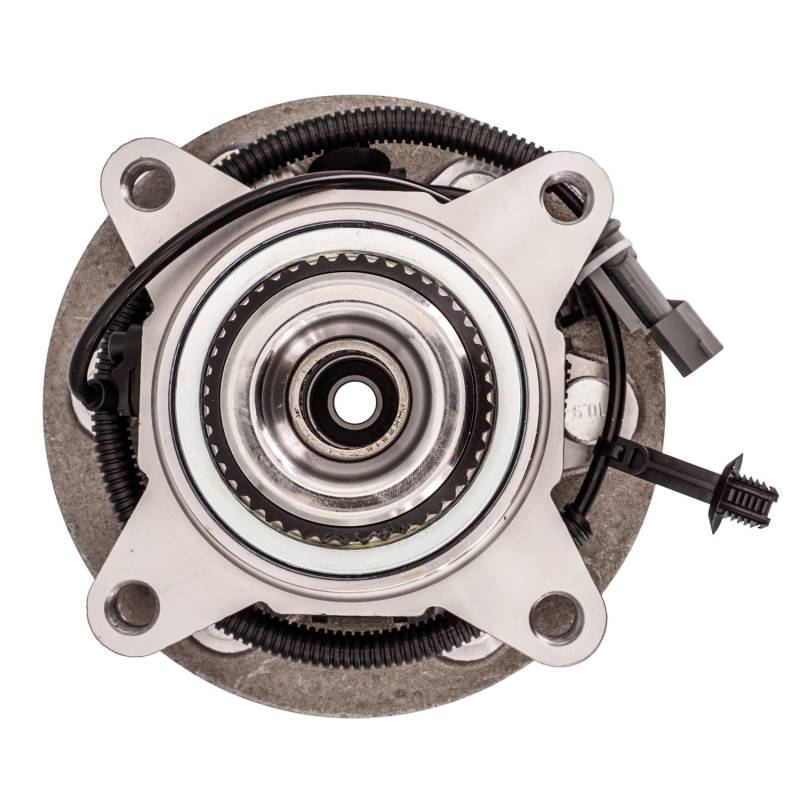

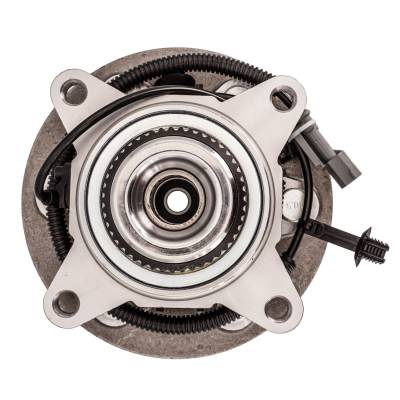

PRODUCT TYPE: HUB ASSEMBLY

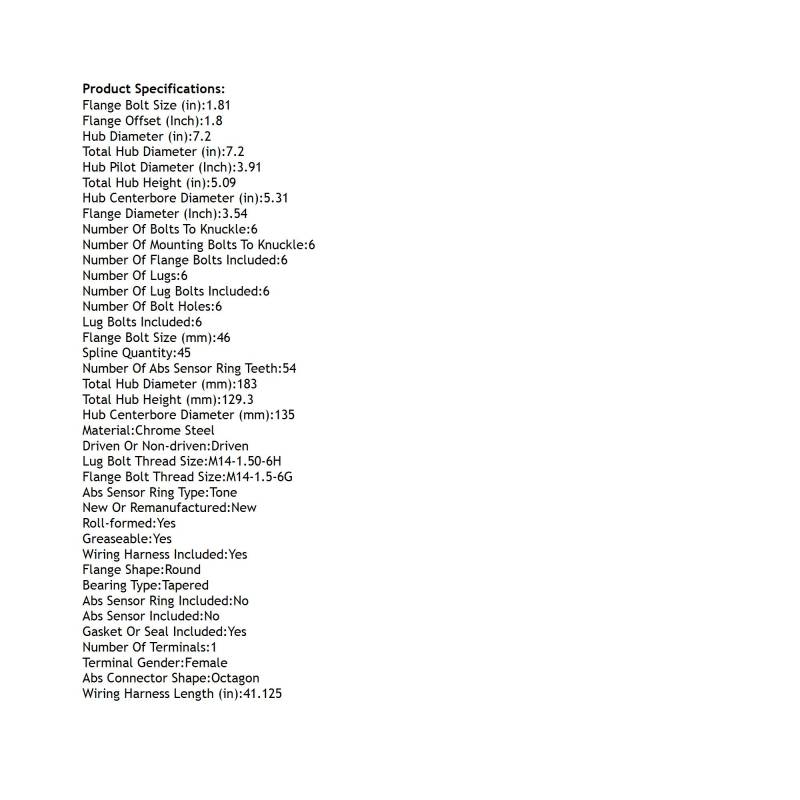

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OCTAGON
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.81
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: M14-1.5-6G
FLANGE DIAMETER (INCH): 3.54
FLANGE OFFSET (INCH): 1.8
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.31
HUB CENTERBORE DIAMETER (MM): 135
HUB DIAMETER (IN): 7.2
HUB PILOT DIAMETER (INCH): 3.91
LUG BOLT THREAD SIZE: M14-1.50-6H
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 6
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 6
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 45
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.2
TOTAL HUB DIAMETER (MM): 183
TOTAL HUB HEIGHT (IN): 5.09
TOTAL HUB HEIGHT (MM): 129.3
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 41.125
REPLACES:
AUTOPART INTERNATIONAL: 1411-704848
BCA: WE61945
BECK/ARNLEY: 725-3400
FORD: HUB471 JL3Z 1104 E JL3Z 1104 P JL3Z1104P
GSP: 110021
MOOG HUB ASSEMBLIES: 515177
MOTORCRAFT: HUB416 HUB471 JL3Z1104P NHUB-100 NHUB100
NAPA: PBR931016
APPLICATIONS:
FORD F-150 (2018-2020)
