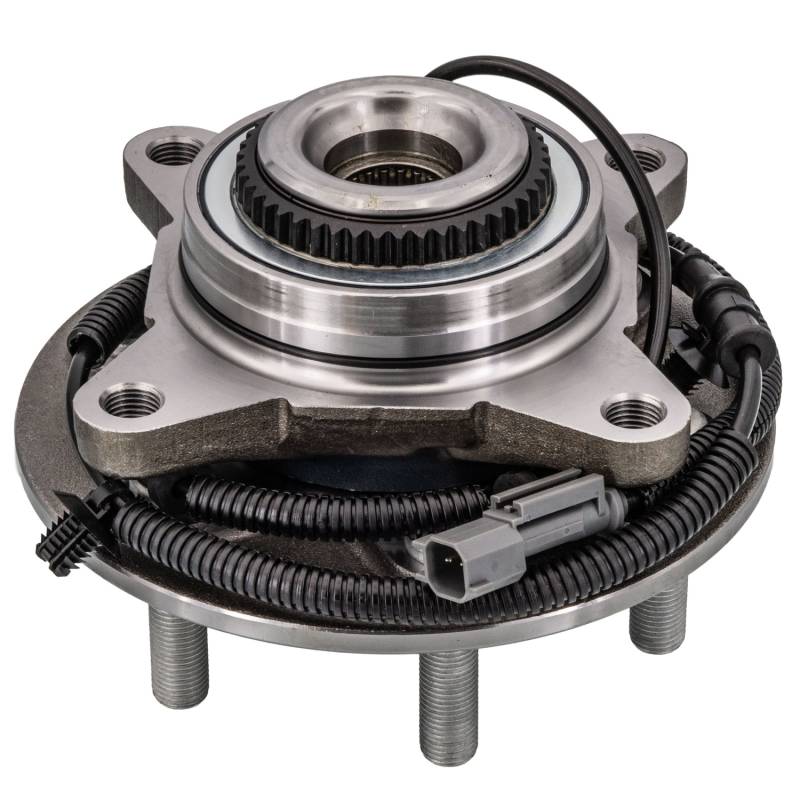

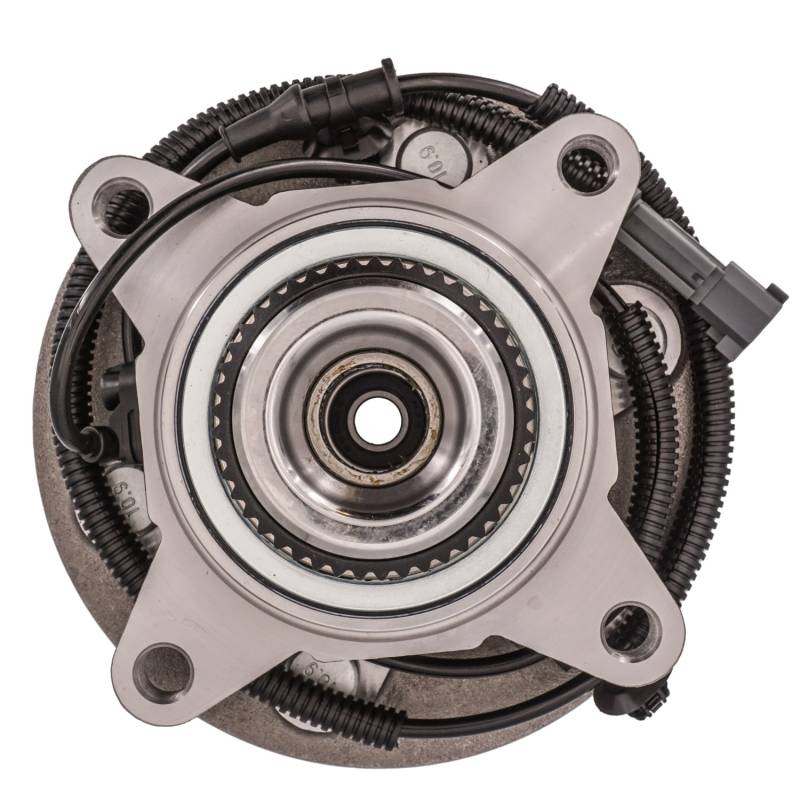

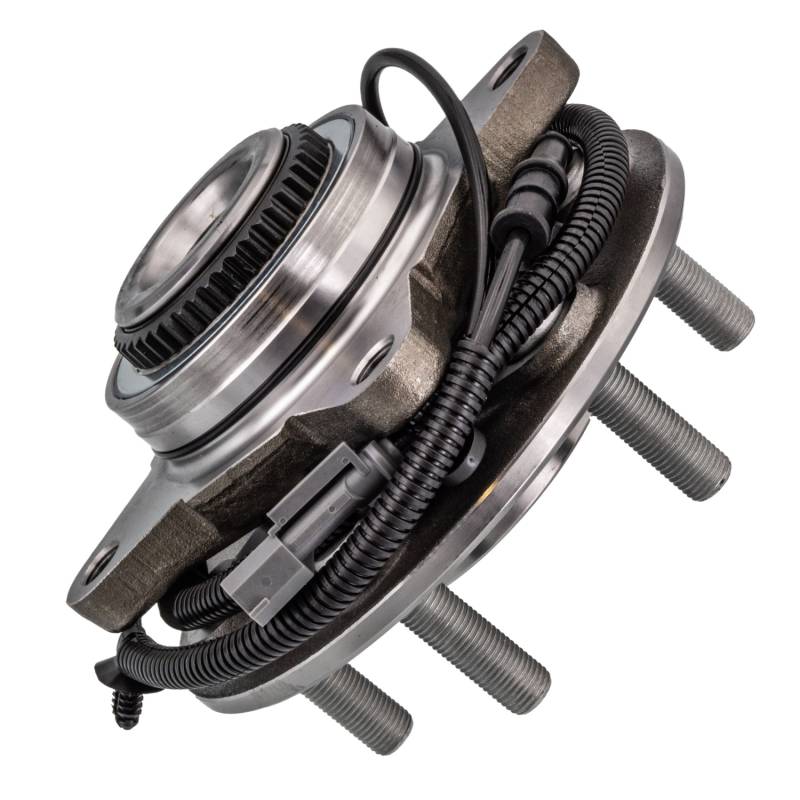

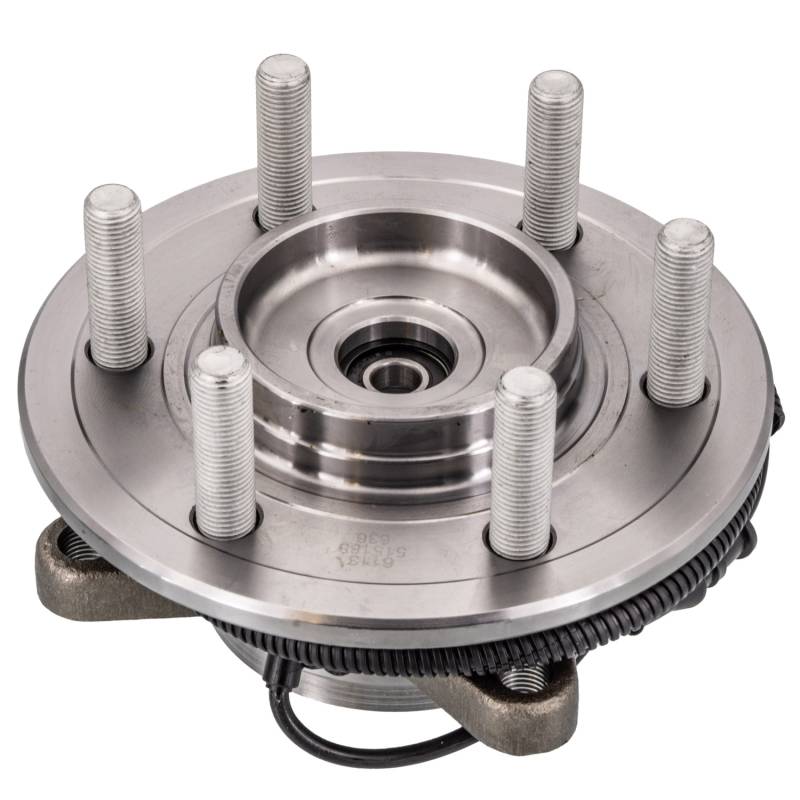

New Hub Assembly Compatible With Ford F-150 3.5L 2017 2018 2019 2020 By Part Numbers Pt515188

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

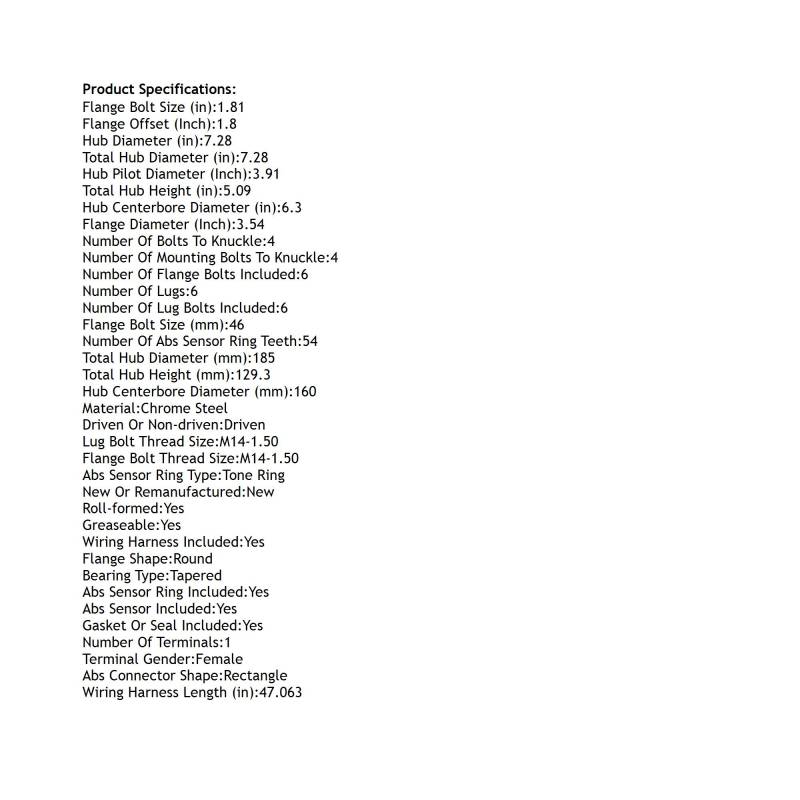

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.81
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 3.54
FLANGE OFFSET (INCH): 1.8
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.3
HUB CENTERBORE DIAMETER (MM): 160
HUB DIAMETER (IN): 7.28
HUB PILOT DIAMETER (INCH): 3.91
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.28
TOTAL HUB DIAMETER (MM): 185
TOTAL HUB HEIGHT (IN): 5.09
TOTAL HUB HEIGHT (MM): 129.3
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 47.063

REPLACES:
AUTOPART INTERNATIONAL: 1411-686607
FORD: HL3Z 1104 B JL3Z 1104 K
MOOG HUB ASSEMBLIES: 515188
MOTORCRAFT: HL3Z1104B HUB397 HUB437

APPLICATIONS:
FORD F-150 (2017-2020)
