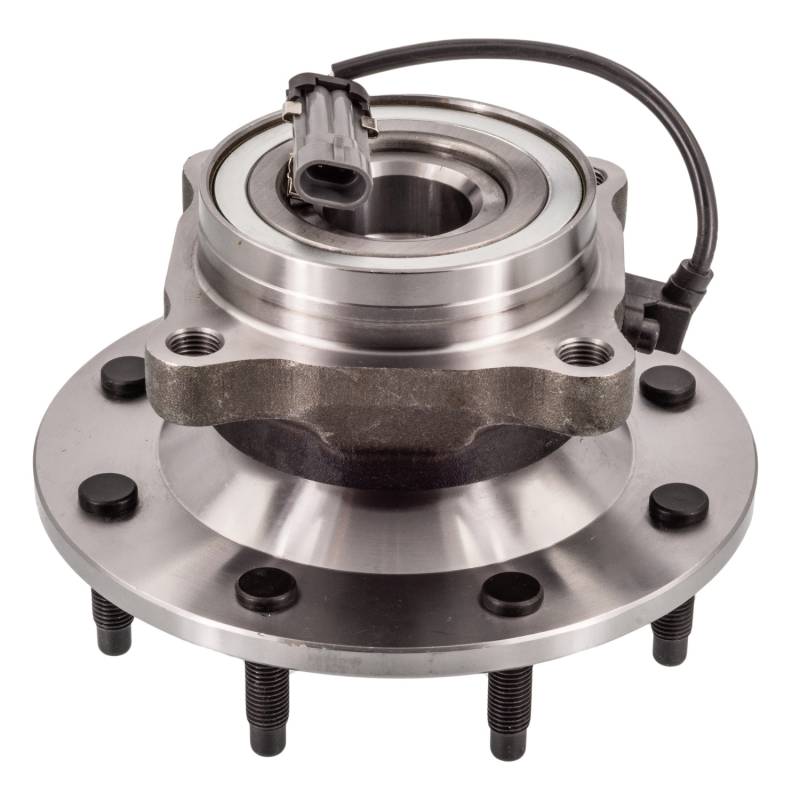

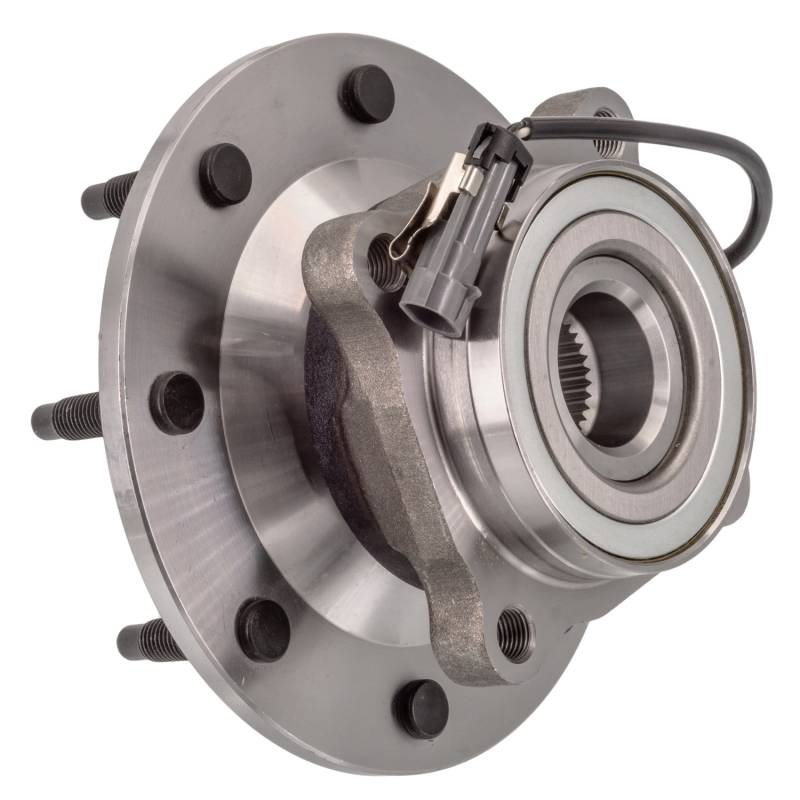

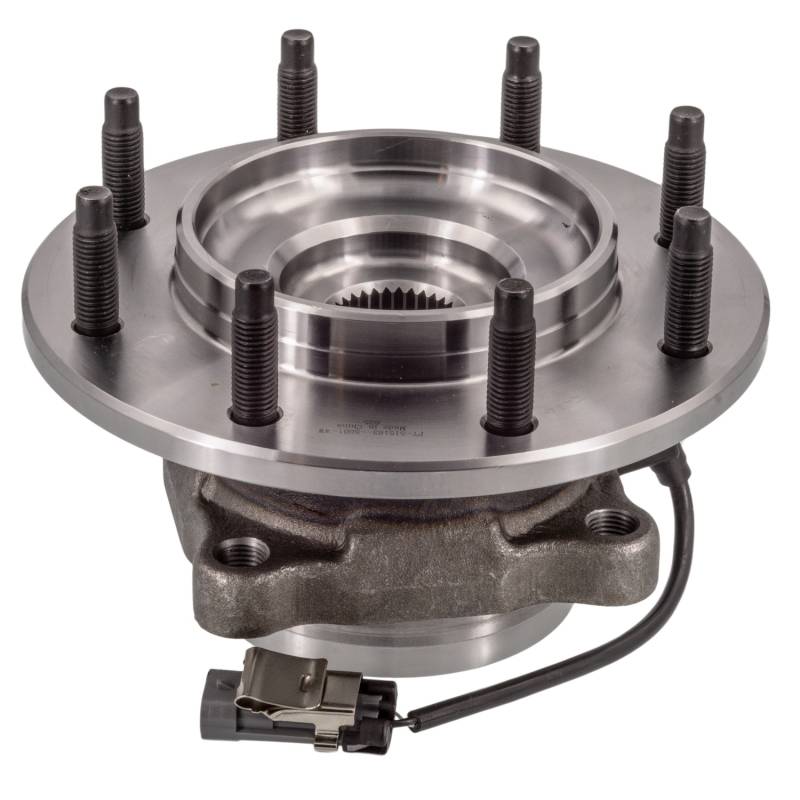

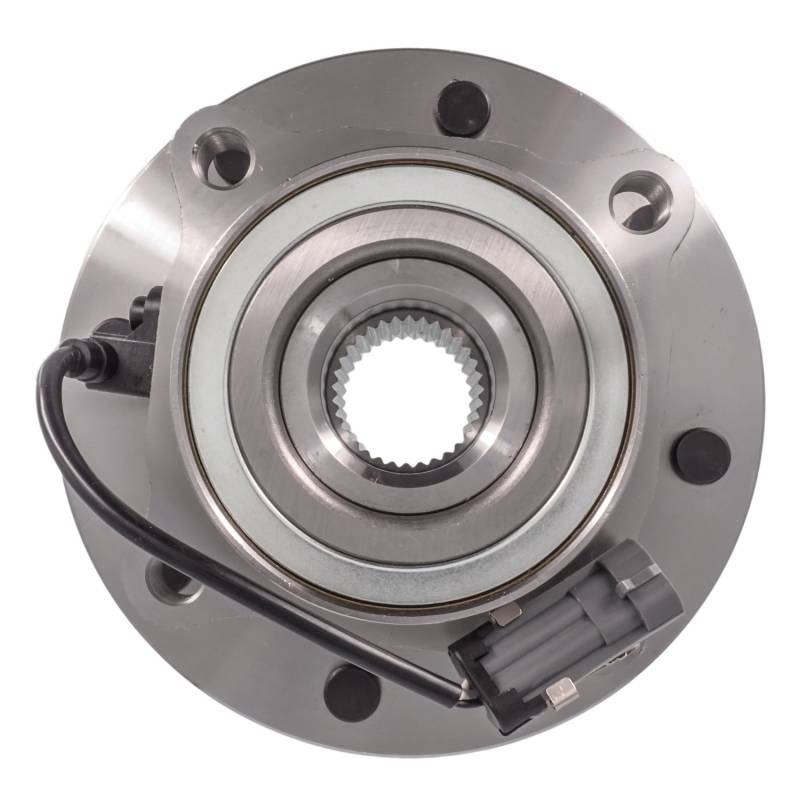

New Hub Assembly Compatible With Cadillac Dts 4.6L 2006 2007 2008 2009 2010 2011 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.52
FLANGE BOLT SIZE (MM): 38
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 4.64
FLANGE OFFSET (INCH): 2.72
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: NO
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165
HUB DIAMETER (IN): 7.84
HUB PILOT DIAMETER (INCH): 4.17
LUG BOLTS INCLUDED: 8
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 8
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 7.84
TOTAL HUB DIAMETER (MM): 199
TOTAL HUB HEIGHT (IN): 5.12
TOTAL HUB HEIGHT (MM): 130
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 8.063

REPLACES:
AUTOPART INTERNATIONAL: 1411-02031
CENTRIC PARTS: 40262015
MOOG HUB ASSEMBLIES: 515163

APPLICATIONS:
CADILLAC DTS (2006-2011)
