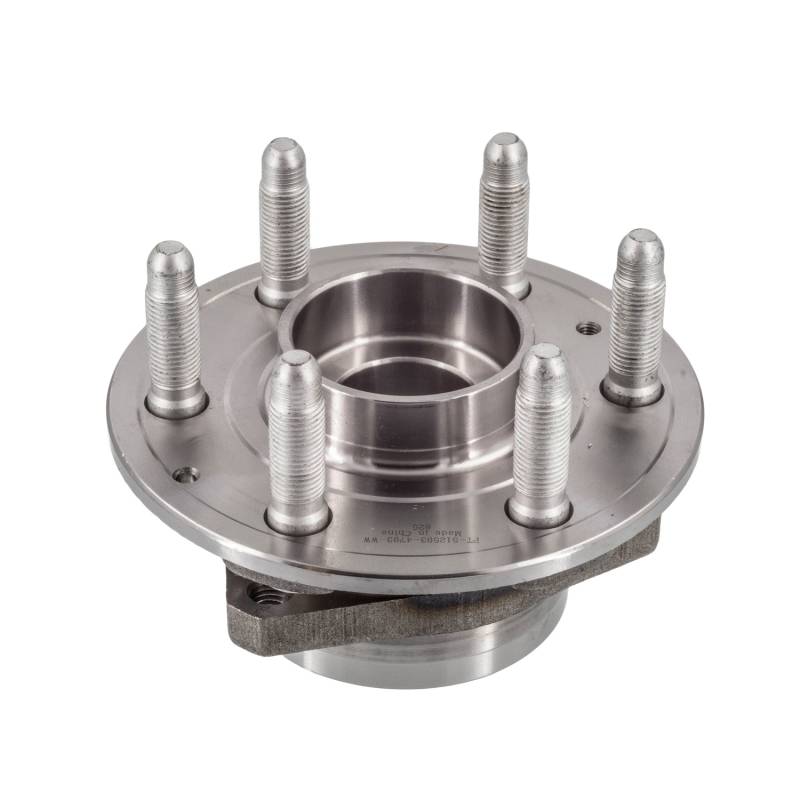

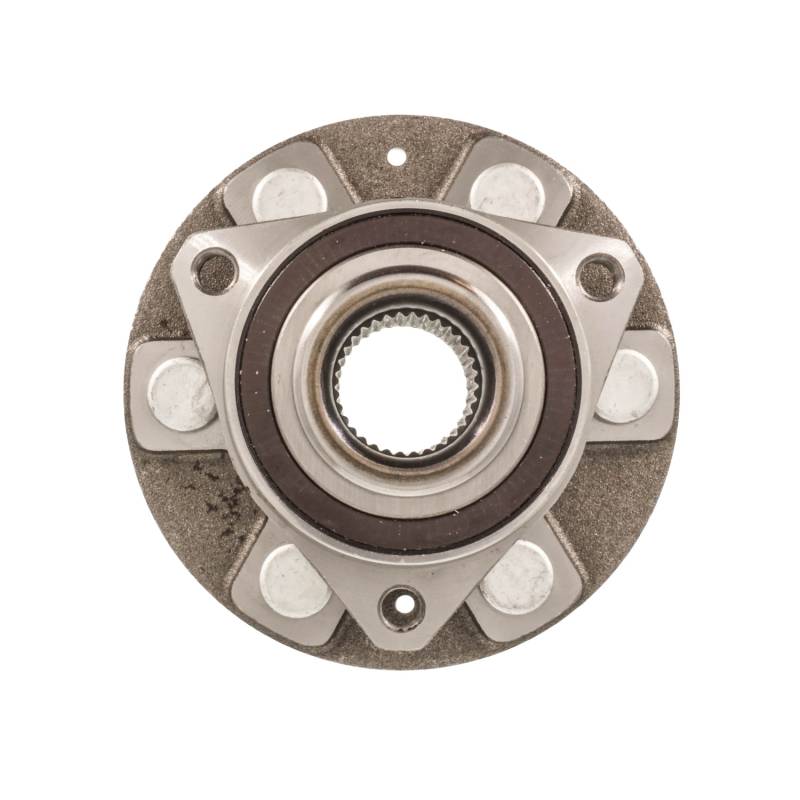

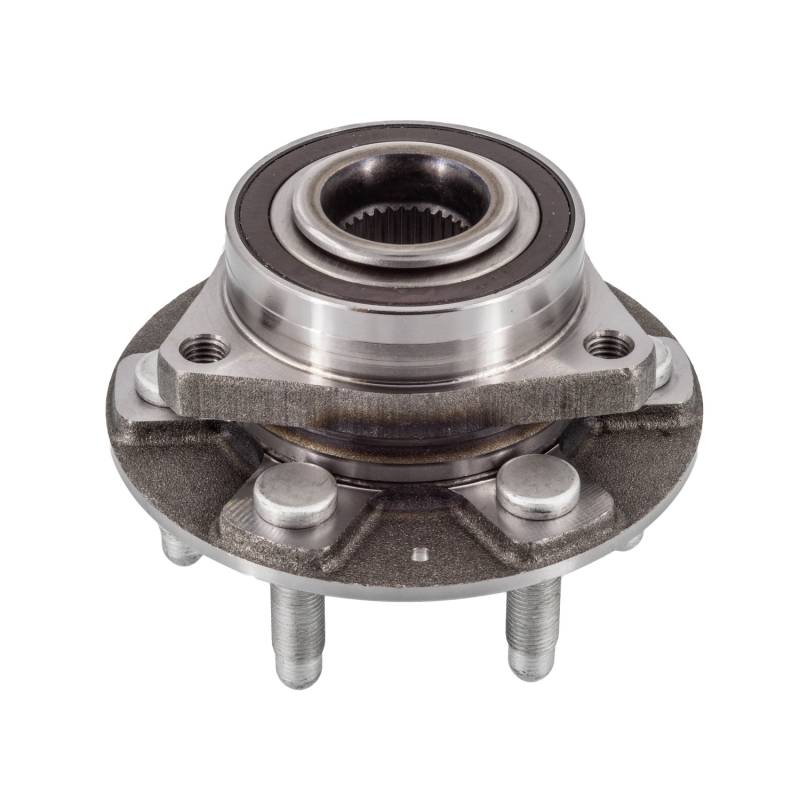

New Hub Assembly Compatible With Cadillac Gmc Buick Chevrolet Xt5 Acadia Limited Acadia Enclave

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

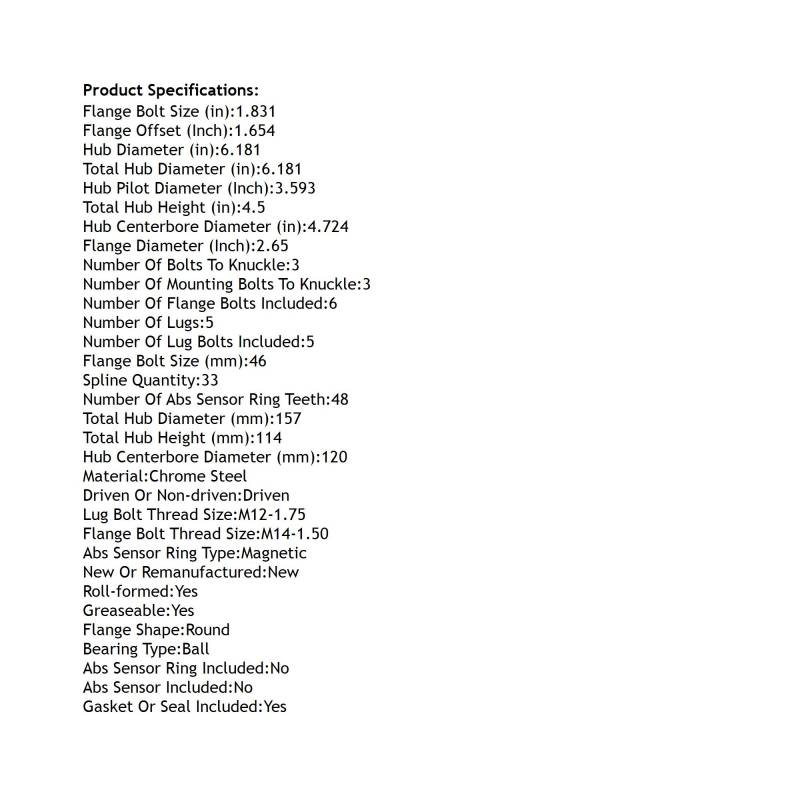

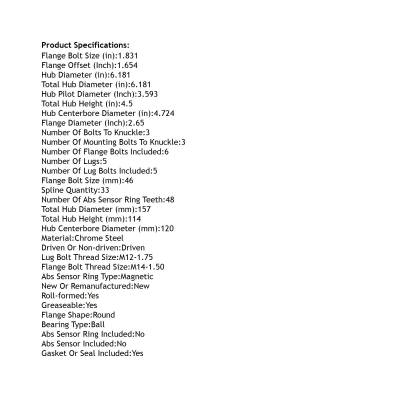

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.831
FLANGE BOLT SIZE (MM): 46
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 2.65
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.181
HUB PILOT DIAMETER (INCH): 3.593
LUG BOLT THREAD SIZE: M12-1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 6.181
TOTAL HUB DIAMETER (MM): 157
TOTAL HUB HEIGHT (IN): 4.5
TOTAL HUB HEIGHT (MM): 114

REPLACES:
ACDELCO: FW446
AUTOPART INTERNATIONAL: 1411-639467
BCA: WE61916
GENERAL MOTORS: 13512896
GSP: 103593
MOOG HUB ASSEMBLIES: 512593

APPLICATIONS:
CADILLAC XT5 (2017-2023)
GMC ACADIA LIMITED (2017-2017)
GMC ACADIA (2017-2023)
BUICK ENCLAVE (2018-2023)
CHEVROLET TRAVERSE (2018-2023)
CADILLAC XT6 (2020-2023)
