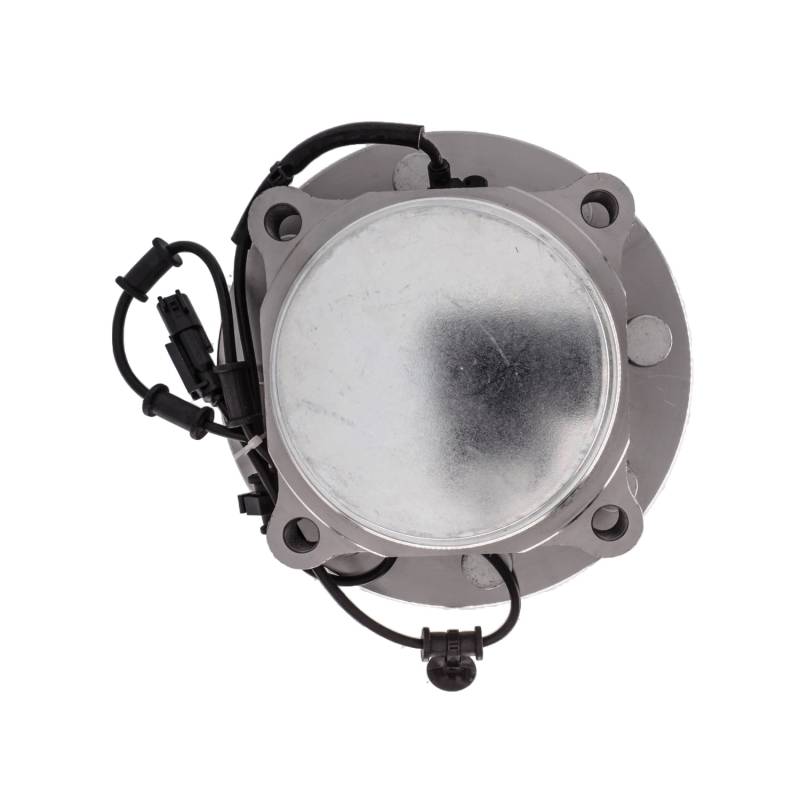

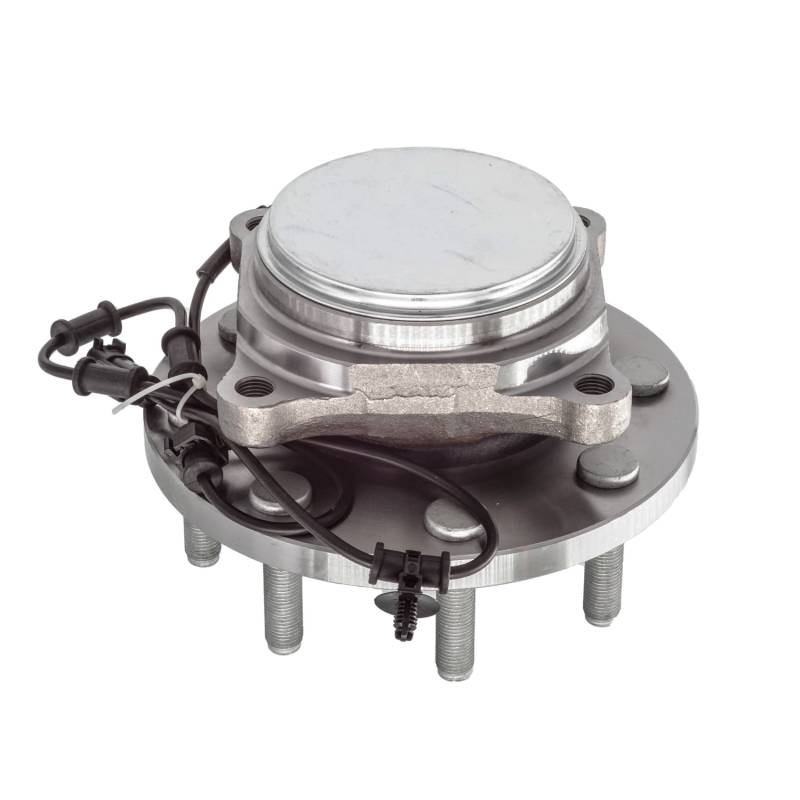

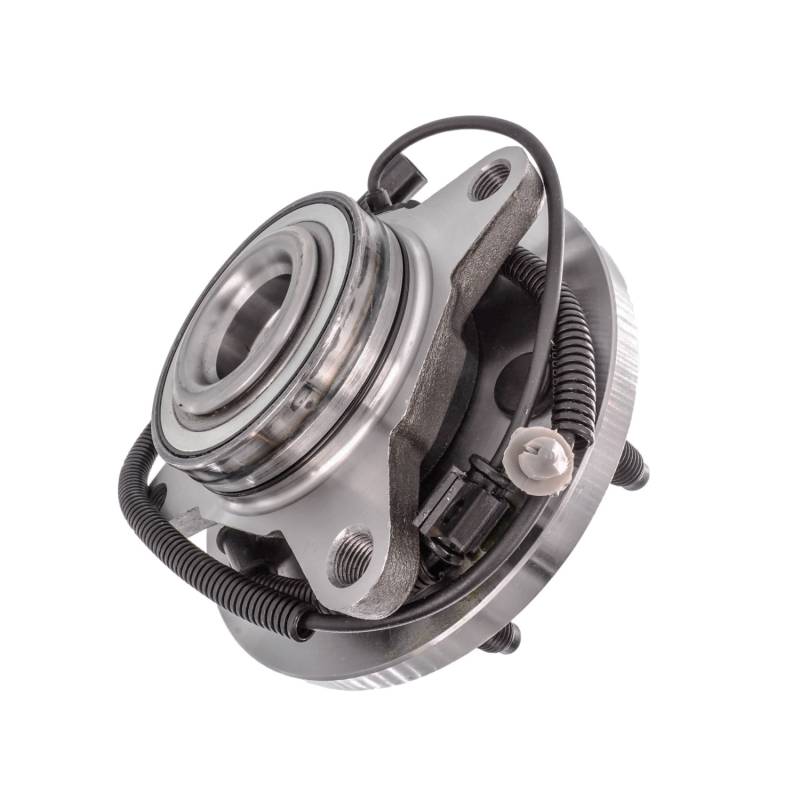

New Hub Assembly Compatible With Ram 2500 3500 4.7L 5.7L 6.7L 2012 2013 By Part Numbers Pt515154

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

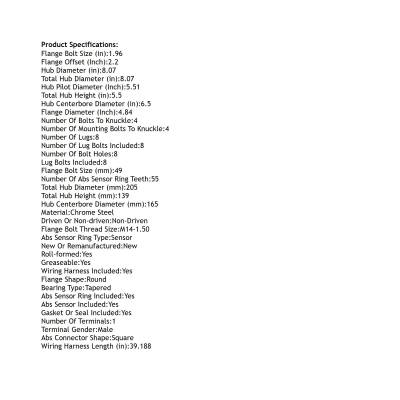

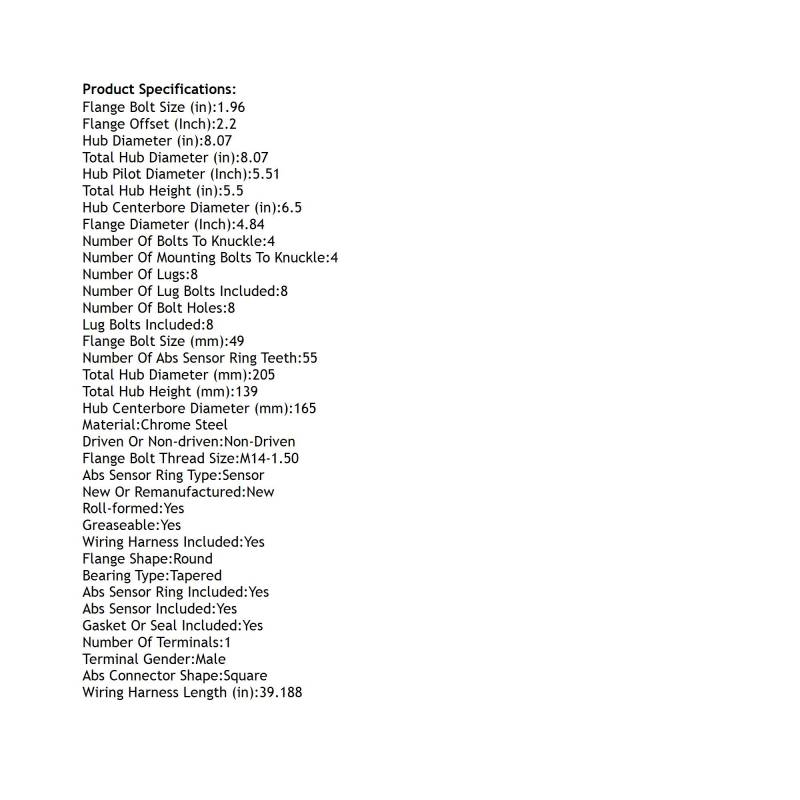

SPECIFICATIONS:
ABS CONNECTOR SHAPE: SQUARE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.96
FLANGE BOLT SIZE (MM): 49
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 4.84
FLANGE OFFSET (INCH): 2.2
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165
HUB DIAMETER (IN): 8.07
HUB PILOT DIAMETER (INCH): 5.51
LUG BOLTS INCLUDED: 8
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLT HOLES: 8
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 8.07
TOTAL HUB DIAMETER (MM): 205
TOTAL HUB HEIGHT (IN): 5.5
TOTAL HUB HEIGHT (MM): 139
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 39.188

REPLACES:
AUTOPART INTERNATIONAL: 1411-556386
BCA: WE61807
CENTRIC PARTS: 40767003
GSP: 126154
MOOG HUB ASSEMBLIES: 515154
NAPA: PBR930552

APPLICATIONS:
RAM 2500 (2012-2013)
RAM 3500 (2012-2012)
