THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

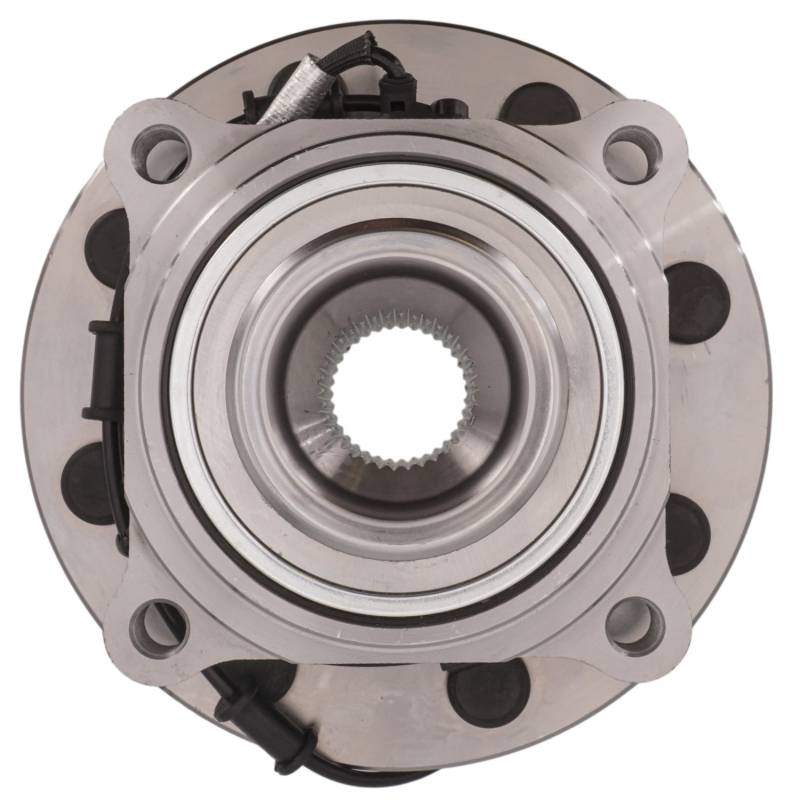

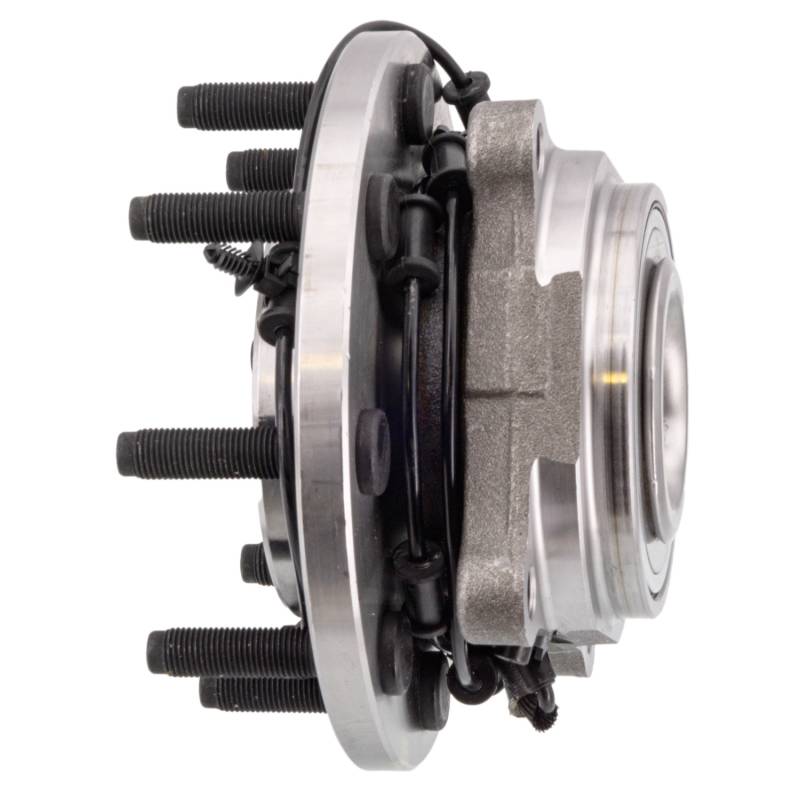

PRODUCT TYPE: HUB ASSEMBLY

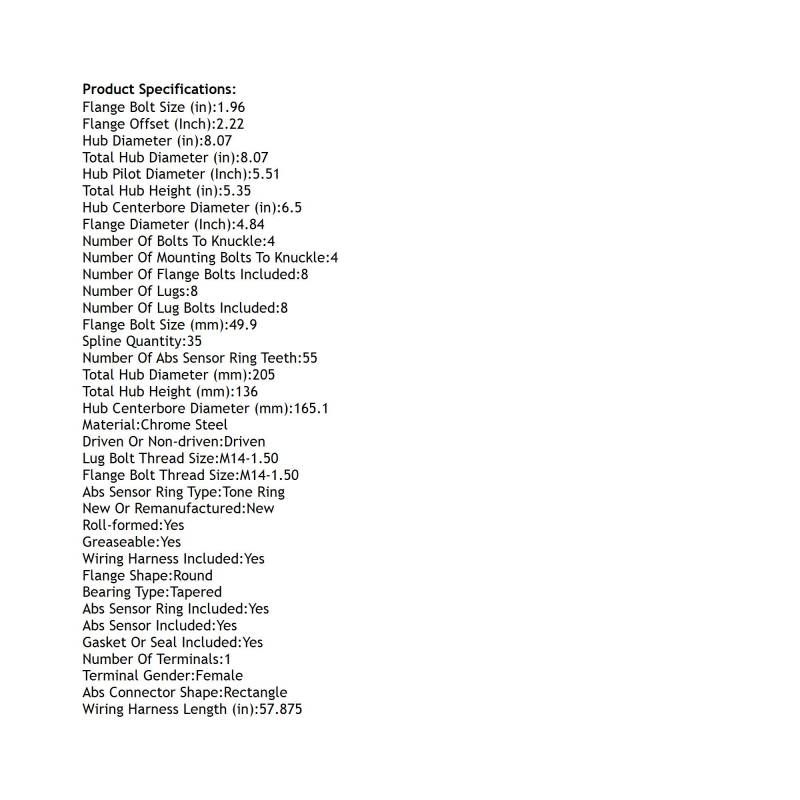

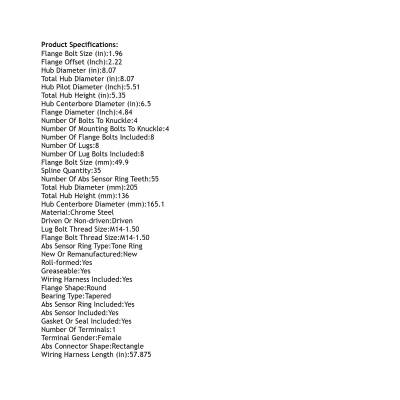

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: TAPERED
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.96
FLANGE BOLT SIZE (MM): 49.9
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 4.84
FLANGE OFFSET (INCH): 2.22
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 6.5
HUB CENTERBORE DIAMETER (MM): 165.1
HUB DIAMETER (IN): 8.07
HUB PILOT DIAMETER (INCH): 5.51
LUG BOLT THREAD SIZE: M14-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 55
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 8
NUMBER OF LUG BOLTS INCLUDED: 8
NUMBER OF LUGS: 8
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 35
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 8.07
TOTAL HUB DIAMETER (MM): 205
TOTAL HUB HEIGHT (IN): 5.35
TOTAL HUB HEIGHT (MM): 136
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 57.875
REPLACES:
AUTOPART INTERNATIONAL: 1411-730388
GSP: 120009
MOOG HUB ASSEMBLIES: 515206
ZZZN: 68292887AA
APPLICATIONS:
RAM 2500 (2019-2024)
RAM 3500 (2019-2024)
